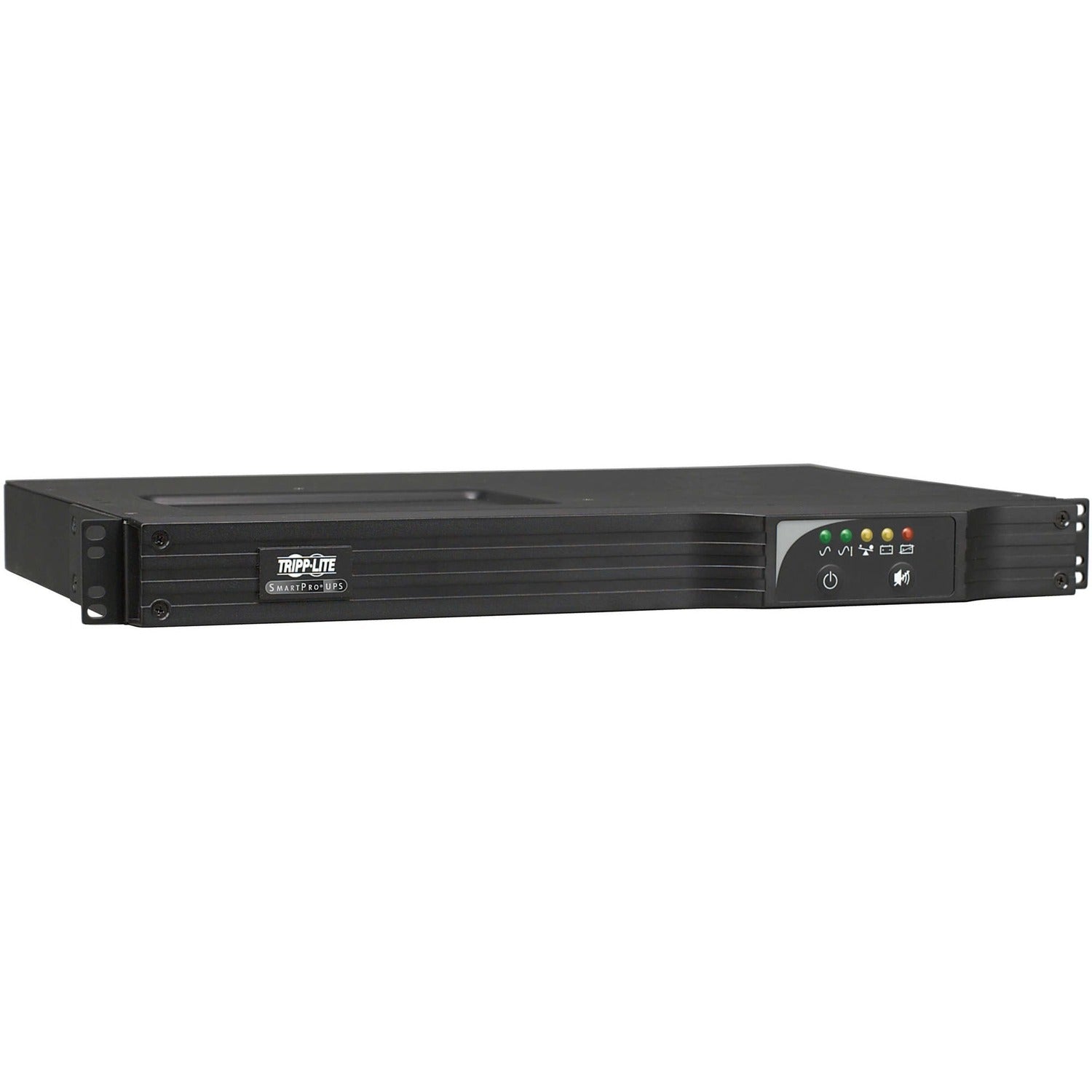

SMART500RT1UN Tripp Lite series SmartPro SMART500RT1UN 500VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART500RT1UN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART500RT1UN
Product Name: SmartPro SMART500RT1UN 500VA Rack/Tower UPS
Marketing Information:

500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The SmartPro® line-interactive SMART500RT1UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The seven-outlet 120V battery backup is ideal protection for rack-mount equipment in your server room or network closet.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes.

Included WEBCARDLX Network Interface Offers 24/7 Access

The Java-free HTML5-based WEBCARDLX interface enables
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Surge-only Outlets: 1
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Telecommunication,Security System,Digital Signage,Network Closet,Server Room,Electronic,Mission Critical Equipment,Business,POS Terminal,VoIP,Desktop Computer

Power Description

Load Capacity (VA): 500 VA
Load Capacity (Watt): 300 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC,110 V AC,115 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 567 J

Management

Network Management: SNMP/Telnet/SSH
Alarm: Power Failure,Overload,Low Battery

Controls/Indicators

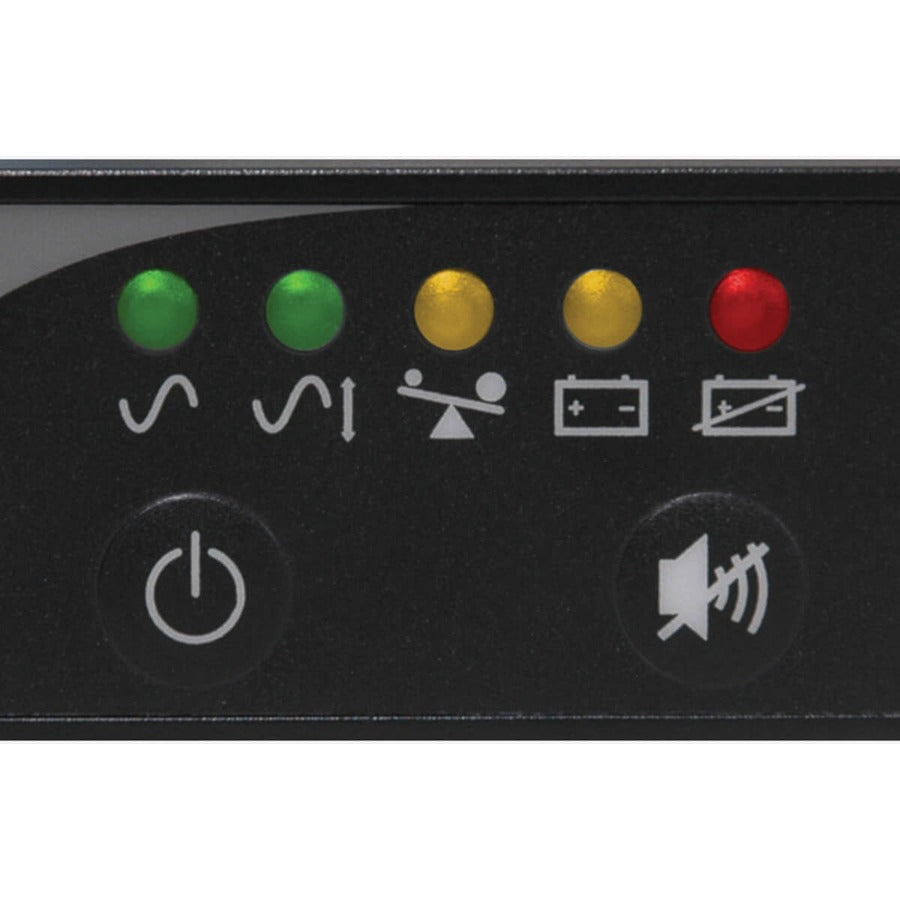

Status Indicators:

LED Indicators:

• 5 LEDs Indicate Line Power
• Battery Power
• Overload
• Voltage Regulation
• Battery Low/Replace Status

Interfaces/Ports

Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 14.40 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 44 BTU/h

Physical Characteristics

Height: 1.73" (44 mm)
Width: 17.32" (440 mm)
Depth: 11.26" (286 mm)
Rack Height: 1U
Form Factor: Rack/Tower
Weight (Approximate): 17.60 lb (7983.23 g)

Miscellaneous

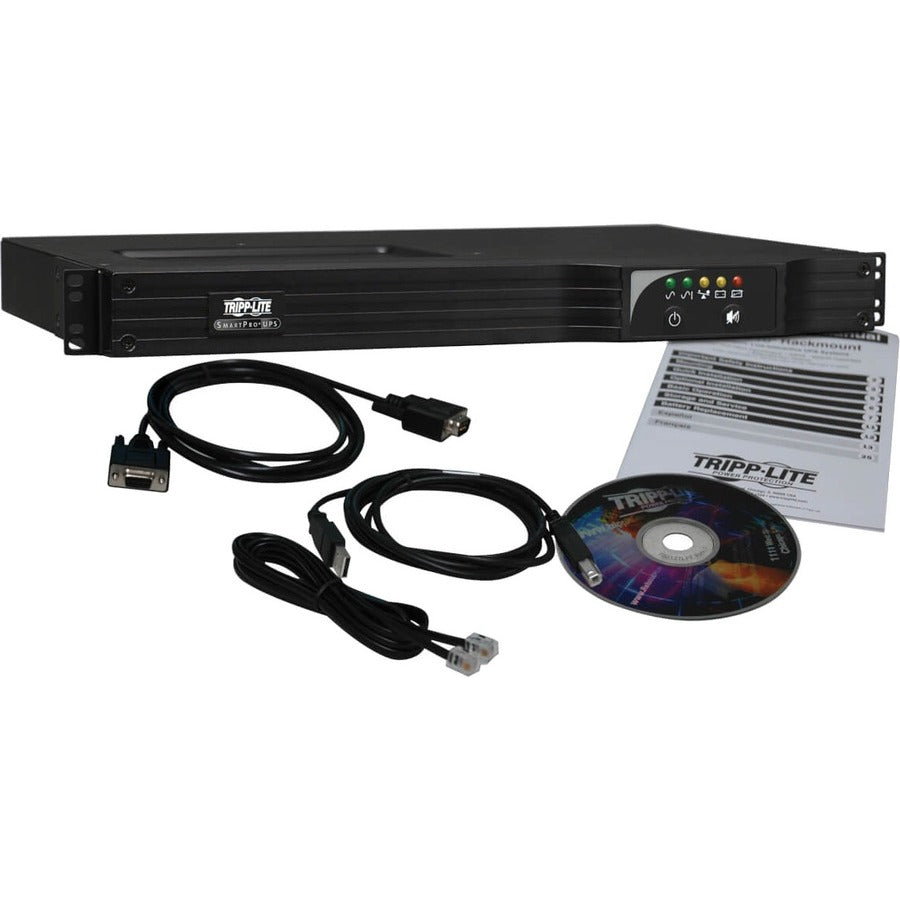

Package Contents:

• SmartPro SMART500RT1UN 500VA Rack/Tower UPS
• WEBCARDLX Network Management Card
• Micro USB to USB-A
• USB Cable
• DB9 Cable
• EPO Cable
• Rack-Mounting Hardware
• Owner's Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
