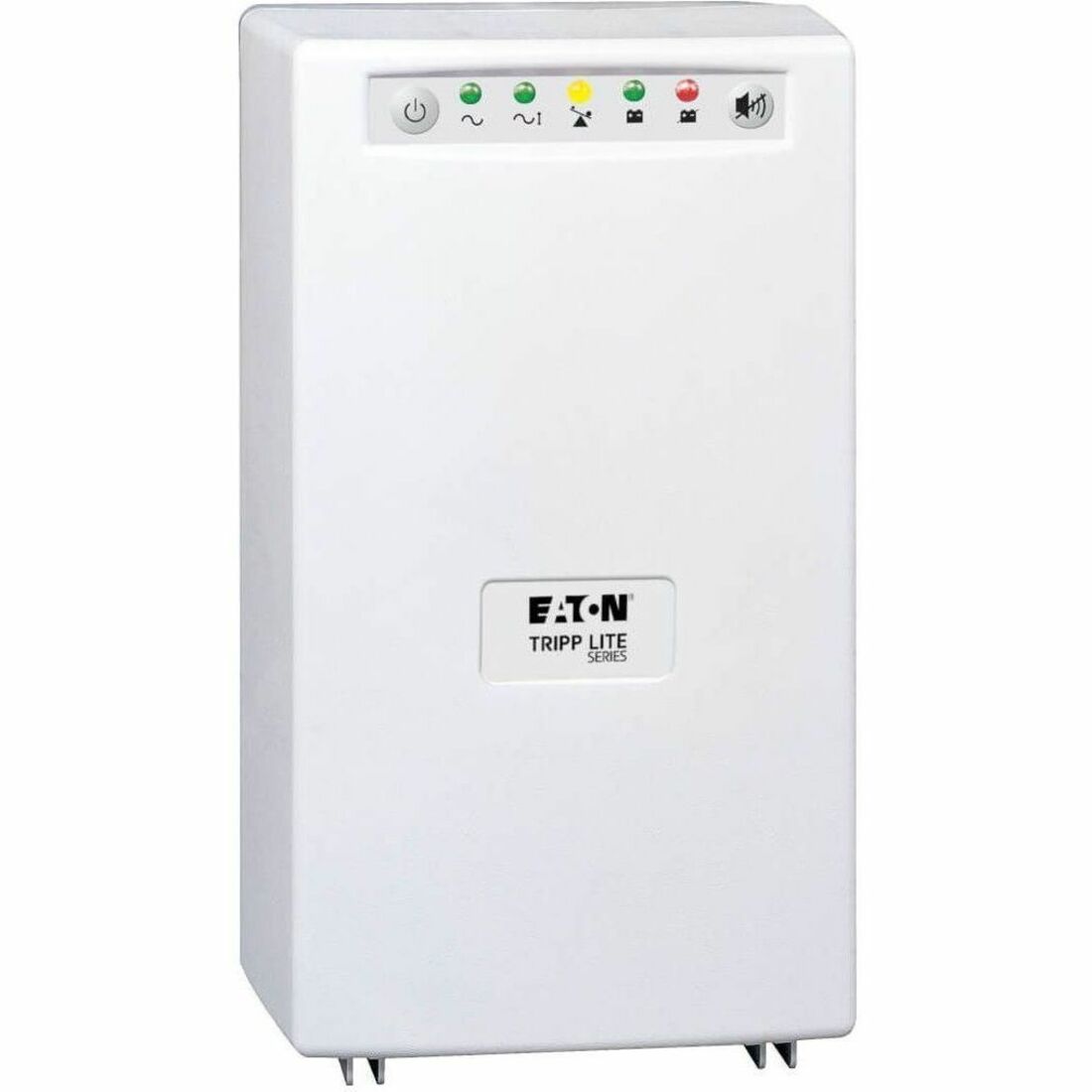

SMART700HG Tripp Lite SmartPro 700HG UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART700HG
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Name: SmartPro 700HG UPS
Marketing Information:

Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protec
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 4 x NEMA 5-15R
Cord Length: 6 ft (1.83 m)
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 700 VA
Load Capacity (Watt): 450 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC

Management

Network Management: SNMP Manageable
Alarm: On Battery,Overload,Low Battery

Controls/Indicators

Status Indicators: 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning

Interfaces/Ports

USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 18 Minute
Backup/Run Time (Half Load): 42 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 12.50" (317.50 mm)
Width: 7" (177.80 mm)
Depth: 9" (228.60 mm)
Form Factor: Tower
Weight (Approximate): 44 lb (19958.06 g)

Miscellaneous

Package Contents:

• SmartPro 700HG UPS
• SMART 700HG Medical Grade UPS System
• One USB and One DB9 monitoring cable
• Warranty information
• Instruction manual

Country of Origin: China

Warranty

Limited Warranty: 2 Year
