Description
User-Manual
Manufacturer-Brochure
Manufacturer Part Number: SMART700HGL
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART700HGL

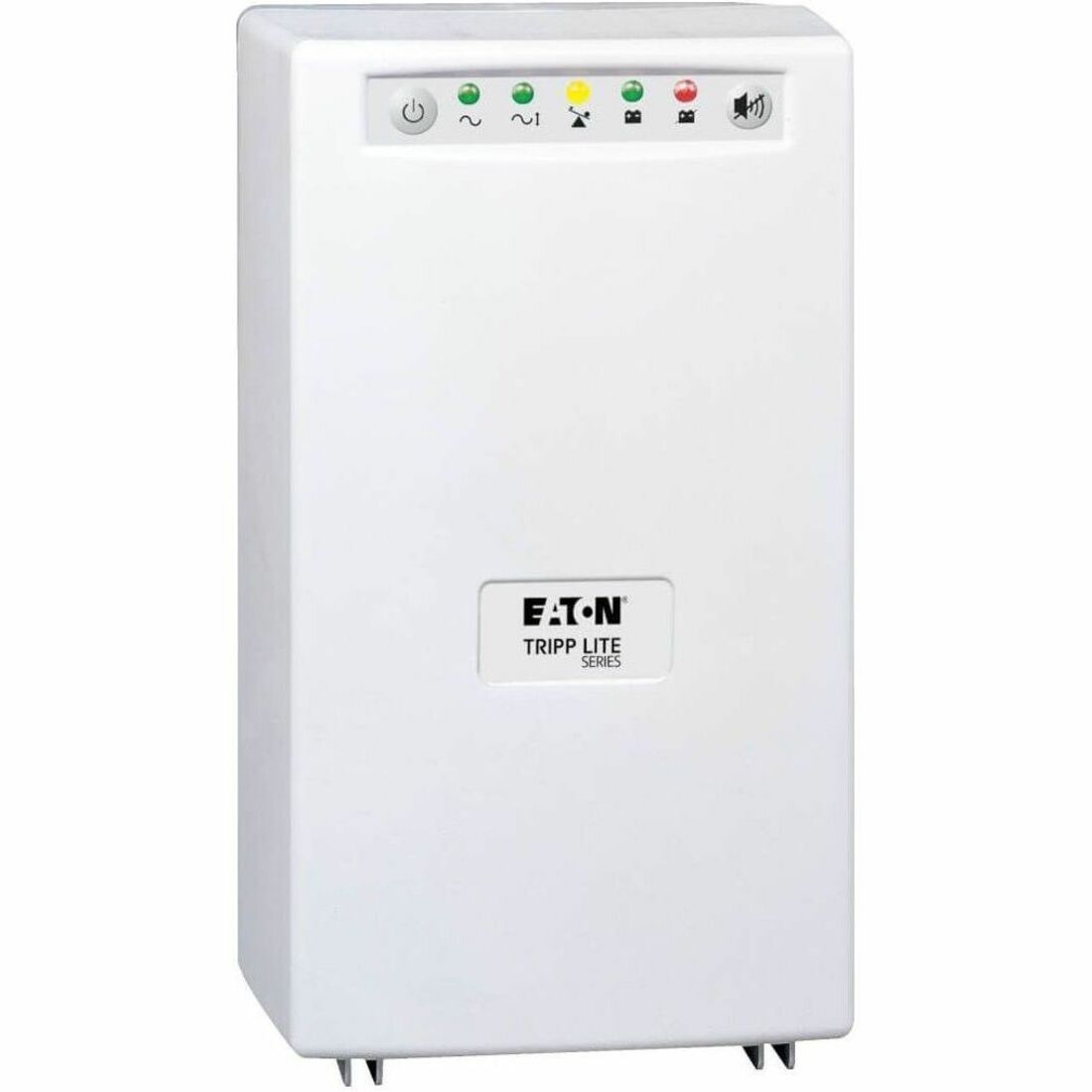

Product Name: SmartPro SMART700HGL 700VA Tower UPS

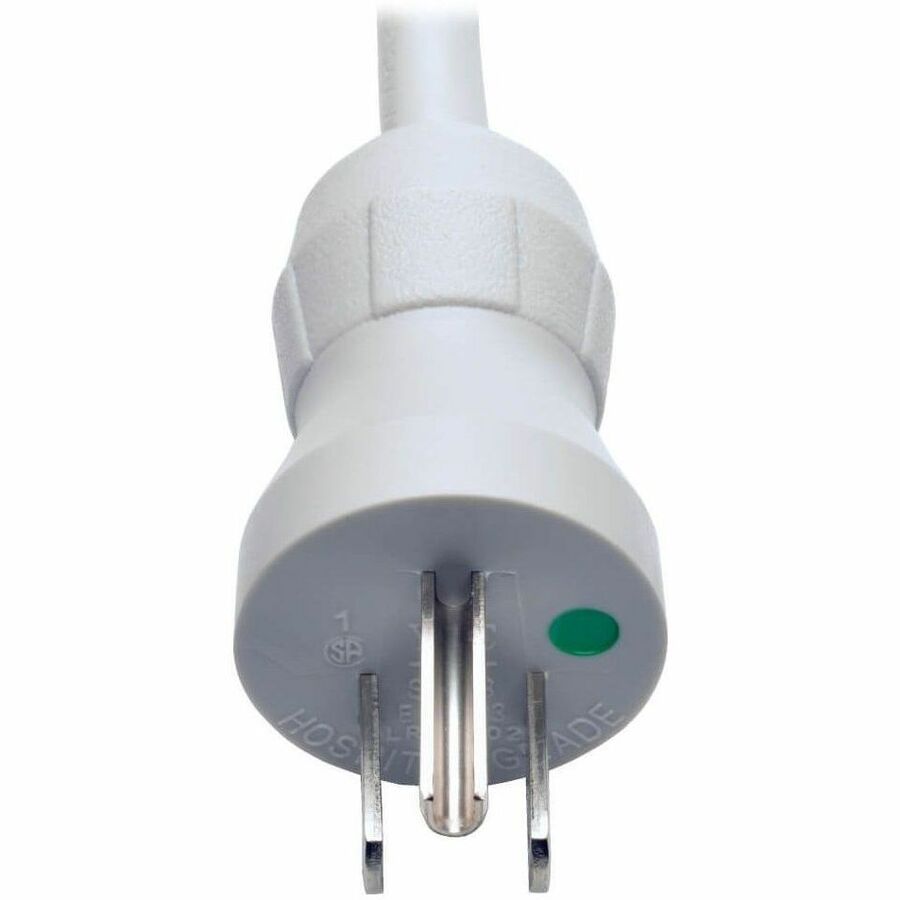

Marketing Information: Tripp Lite's SMART700HGL medical-grade UPS system provides dependable lithium iron phosphate (LiFePO4) battery backup, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. It's fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load and 18 minutes for a full load. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART700HGL's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both batt
Product Type: Line-interactive UPS
Receptacle Detail: 4 x NEMA 5-15R
Load Capacity (Watt): 450 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Typical Battery Recharge Time: 4 Hour
Width: 7.50" (190.50 mm)
Depth: 9" (228.60 mm)
Form Factor: Tower,Wall Mountable
Weight (Approximate): 33.73 lb (15299.67 g)
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SMART700HGL
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART700HGL
Product Name: SmartPro SMART700HGL 700VA Tower UPS
Marketing Information: Tripp Lite's SMART700HGL medical-grade UPS system provides dependable lithium iron phosphate (LiFePO4) battery backup, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. It's fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load and 18 minutes for a full load. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART700HGL's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both batt
Product Type: Line-interactive UPS
Technical Information
Receptacle Type: NEMA 5-15RReceptacle Detail: 4 x NEMA 5-15R
Power Description
Load Capacity (VA): 700 VALoad Capacity (Watt): 450 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Battery Information
Backup/Run Time (Full Load): 18 MinuteTypical Battery Recharge Time: 4 Hour
Physical Characteristics
Height: 12.80" (325.12 mm)Width: 7.50" (190.50 mm)
Depth: 9" (228.60 mm)
Form Factor: Tower,Wall Mountable
Weight (Approximate): 33.73 lb (15299.67 g)
Miscellaneous
Package Contents:- SmartPro SMART700HGL 700VA Tower UPS
- USB Monitoring Cable, 6 ft.
- DB9 Serial Monitoring Cable, 6 ft.
- Owner's Manual
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
