SMART750RM1U Tripp Lite SmartPro 750RM1U UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART750RM1U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro

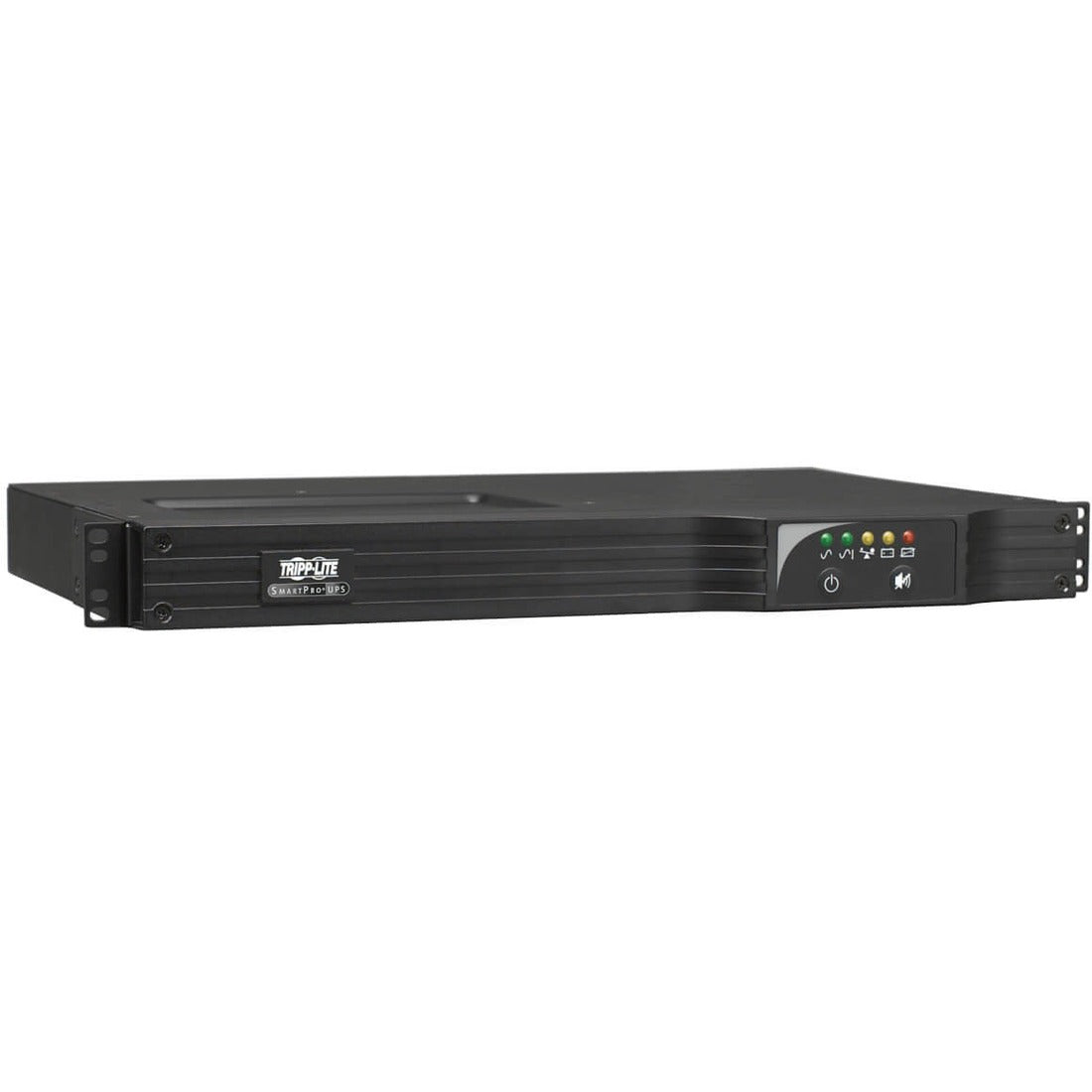

Product Name: SmartPro 750RM1U UPS
Marketing Information:

Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.

More from the Manufacturer

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Cord Length: 10 ft (3.05 m)

Power Description

Load Capacity (VA): 750 VA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave

Management

Network Management: SNMP Manageable
Alarm: On Battery,Overload,Low Battery

Controls/Indicators

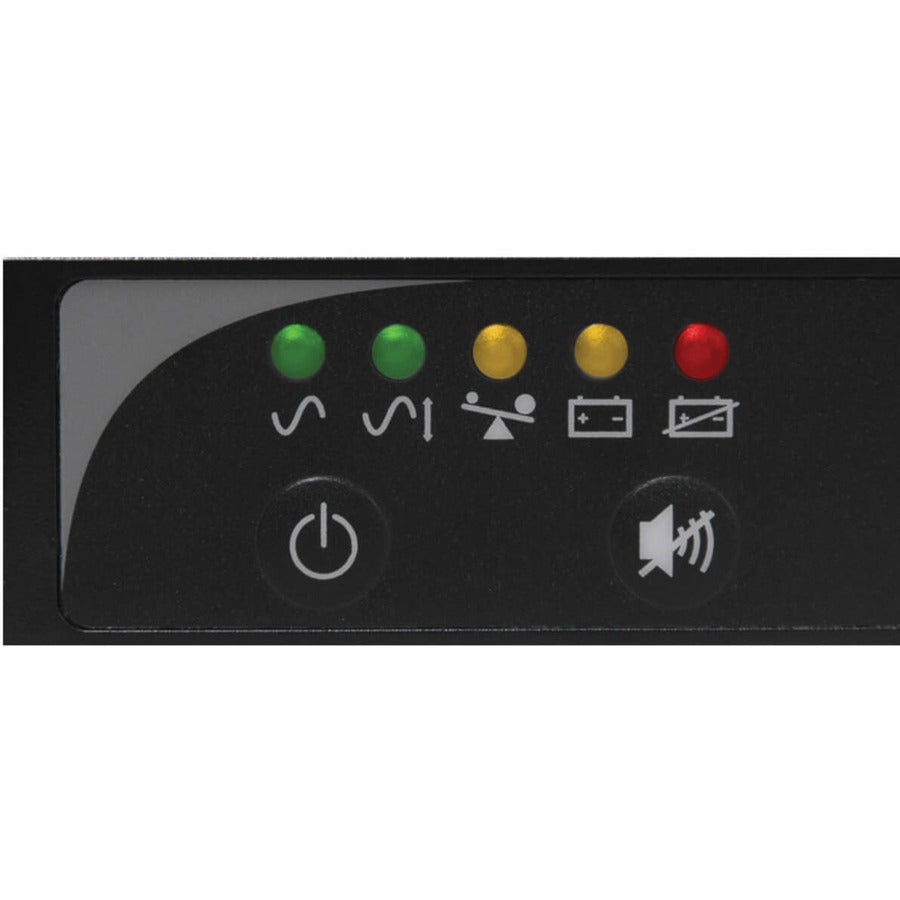

Status Indicators: 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.

Interfaces/Ports

USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4.90 Minute
Backup/Run Time (Half Load): 13.20 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)

Physical Characteristics

Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 16.75" (425.45 mm)
Rack Height: 1U
Weight (Approximate): 30 lb (13607.77 g)

Miscellaneous

Package Contents:

• SMART750RM1U UPS System
• Mounting hardware
• Cabling for USB & DB9 monitoring and EPO switching
• PowerAlert unattended shutdown and UPS/Power monitoring software
• Warranty information and instruction manual

Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 3 Year
