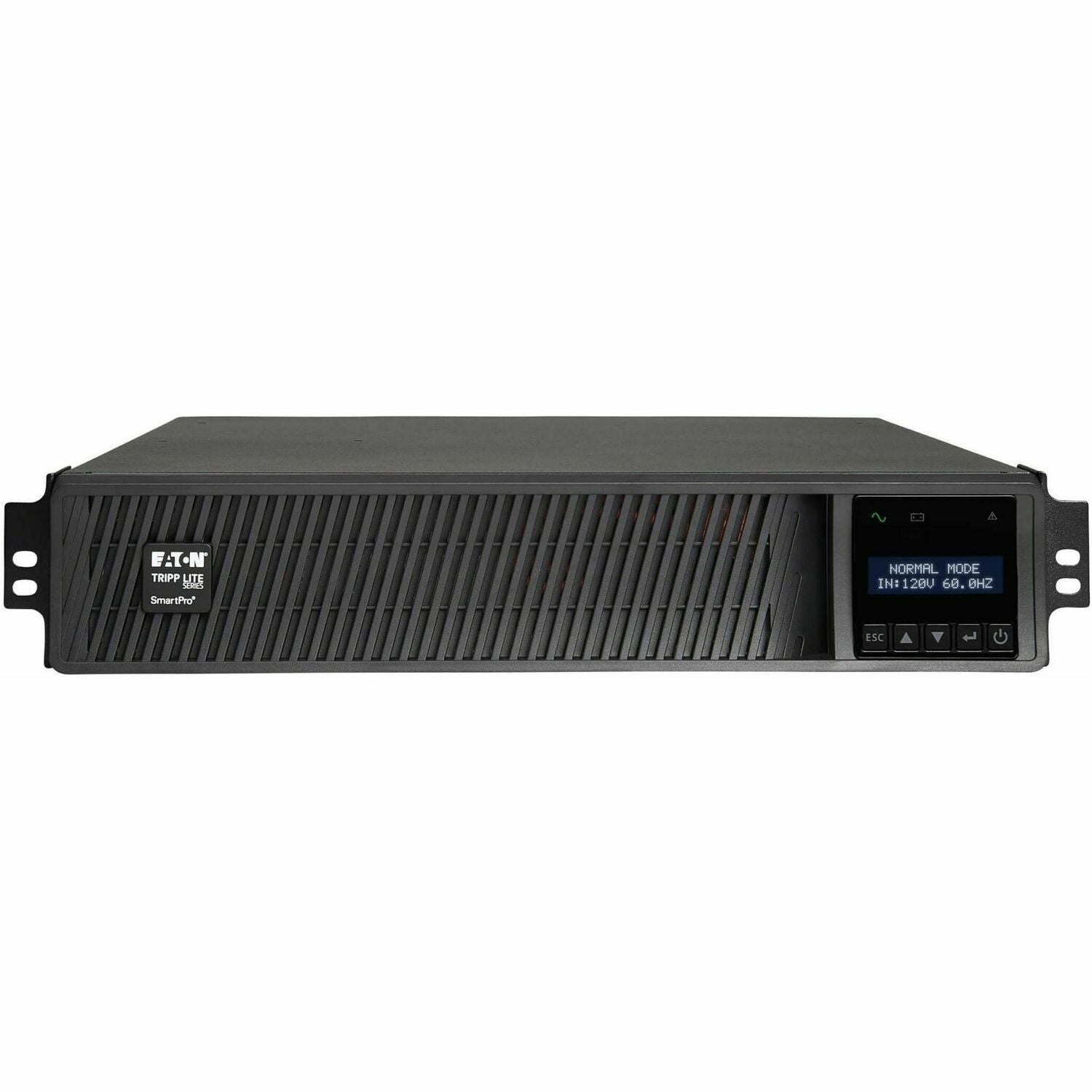

SMART750RMXL2U Tripp Lite SmartPro SMART750RMXL2U 750VA Tower/Rack-mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART750RMXL2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART750RMXL2U
Product Name: SMART750RMXL2U UPS System
Marketing Information: 750VA/750W/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART750RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or reb
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Transfer Time: 4 ms

Power Description

Load Capacity (VA): 750 VA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Input Current: 6.80 A
Output Voltage: 110 V AC,115 V AC,120 V AC

Management

Network Management: SNMP Manageable

Interfaces/Ports

USB: Yes

Battery Information

Backup/Run Time (Full Load): 8.50 Minute
Backup/Run Time (Half Load): 21 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour

Physical Characteristics

Height: 3.45" (87.63 mm)
Width: 17.35" (440.69 mm)
Depth: 13.15" (334.01 mm)
Rack Height: 2U

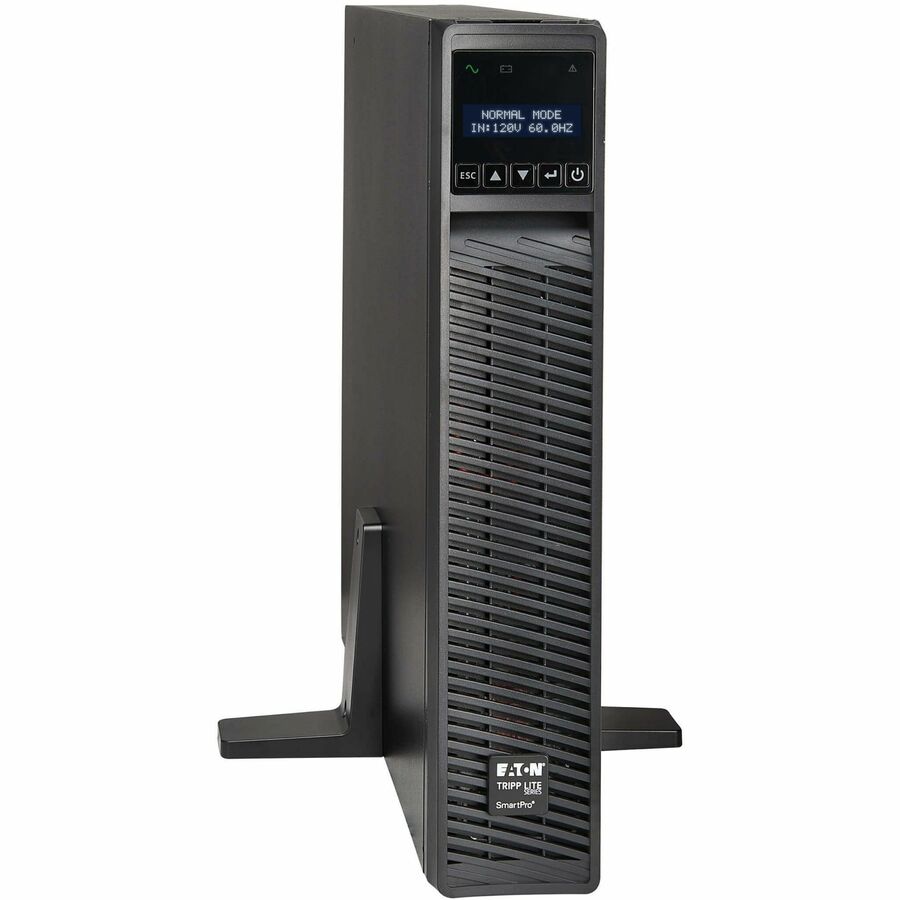

Form Factor: Rack/Tower
Weight (Approximate): 35.40 lb (16057.17 g)

Miscellaneous

Package Contents:

• SMART750RMXL2U UPS System
• PowerAlert Software with USB
• Serial & EPO Cabling
• 4 Post Installation Kit
• Owner's Manual

Software Included: PowerAlert Software
Country of Origin: Taiwan
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
