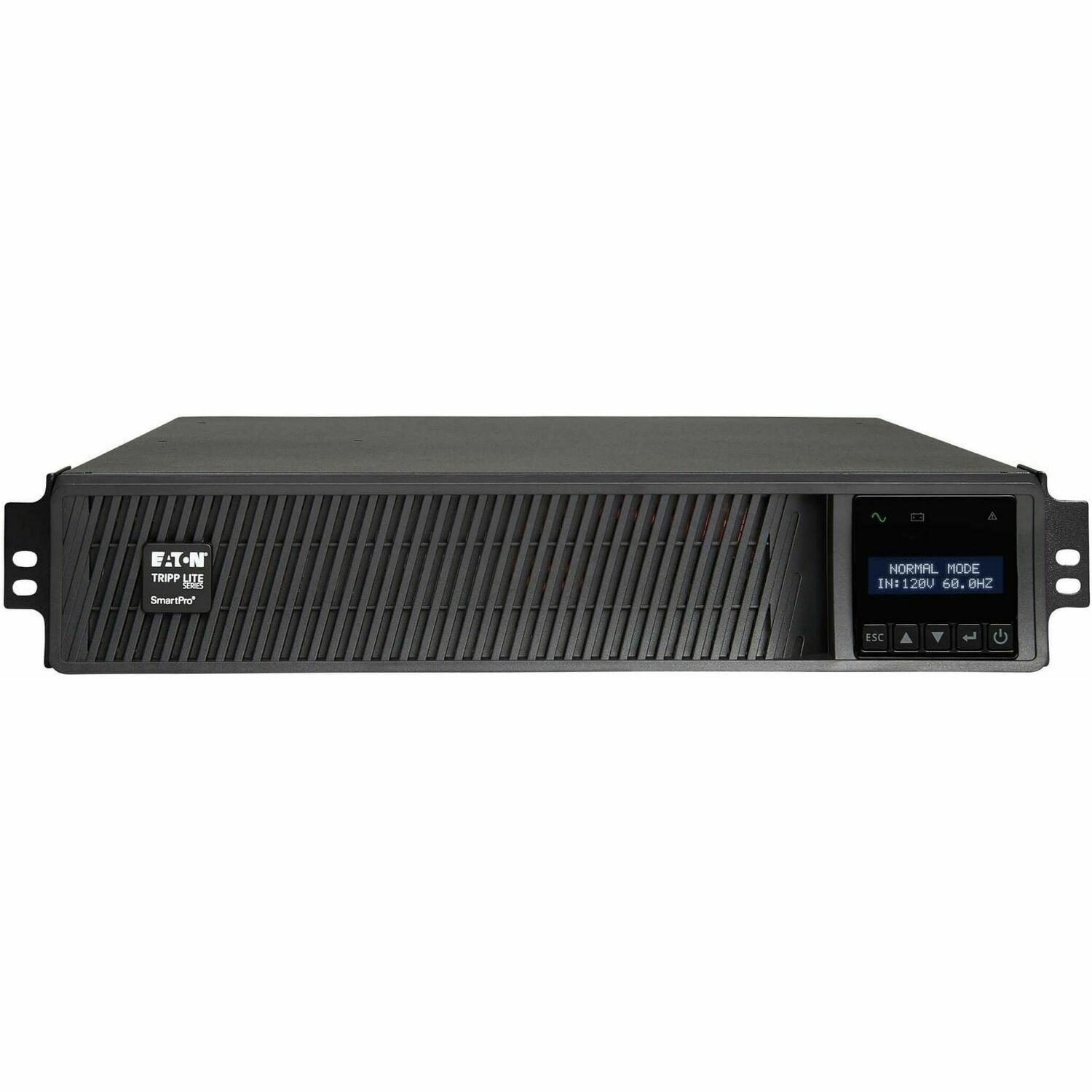

SMART750RMXL2UN Tripp Lite series SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMART750RMXL2UN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMART750RMXL2UN
Product Name: SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS
Marketing Information: 750VA/750W/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

The series SmartPro rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART750RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without inte
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Telecommunication,Network Device,Network Closet,Gaming Console,Digital Signage,Retail Building,Casino,Mission Critical Equipment,Server,Security System,Hotel/Motel Management,Wiring Closet

Power Description

Load Capacity (VA): 750 VA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J

Management

Network Management: SNMP/Telnet/SSH
Alarm: UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

Front Panel LCD Information And Configuration Screen:

• UPS and Site Power Status
• Operating Data
• Plus Configuration Of Voltage
• Frequency
• Operating Mode
• Alarm Function and A Variety Of Additional Options

Interfaces/Ports

Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 24 V DC
Backup/Run Time (Full Load): 8.50 Minute
Backup/Run Time (Half Load): 20.70 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Replaceable Battery: Yes

Environmental Conditions

Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 109 BTU/h

Physical Characteristics

Height: 3.46" (88 mm)
Width: 17.36" (441 mm)
Depth: 13.15" (334 mm)
Rack Height: 2U

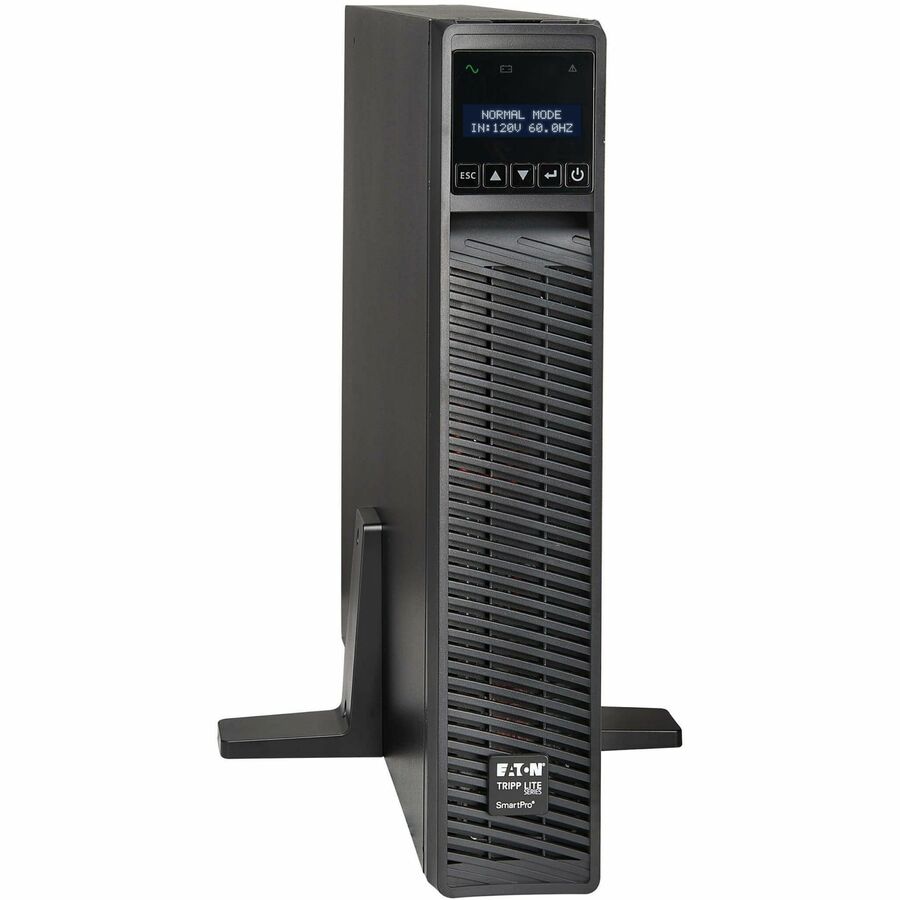

Form Factor: Rack/Tower
Weight (Approximate): 35.40 lb (16057.17 g)

Miscellaneous

Package Contents:

• SmartPro SMART750RMXL2UN 750VA Rack/Tower UPS
• WEBCARDLX Network Management Card
• USB Cable
• DB9 Cable
• EPO Cable
• Rack-mounting Hardware
• Owner's Manual

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
