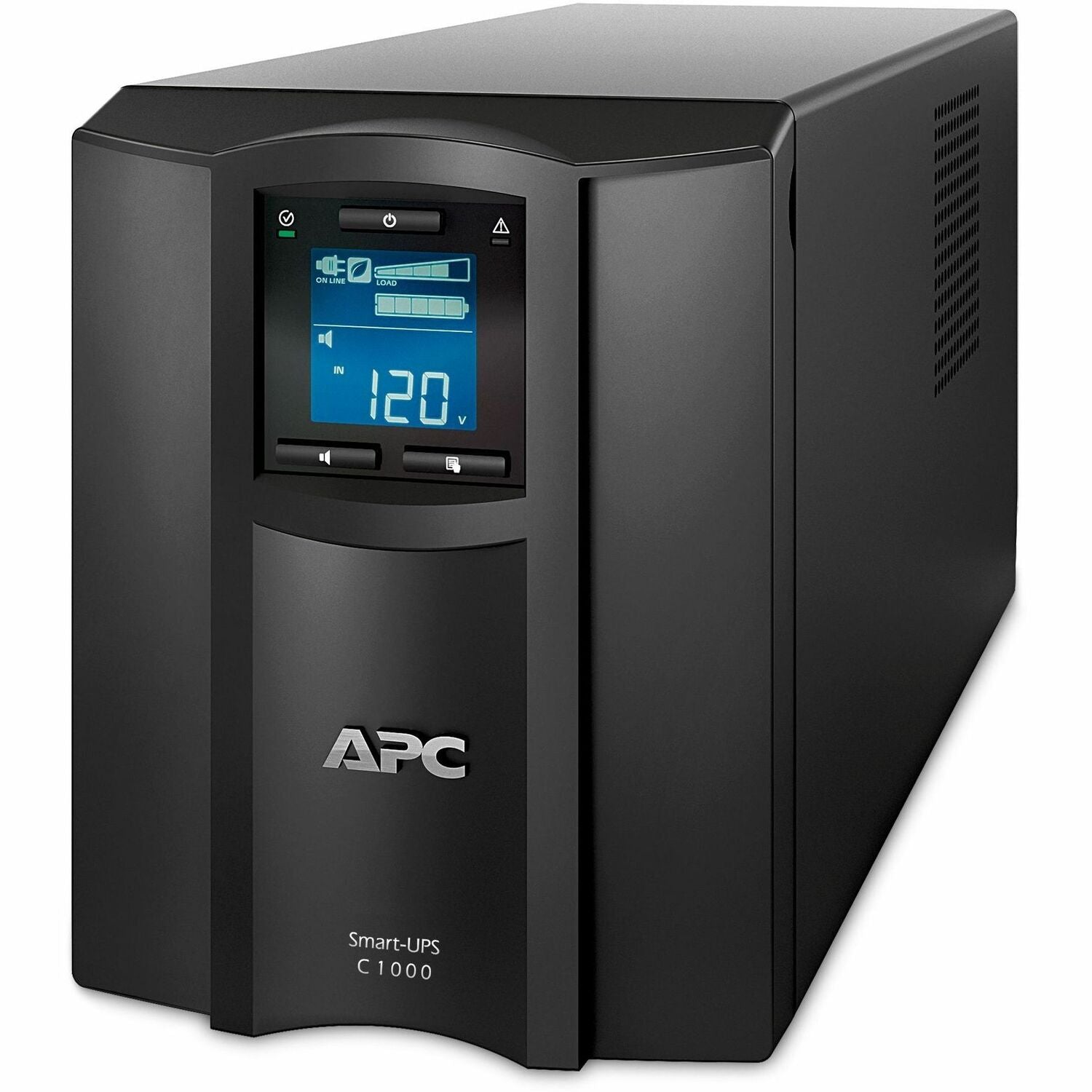

SMC1000C APC Smart-UPS C, Line Interactive, 1000VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMC1000C
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS C 1000VA LCD 120V with SmartConnect
Marketing Information:

This APC Smart-UPS is designed for small to medium business users to maintain business uptime and continuity. This 1000VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. The UPS comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. This UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS C has an intuitive graphic LCD interface. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This line interactive UPS operates in green mode for high operating efficiency. Connect to either monitoring software using the Port on the back of the device. The SMC has a 2-year warranty, and comes with a built-in lead-acid battery. This UPS provides surge protection against lightning strikes, power sags, brownouts and surges. This is compatible with a dedicated user-replaceable battery, and the APC replacement batte
Packaged Quantity: 1
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 6 ft (1.83 m)
Transfer Time: 10 ms
Application/Usage: Server,Router,Switch,Network Hub,Network Device,POS Terminal

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Input Voltage Range: 93 V AC - 130 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Interfaces/Ports

Network (RJ-45): Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 9.20 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black
Height: 8.62" (219 mm)
Width: 6.73" (171 mm)
Depth: 17.28" (439 mm)
Rack Height: 2U
Form Factor: Tower
Weight (Approximate): 37.48 lb (17000.64 g)

Miscellaneous

Package Contents:

Smart-UPS C 1000VA LCD 120V with SmartConnect

USB cable

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
