SMT1000RM2UC APC Smart-UPS, Line Interactive, 1000VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT1000RM2UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Model: SMT1000RM2UC

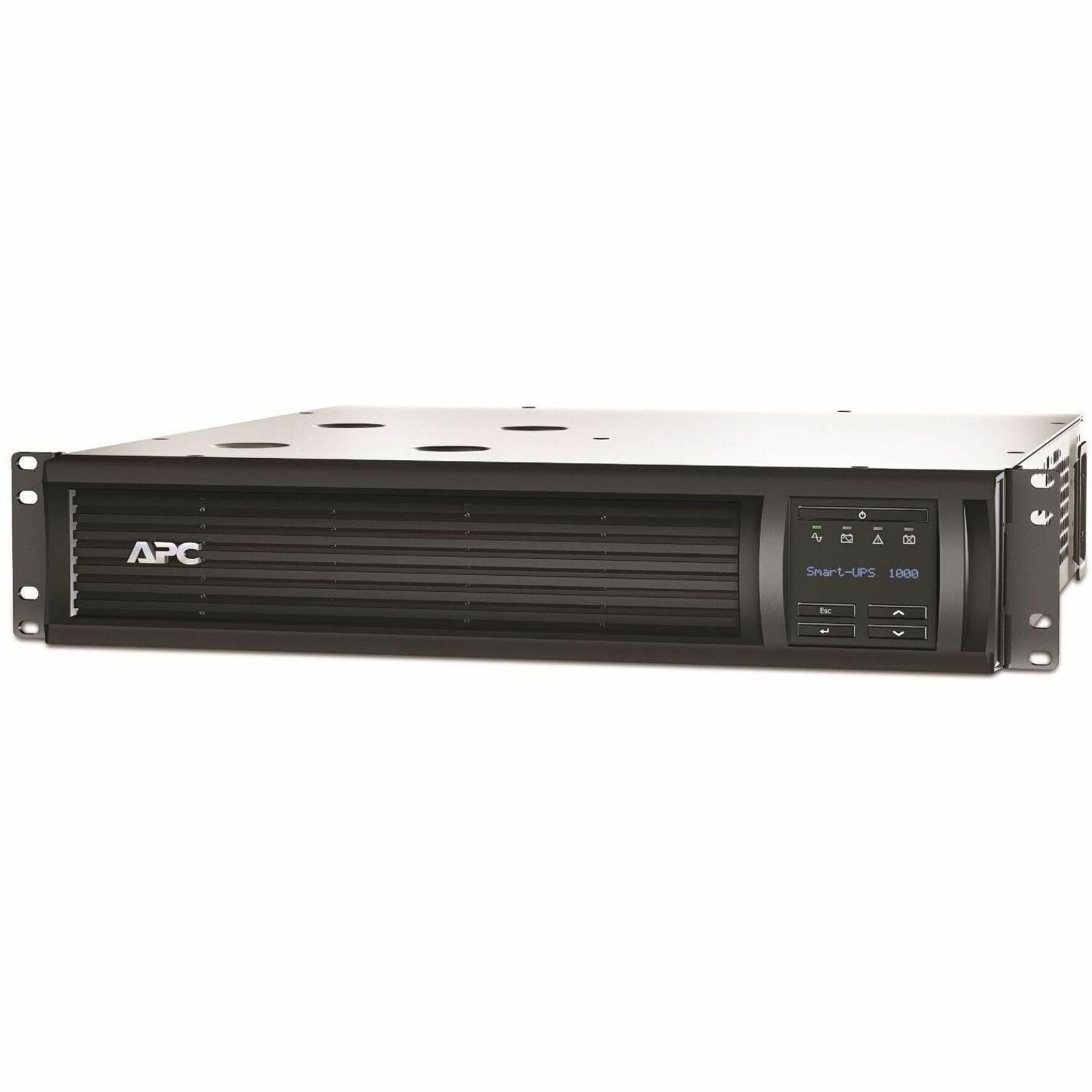

Product Name: Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS
Marketing Information:

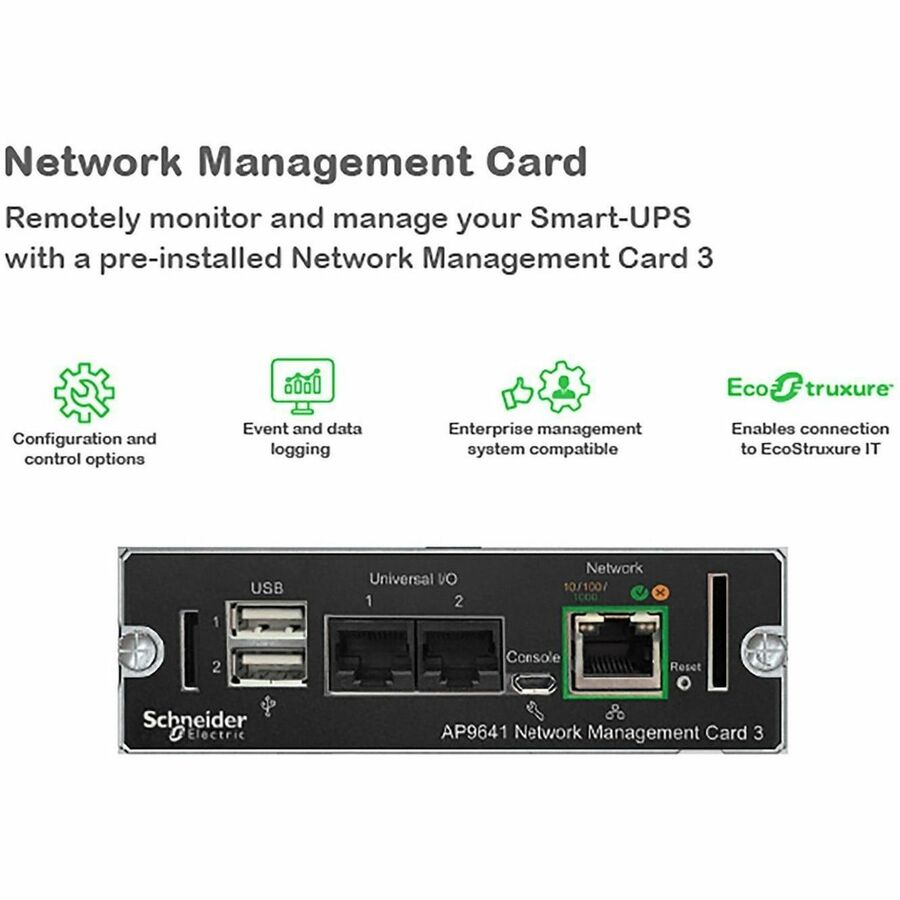

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore U
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

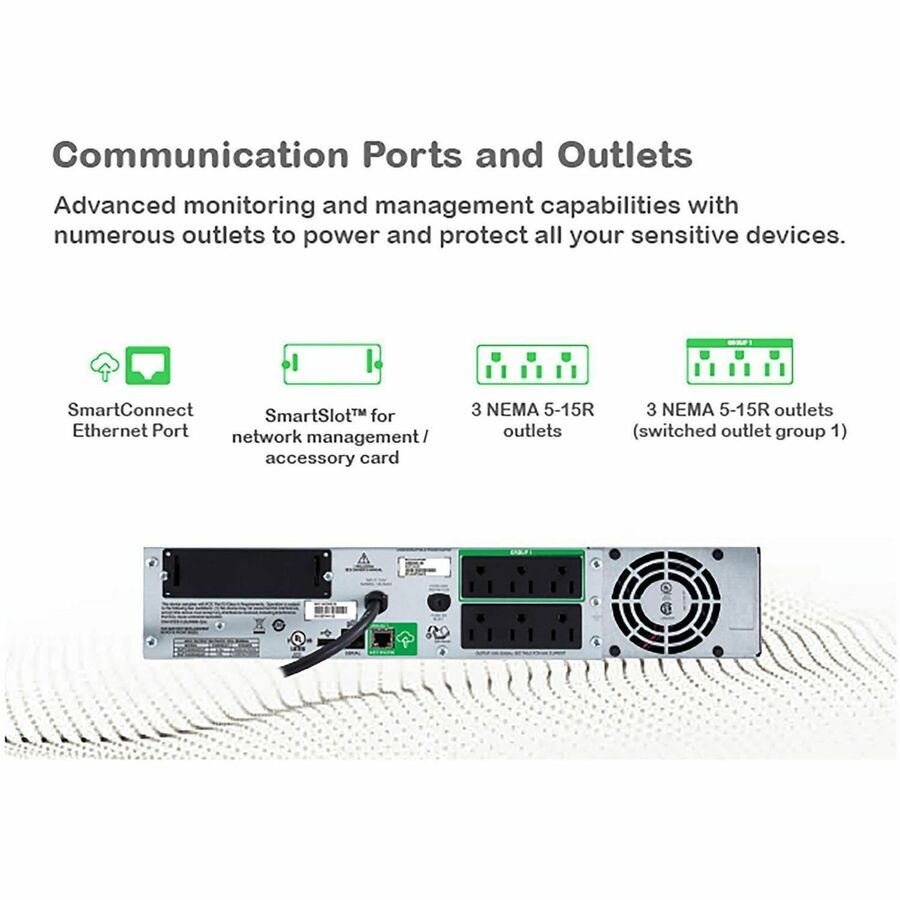

Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Cord Length: 8 ft (2.44 m)
Transfer Time: 6 ms
Phase: Single Phase
Application/Usage: Server,Switch,Router,Network Device,POS Terminal,Network Hub

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 700 W
Input Voltage: 120 V
Input Voltage Range: 82 V AC - 144 V AC,75 V AC - 154 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Battery Information

Battery Chemistry: Lead Acid
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black

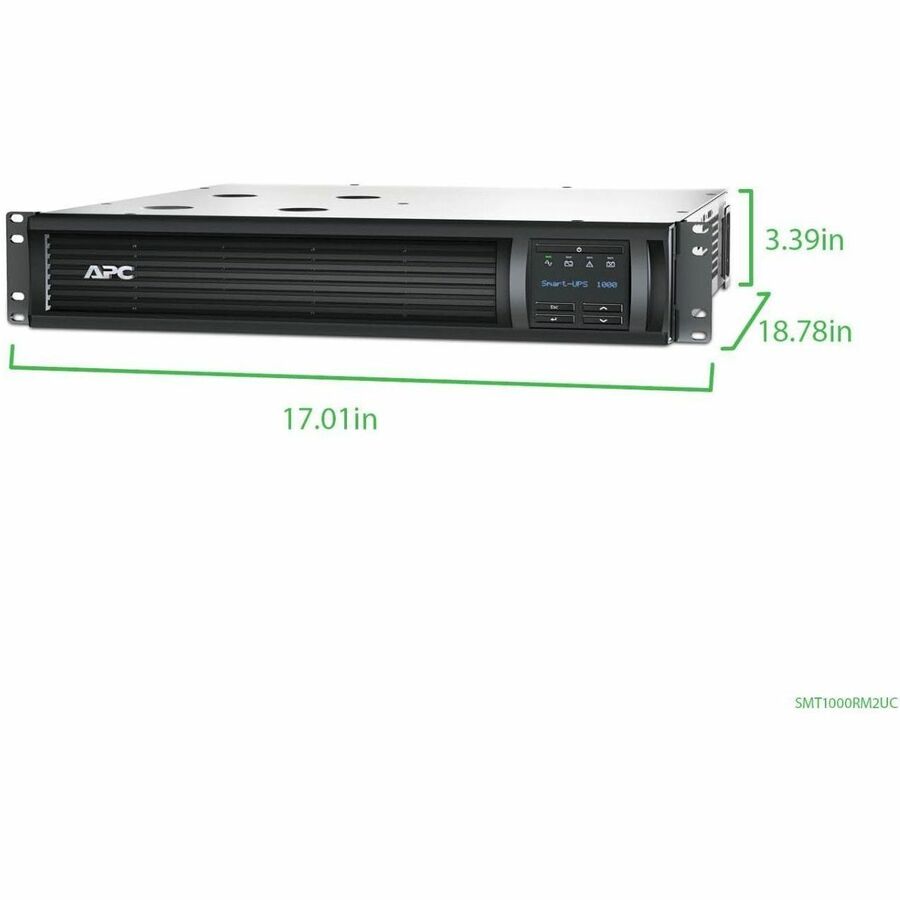

Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 18.78" (477 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 55.78 lb (25301.38 g)

Miscellaneous

Package Contents:

Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS

Documentation CD

Installation guide

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
