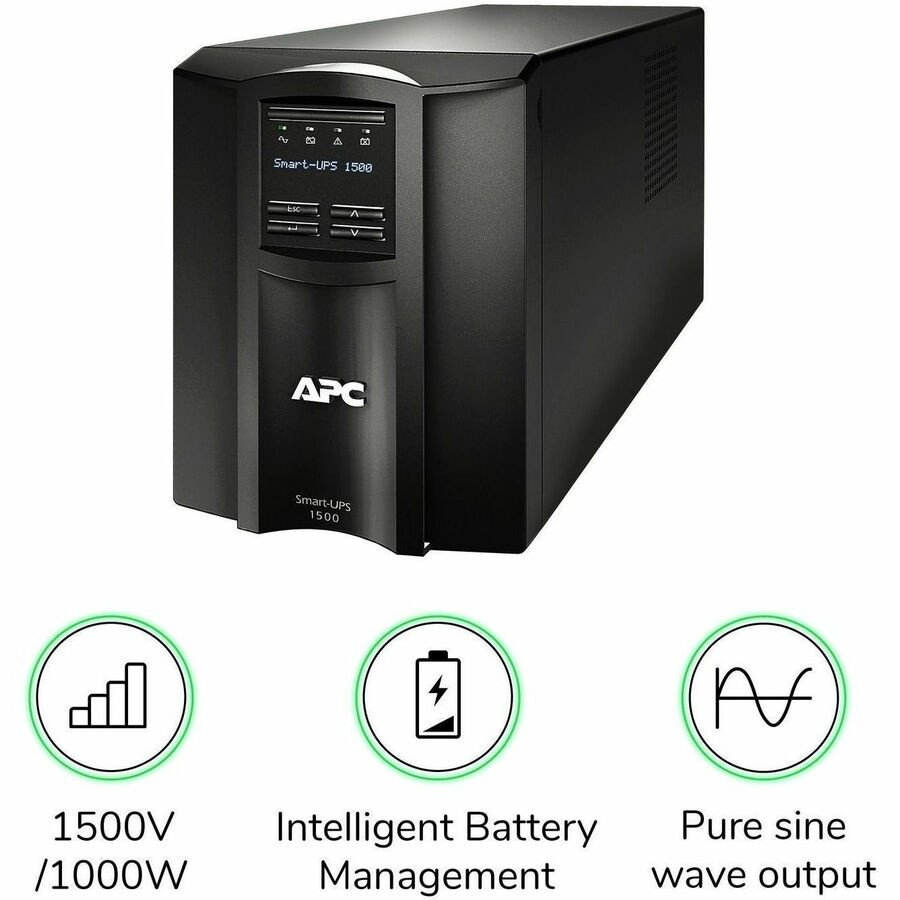

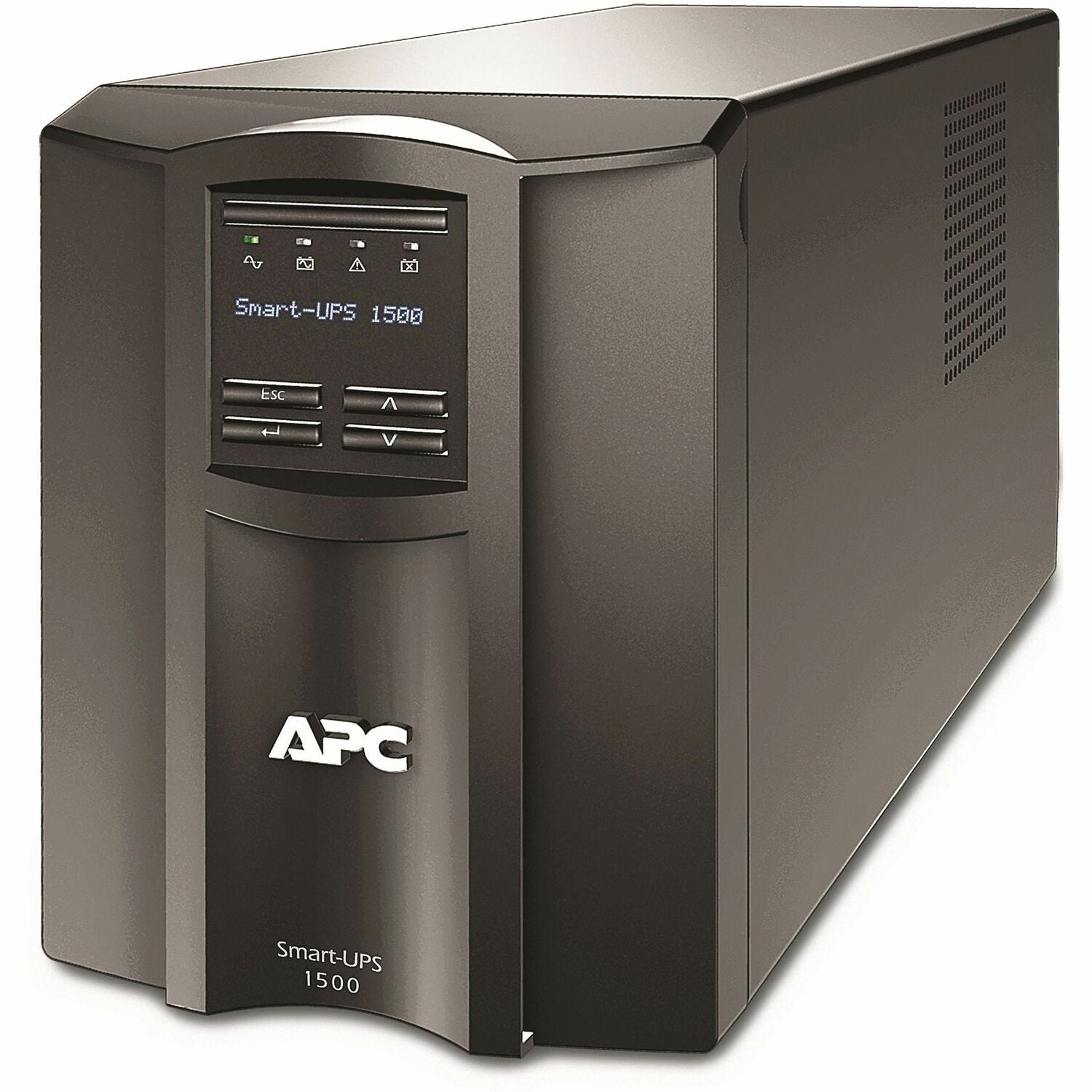

SMT1500C APC Smart-UPS, Line Interactive, 1500VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT1500C
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Model: SMT1500C
Product Name: Smart-UPS 1500VA LCD 120V with SmartConnect
Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performa
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

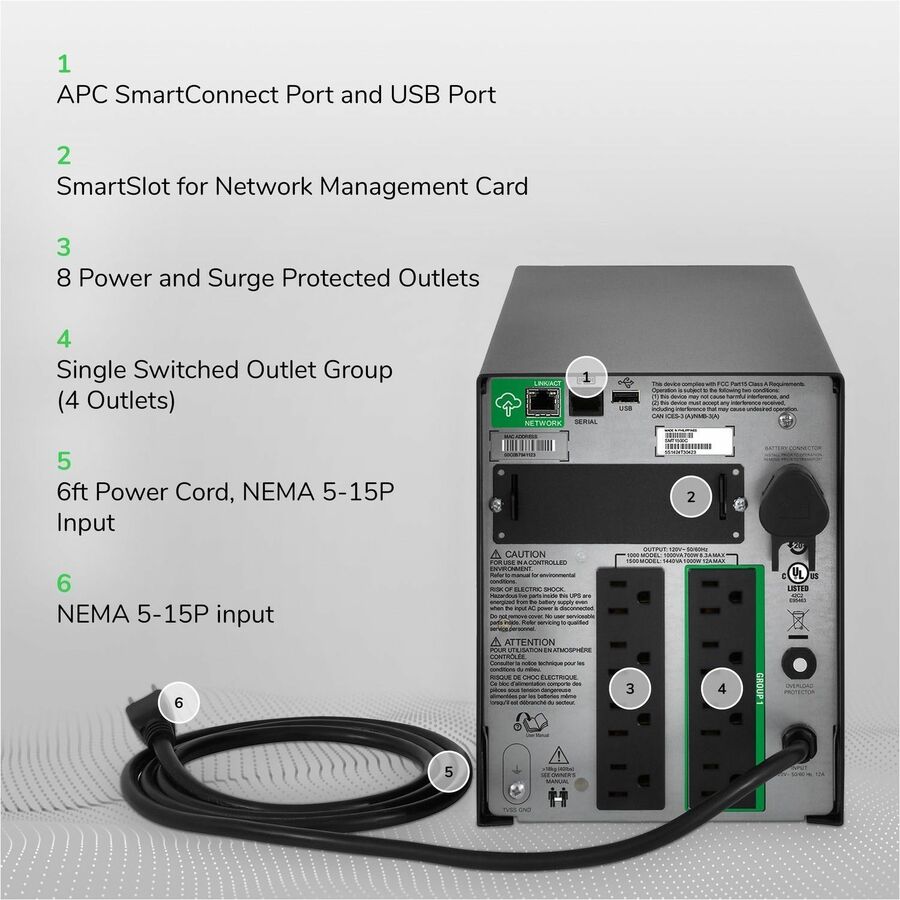

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 6 ft (1.83 m)
Transfer Time: 6 ms
Phase: Single Phase
Application/Usage: Server,POS Terminal,Router,Switch,Network Hub,Network Device

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V
Input Voltage Range: 82 V AC - 144 V AC,75 V AC - 154 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz

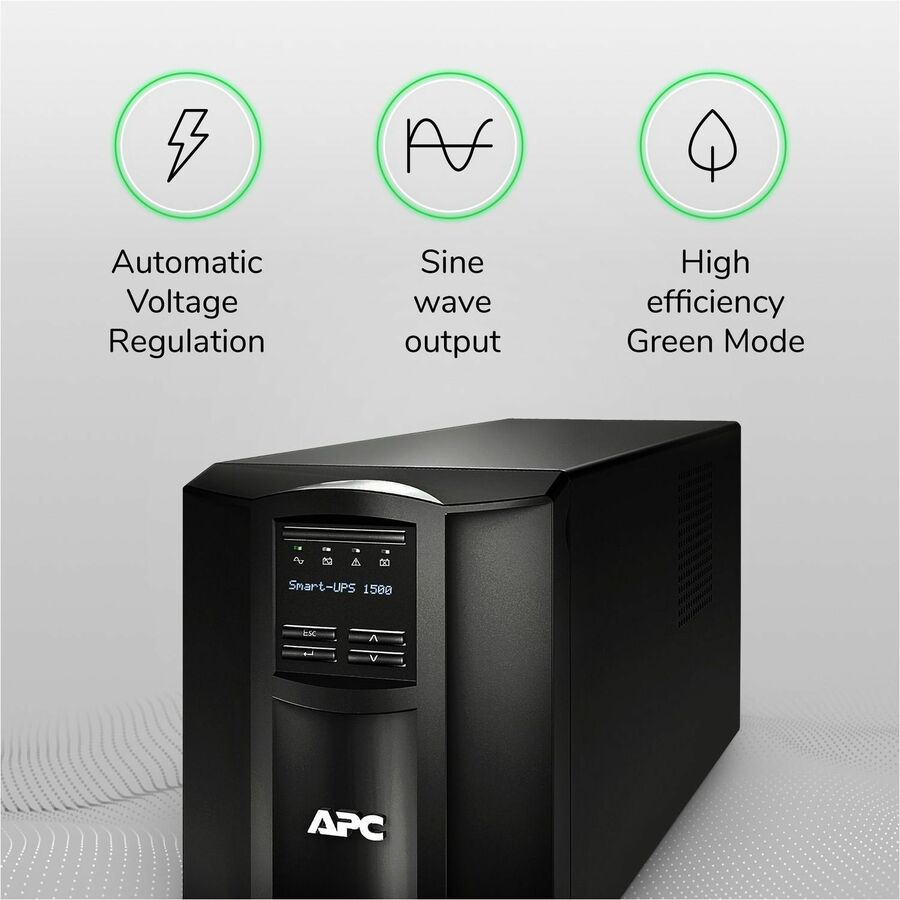

Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

Alarm: Low Battery,Configurable Delay

Controls/Indicators

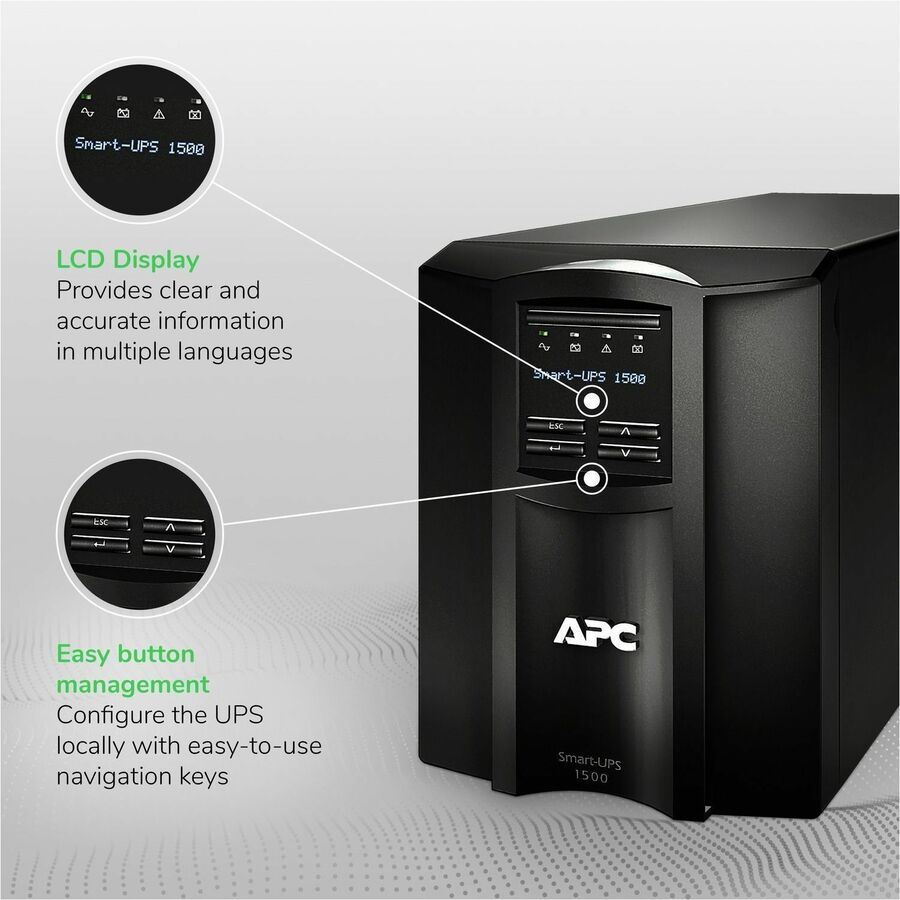

Status Indicators: LCD Status

Battery Information

Number of Batteries: 1
Battery Chemistry: Lead Acid

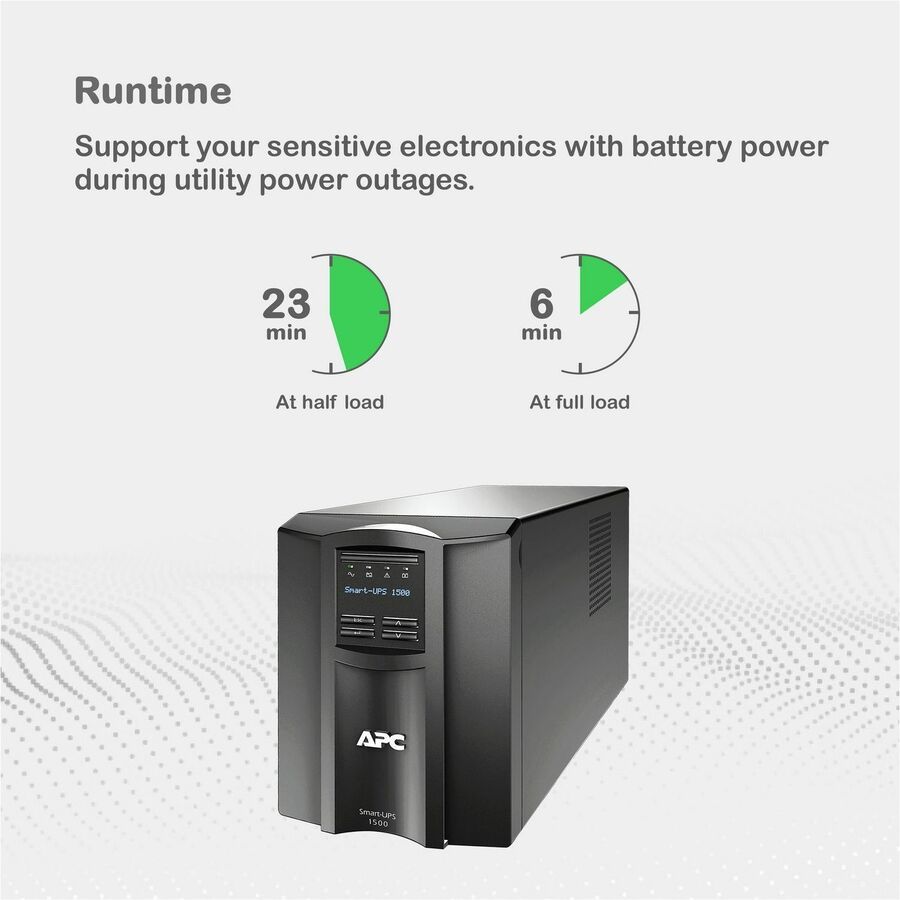

Backup/Run Time (Full Load): 7 Minute
Battery Life: 5 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 41°F (5°C) - 235.4°F (113°C)
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 225 BTU/h

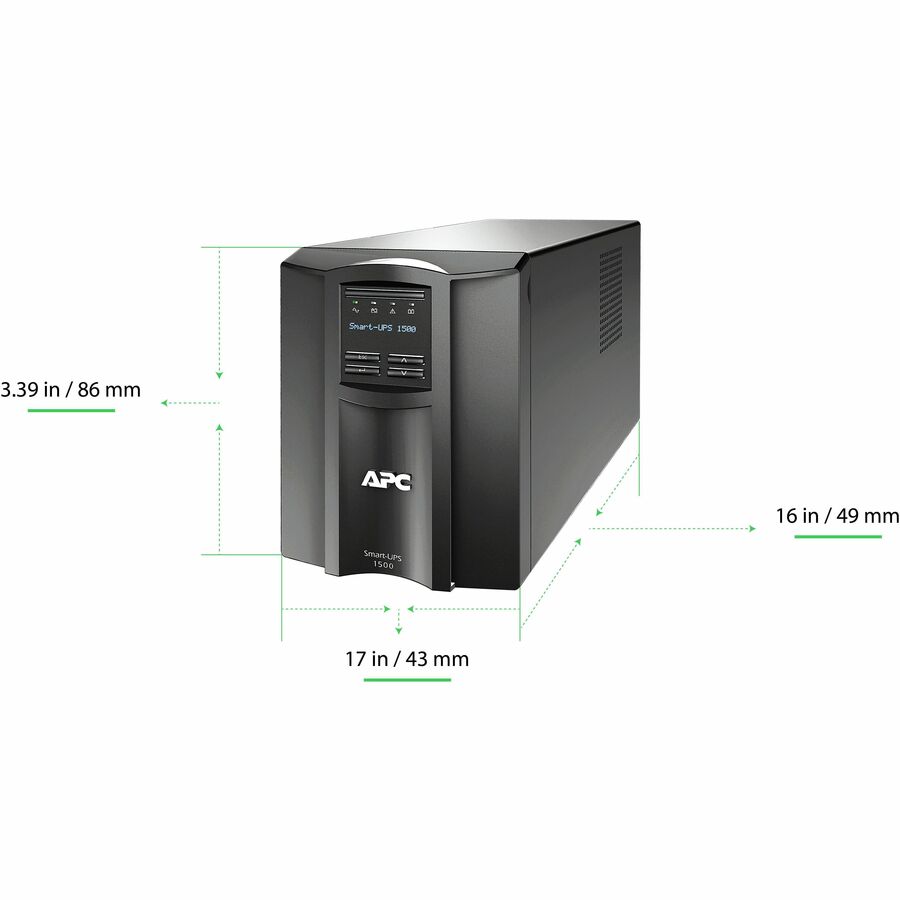

Physical Characteristics

Product Color: Black
Height: 8.62" (219 mm)
Width: 6.73" (171 mm)
Depth: 17.28" (439 mm)
Form Factor: Tower
Weight (Approximate): 54.23 lb (24598.31 g)

Miscellaneous

Package Contents:

Smart-UPS 1500VA LCD 120V with SmartConnect

Installation guide

USB cable

Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
