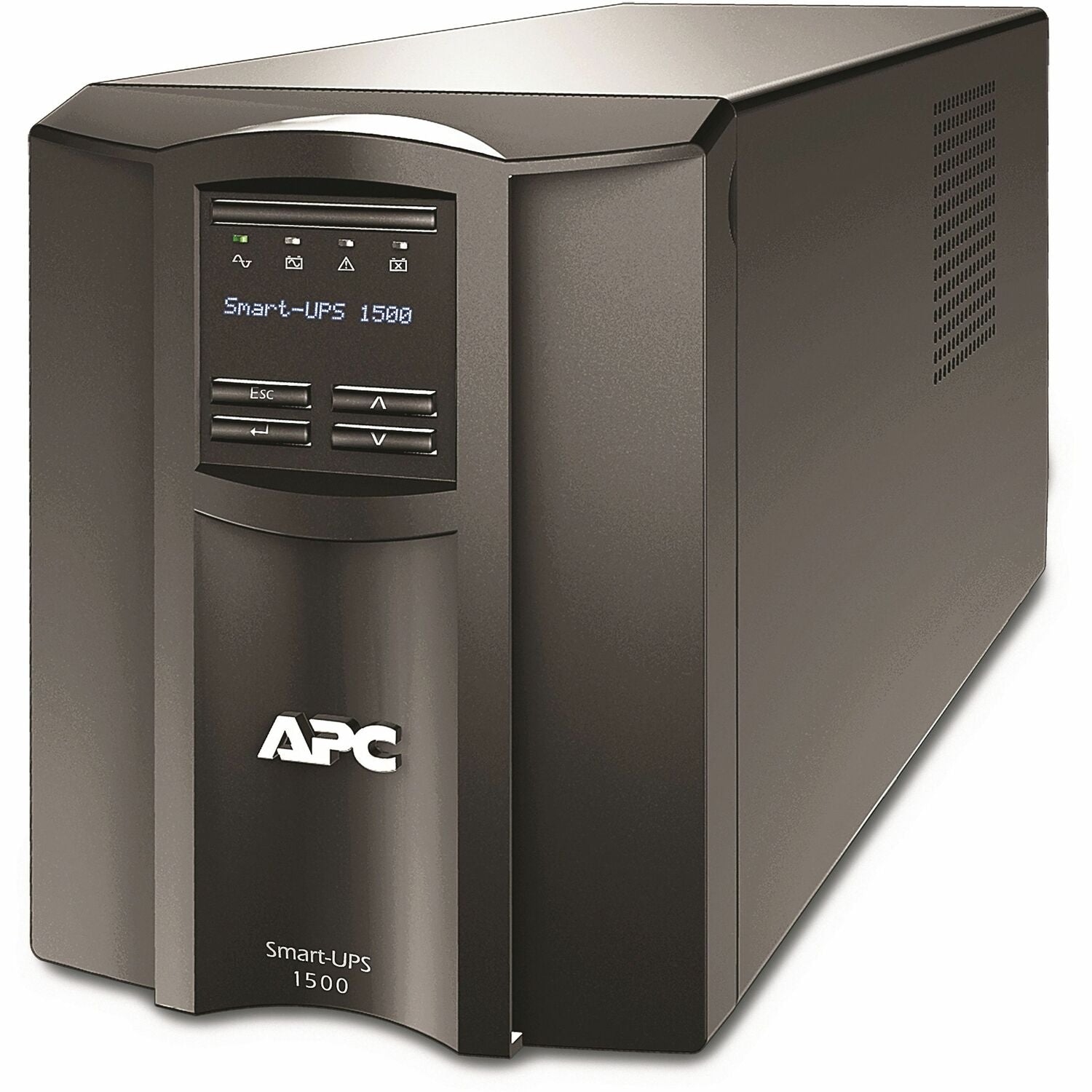

SMT1500CNC APC Smart-UPS, Line Interactive, 1500VA, Tower, 120V, 8x NEMA 5-15R outlets, SmartConnect Port+Network Card, AVR, LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT1500CNC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS 1500VA Tower UPS
Marketing Information:

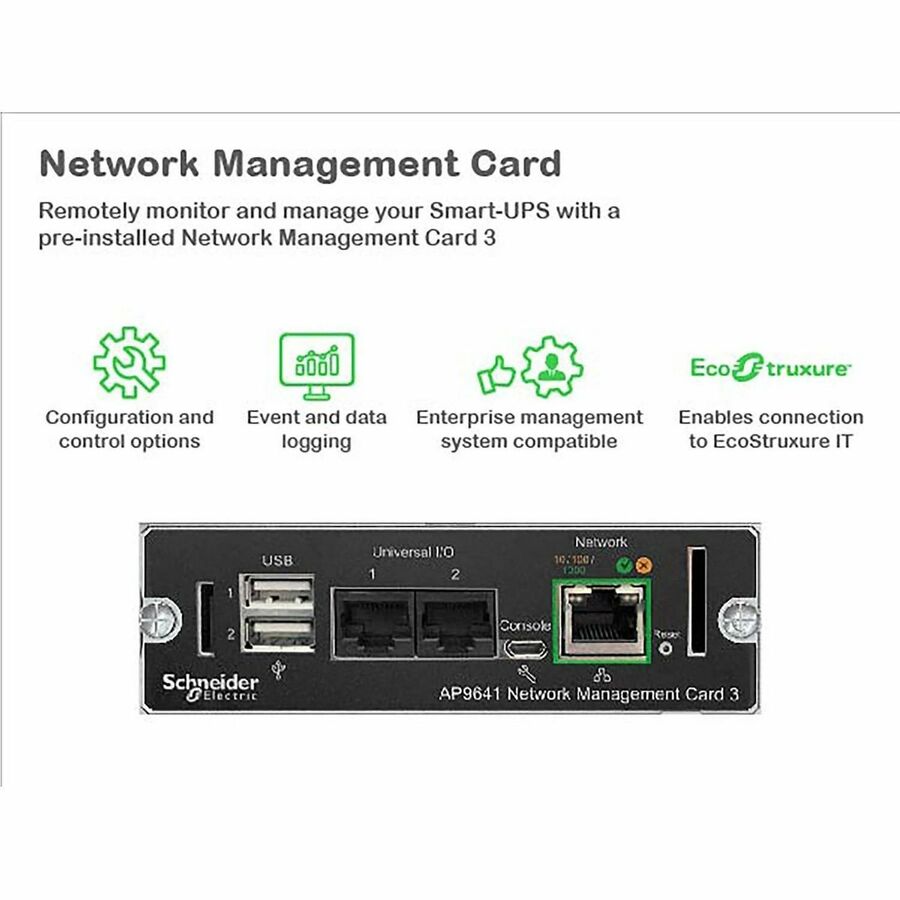

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC
Packaged Quantity: 1
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

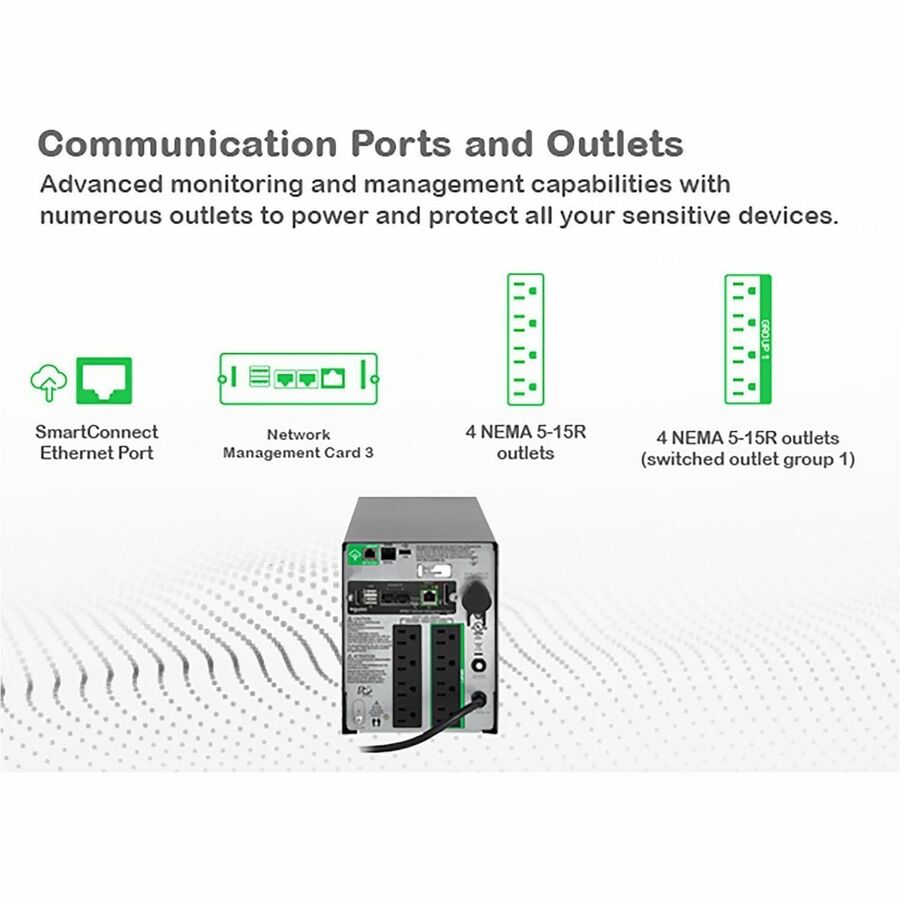

Receptacle Detail: 8 x NEMA 5-15R
Cord Length: 5.9 ft (1.80 m)
Transfer Time: 10 ms
Phase: Single Phase
Application/Usage: IT System,Network,Business,Critical System,Server,Virtual Machine,Hyperconverged Infrastructure (HCI),Storage,Network Closet,Desktop,VoIP,Retail,POS

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Input Voltage Range: 75 V AC - 154 V AC,82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Display & Graphics

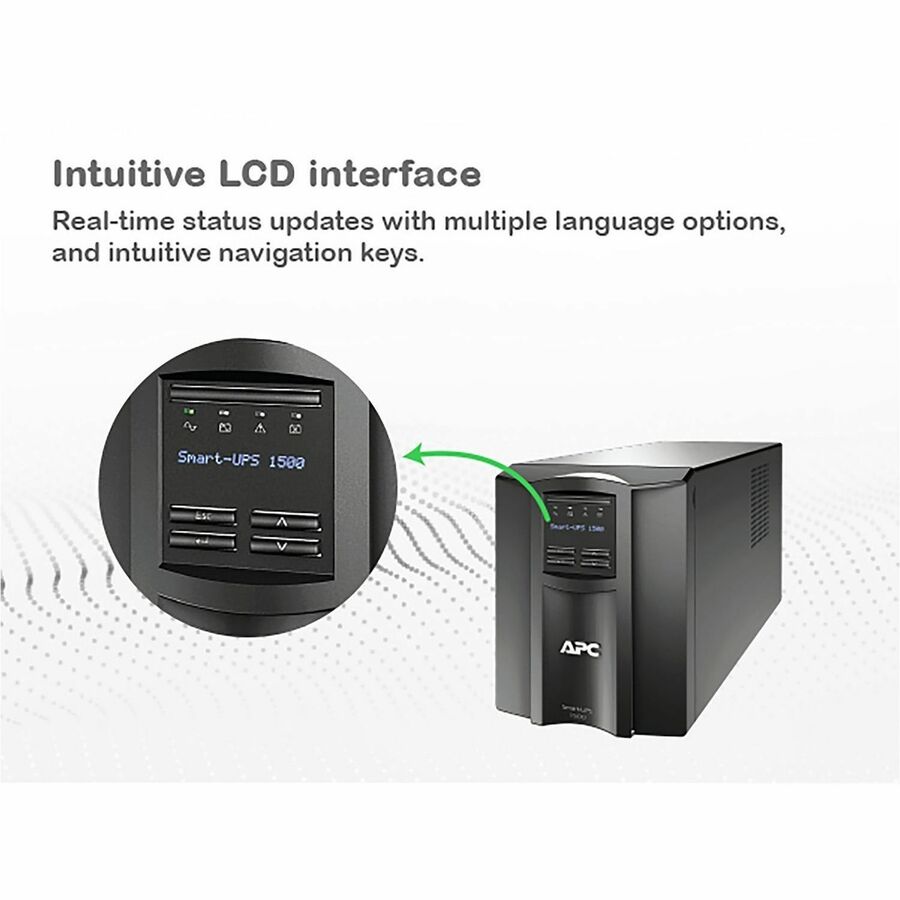

Display: LCD

Management

Alarm: On Battery,Low Battery,Configurable Delay

Interfaces/Ports

USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Battery Energy: 1468.8 kJ
Backup/Run Time (Full Load): 6.50 Minute
Backup/Run Time (Half Load): 23.07 Minute
Battery Life: 5 Year
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 225 BTU/h

Physical Characteristics

Product Color: Black
Height: 8.62" (219 mm)
Width: 6.73" (171 mm)
Depth: 17.28" (439 mm)
Form Factor: Tower
Weight (Approximate): 54.23 lb (24598.31 g)

Miscellaneous

Package Contents:

• Smart-UPS 1500VA Tower UPS
• Installation Guide
• USB Cable

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
