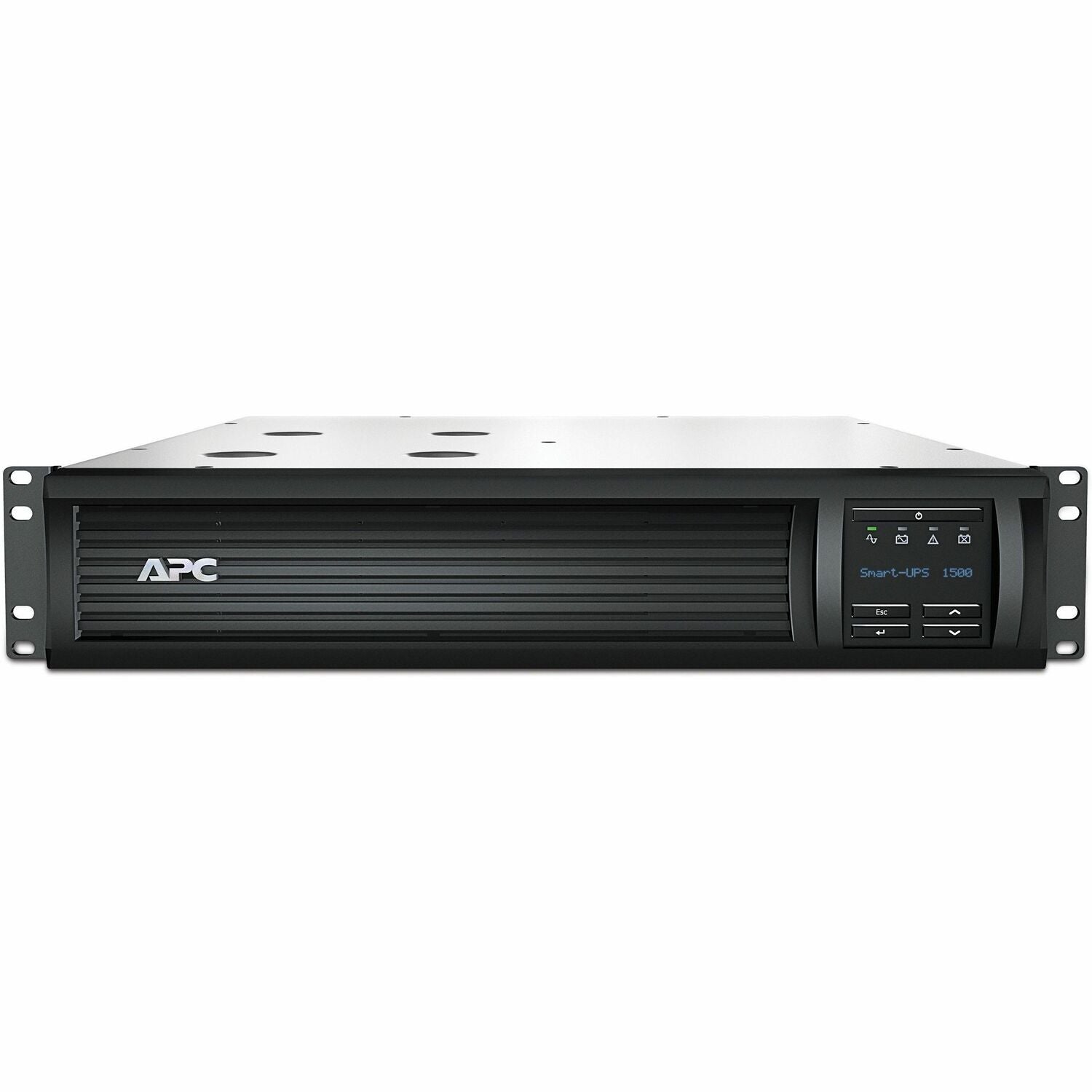

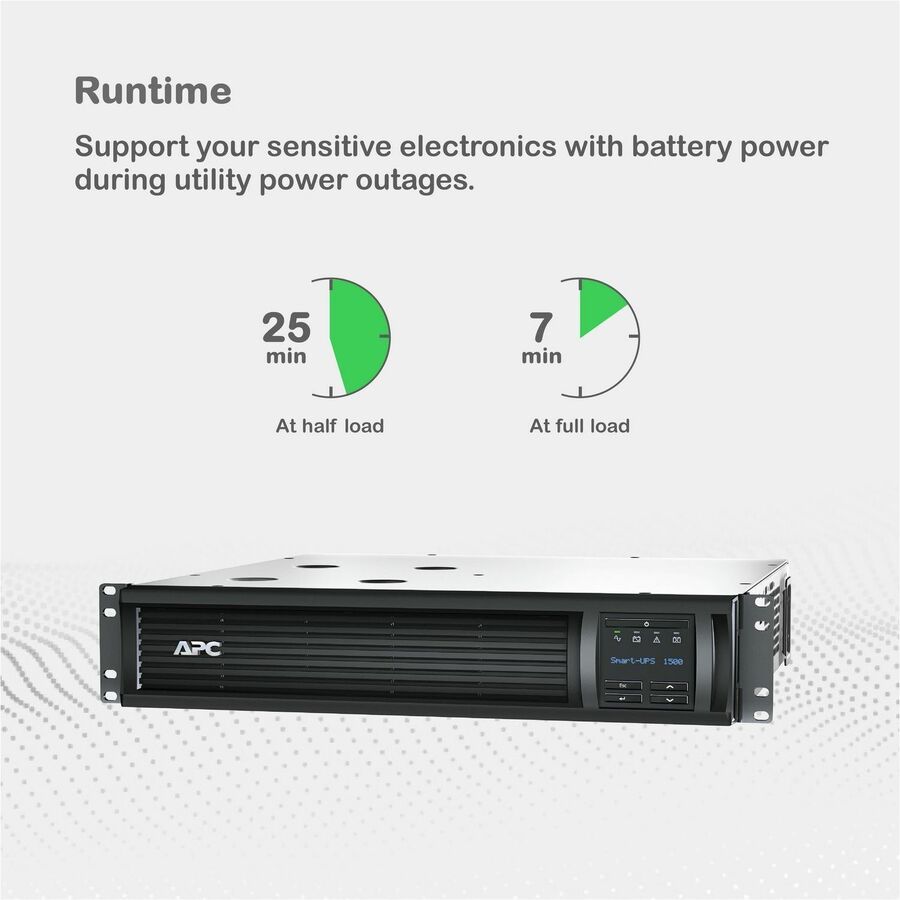

SMT1500RM2UC APC Smart-UPS, Line Interactive, 1500VA, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, AVR, LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT1500RM2UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Cord Length: 8 ft (2.44 m)
Transfer Time: 10 ms
Phase: Single Phase

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

Alarm: Low Battery,Configurable Delay

Controls/Indicators

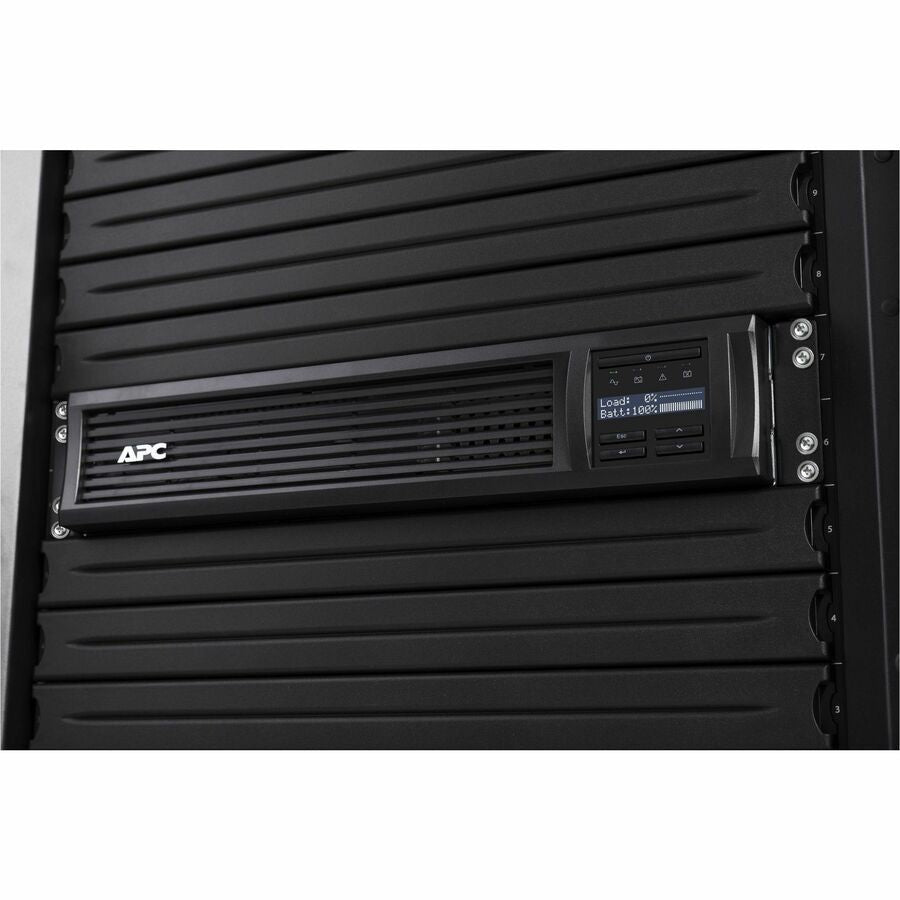

Status Indicators: LCD Status

Interfaces/Ports

Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

Number of Batteries: 1
Battery Chemistry: Lead Acid
Battery Energy: 1555.2 kJ
Battery Life: 6 Year
Typical Battery Recharge Time: 3 Hour

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 41°F (5°C) - 235.4°F (113°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 225 BTU/h

Physical Characteristics

Product Color: Black

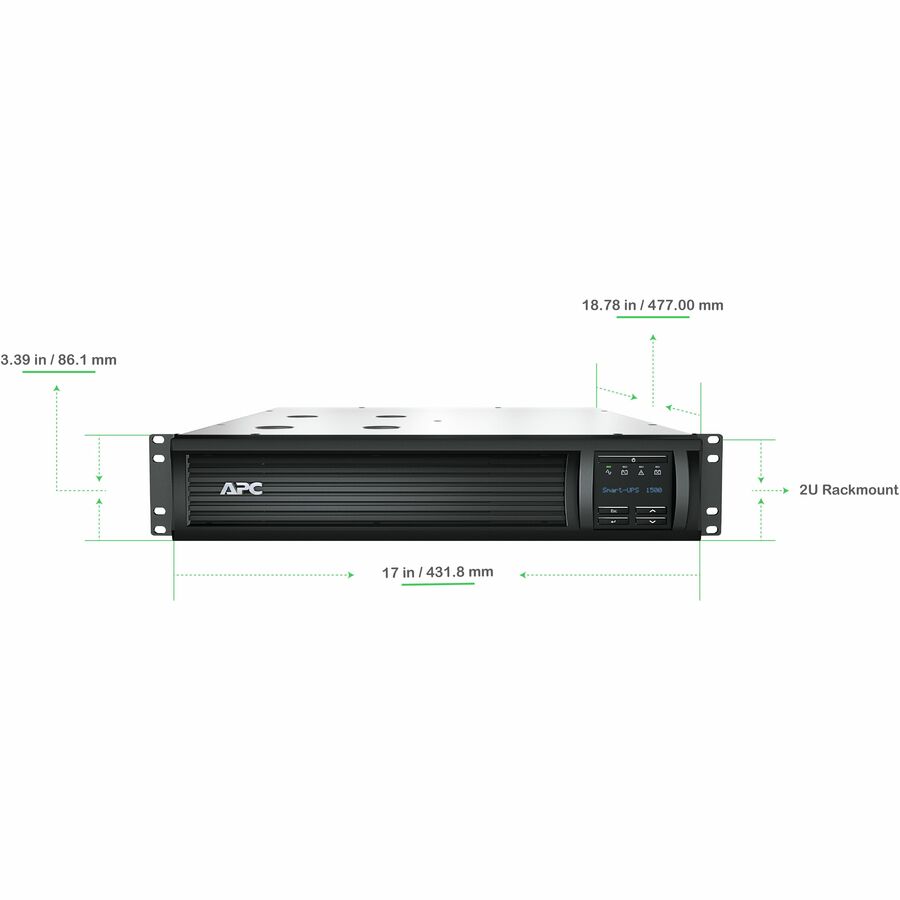

Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 18.78" (477 mm)

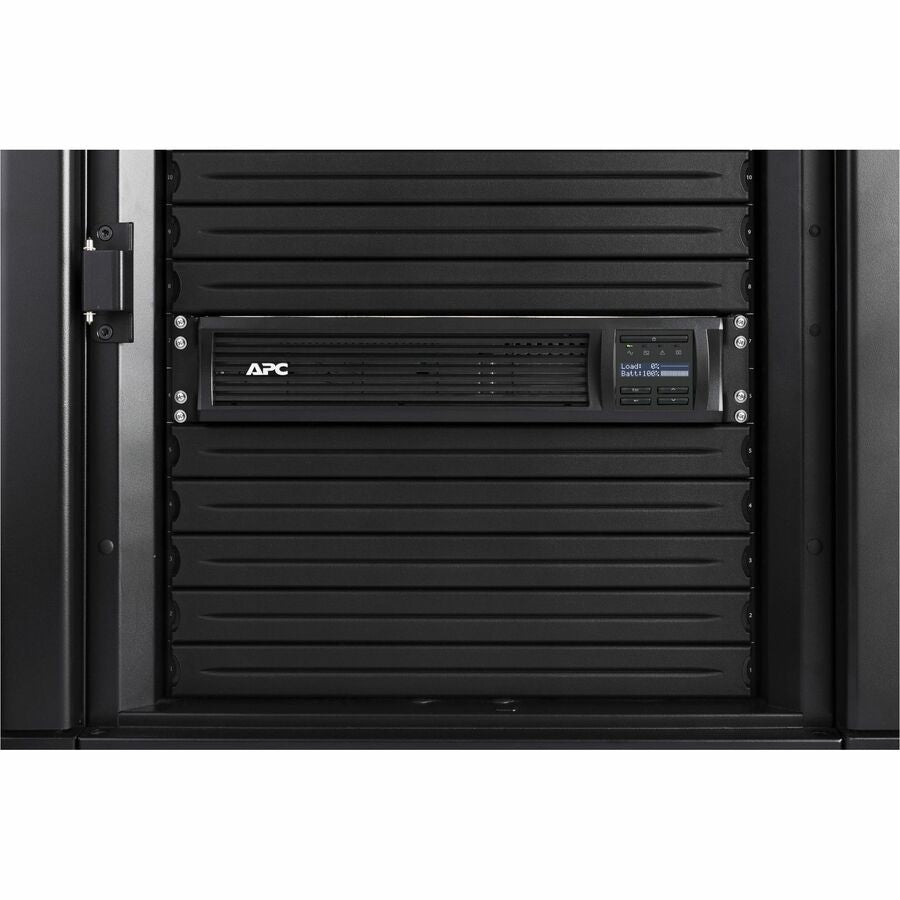

Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 58.42 lb (26498.87 g)

Miscellaneous

Package Contents:

Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect

Installation guide

Rack mounting support rails

USB cable

Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
