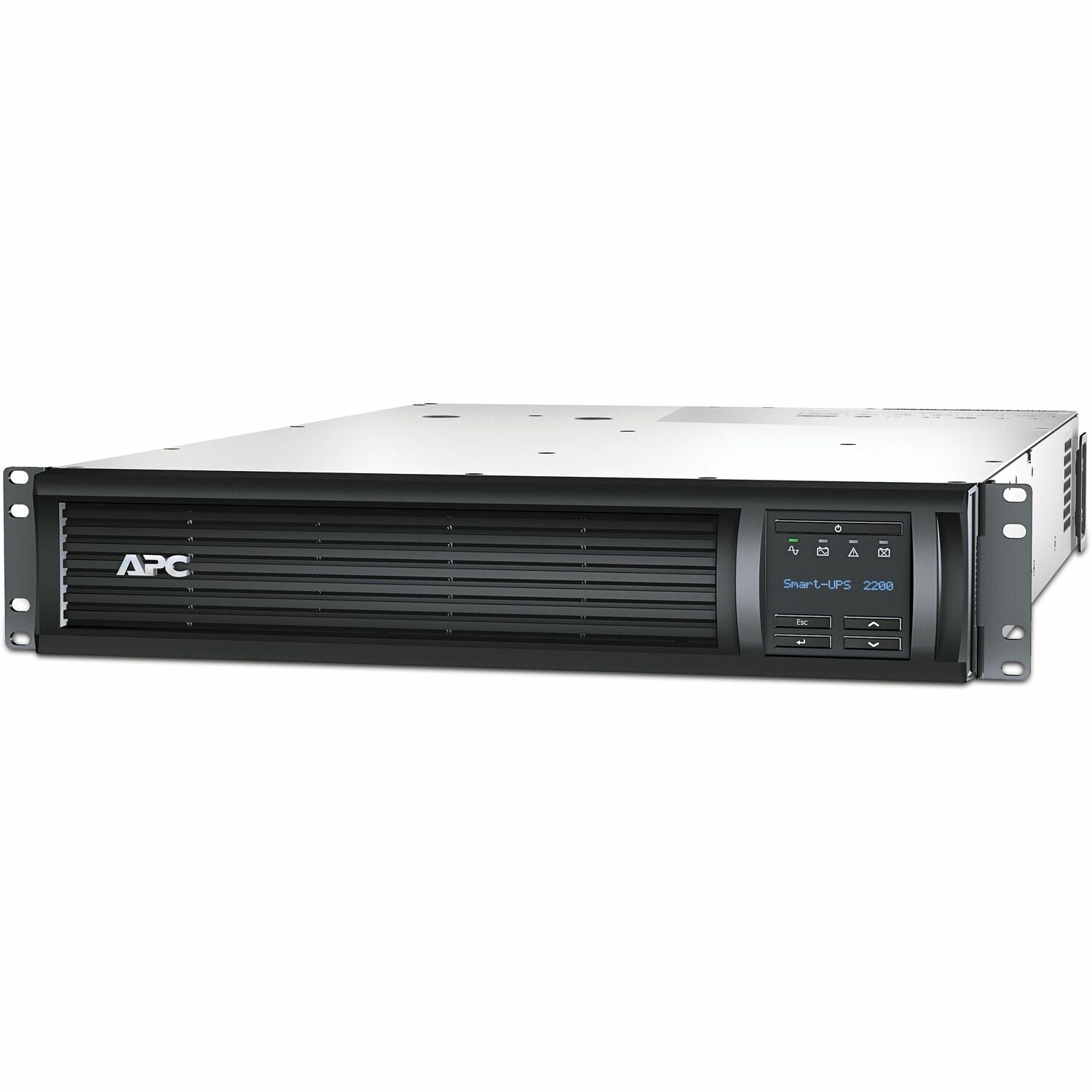

SMT2200RM2UC APC Smart-UPS, Line Interactive, 2200VA, Rackmount 2U, 120V, 6x NEMA 5-15R+2x NEMA 5-20R outlets, SmartConnect Port+SmartSlot, AVR, LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMT2200RM2UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the buil
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20P

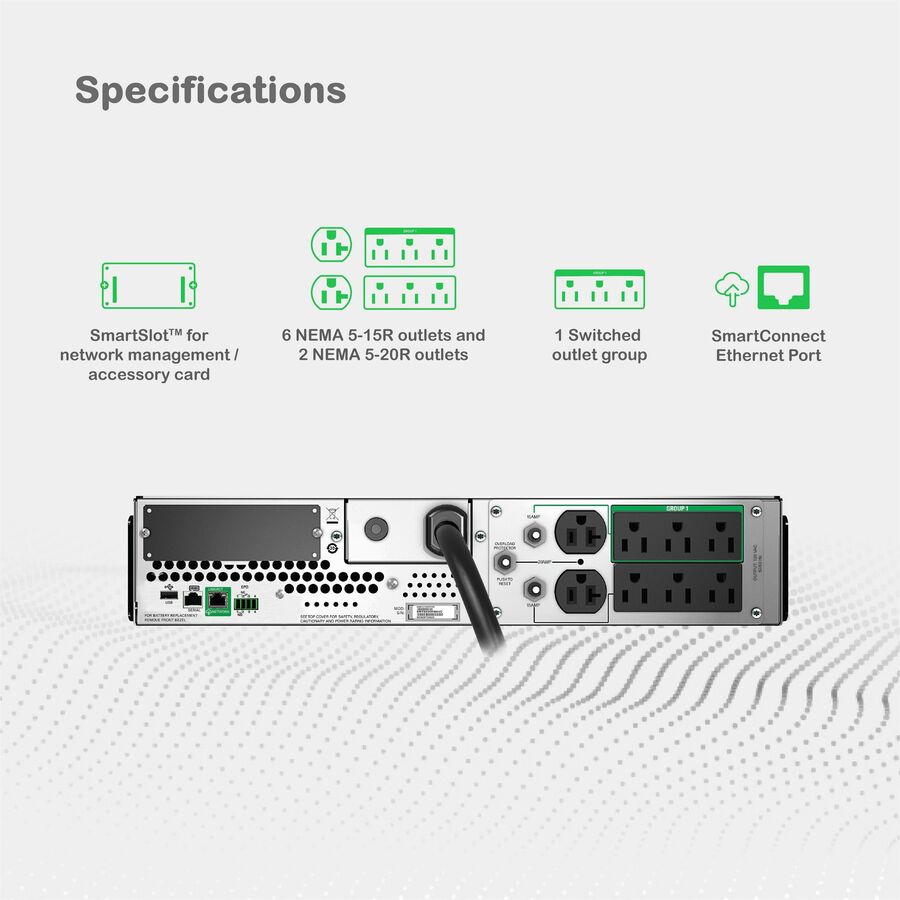

Receptacle Detail: 2 x NEMA 5-20R,6 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 8 ft (2.44 m)
Transfer Time: 10 ms
Phase: Single Phase

Power Description

Load Capacity (VA): 1.92 kVA
Load Capacity (Watt): 1.98 kW
Input Voltage: 120 V AC
Input Voltage Range: 75 V AC - 154 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 530 J

Battery Information

Battery Chemistry: Lead Acid

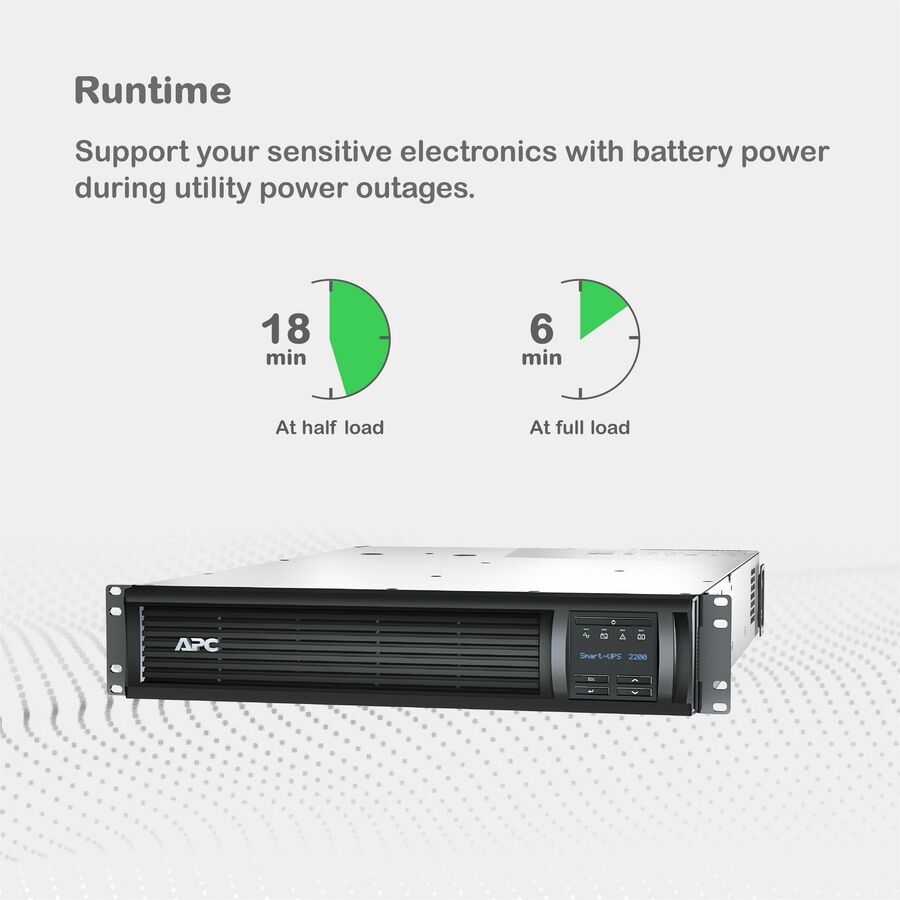

Backup/Run Time (Full Load): 6.60 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black
Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 26.89" (683 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 93.28 lb (42311.10 g)

Miscellaneous

Package Contents:

Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect

Rack mounting brackets

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

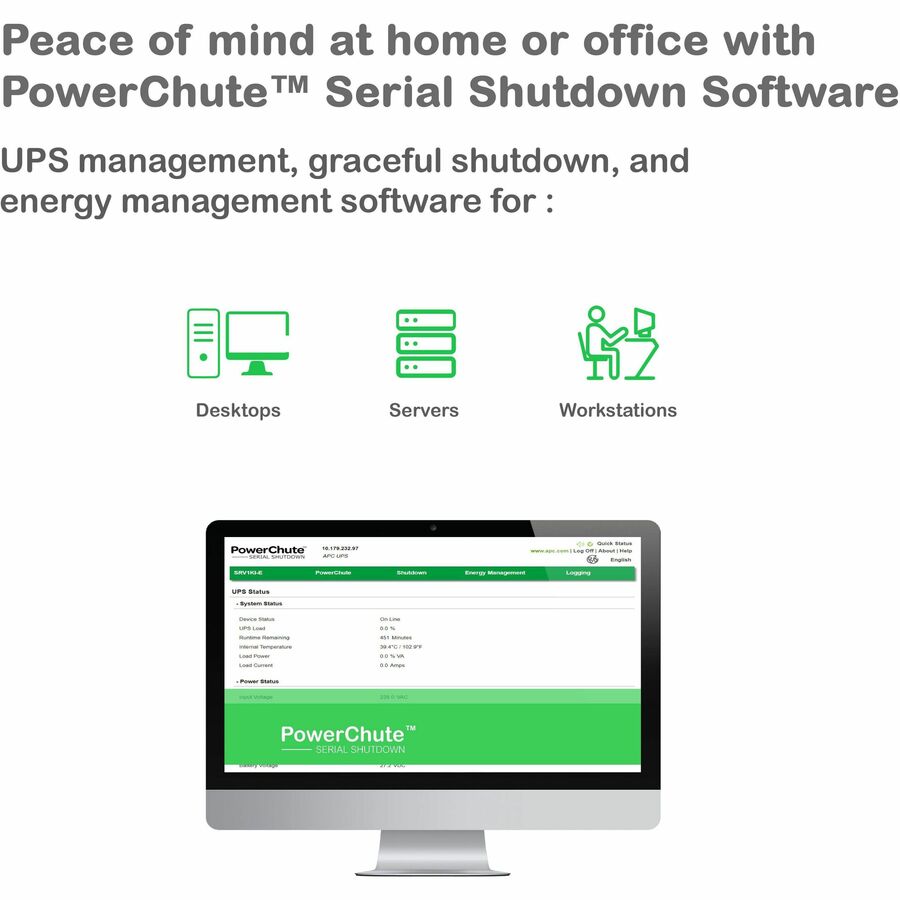

Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
