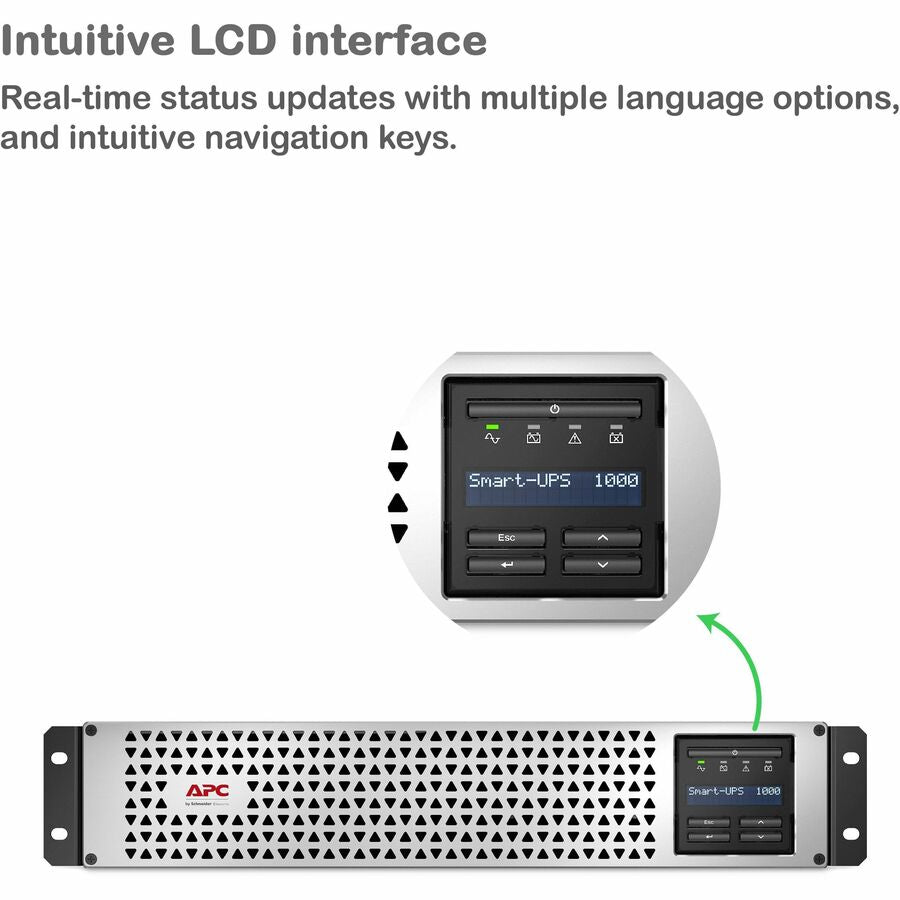

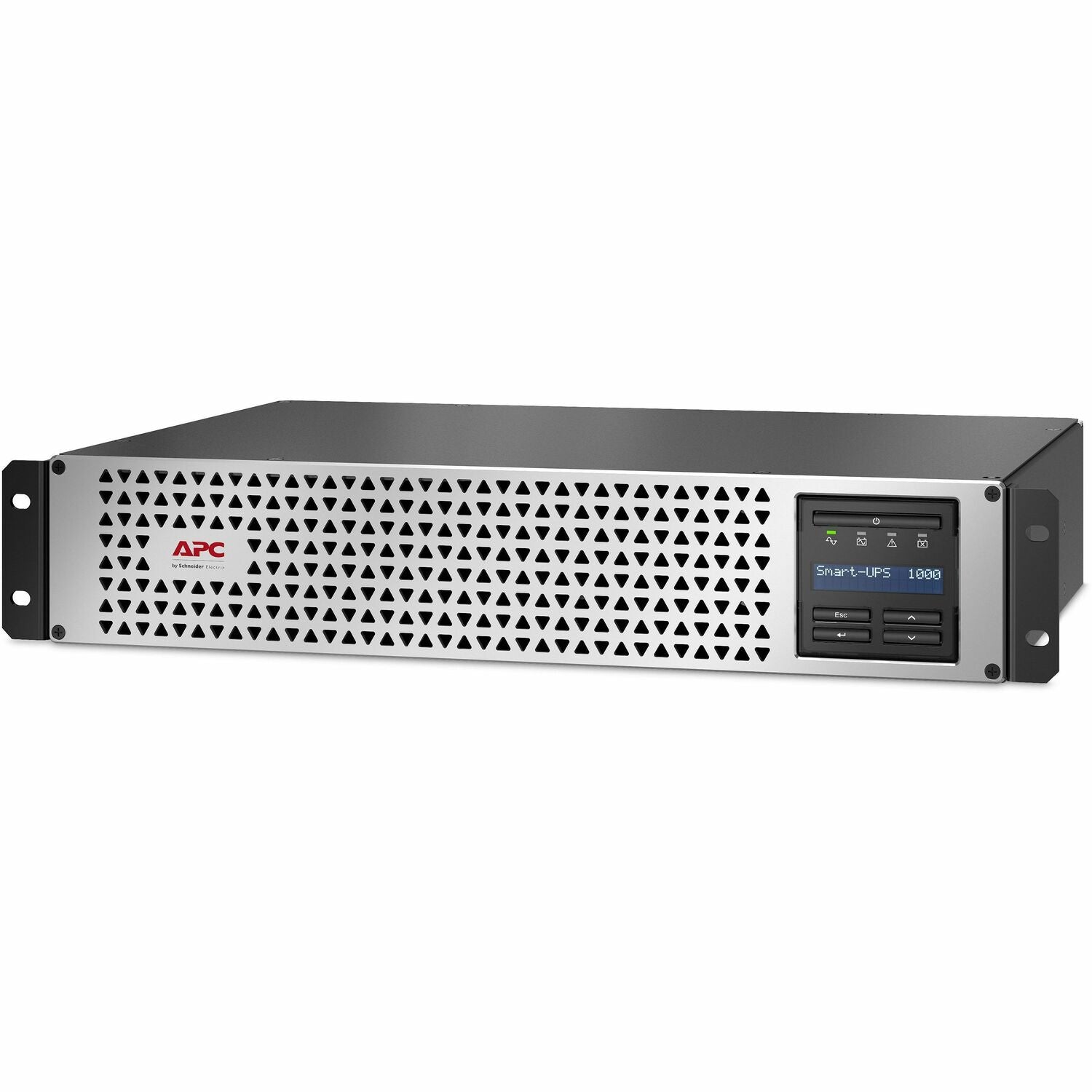

SMTL1000RM2UC APC Smart-UPS, Line Interactive, 1000VA, Lithium-ion, Rackmount 2U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMTL1000RM2UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect
Marketing Information:

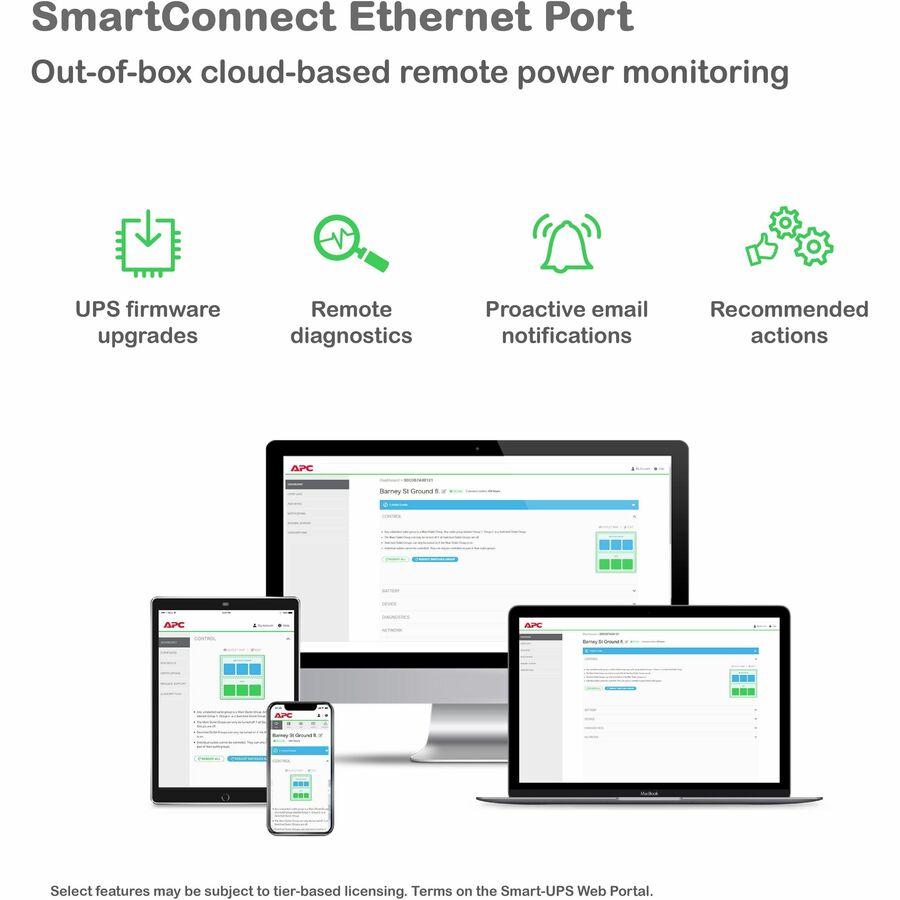

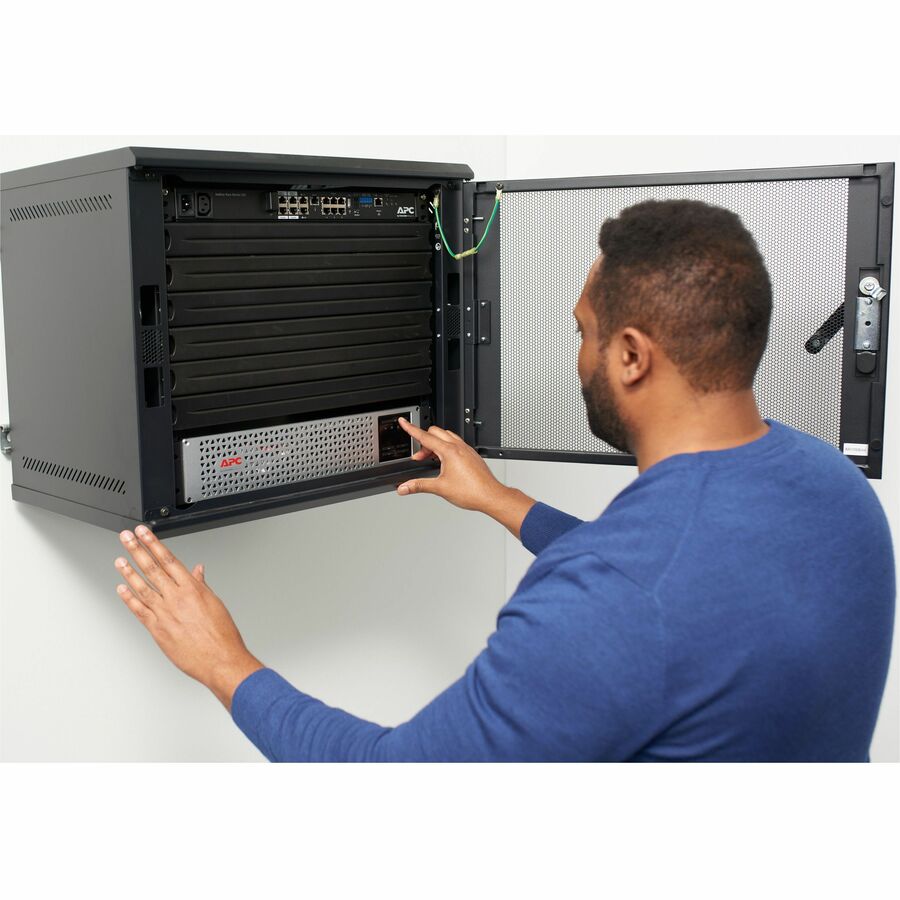

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

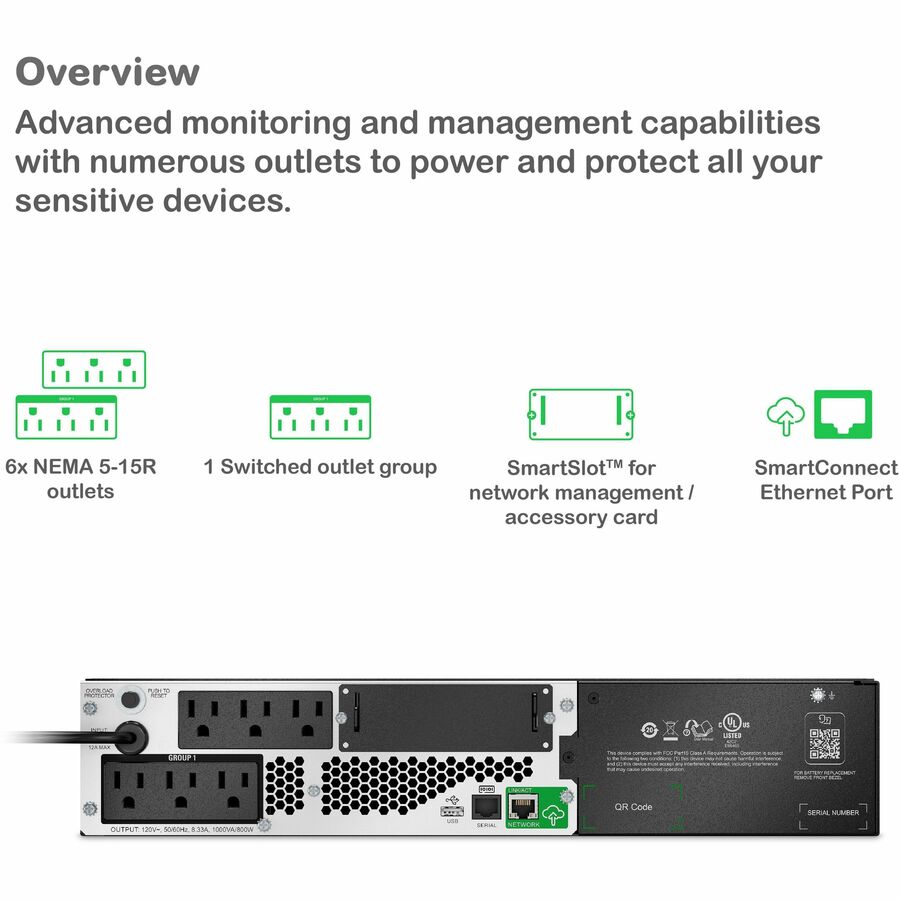

Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Cord Length: 8 ft (2.44 m)
Phase: Single Phase
Application/Usage: Server,POS Terminal,Router,Switch,Network Hub,Network Device

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 800 W
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

Alarm: On Battery,Low Battery,Configurable Delay

Interfaces/Ports

Serial Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)
Typical Battery Recharge Time: 3 Hour

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 24606.30 ft (7500000 mm)
Storage Temperature: -40°F (-40°C) - 95°F (35°C)
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 41 dB
Thermal Dissipation: 70 BTU/h

Physical Characteristics

Product Color: Black,Silver
Height: 3.39" (86 mm)
Width: 17.24" (438 mm)
Depth: 12.52" (318 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 36 lb (16329.33 g)

Miscellaneous

Package Contents:

Smart-UPS Li-Ion, Short Depth 1000VA, 120V With SmartConnect

Installation guide

Rack mounting support rails

USB cable

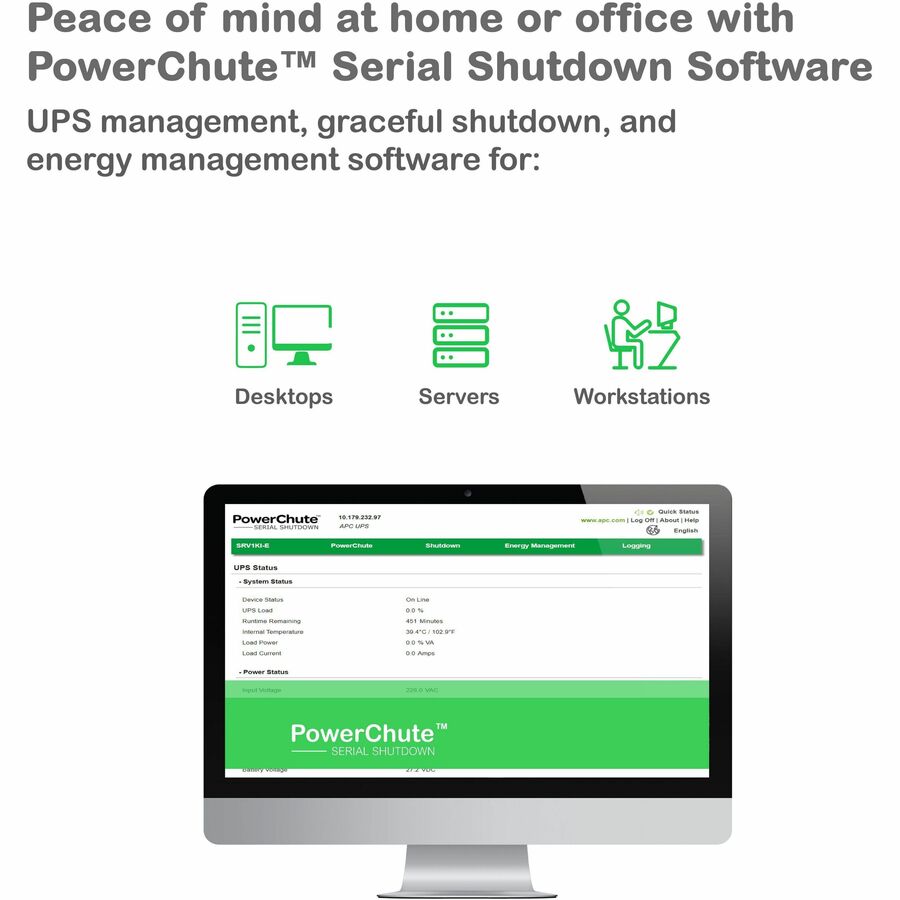

Software Included: Powerchute Serial Edition
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Battery Directive

Warranty

Limited Warranty: 5 Year
