SMTL1500RM3UCNC APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+Network Card, Short Depth, AVR, LCD

Save $70.01
Schneider Electric SASKU: SMTL1500RM3UCNC
No reviews

Price:
Sale price$3,929.99 Regular price$4,000.00

Description

User-Manual

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMTL1500RM3UCNC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

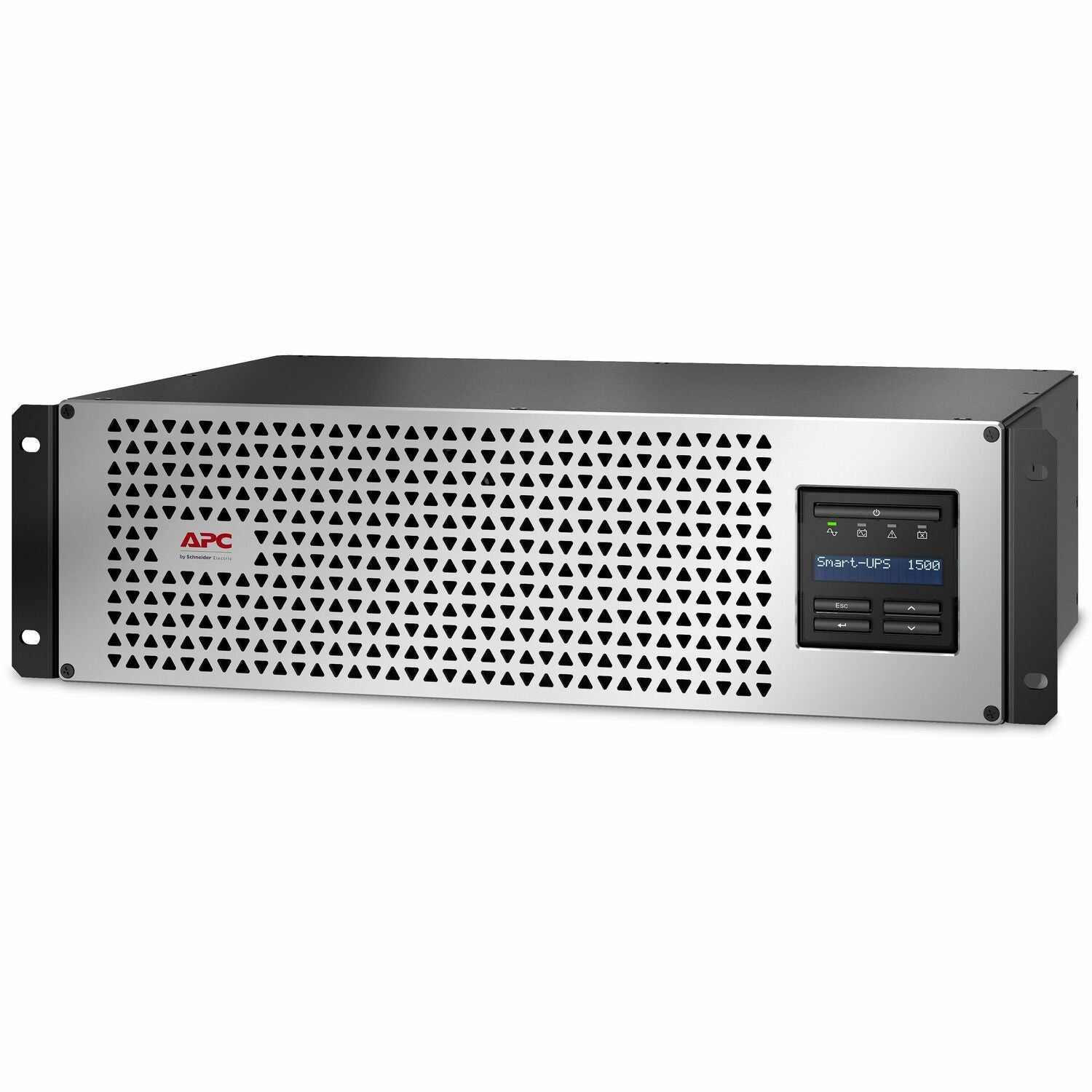

Product Name: Smart-UPS 1500VA Rack-mountable UPS
Marketing Information:

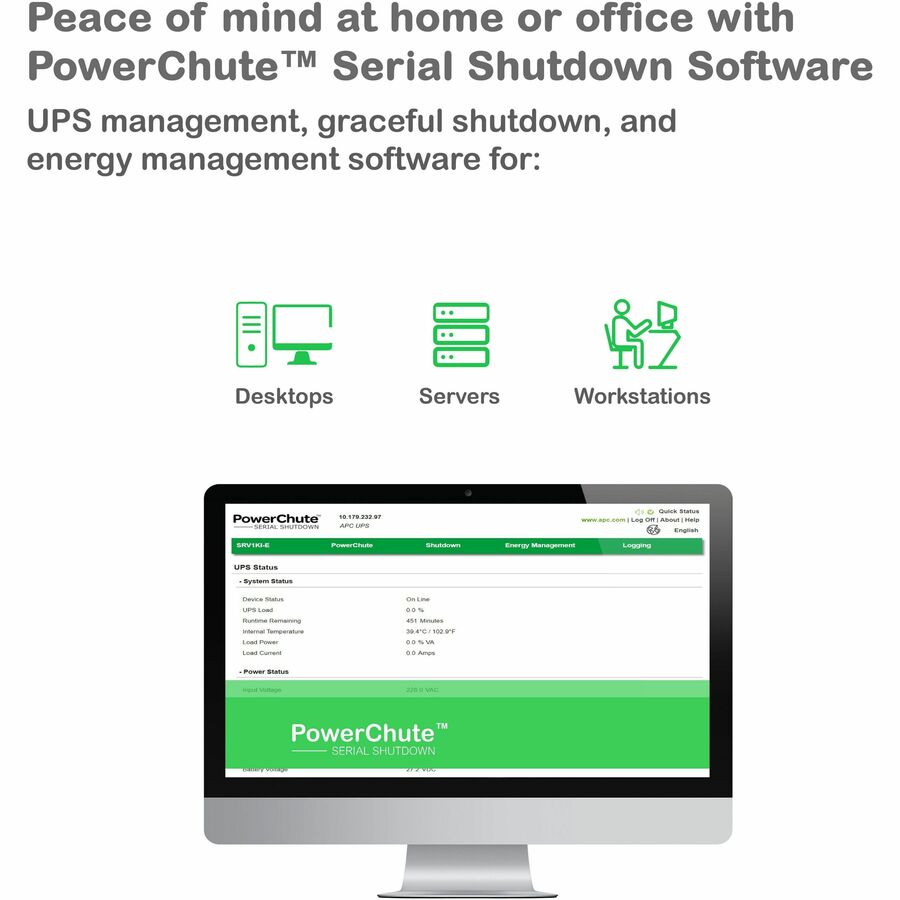

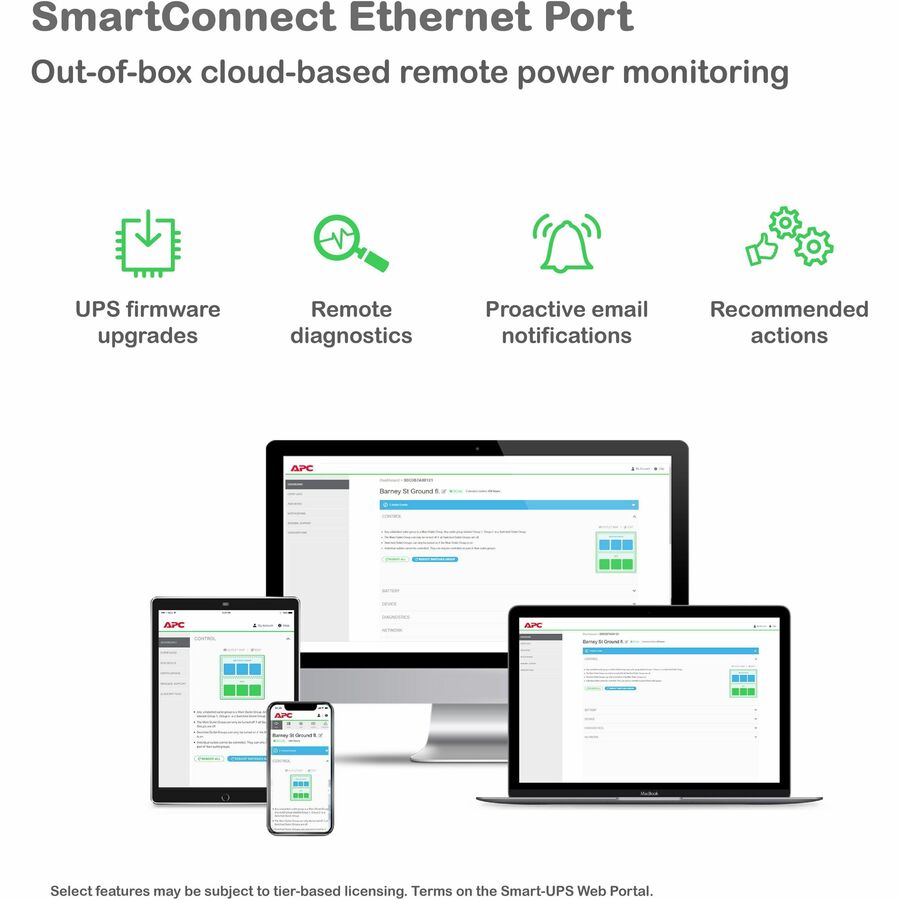

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.


Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

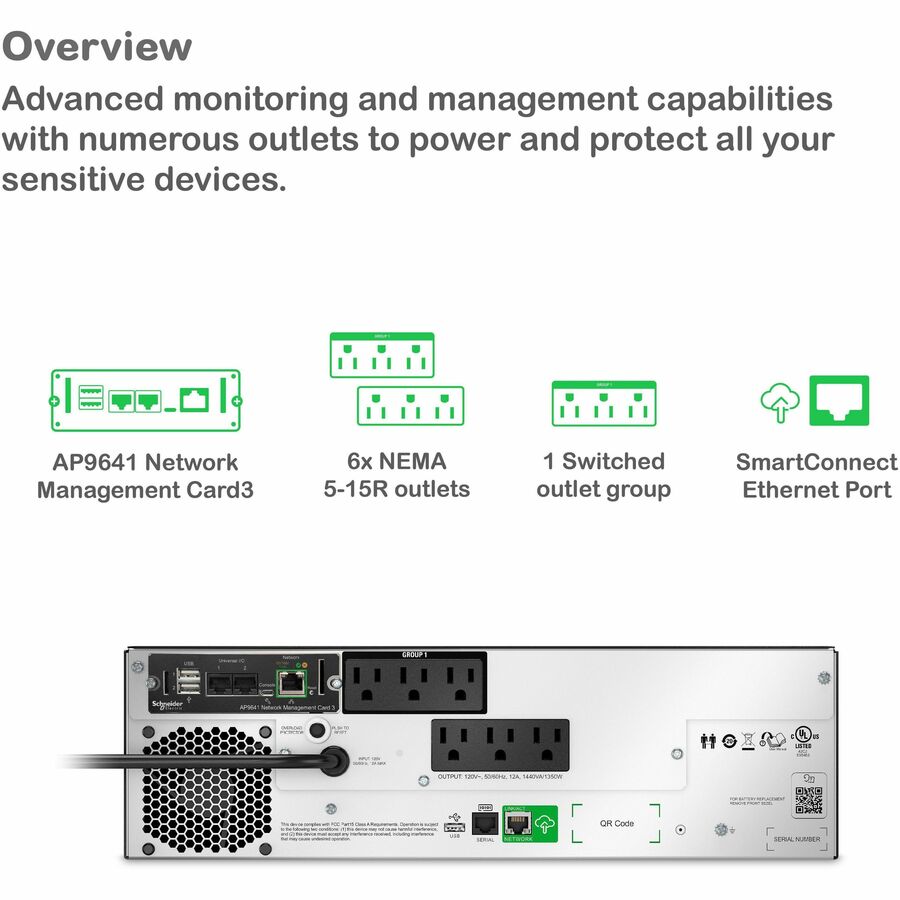

Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 8 ft (2.44 m)
Transfer Time: 6 ms
Phase: Single Phase

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 120 V AC
Input Voltage Range: 75 V AC -154 V AC,82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J

Management

Alarm: Low Battery,On Battery,Configurable Delay

Controls/Indicators

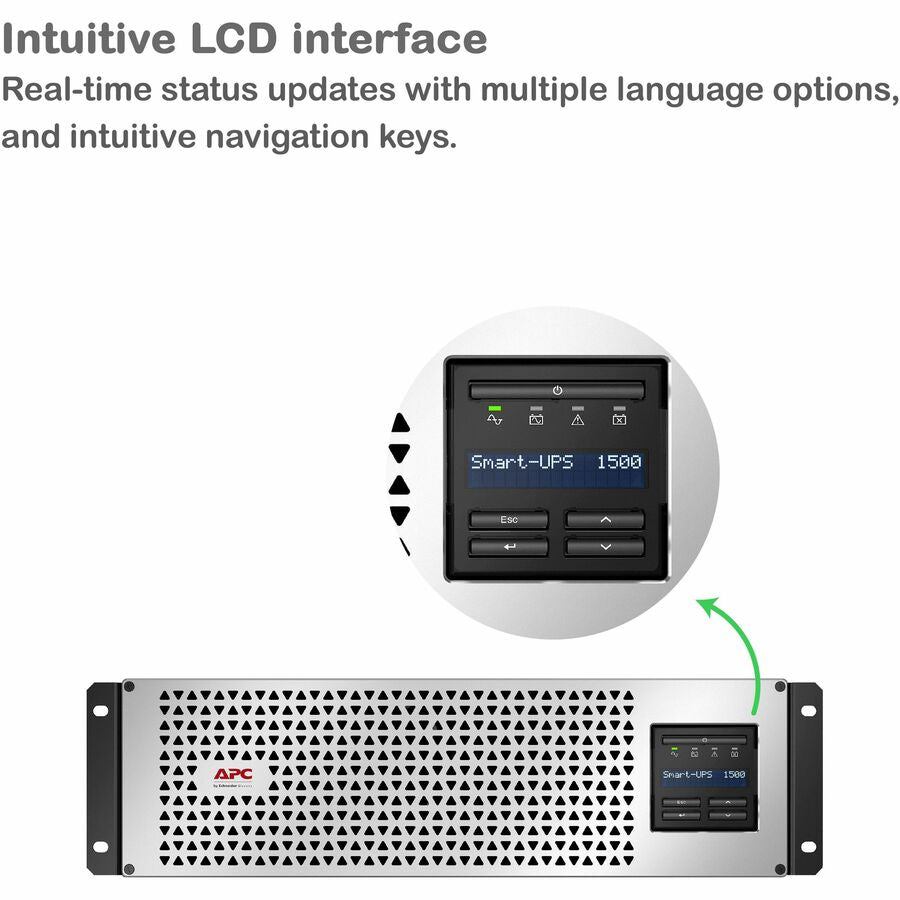

Status Indicators: Multifunction LCD Status and Control Console

Interfaces/Ports

Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 36 V DC
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Energy: 864 kJ
Backup/Run Time (Full Load): 3.03 Minute
Backup/Run Time (Half Load): 8.87 Minute
Typical Battery Recharge Time: 3 Hour

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 25000 ft (7620000 mm)
Storage Temperature: -40°F (-40°C) - 95°F (35°C)
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 135 BTU/h

Physical Characteristics

Product Color: Black,Silver
Height: 5.16" (131 mm)
Width: 17.24" (438 mm)
Depth: 11.89" (302 mm)

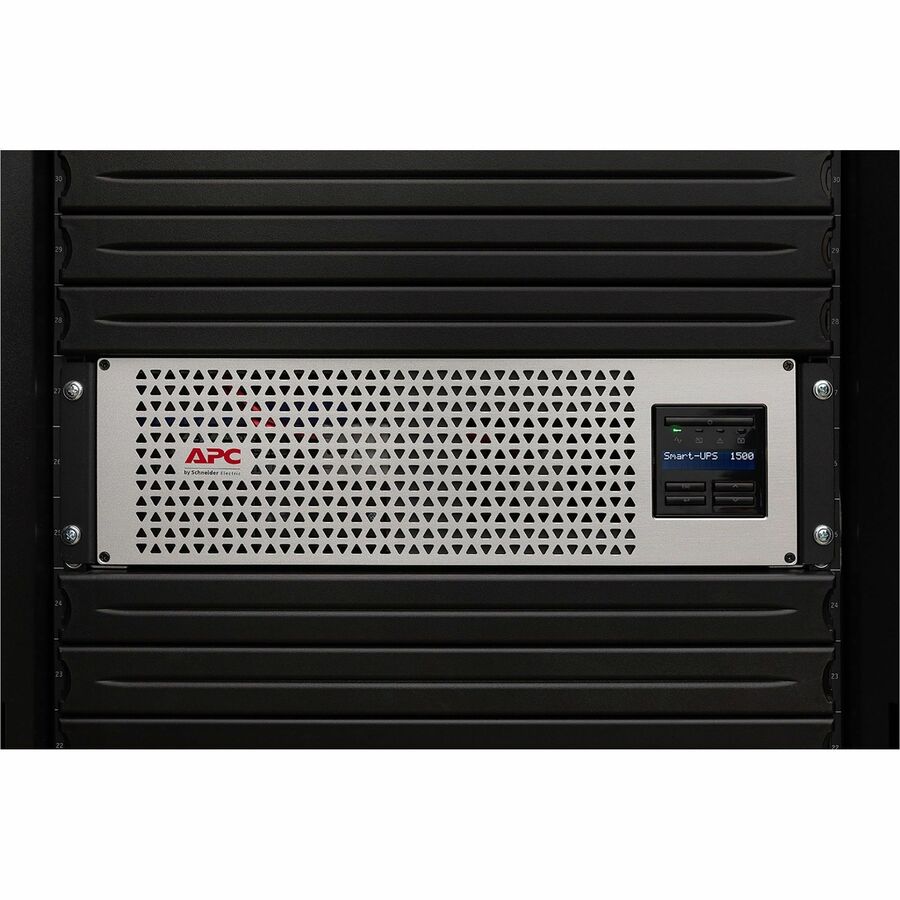

Rack Height: 3U
Form Factor: Rack-mountable
Weight (Approximate): 42.99 lb (19499.94 g)

Miscellaneous

Package Contents:
  • Smart-UPS 1500VA Rack-mountable UPS
  • Installation Guide
  • Rack Mounting Support Rails
  • USB Cable

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS)

Warranty

Limited Warranty: 5 Year
