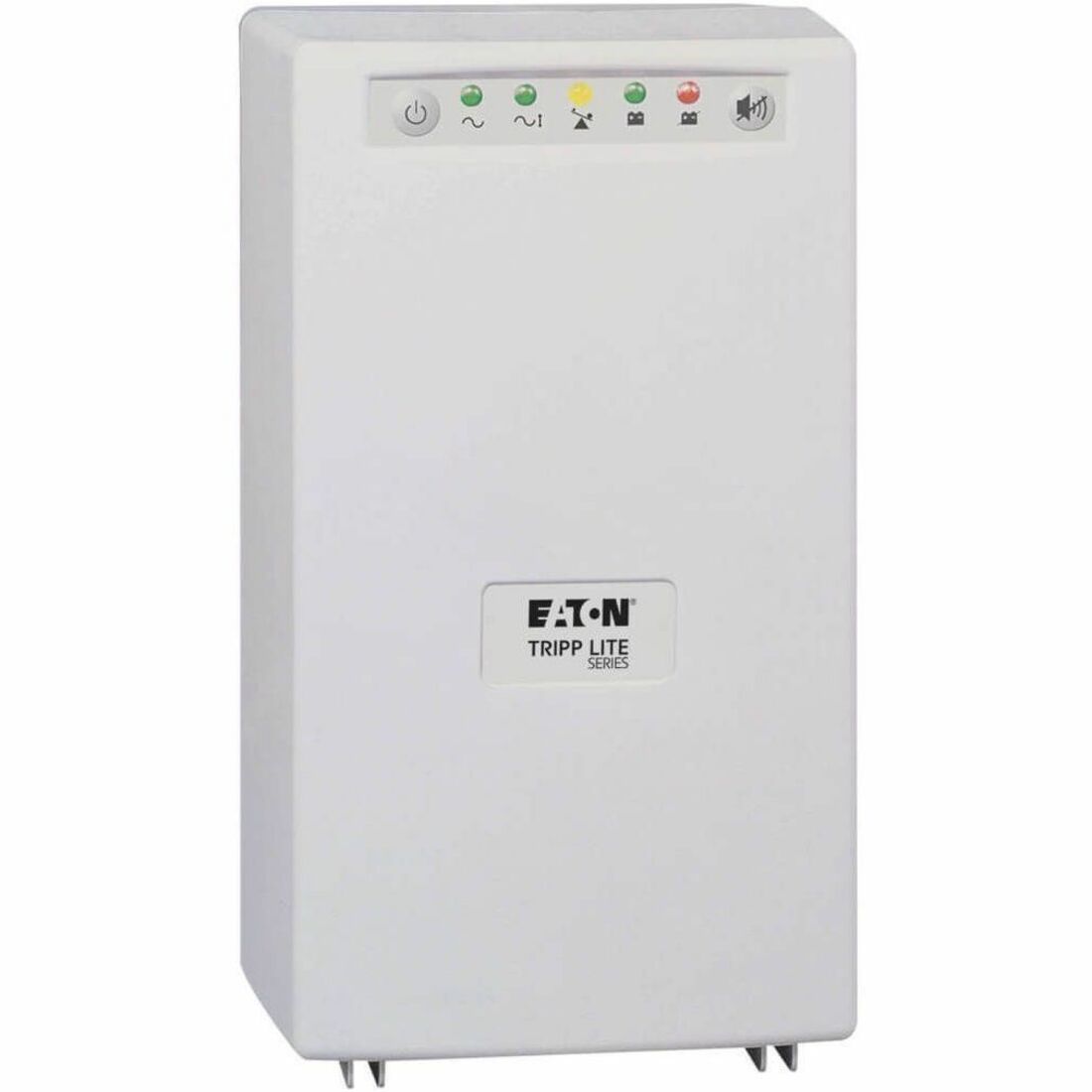

SMX1200XLHGL Tripp Lite series SmartPro SMX1200XLHGL 1000VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMX1200XLHGL
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Series: SMX
Product Model: SMX1200XLHGL
Product Name: SmartPro SMX1200XLHGL 1000VA Tower UPS
Marketing Information:

1kVA/750W Medical-Grade UPS Allows Time to Back Up Critical Files During a Blackout

This 230V SmartPro® hospital-grade UPS is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, which makes it ideal for use in medical facilities, including patient care vicinities. It allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout.

Long-Lasting LiFePhos Battery Handles up to 10,000 Cycles with Ease

This UPS system for hospitals contains a replaceable lithium iron phosphate (LiFePhos) internal battery that provides up to 30 times the cycle life of traditional sealed lead acid (SLA) batteries. The 6-outlet UPS system provides up to 28 minutes of battery backup at half load and 10 minutes at full load. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.

Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Phase: Single Phase
Application/Usage: Medical,Computer,Monitor,Lab Equipment

Power Description

Load Capacity (VA): 1 kVA
Load Capacity (Watt): 750 W
Input Voltage: 230 V AC
Output Voltage: 220 V AC,230 V AC,240 V AC
Waveform Type: Pulse-width Modulated Sine Wave

Battery Information

Backup/Run Time (Full Load): 11 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour

Physical Characteristics

Height: 12.70" (322.58 mm)
Width: 7.50" (190.50 mm)
Depth: 9.10" (231.14 mm)
Form Factor: Tower
Weight (Approximate): 45.50 lb (20638.45 g)

Miscellaneous

Package Contents:

• SmartPro SMX1200XLHGL 1000VA Tower UPS
• USB Monitoring Cable, 1.8 m (6 ft.)
• DB9 Serial Monitoring Cable, 1.8 m (6 ft.)
• Owner's Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
