Description
User-Manual
Manufacturer-Brochure
Manufacturer Part Number: SMX1500LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMX1500LCD

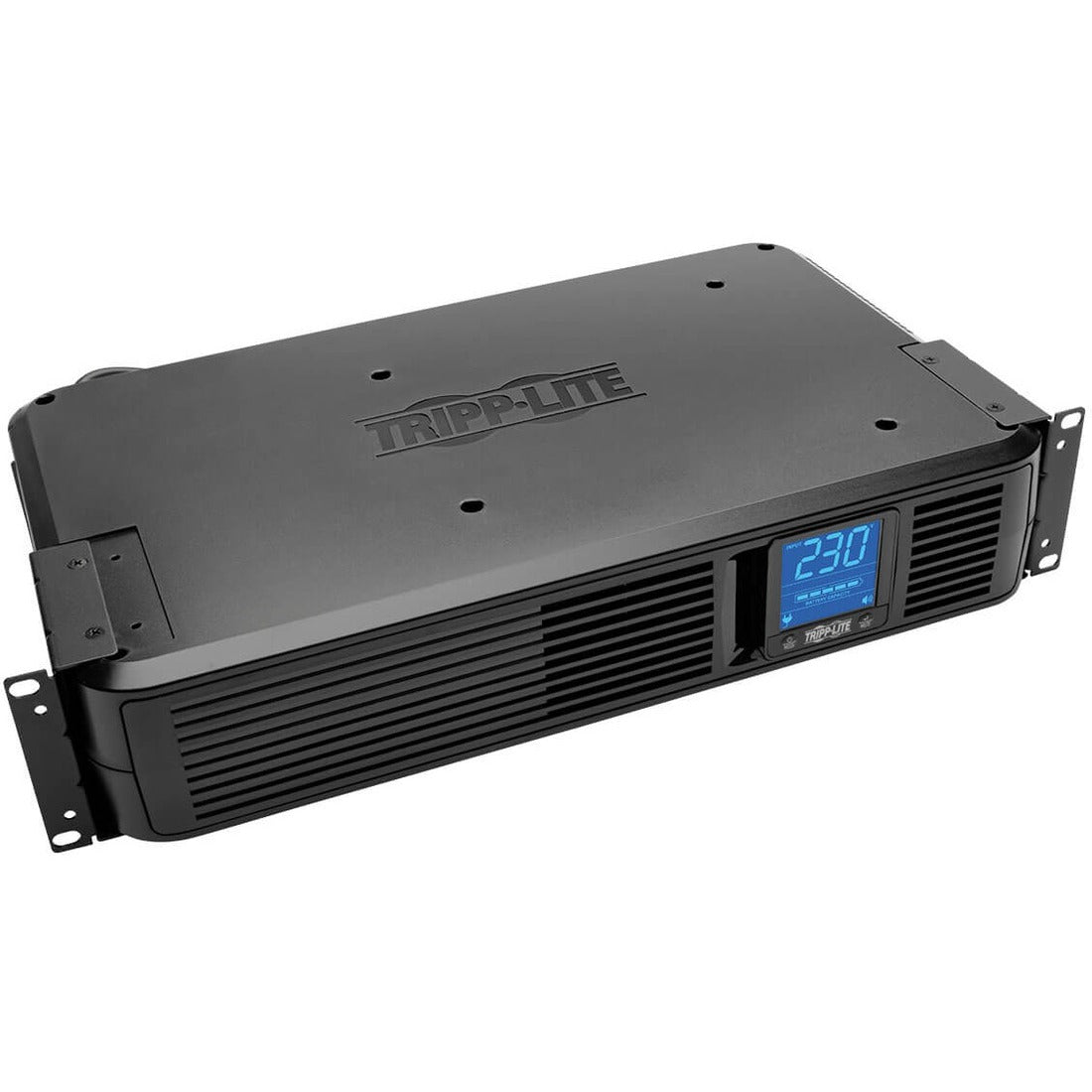

Product Name: SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
Marketing Information: The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

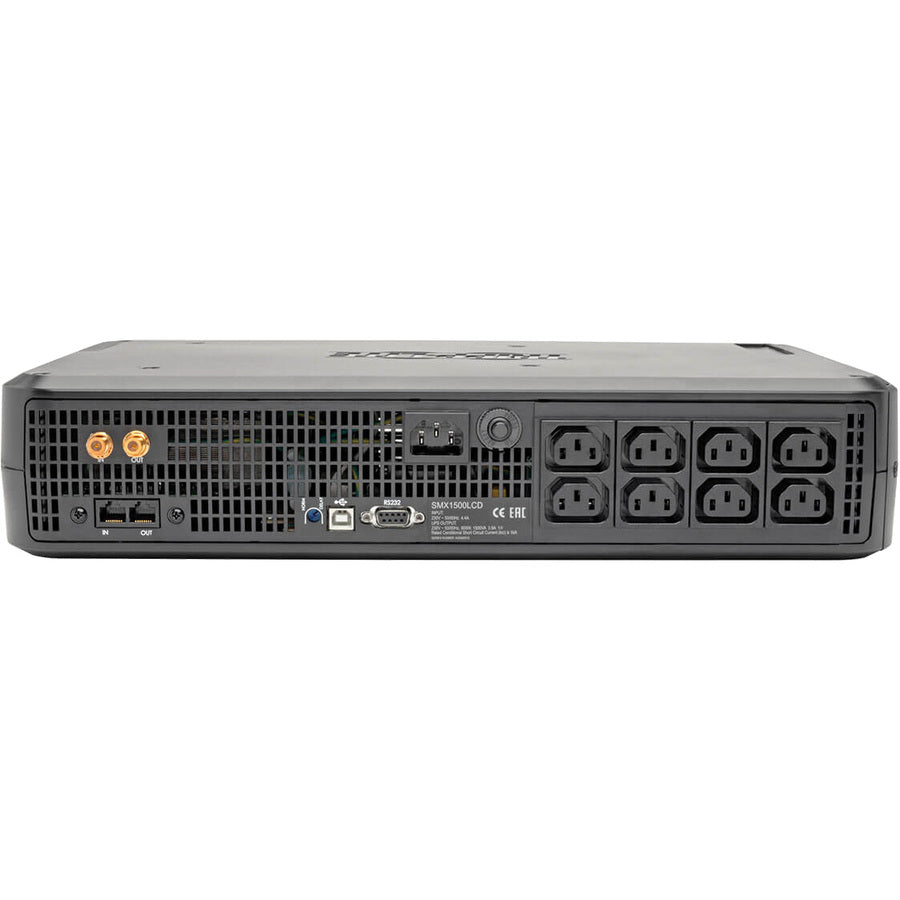

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input rang
Product Type: Line-interactive UPS
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Dataline Protection: RJ-11
Transfer Time: 4 ms
Load Capacity (Watt): 900 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC
USB: Yes
Backup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 13 Minute
Typical Battery Recharge Time: 8 Hour
Width: 17.25" (438.15 mm)
Depth: 10.50" (266.70 mm)
Rack Height: 2U
Form Factor: Tower,Rack-mountable
Weight (Approximate): 33.40 lb (15149.99 g)
Software Included: PowerAlert Software
Country of Origin: China
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SMX1500LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMX1500LCD
Product Name: SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
Marketing Information: The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input rang
Product Type: Line-interactive UPS
Technical Information
Plug/Connector Type: IEC 320 EN 60320 C14Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Dataline Protection: RJ-11
Transfer Time: 4 ms
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 900 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC
Interfaces/Ports
Serial Port: YesUSB: Yes
Battery Information
Battery Chemistry: Lead AcidBackup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 13 Minute
Typical Battery Recharge Time: 8 Hour
Physical Characteristics
Height: 3.50" (88.90 mm)Width: 17.25" (438.15 mm)
Depth: 10.50" (266.70 mm)
Rack Height: 2U
Form Factor: Tower,Rack-mountable
Weight (Approximate): 33.40 lb (15149.99 g)
Miscellaneous
Package Contents:- SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
- SMX1500LCD Digital UPS System
- USB cable, phone (RJ11) cable and coax cable
- 2 C13-to-C14 jumper cables
- 2 tower/rackmount brackets
- Owner's manual with warranty information
Software Included: PowerAlert Software
Country of Origin: China
Warranty
Limited Warranty: 2 Year
