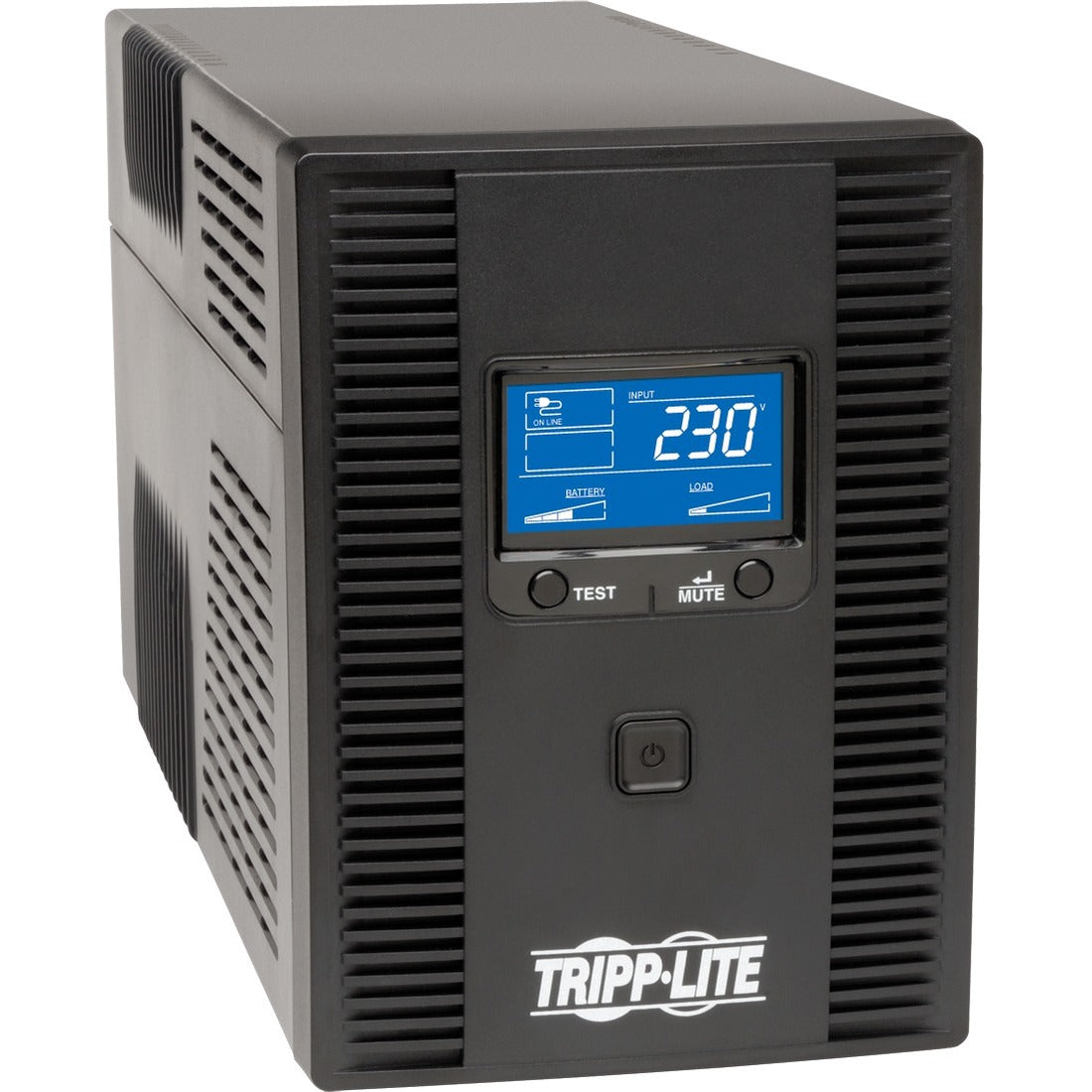

SMX1500LCDT Tripp Lite series Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMX1500LCDT
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: SMX1500LCDT
Product Name: Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port
Marketing Information:

The SMX1500LCDT SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, media centers and home entertainment systems, the SMX1500LCDT switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCDT has an internal battery that provides 10 minutes of support at half load. It can also power an entry-level PC up to 90 minutes. Two of the eight outlets provide surge protection only for printers and other non-essential devices A front-panel LCD screen lets you configure settings and monitor operating data, such as voltage, battery and load statuses.

Automatic voltage regulation (AVR) maintains 230V nominal output over a
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Dataline Protection: RJ-11,RJ-45
Cord Length: 6 ft (1.83 m)

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 900 W
Input Voltage: 230 V DC
Input Current: 9 A
Output Voltage: 230 V AC
Waveform Type: Sine Wave,Pulse-width Modulated Sine Wave
Surge Energy Rating: 455 J
Circuit Breaker: Yes

Management

Alarm: Low Battery,Power Failure

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Number of Batteries: 2
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 8 Hour

Physical Characteristics

Height: 8" (203.20 mm)
Width: 5.75" (146.05 mm)
Depth: 15.50" (393.70 mm)
Form Factor: Tower
Weight (Approximate): 24.69 lb (11200 g)

Miscellaneous

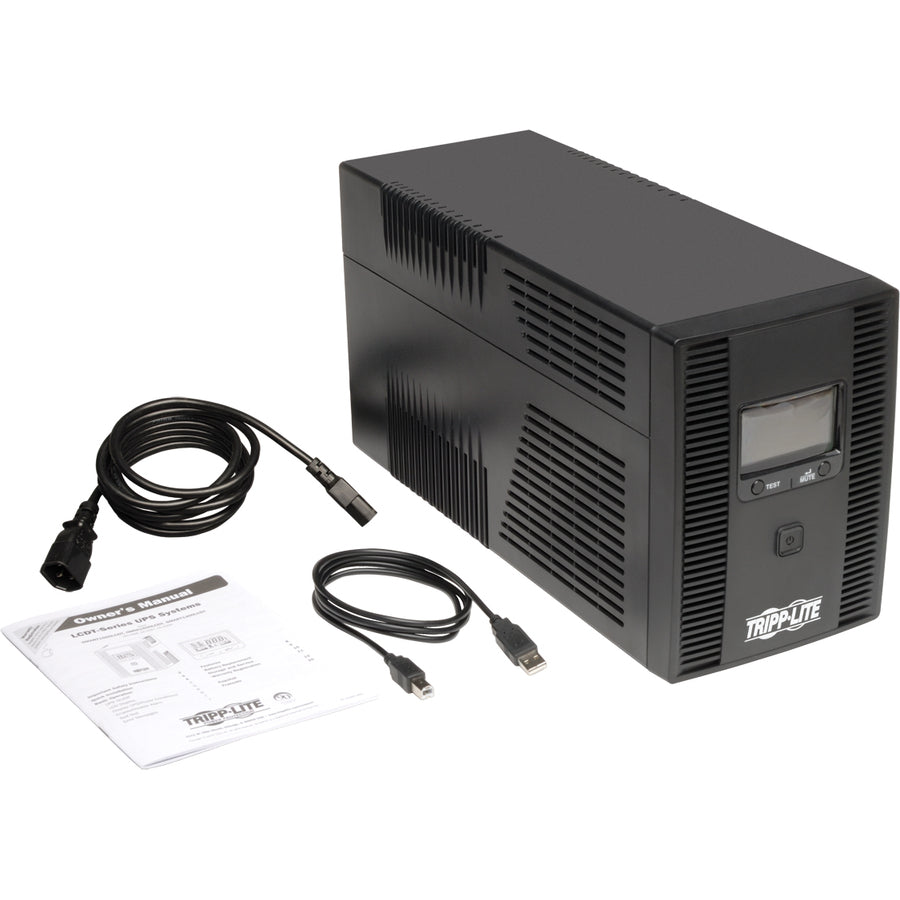

Package Contents:

• Smart LCD 1500VA Tower Line-Interactive 230V UPS with LCD Display and USB Port
• USB Cabling

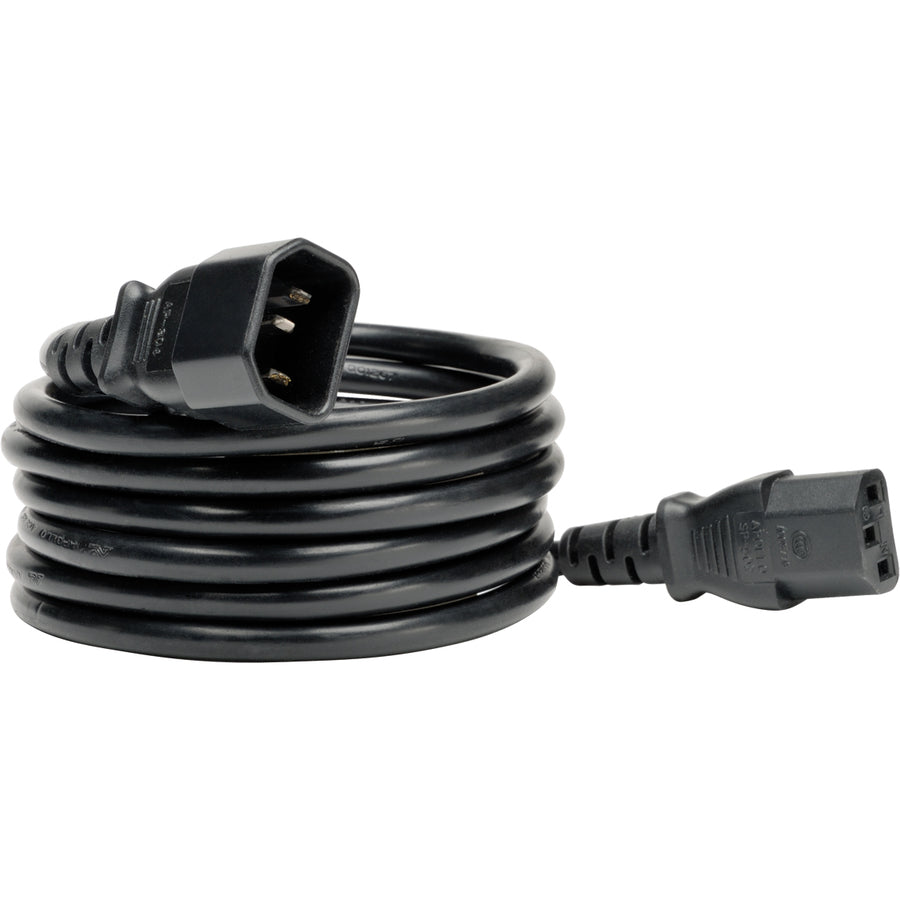

• 1.8m C13 to C14 Power Cable
• Manual with Warranty Information

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
