SMX1500RM2UCNC APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 120V, 8x 5-15R NEMA, SmartConnect port+Network card, Extended runtime

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMX1500RM2UCNC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SMX

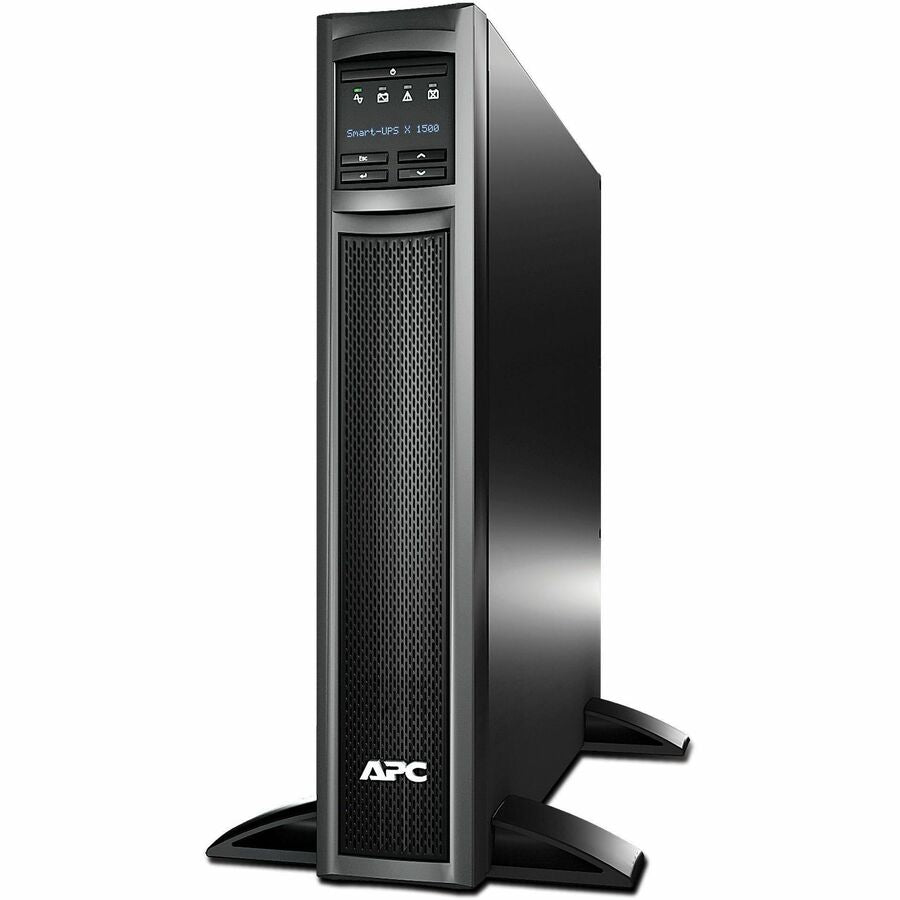

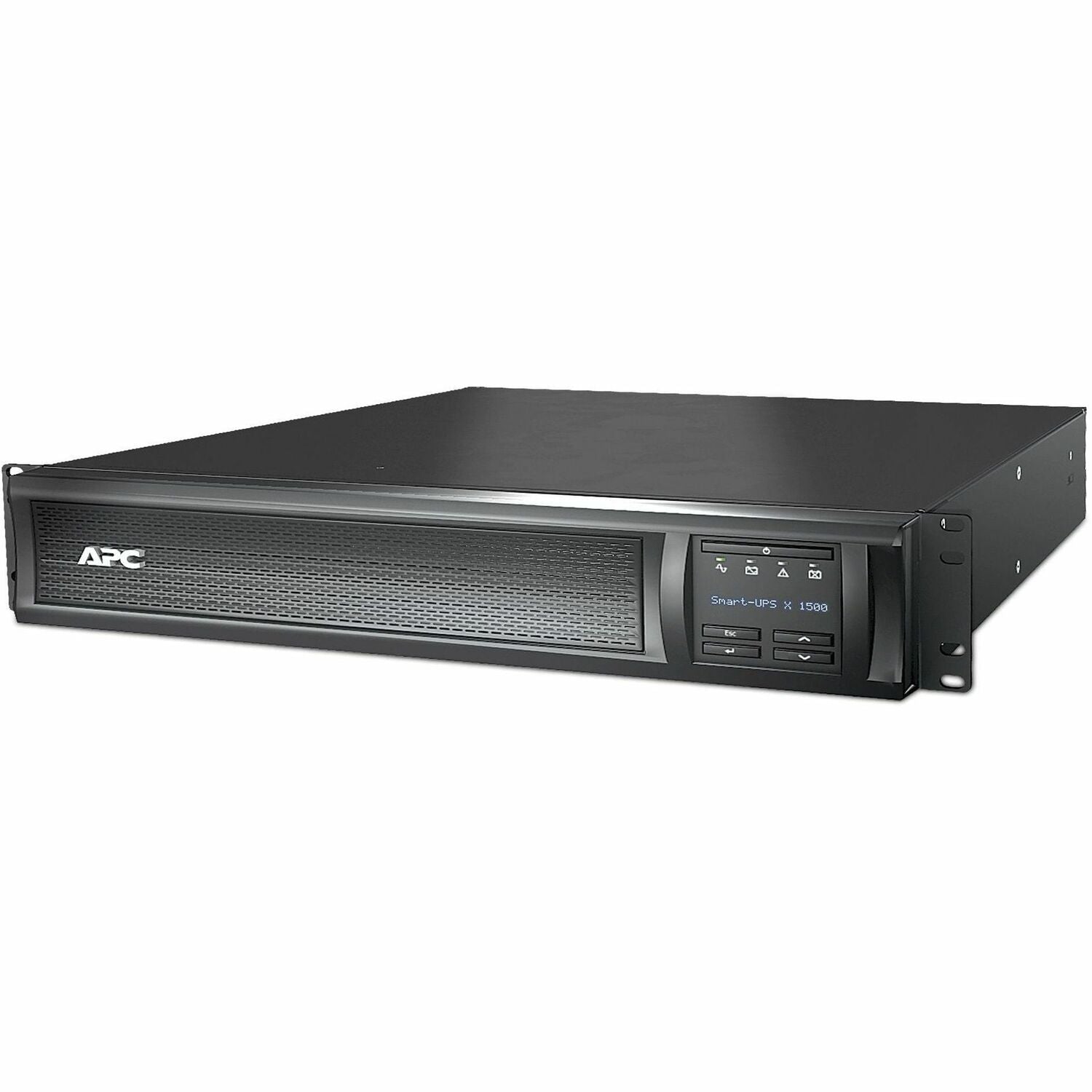

Product Name: Smart-UPS SMX 1500VA Tower/Rack Convertible UPS
Marketing Information:

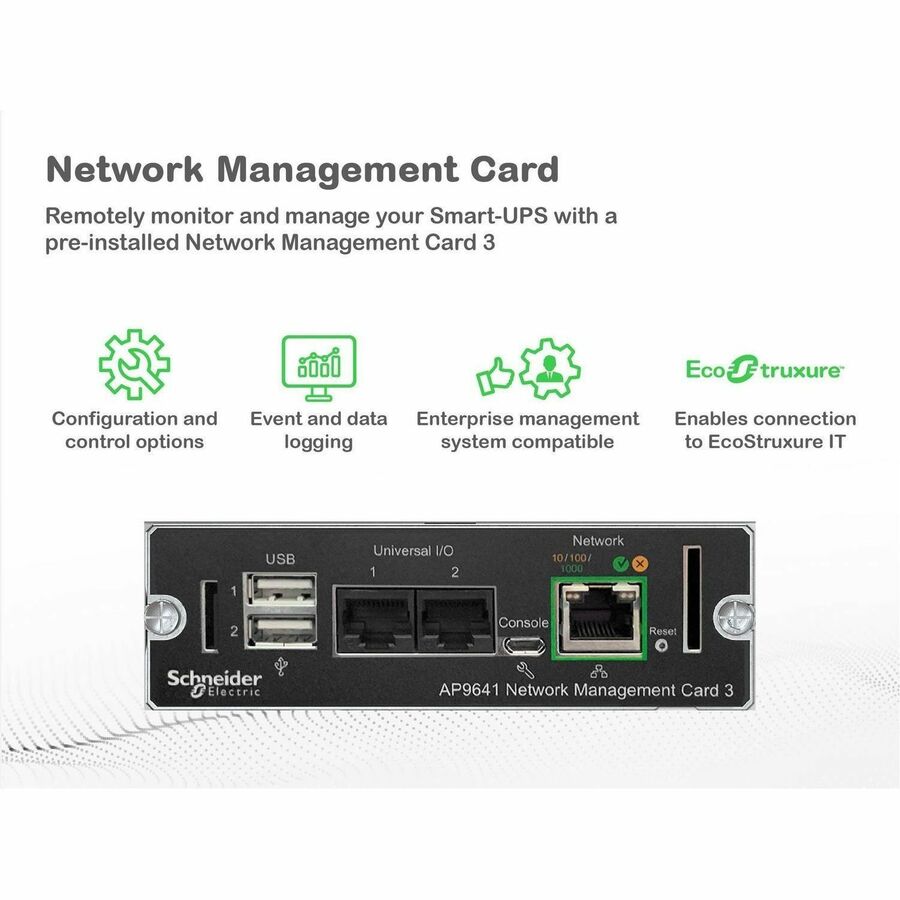

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1440VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and th
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

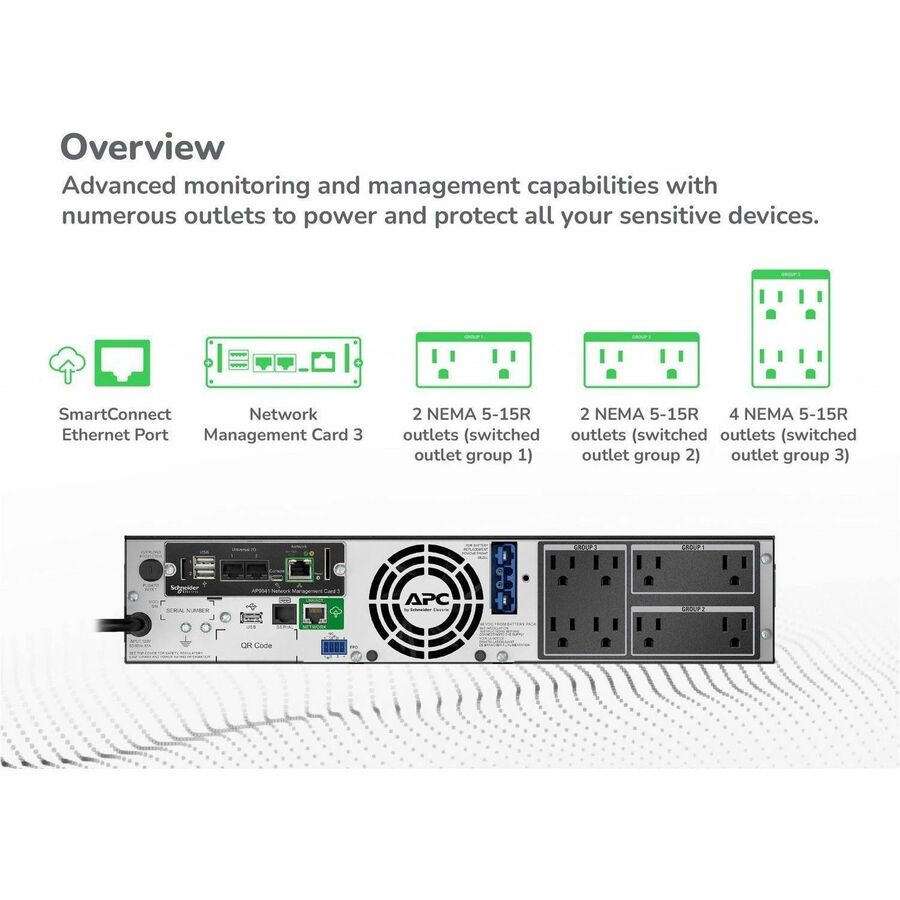

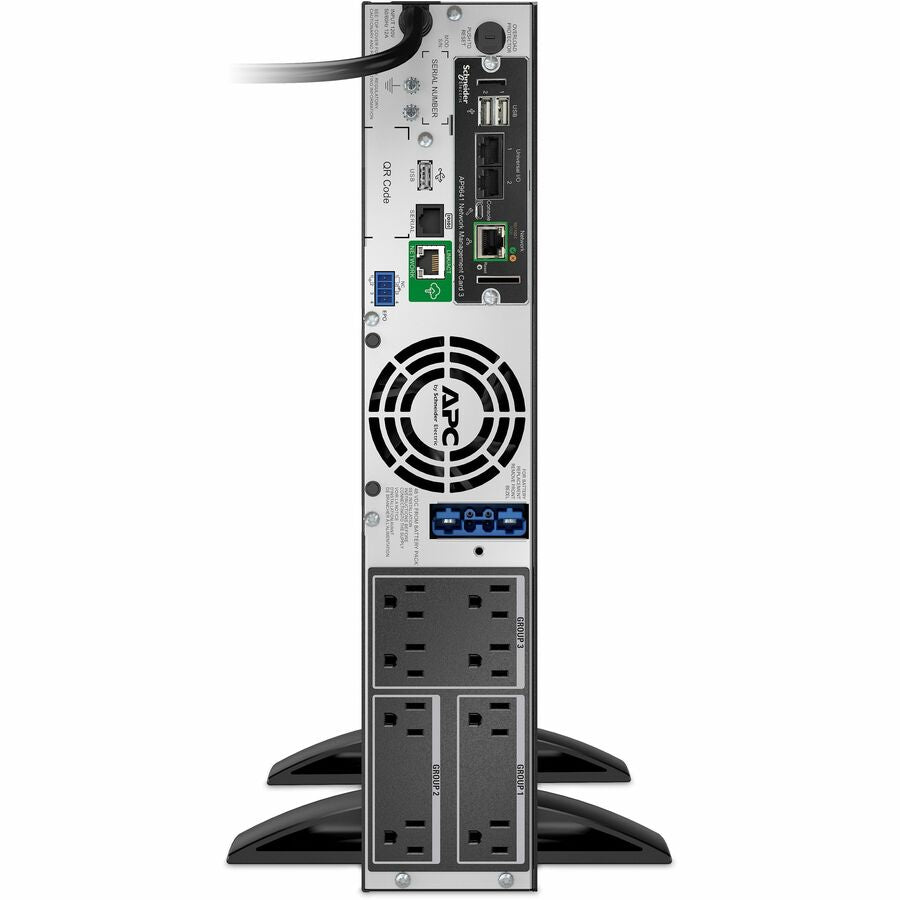

Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 8 ft (2.44 m)
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: Mission Critical Equipment,Server Room,Business,IT Infrastructure,Security System,Communication System,Electronic,VoIP,Telecommunication,Workstation,Network Device,POS Terminal,Edge Computing,Data Storage,Mobile Device,Tablet,Computer

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 600 J

Management

Alarm: On Battery,Low Battery,Overload

Controls/Indicators

Status Indicators:

Control Panel:

• Multi-function LCD Status
• Control Console

Interfaces/Ports

Serial Port: Yes
Network (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

Number of Batteries: 1
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute

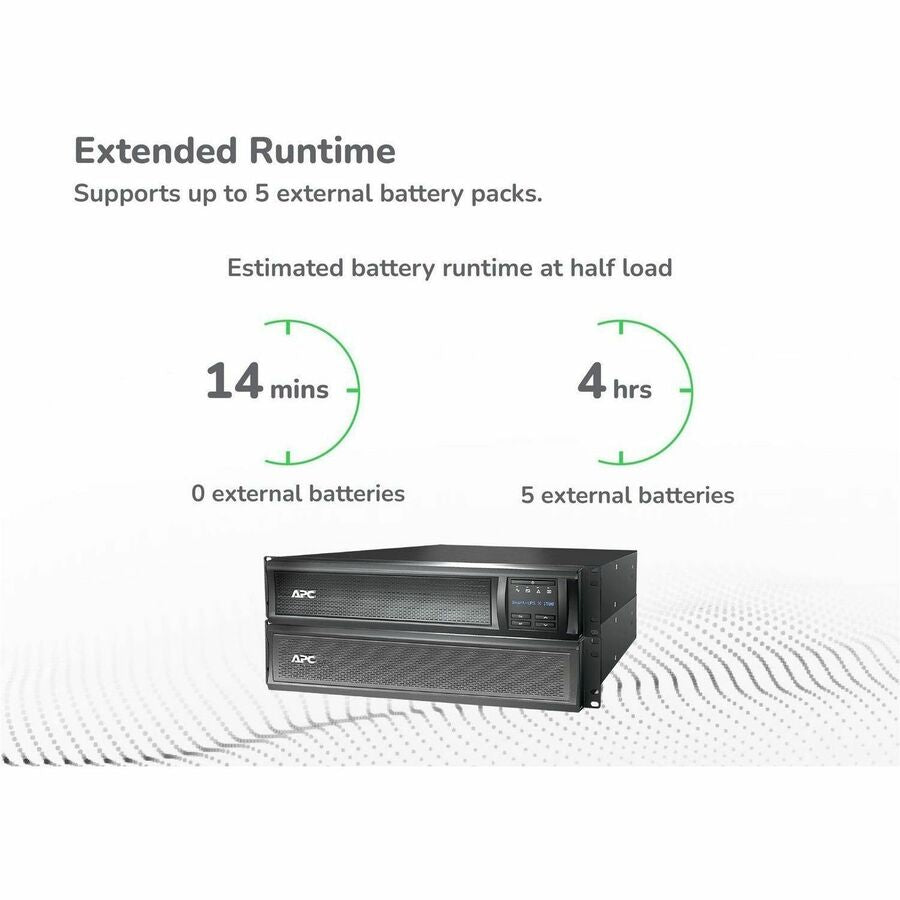

Backup/Run Time (Half Load): 14.80 Minute
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black
Height: 3.50" (89 mm)
Width: 17.01" (432 mm)
Depth: 19.29" (490 mm)
Rack Height: 2U

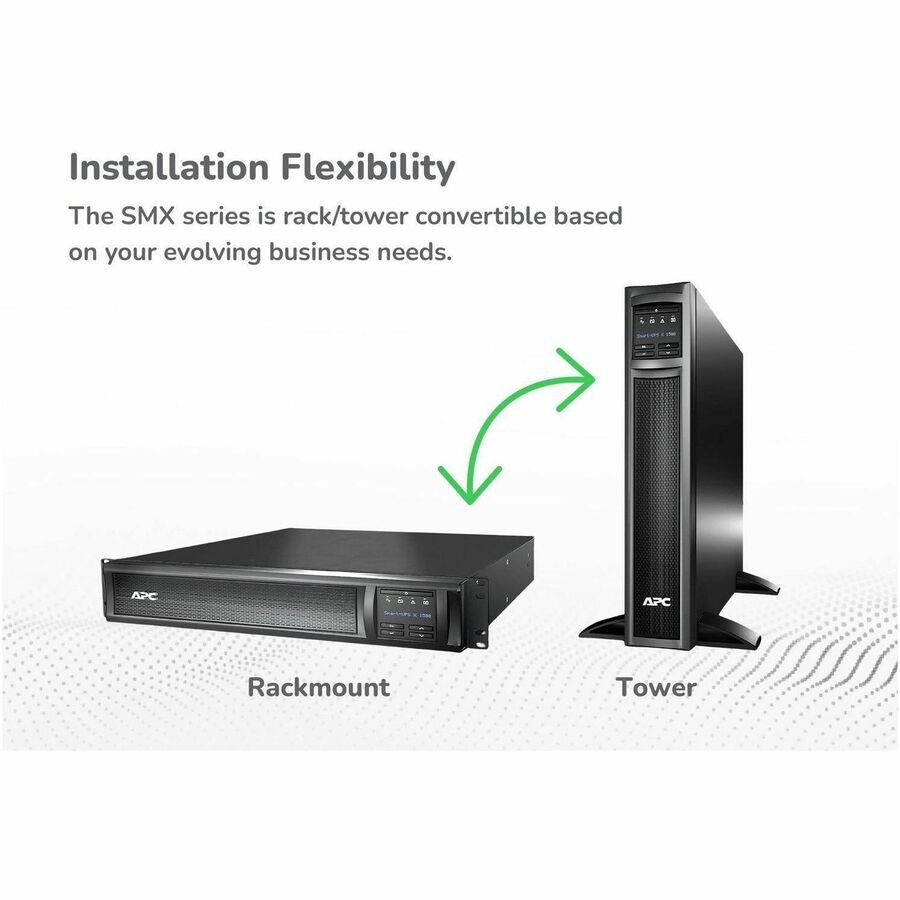

Form Factor: Rack-mountable
Weight (Approximate): 54.72 lb (24820.57 g)

Miscellaneous

Package Contents:

Smart-UPS SMX 1500VA Tower/Rack Convertible UPS

Cat 5 Ethernet cable

Installation guide

Rack mounting hardware

Rack mounting support rails

Removable support feet

Smart UPS signalling RS-232 cable

USB cable

Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
