SMX2000RMLV2UNC APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 120V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, Network card, Extended runtime

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMX2000RMLV2UNC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: X
Product Model: SMX2000RMLV2UNC

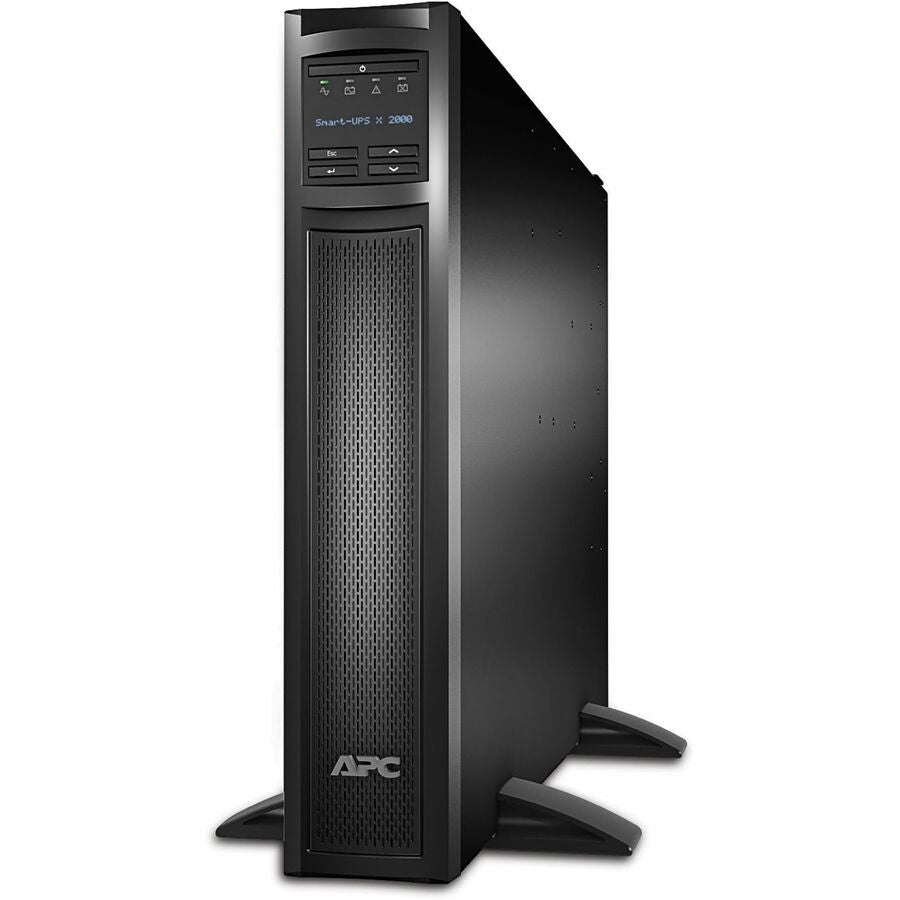

Product Name: Smart-UPS X 1920 VA Tower/Rack Mountable
Marketing Information:

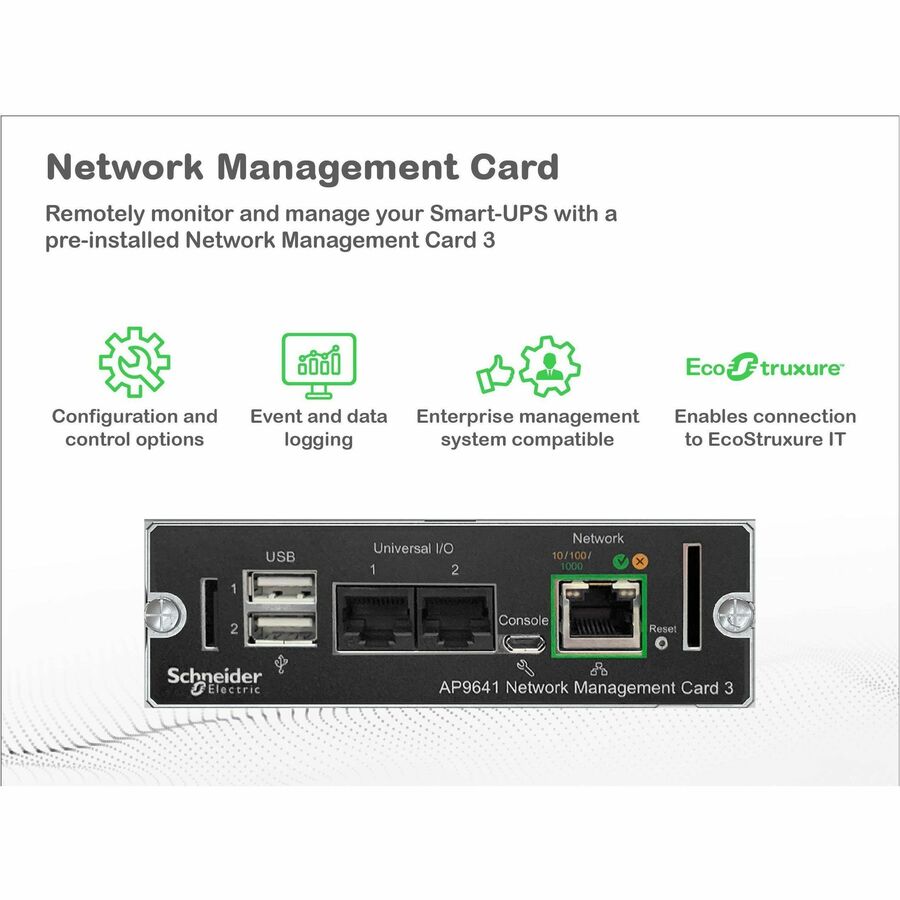

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20P

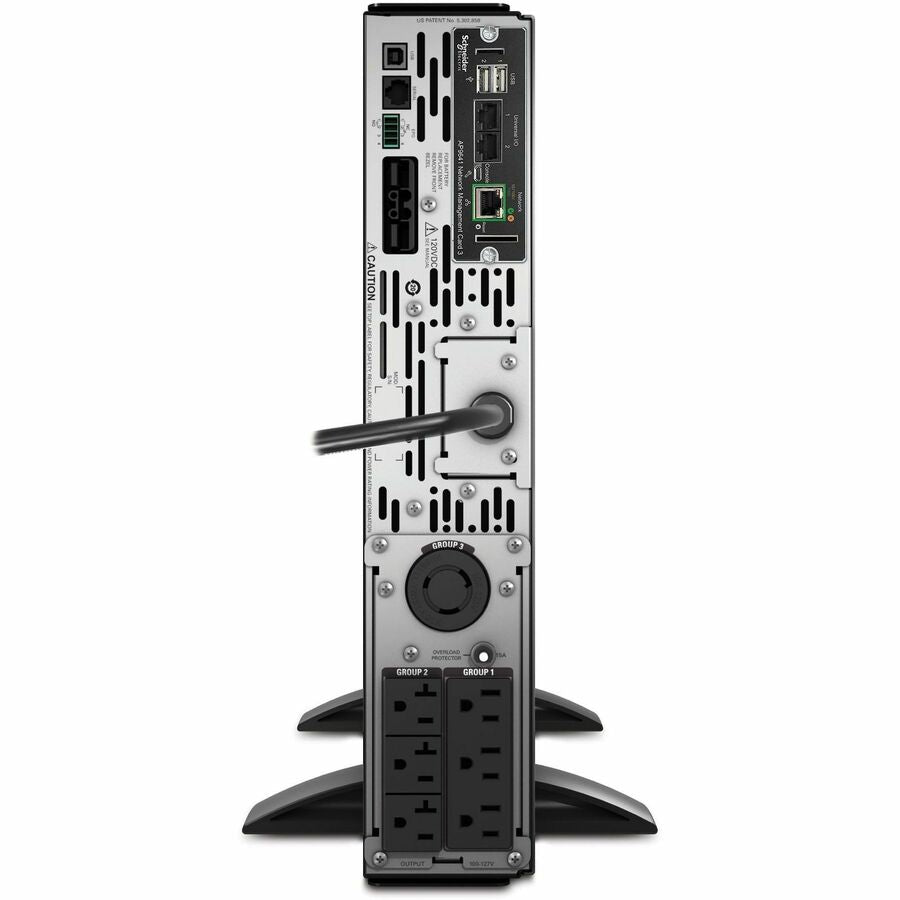

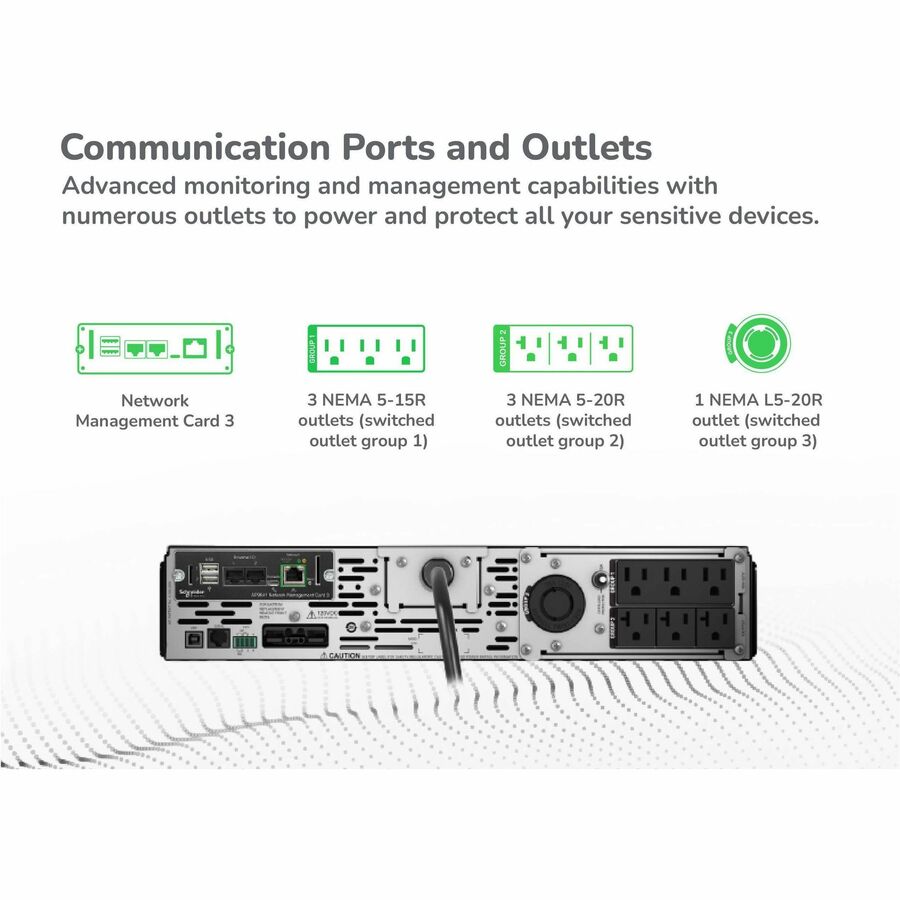

Receptacle Detail: 1 x NEMA L5-20R,3 x NEMA 5-15R,3 x NEMA 5-20R
Number of Battery & Surge Outlets: 7
Cord Length: 8 ft (2.44 m)
Phase: Single Phase

Power Description

Load Capacity (VA): 1.92 kVA
Load Capacity (Watt): 1.80 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 540 J

Interfaces/Ports

Serial Port: Yes
USB: Yes
Network (RJ-45): Yes

Battery Information

Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Lead Acid

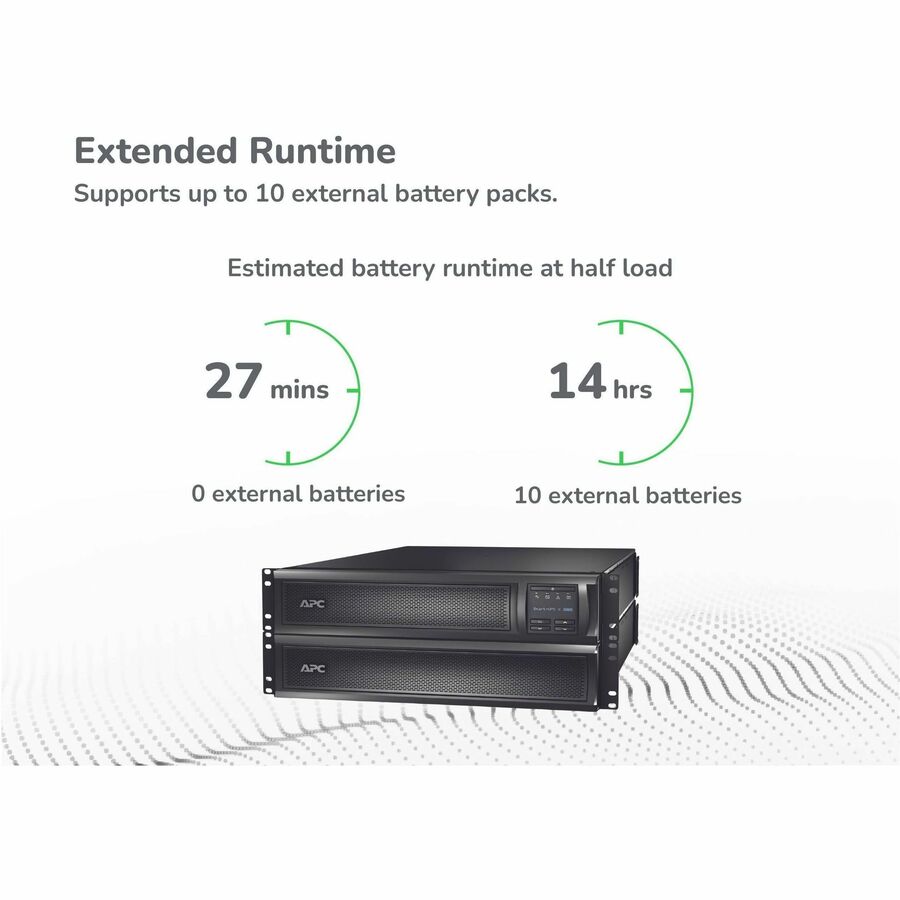

Backup/Run Time (Full Load): 11 Minute
Backup/Run Time (Half Load): 28 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black
Height: 3.35" (85 mm)
Width: 17.01" (432 mm)
Depth: 26.26" (667 mm)

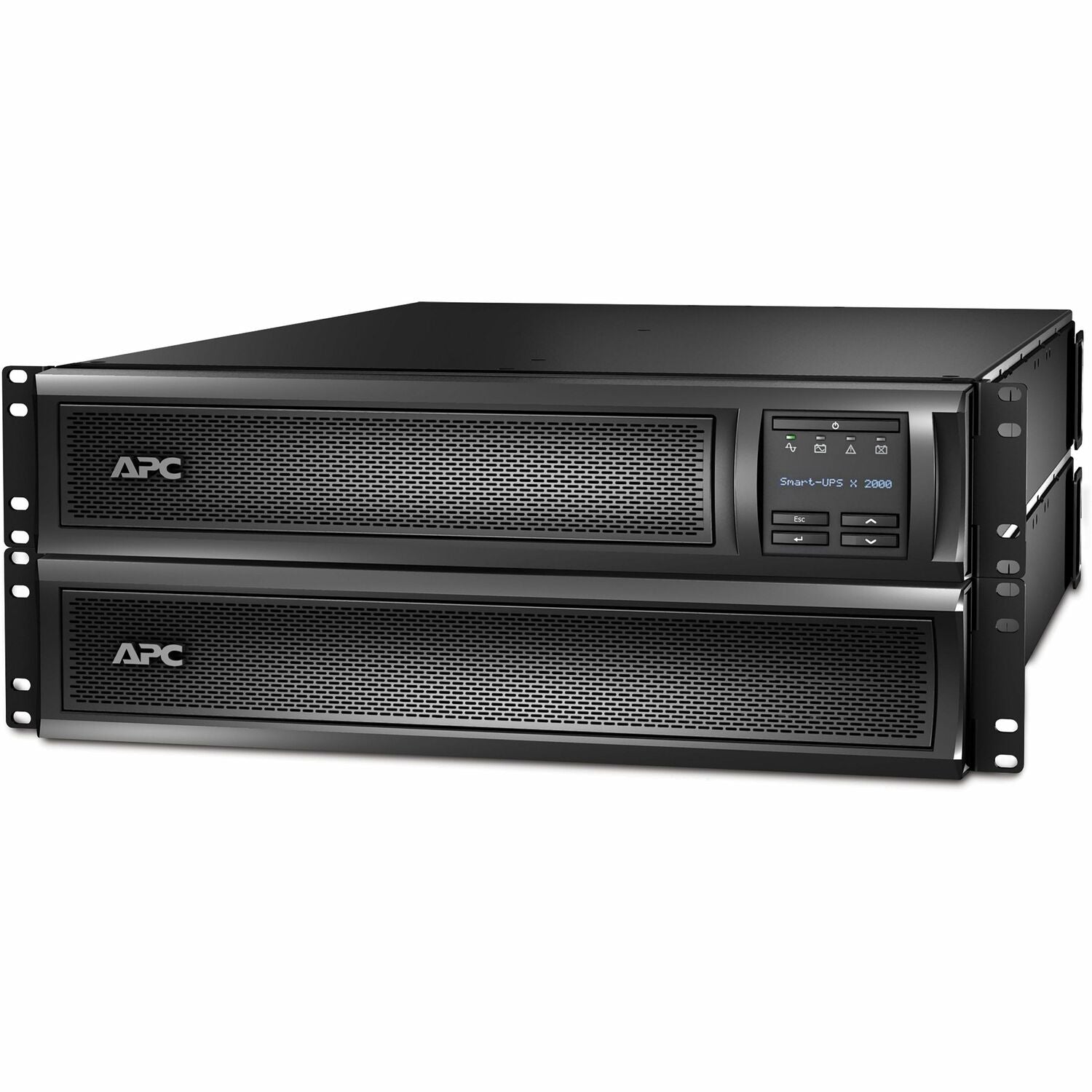

Rack Height: 2U

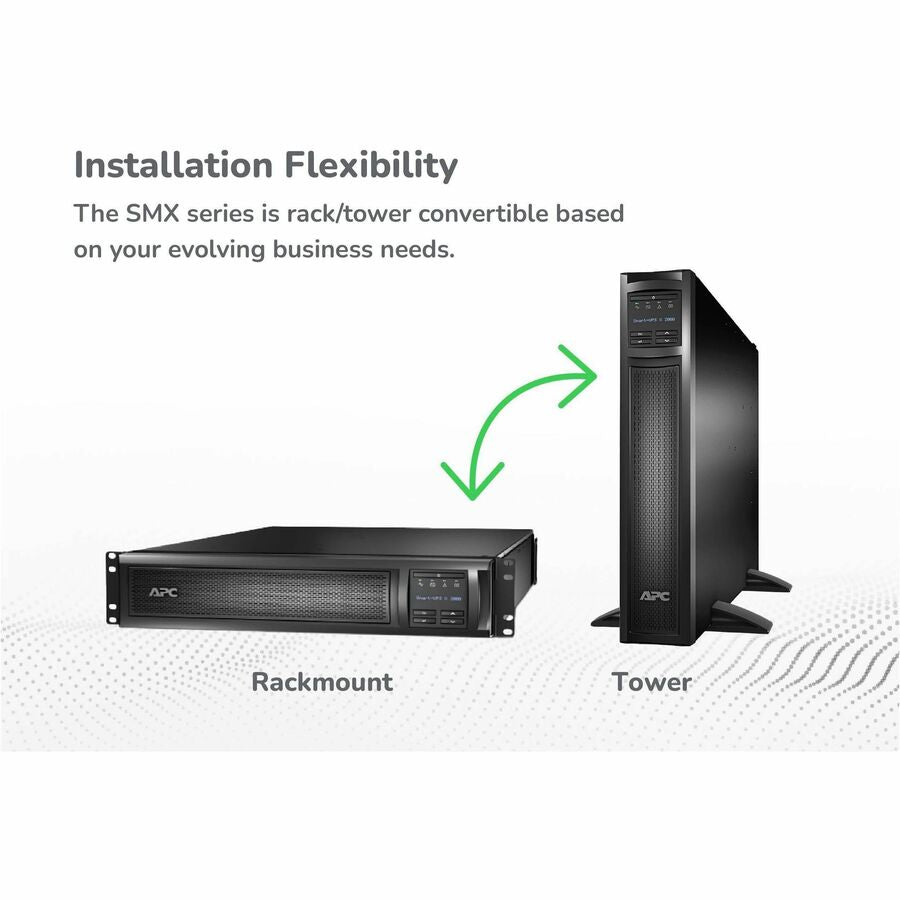

Form Factor: Rack-mountable
Weight (Approximate): 84.77 lb (38451.03 g)

Miscellaneous

Package Contents:

Smart-UPS X 1920 VA Tower/Rack Mountable

CD with software

Documentation CD

Installation guide

Network management card

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

Smart UPS signalling RS-232 cable

USB cable

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
