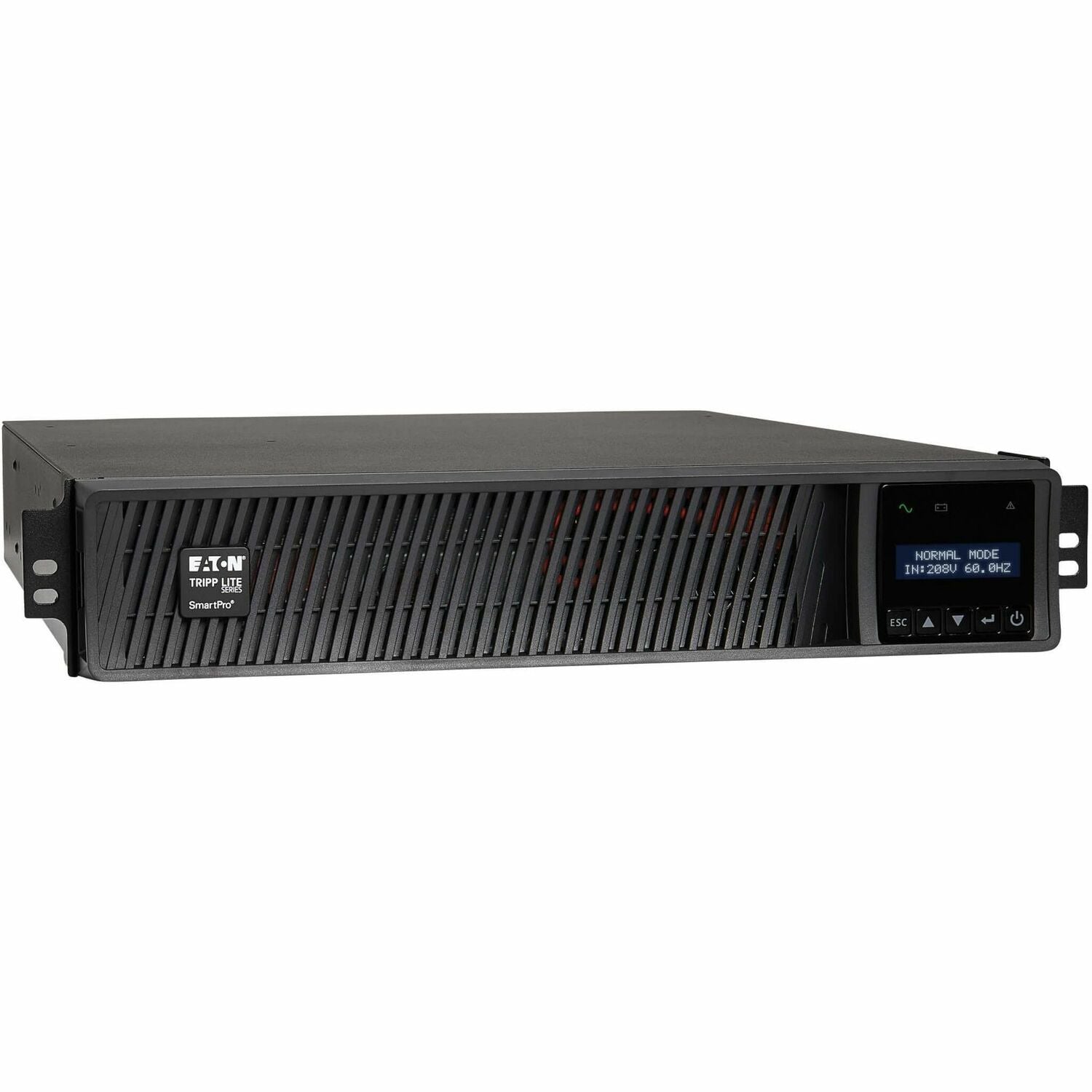

SMX3000XLRT2UA Tripp Lite series SMX3000XLRT2UA UPS System

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SMX3000XLRT2UA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartPro
Product Model: SMX3000XLRT2UA
Product Name: SMX3000XLRT2UA UPS System
Marketing Information: 3kVA/3kW/208V Battery Backup for Distributed IT, Telecom or Enterprise Deployments

The SMX3000XLRT2UA provides reliable battery backup and AC power protection for connected devices against blackouts, brownouts, surges and line noise. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Pure sine wave power and unity power factor, even when on battery, means this SmartPro® UPS can be used with sensitive IT equipment, including servers, VoIP phones, data storage and PoE switches. Even if the battery is depleted, the UPS will automatically restart when the power comes back on after an extended outage.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Extra runtime is available by connecting
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: IEC 60320 C20
Receptacle Type: IEC 60320 C13,IEC 60320 C19
Receptacle Detail: 8 x IEC 60320 C13,1 x IEC 60320 C19

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 230 V AC
Input Current: 14.10 A
Output Voltage: 230 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 350 J

Management

Network Management: SNMP Manageable
Alarm: Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown,UPS StartUp

Controls/Indicators

Status Indicators: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Backup/Run Time (Full Load): 3.90 Minute
Backup/Run Time (Half Load): 11.10 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 5 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 158 BTU/h

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 19.50" (495.30 mm)
Rack Height: 2U

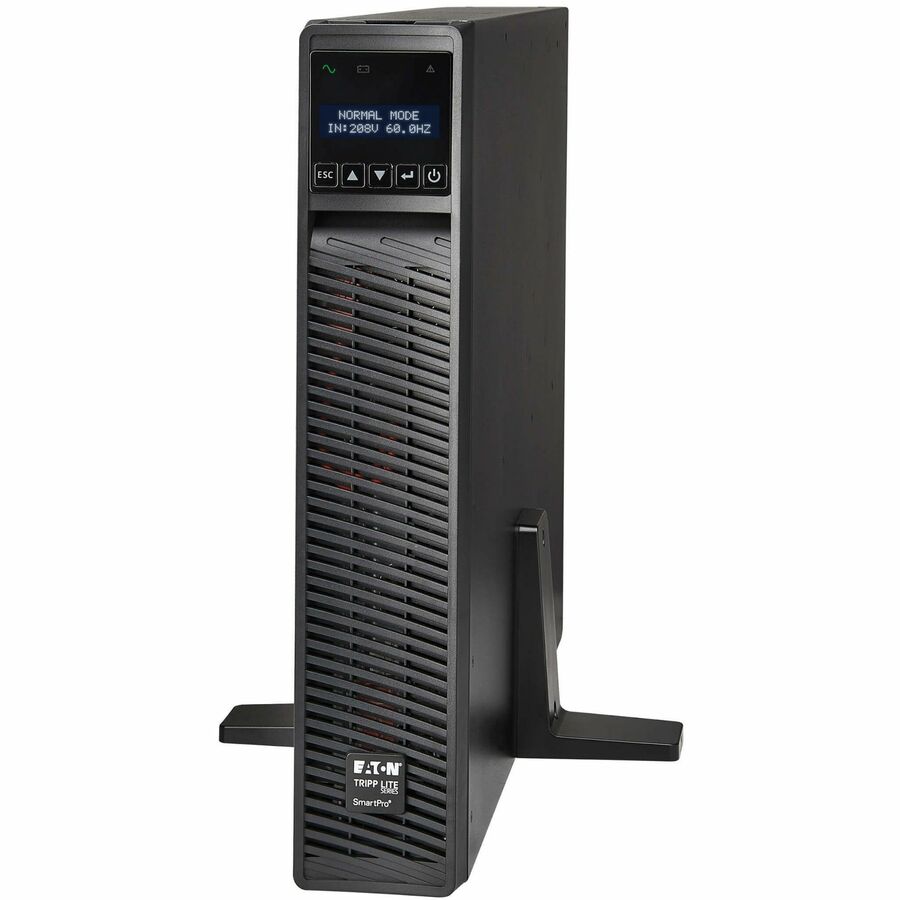

Form Factor: Rack/Tower
Weight (Approximate): 62.80 lb (28485.60 g)

Miscellaneous

Package Contents:

• SMX3000XLRT2UA UPS System
• PowerAlert Software CD
• 4 Post Rackmount Installation Kit
• 3 x C13/C14 Power Cables
• Instruction Manual
• USB Cable
• DB9 Cable
• EPO Cable

Software Included: PowerAlert Monitoring Software
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
