Description
User-Manual
Manufacturer Part Number: SMX750C
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SMX

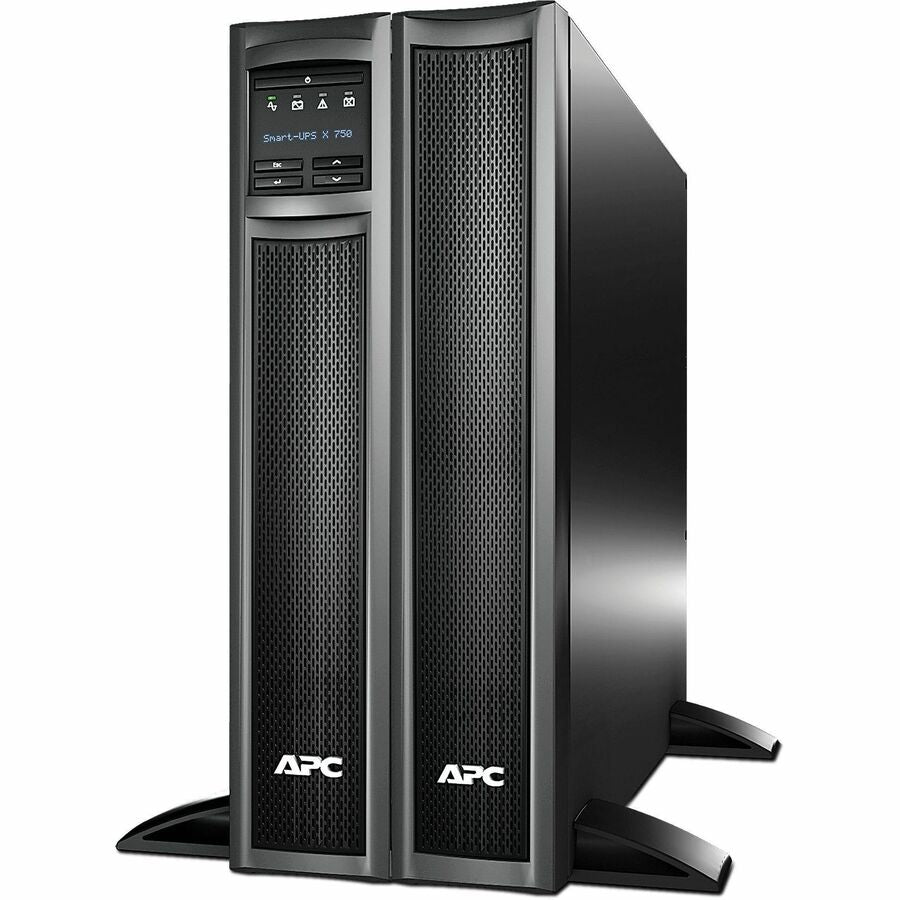

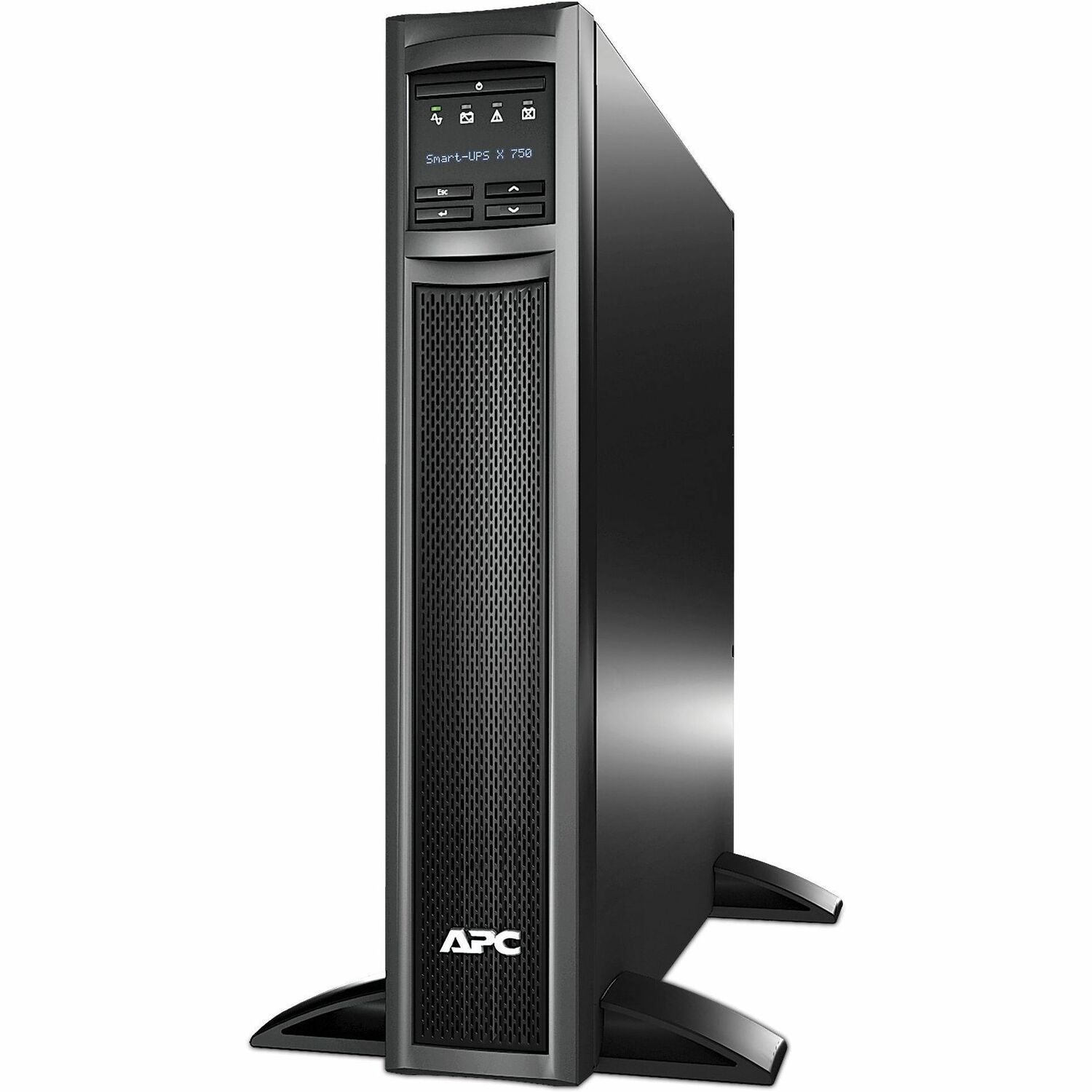

Product Name: Smart-UPS SMX 750VA Tower/Rack Convertible UPS
Marketing Information: This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS per
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

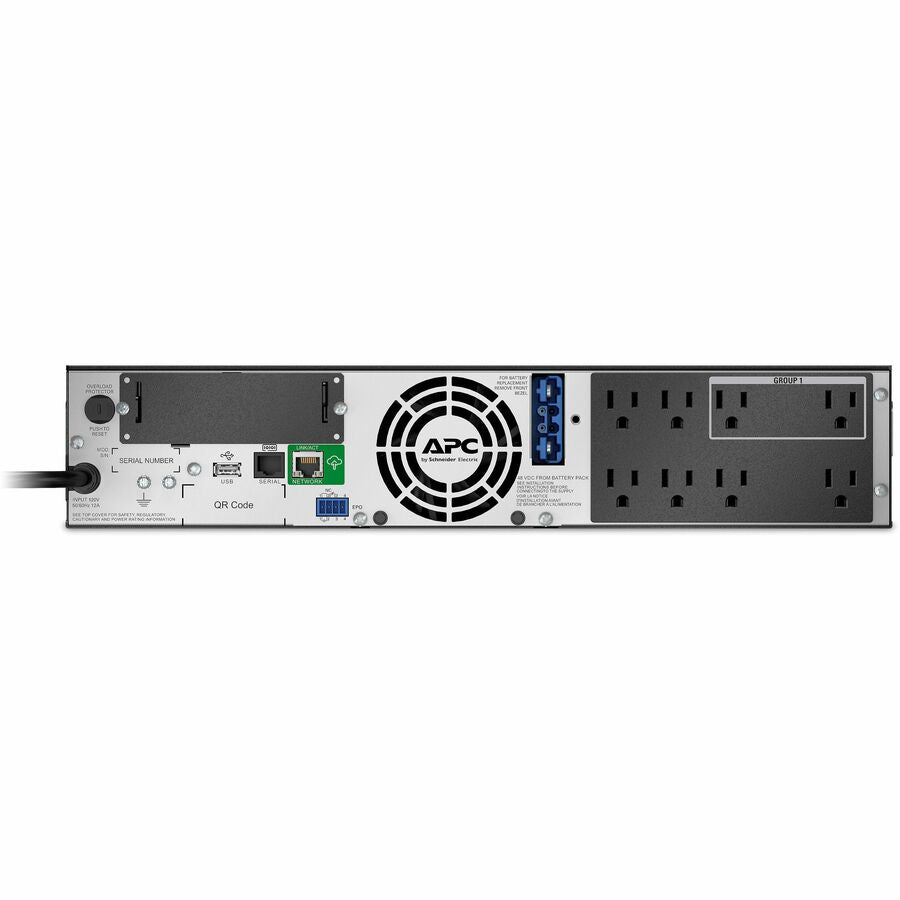

Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 8 ft (2.44 m)
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: Mission Critical Equipment,Server Room,Business,IT Infrastructure,Security System,Communication System,Electronic,VoIP,Telecommunication,Workstation,Network Device,POS Terminal,Edge Computing,Data Storage,Mobile Device,Tablet,Computer
Load Capacity (Watt): 675 W
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Output Frequency: 127 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 645 J
Network (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 12 Minute
Backup/Run Time (Half Load): 25.60 Minute
Typical Battery Recharge Time: 3 Hour
Height: 17.01" (432 mm)
Width: 3.50" (89 mm)
Depth: 19.29" (490 mm)

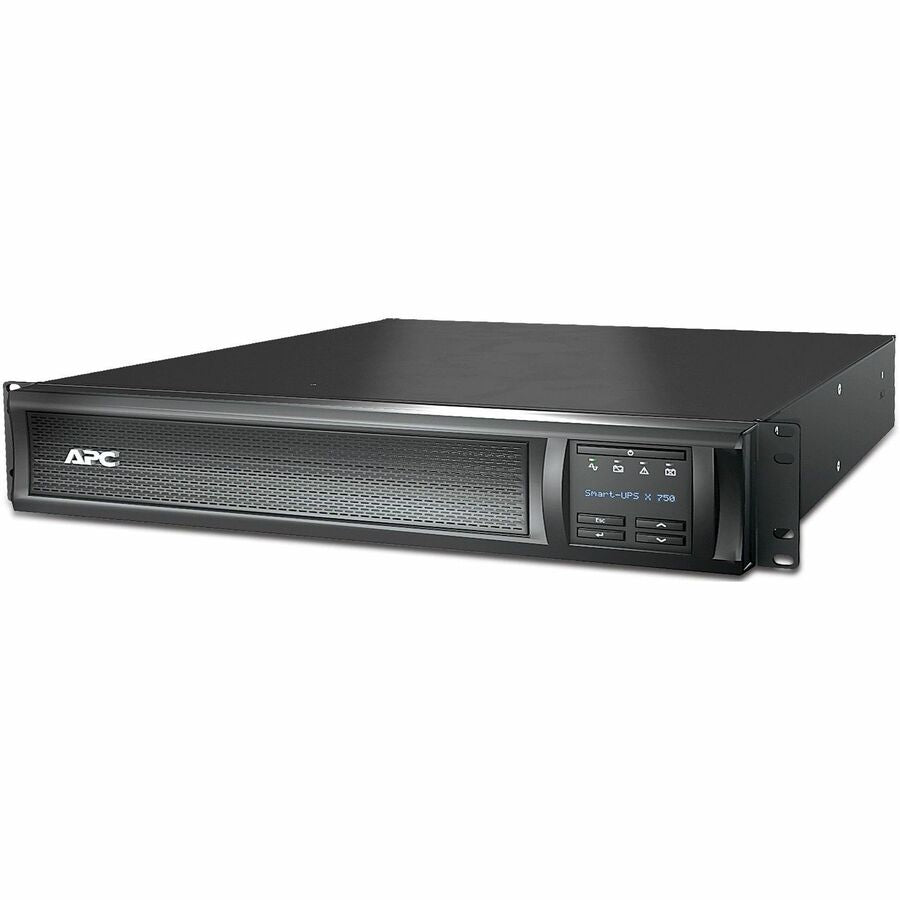

Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 48.61 lb (22049.13 g)
Smart-UPS SMX 750VA Tower/Rack Convertible UPS
Cat 5 Ethernet cable
Installation guide
Rack mounting brackets
Removable support feet
Smart UPS signalling RS-232 cable
USB cable
Warranty card
Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
General Information
Manufacturer: Schneider Electric SAManufacturer Part Number: SMX750C
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SMX
Product Name: Smart-UPS SMX 750VA Tower/Rack Convertible UPS
Marketing Information: This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS per
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 8 ft (2.44 m)
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: Mission Critical Equipment,Server Room,Business,IT Infrastructure,Security System,Communication System,Electronic,VoIP,Telecommunication,Workstation,Network Device,POS Terminal,Edge Computing,Data Storage,Mobile Device,Tablet,Computer
Power Description
Load Capacity (VA): 750 VALoad Capacity (Watt): 675 W
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Output Frequency: 127 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 645 J
Management
Alarm: On Battery,Low Battery,OverloadControls/Indicators
Status Indicators:Control Panel:
- Multi-Function LCD Status
- Control Console
Interfaces/Ports
Serial Port: YesNetwork (RJ-45): Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 1Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 12 Minute
Backup/Run Time (Half Load): 25.60 Minute
Typical Battery Recharge Time: 3 Hour
Physical Characteristics
Product Color: BlackHeight: 17.01" (432 mm)
Width: 3.50" (89 mm)
Depth: 19.29" (490 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 48.61 lb (22049.13 g)
Miscellaneous
Package Contents:Software Included: Powerchute Serial Edition
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
