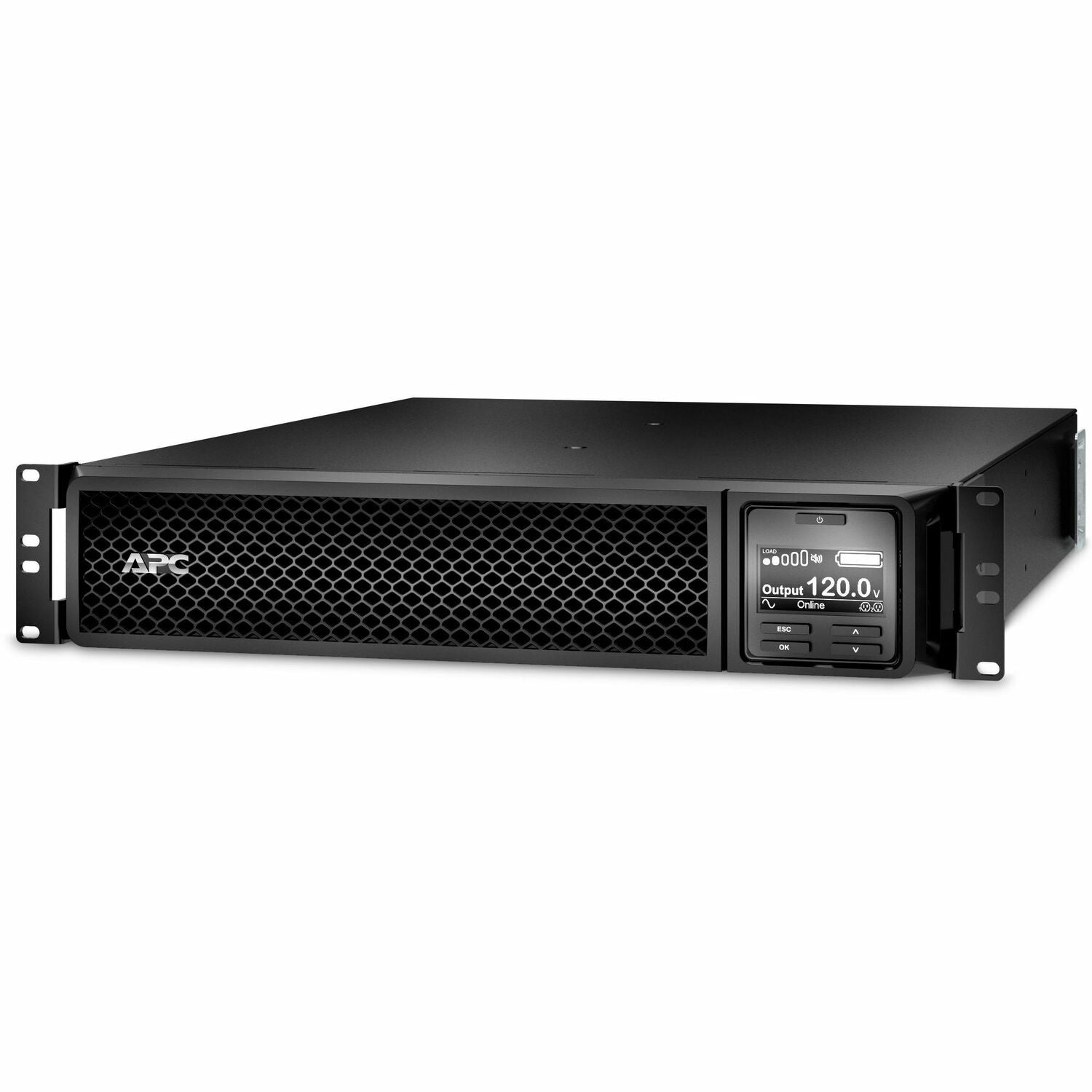

SRT1500RMXLA-NC APC Smart-UPS On-Line, 1500VA, Rackmount 2U, 120V, 6x 5-15R NEMA outlets, Network Card, Extended runtime, W/ rail kit

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT1500RMXLA-NC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS SRT
Product Name: Smart-UPS SRT 1500VA RM 120V Network Card
Marketing Information:

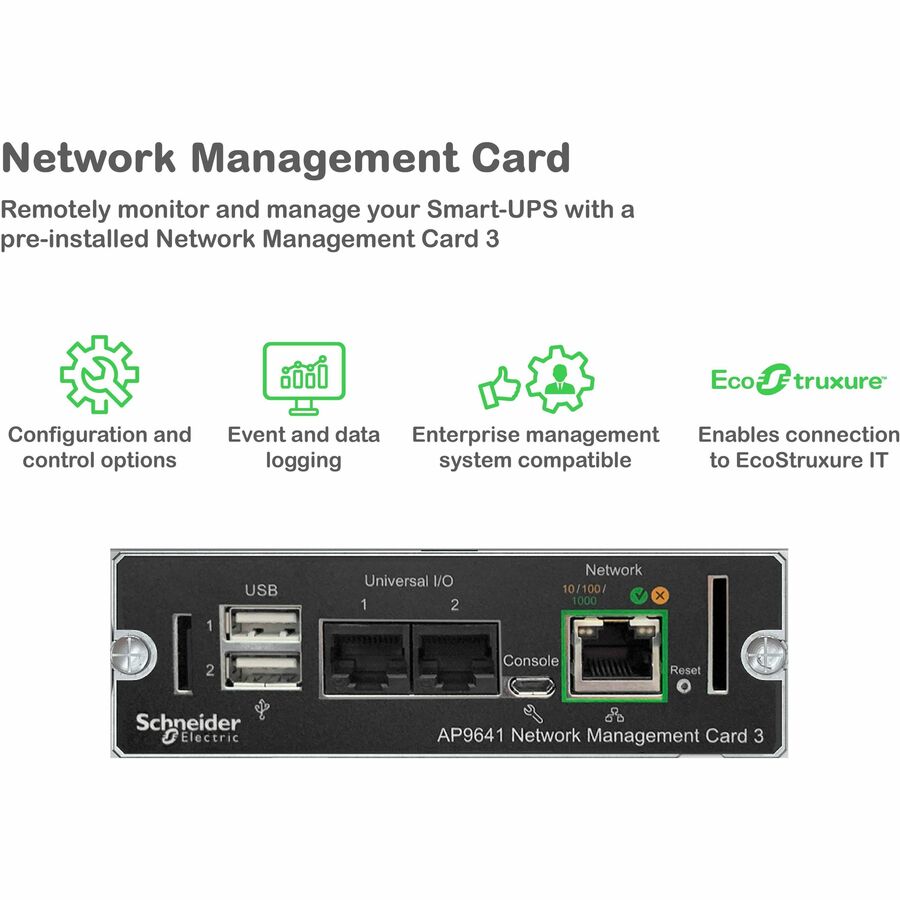

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15P

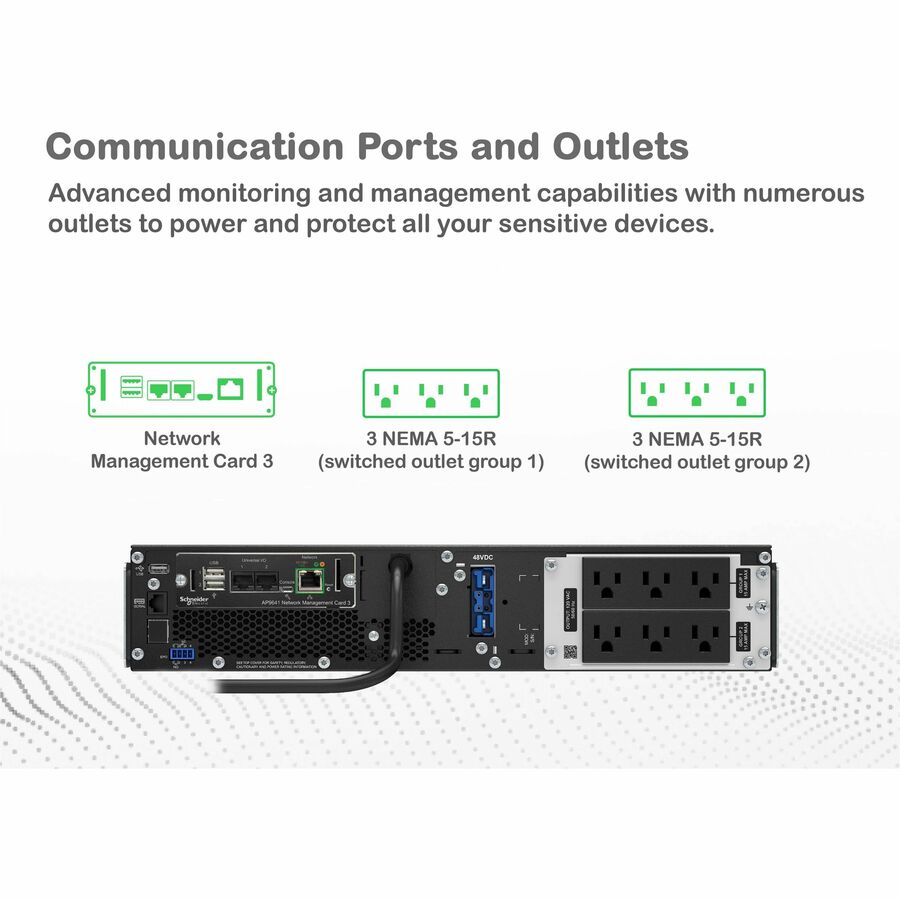

Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Cord Length: 5.9 ft (1.80 m)
Phase: Single Phase

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 432 J

Interfaces/Ports

Network (RJ-45): Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black
Height: 3.35" (85 mm)
Width: 17.01" (432 mm)
Depth: 20" (508 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 48.50 lb (21999.23 g)

Miscellaneous

Package Contents:

Smart-UPS SRT 1500VA RM 120V Network Card

CD with software

Communication cable

Documentation CD

Installation guide

Network management card

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

Temperature probe

USB cable

Warranty card

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s)
