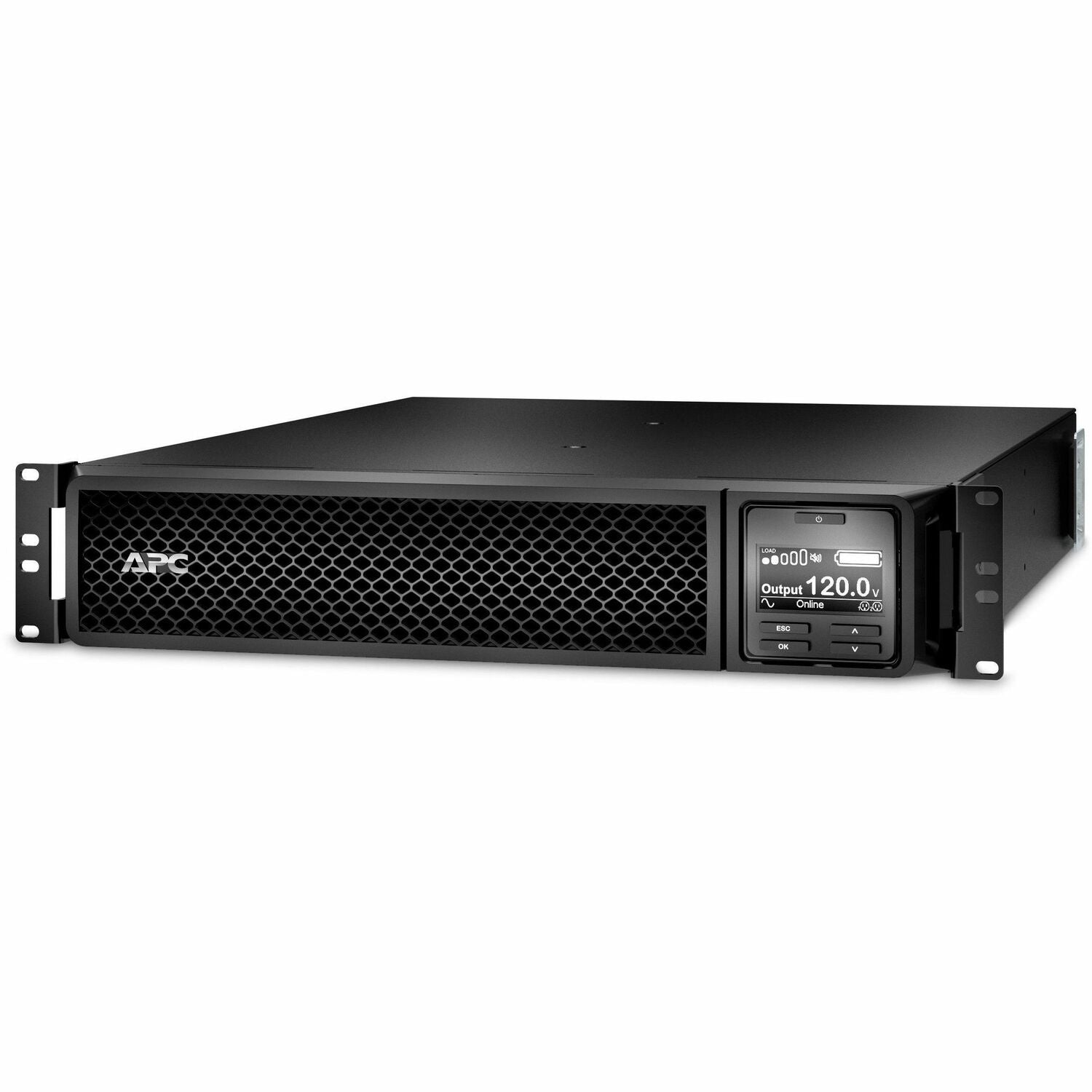

SRT3000RMXLA-NC APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 120V, 8x 5-20R+1x L5-30R NEMA outlets, Network Card, Extended runtime, W/ rail kit

General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT3000RMXLA-NC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS SRT 3000VA RM 120V Network Card
Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

More from the Manufacturer

Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA L5-30P
Receptacle Detail: 1 x NEMA L5-30R,8 x NEMA 5-20R
Number of Battery & Surge Outlets: 9
Cord Length: 7.9 ft (2.40 m)
Phase: Single Phase

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 340 J

Battery Information

Battery Chemistry: Lead Acid
Typical Battery Recharge Time: 3 Hour

Physical Characteristics

Product Color: Black
Height: 3.35" (85 mm)
Width: 17.01" (432 mm)
Depth: 25" (635 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 69 lb (31297.87 g)

Miscellaneous

Package Contents:

Smart-UPS SRT 3000VA RM 120V Network Card

CD with software

Documentation CD

Installation guide

Network management card

Rack mounting brackets

Rack mounting support rails

USB cable

Warranty card

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s)
