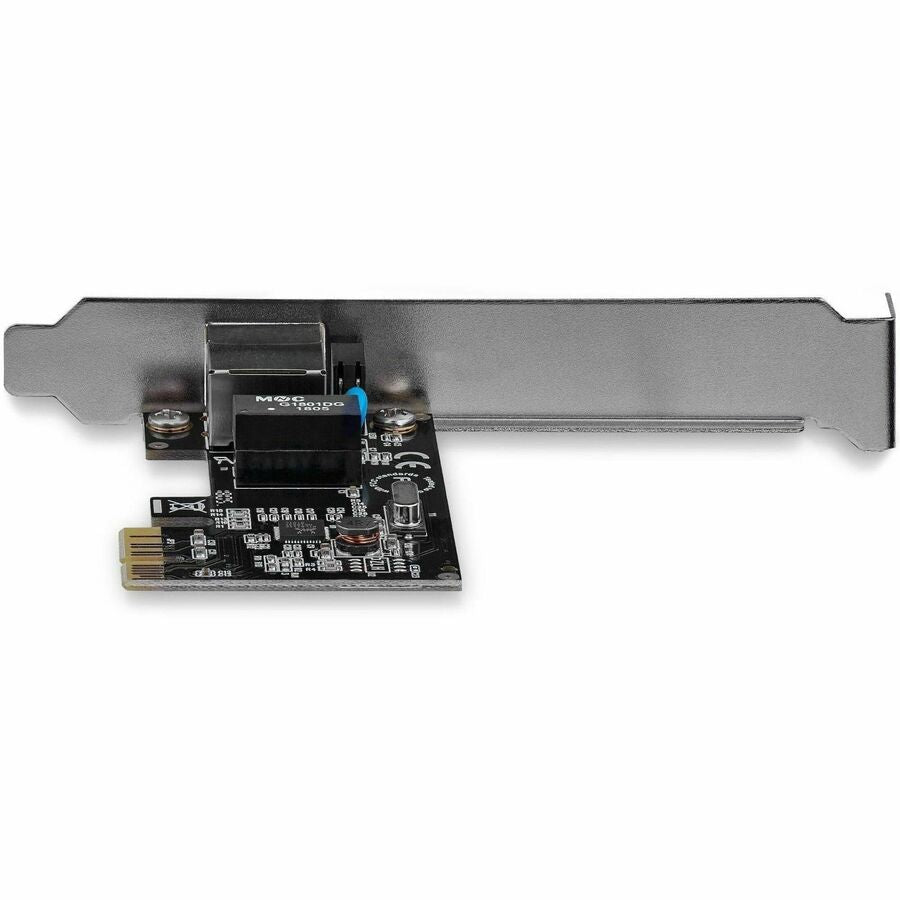

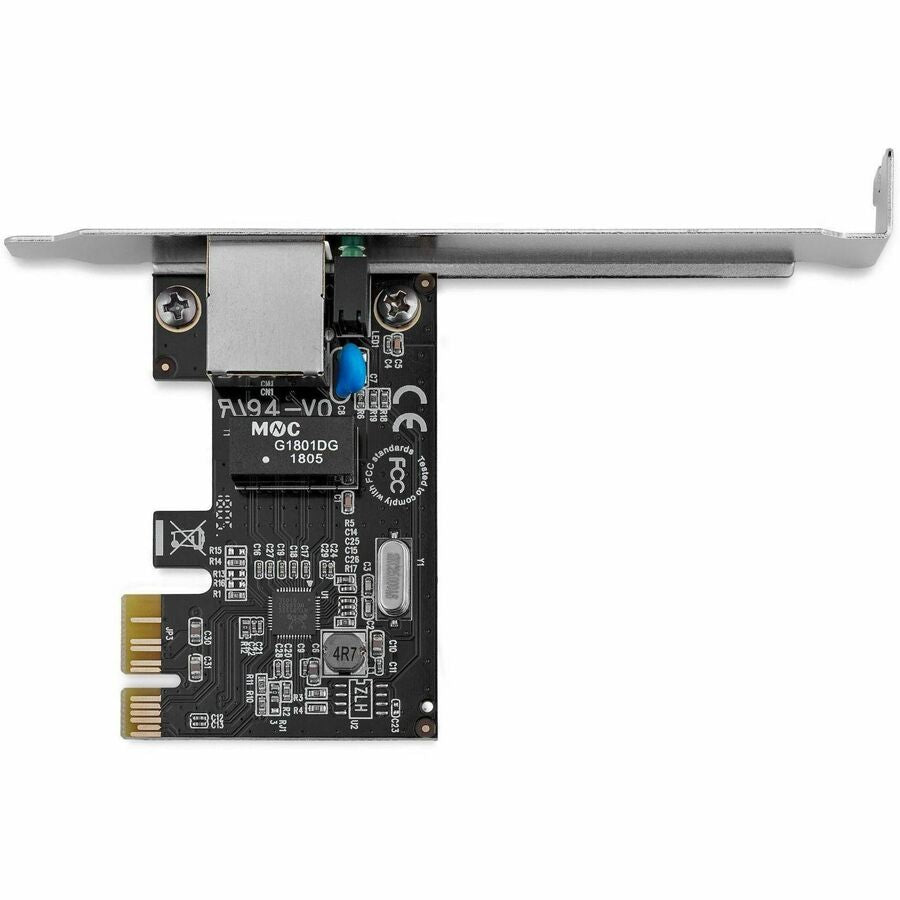

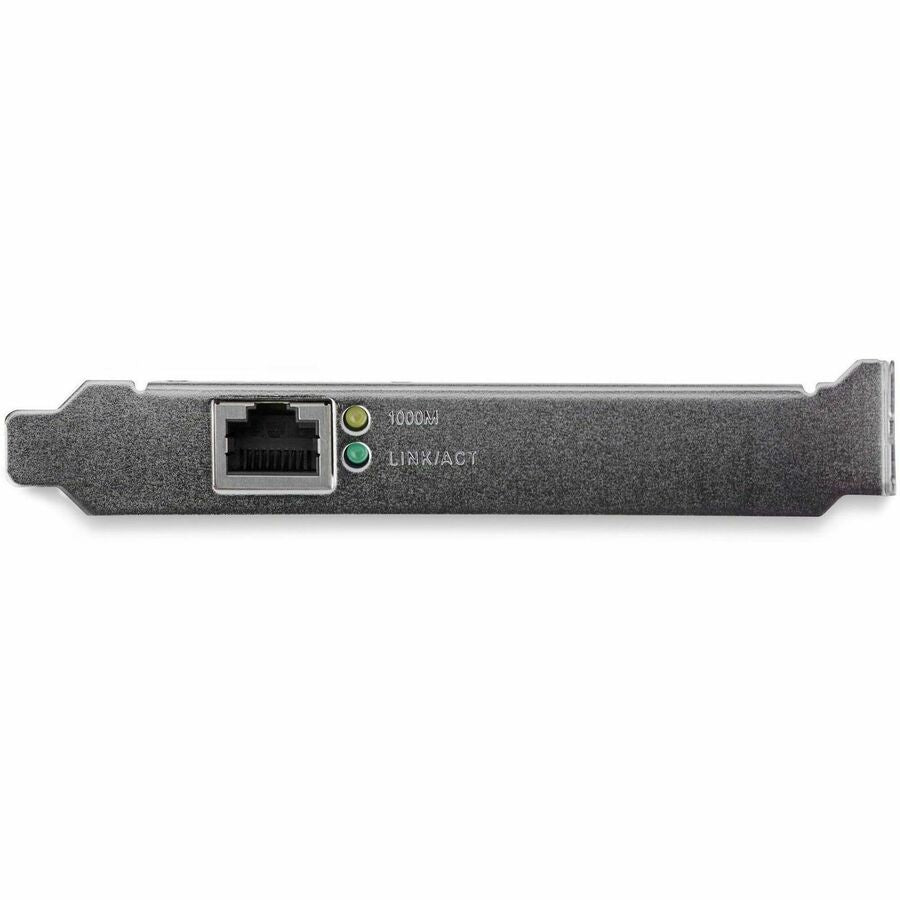

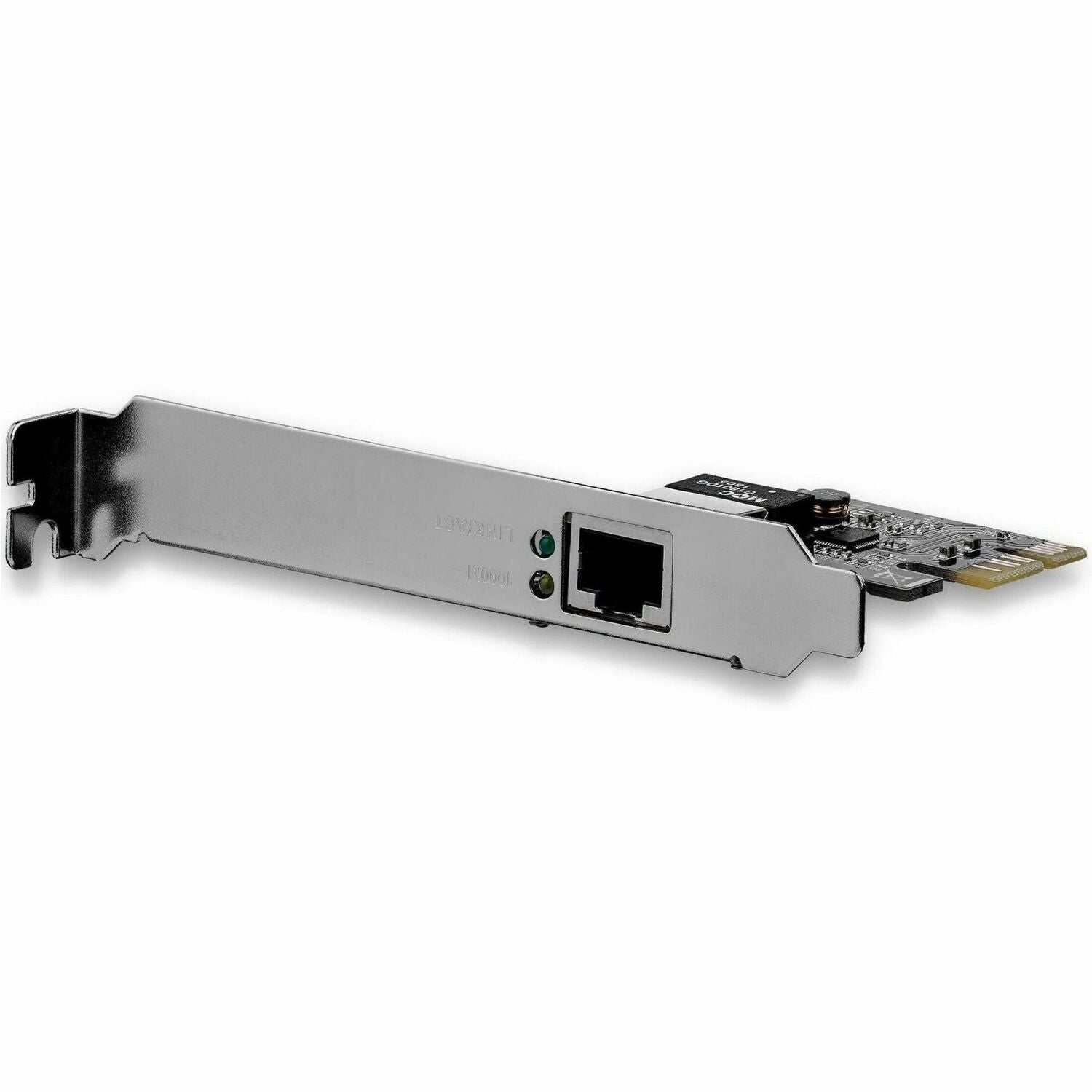

StarTech.com 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile

StarTech.comSKU: ST1000SPEX2
No reviews

Price:
Sale price$53.99

Description

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: ST1000SPEX2
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
Marketing Information:

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.

Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.

The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.

More from the Manufacturer


Packaged Quantity: 1
Product Type: Gigabit Ethernet Card

Technical Information

Chipset Manufacturer: Realtek
Chipset Model: RTL8111

Interfaces/Ports

Host Interface: PCI Express x1
Total Number of Ports: 1
Network (RJ-45): Yes
USB: No
Serial Port: No
Ethernet AUI: No
XJACK: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 1

Media & Performance

Media Type Supported: Twisted Pair
Data Transfer Rate: 125 MB/s

Network & Communication

Network Technology: 10/100/1000Base-T
InfiniBand: No

Physical Characteristics

Card Height: Full-height,Low-profile
Form Factor: Plug-in Card
Height: 0.70" (17.78 mm)
Width: 4.70" (119.38 mm)
Length: 2.70" (68.58 mm)
Weight (Approximate): 36.9 g

Miscellaneous

Package Contents:
  • 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
  • 1 x Low Profile Bracket
  • 1 x Instruction Manual

Device Supported: PC
System Requirements:
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.6 to 10.9
  • Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: China

Warranty

Limited Warranty: 2 Year
