Description

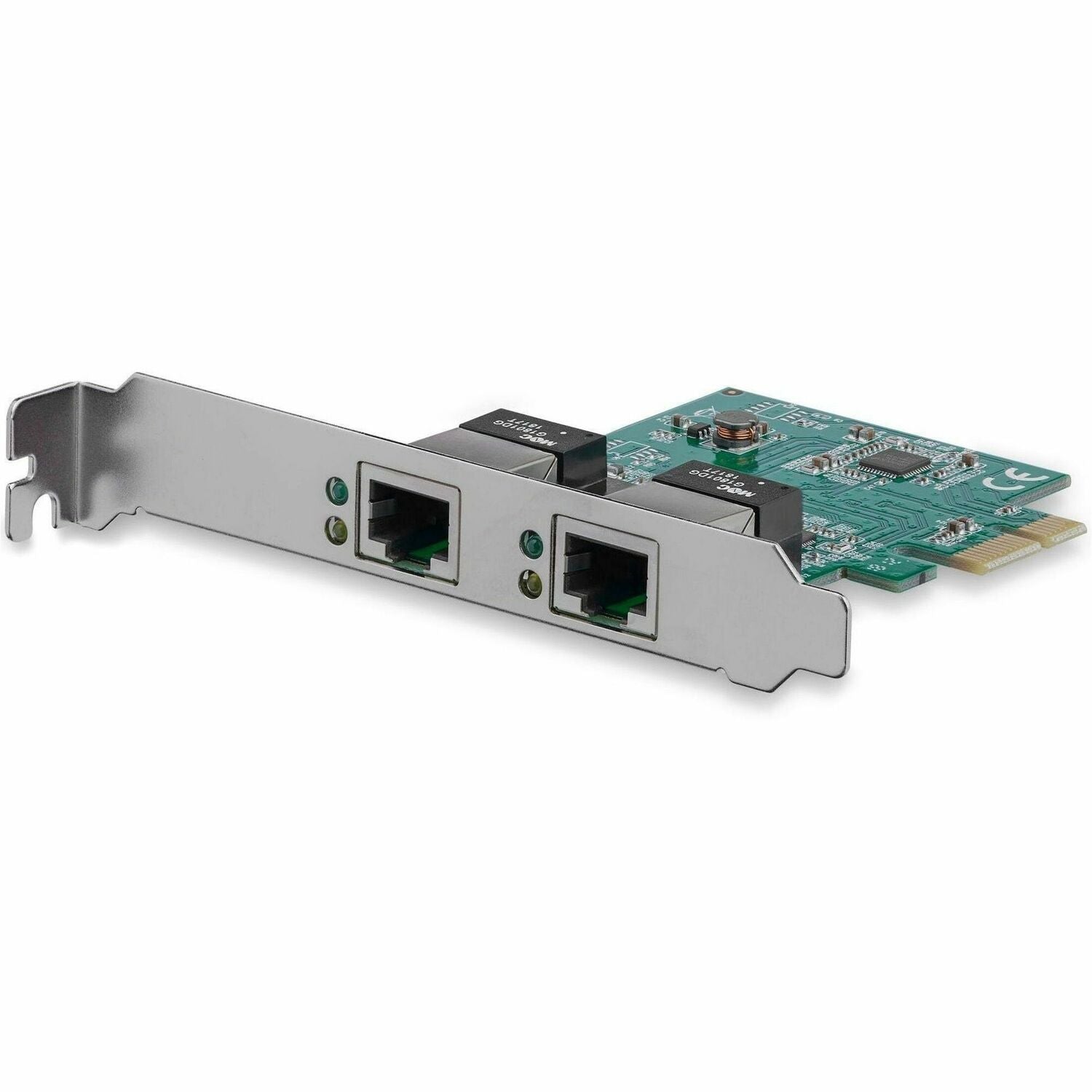

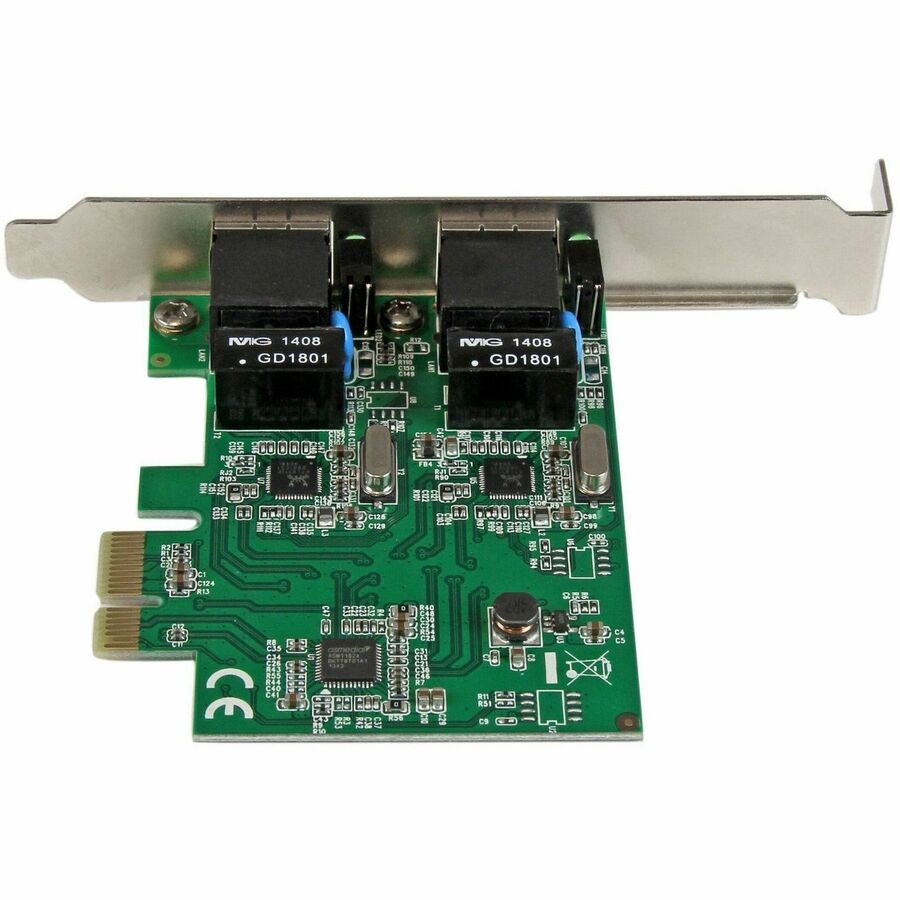

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Supports Pair Swap / Polarity / Skew Correction

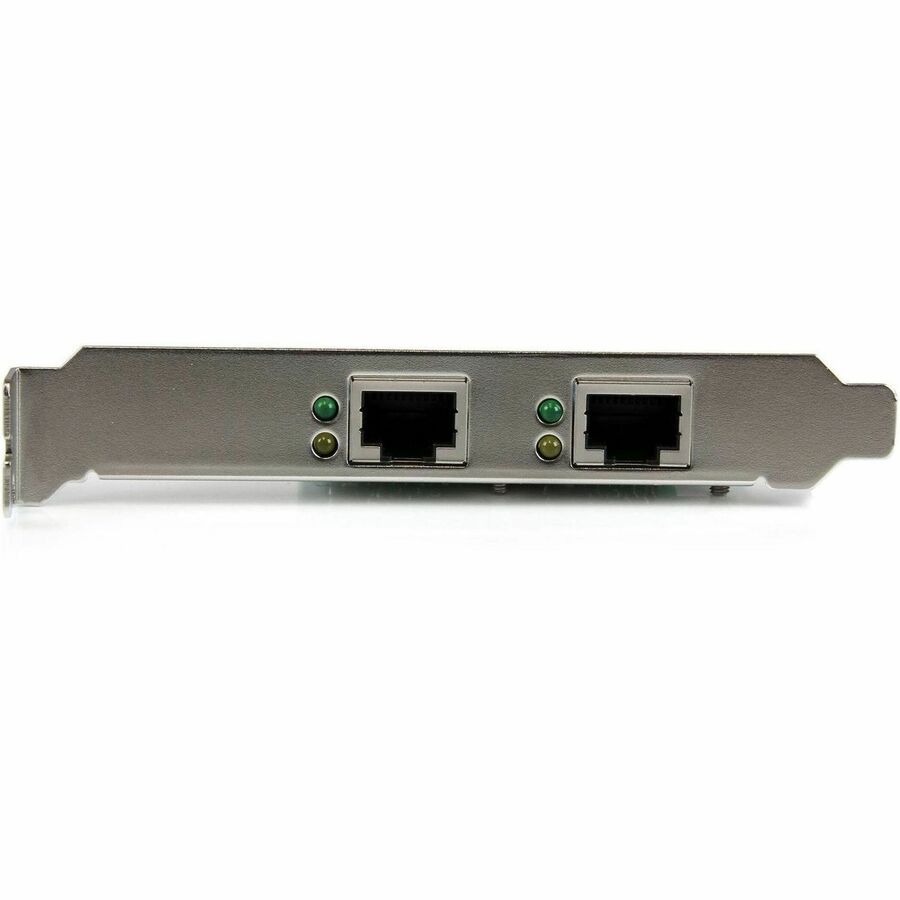

- Configured with standard profile bracket, low profile/half-height bracket included
- Wake-on-LAN / Remote Wake-up support
- Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
- Up to 9K Jumbo Frame support
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Data Transfer Rate : 250 MB/s
- Environmental Certification : WEEE
- Environmentally Friendly : Yes
- Device Supported : Server
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Form Factor : Plug-in Card
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Total Number of Ports : 2
- Host Interface : PCI Express x1
- Product Type : Gigabit Ethernet Card
- Manufacturer : StarTech.com
- Media Type Supported : Twisted Pair
- Country of Origin : China
- Number of Network (RJ-45) Ports : 2
- Network Technology : 10/100/1000BASE-T
