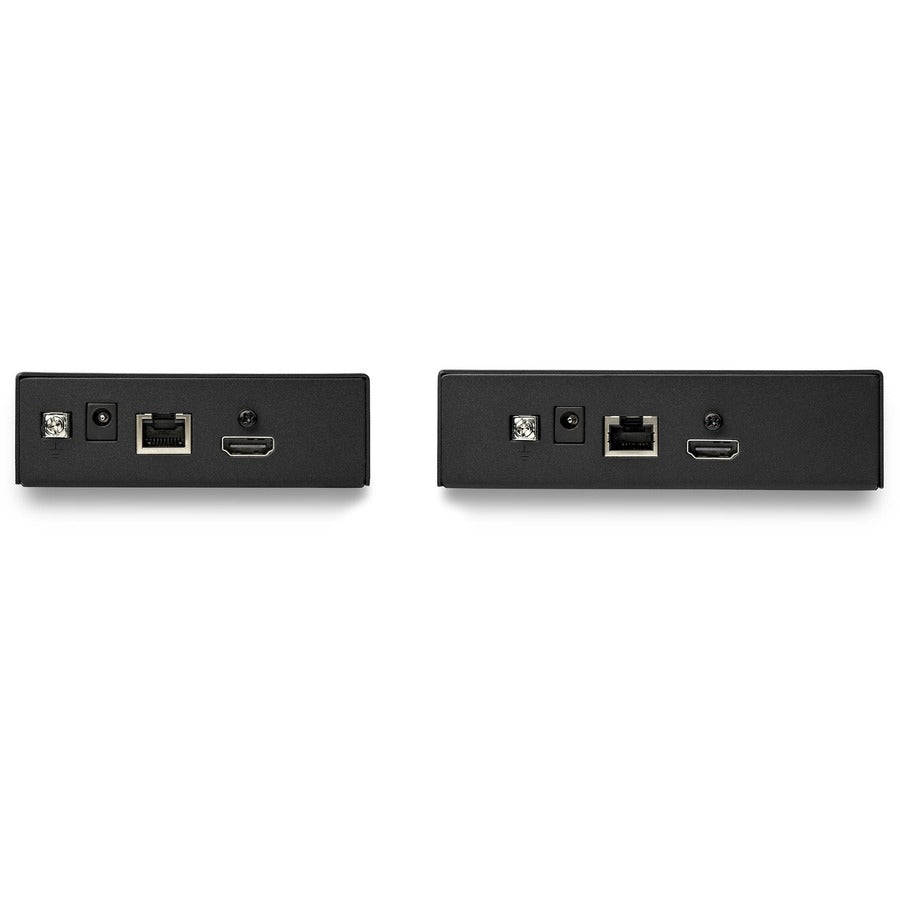

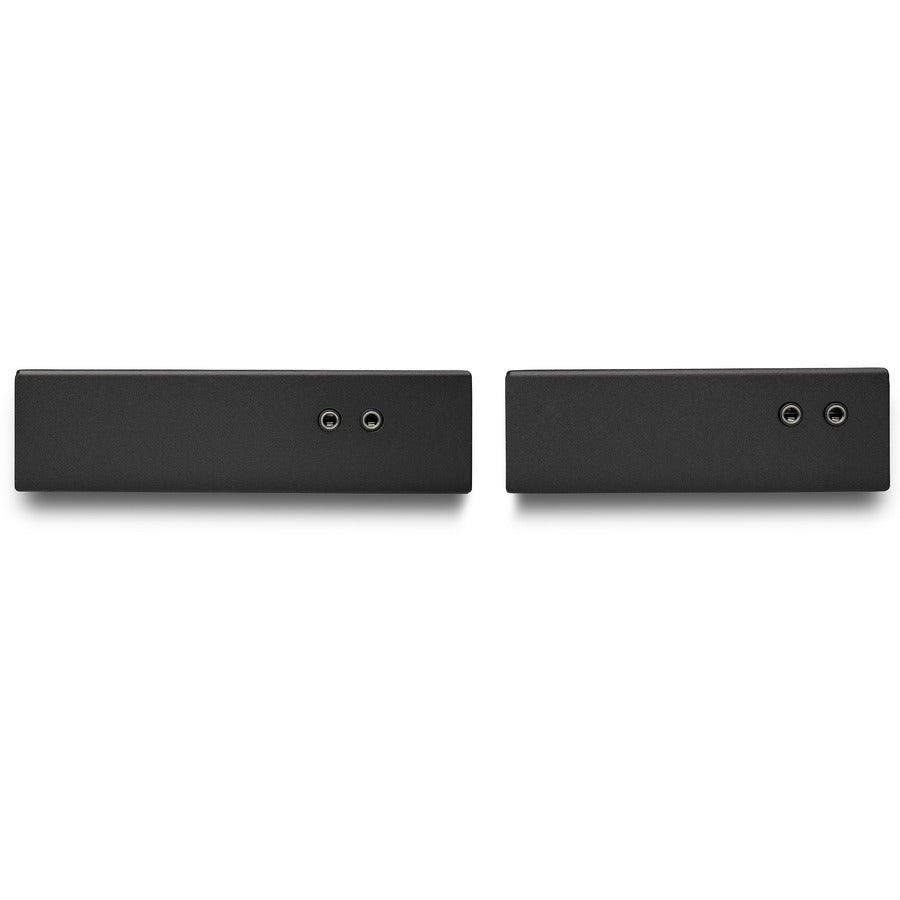

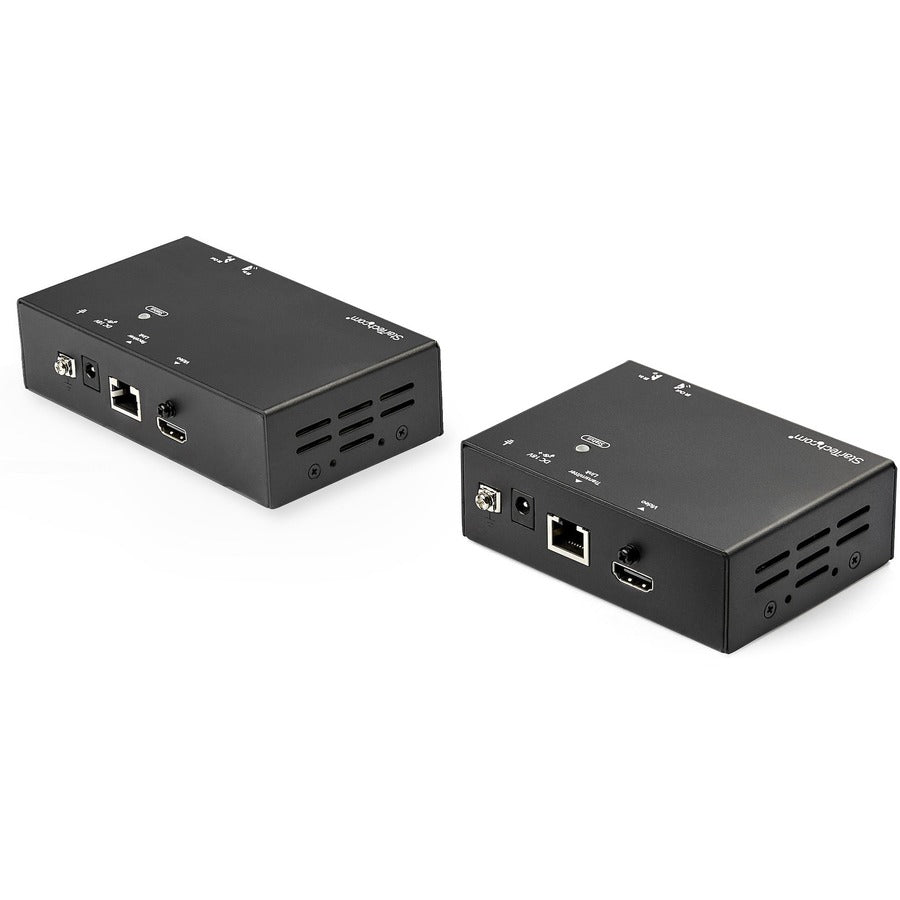

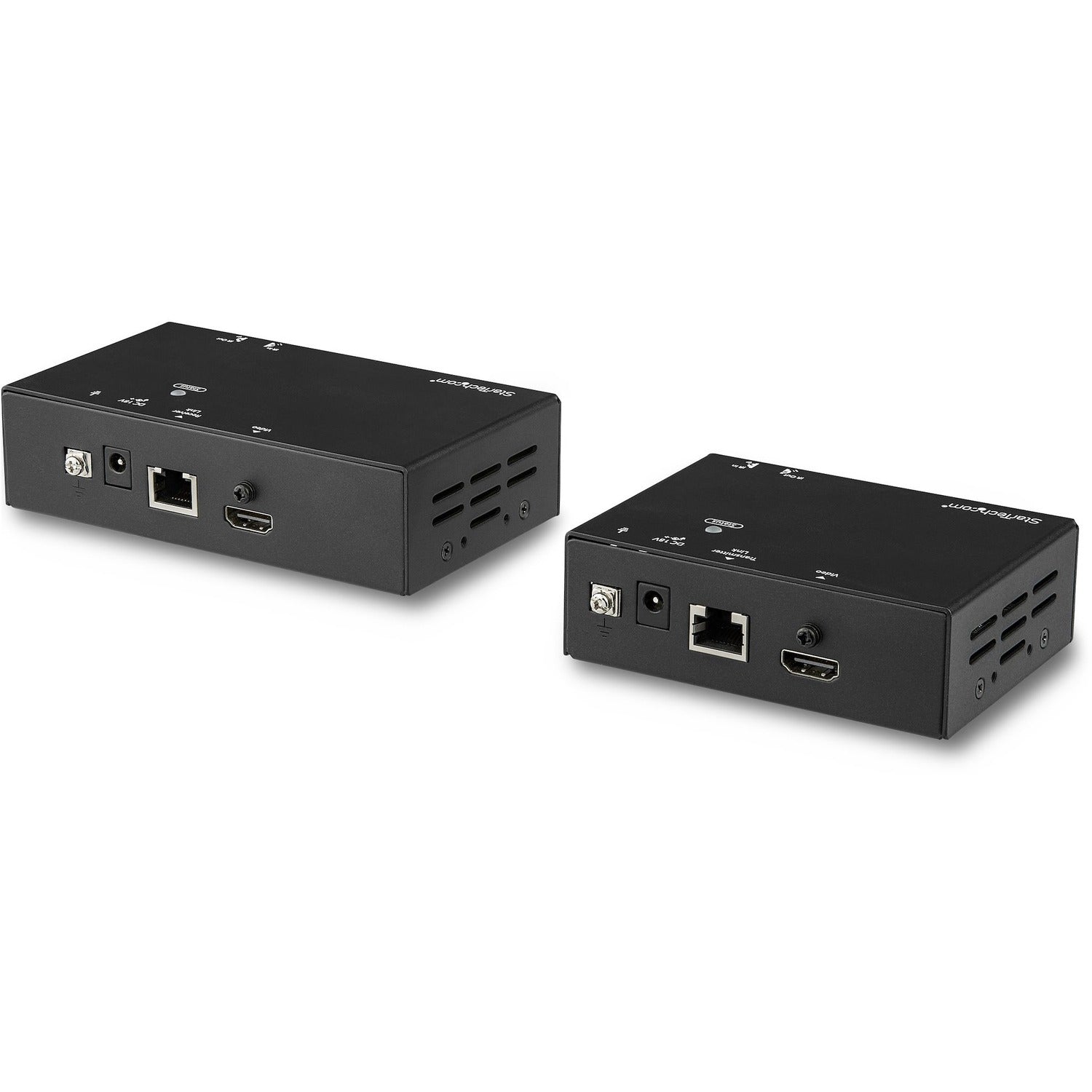

ST121HDBT20L StarTech.com HDMI Over CAT6 Extender - Power Over Cable - 4K 60Hz Up to 70m / 230 ft - 1080p 60Hz up to 100m / 328 ft

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: ST121HDBT20L
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.)
Marketing Information:

This HDMI Over CAT6 extendertransmitsyour HDMI audio/video signal to a remote location up to 100 m (328 ft.)away.

Get4K at 60Hz from 70 m (230 ft.)away

This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.)away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.)from your HDMI source.

With full support for your HDMI 2.0 equipment, including4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

Simplify your setup

The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extende
Packaged Quantity: 1 Kit
Product Type: Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)

Video

Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160

Interfaces/Ports

Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1

Media & Performance

Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6

Physical Characteristics

Color Family: Black
Product Color: Black
Transmitter Height: 1" (25.40 mm)
Transmitter Width: 3" (76.20 mm)
Transmitter Depth: 4" (101.60 mm)
Receiver Height: 1" (25.40 mm)
Receiver Width: 3" (76.20 mm)
Receiver Depth: 4" (101.60 mm)
Transmitter Weight (Approximate): 3.88 oz (110 g)
Receiver Weight (Approximate): 3.88 oz (110 g)

Miscellaneous

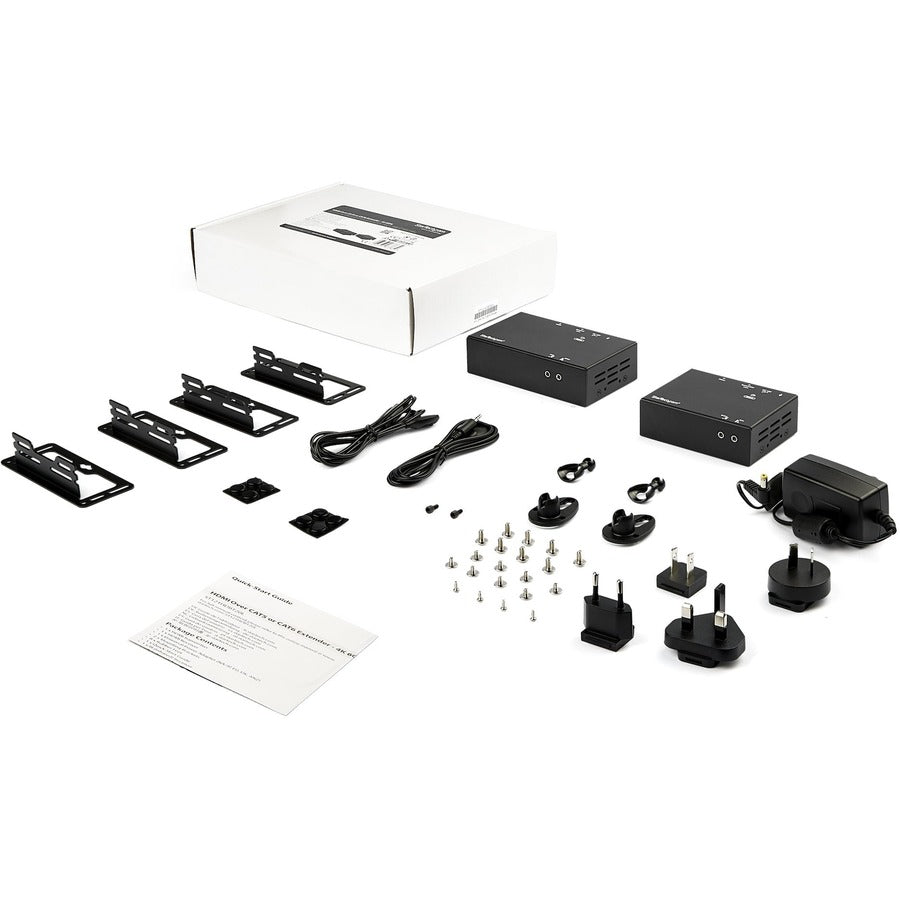

Package Contents:

• 1 x HDMI Over CAT6 Transmitter
• 1 x HDMI Over CAT6 Receiver
• 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
• 1 x IR Blaster
• 1 x IR Receiver
• 2 x Mounting Brackets
• 8 x Rubber Feet
• 1 x Quick-Start Guide

Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty: 2 Year
