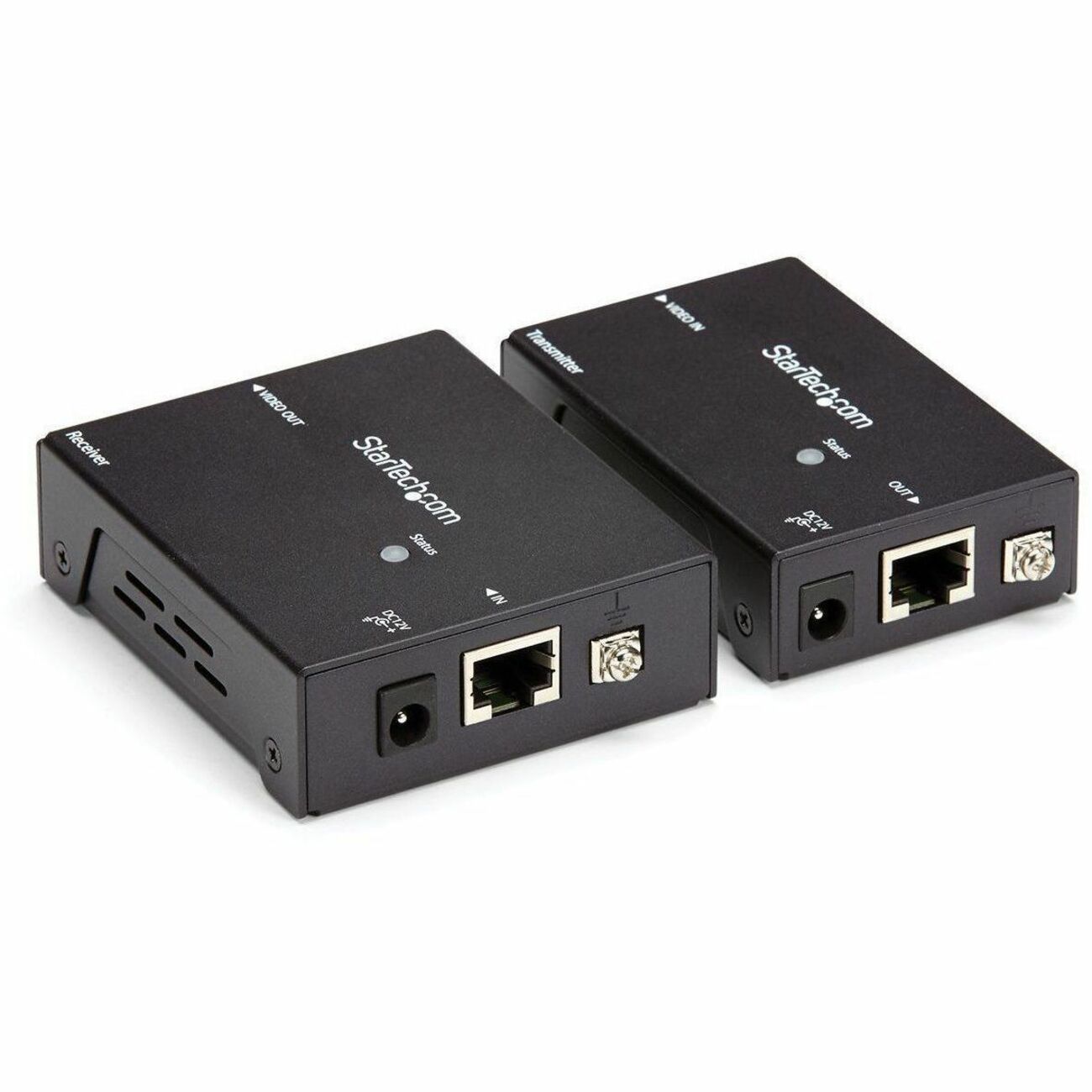

ST121HDBTE StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: ST121HDBTE
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: HDMI over CAT5 HDBaseT Extender - Power over Cable - Ultra HD 4K
Marketing Information:

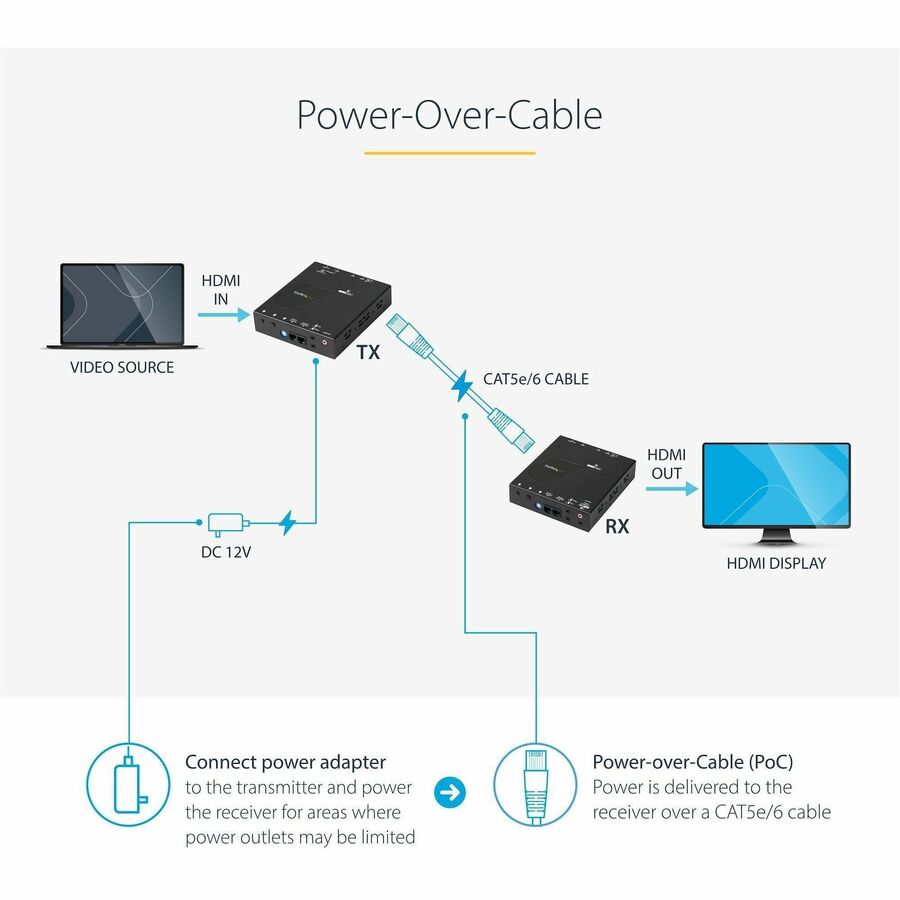

The StarTech.com HDBaseT extender kit, extends HDMI up to 230 feet (70 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.

What is HDBaseT

HDBaseT is a standardized, zero latency, video distribution technology that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.

Extend more with HDBaseT

The extender offers HDBaseT technology with HDMI and Po
Packaged Quantity: 1 Kit
Product Type: Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft (70000 mm)

Video

Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160

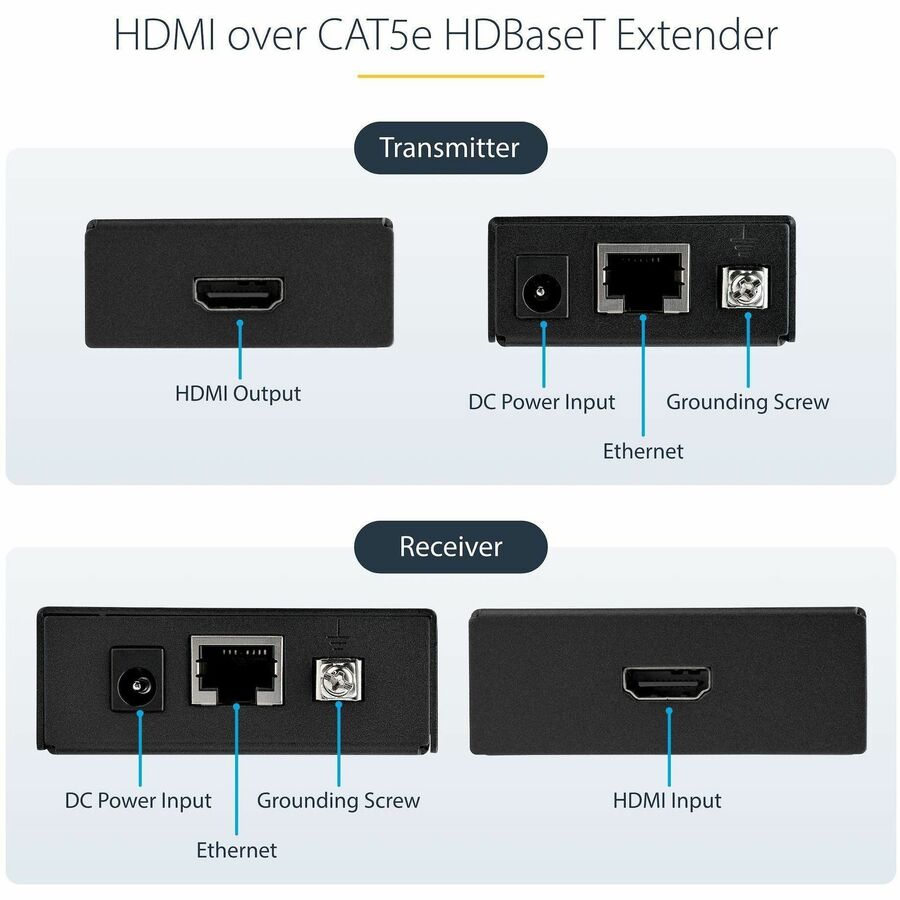

Interfaces/Ports

Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1

Media & Performance

Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6

Physical Characteristics

Color Family: Black
Product Color: Black
Transmitter Height: 1" (25.40 mm)
Transmitter Width: 2.60" (66.04 mm)
Transmitter Depth: 3.10" (78.74 mm)
Receiver Height: 1" (25.40 mm)
Receiver Width: 2.60" (66.04 mm)
Receiver Depth: 3.10" (78.74 mm)
Transmitter Weight (Approximate): 15.10 oz (428.08 g)
Receiver Weight (Approximate): 15.10 oz (428.08 g)

Miscellaneous

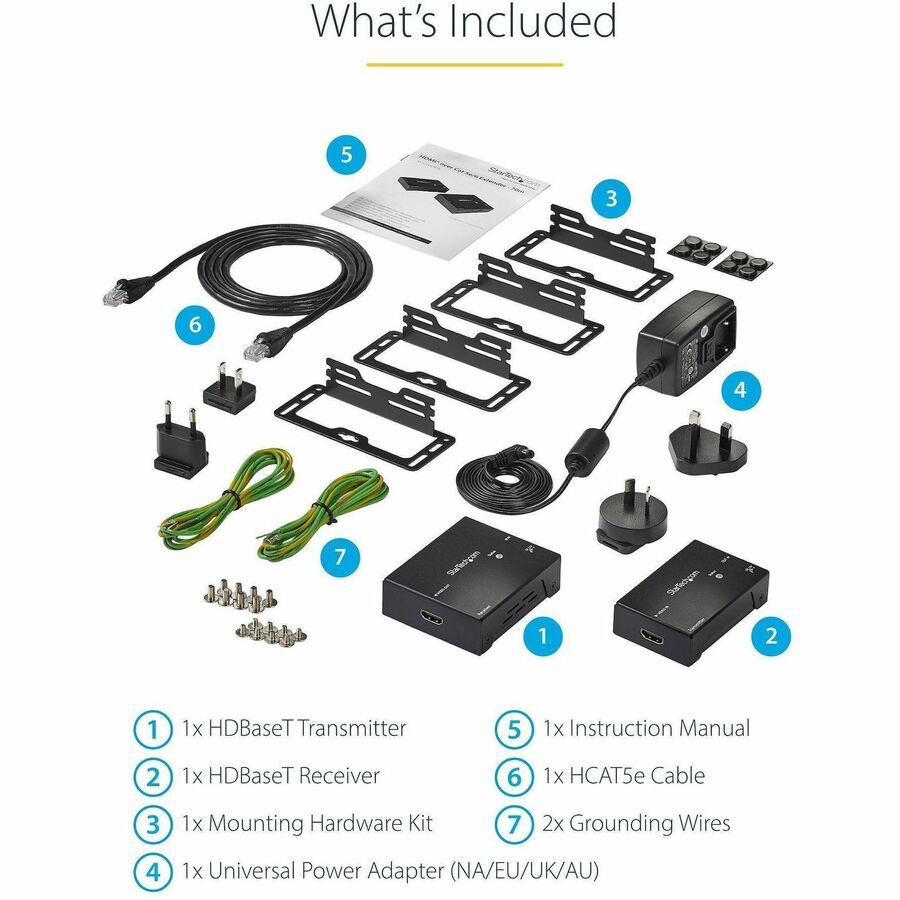

Package Contents:

HDMI over CAT5e/6 Transmitter Unit

HDMI over CAT5e/6 Receiver Unit

Universal Power Adapter (NA/EU/UK/AU)

Mounting Bracket Kit

5ft (1.5m) Cat5e Cable

Grounding Wires

Instruction Manual

Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
