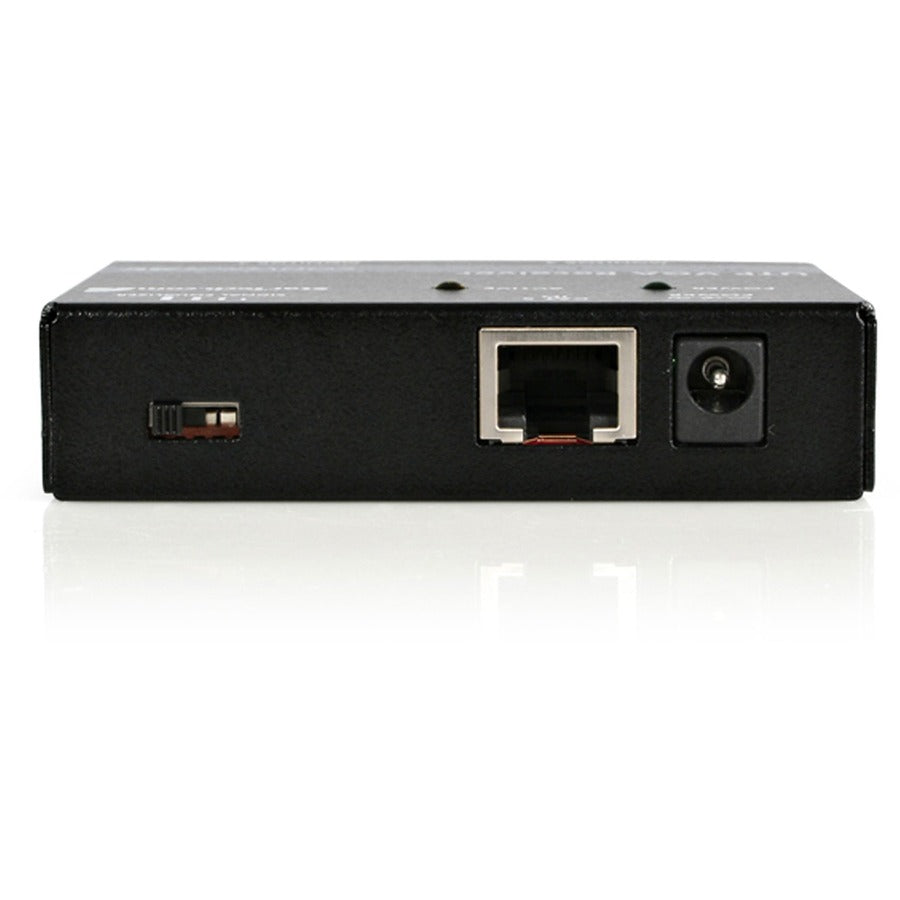

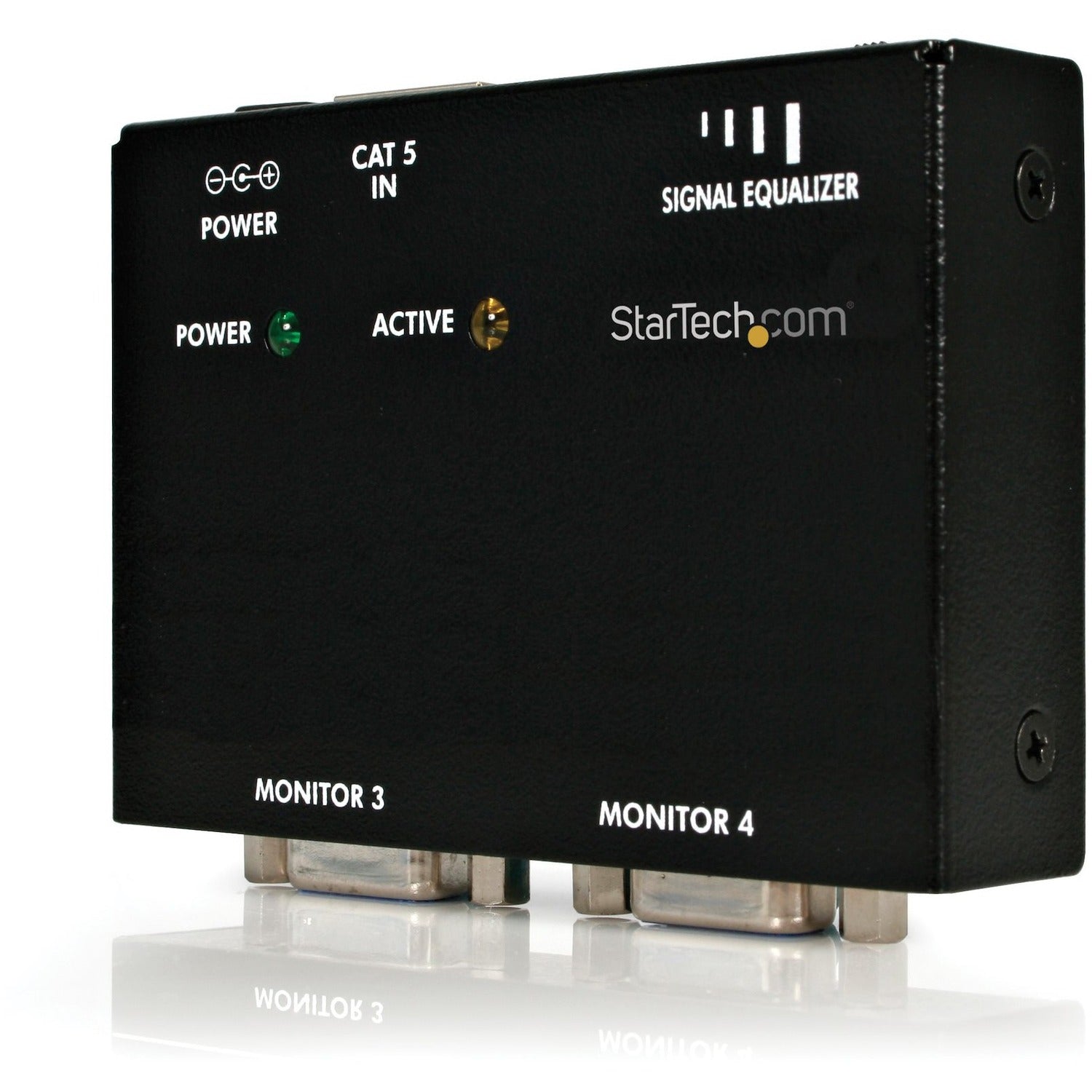

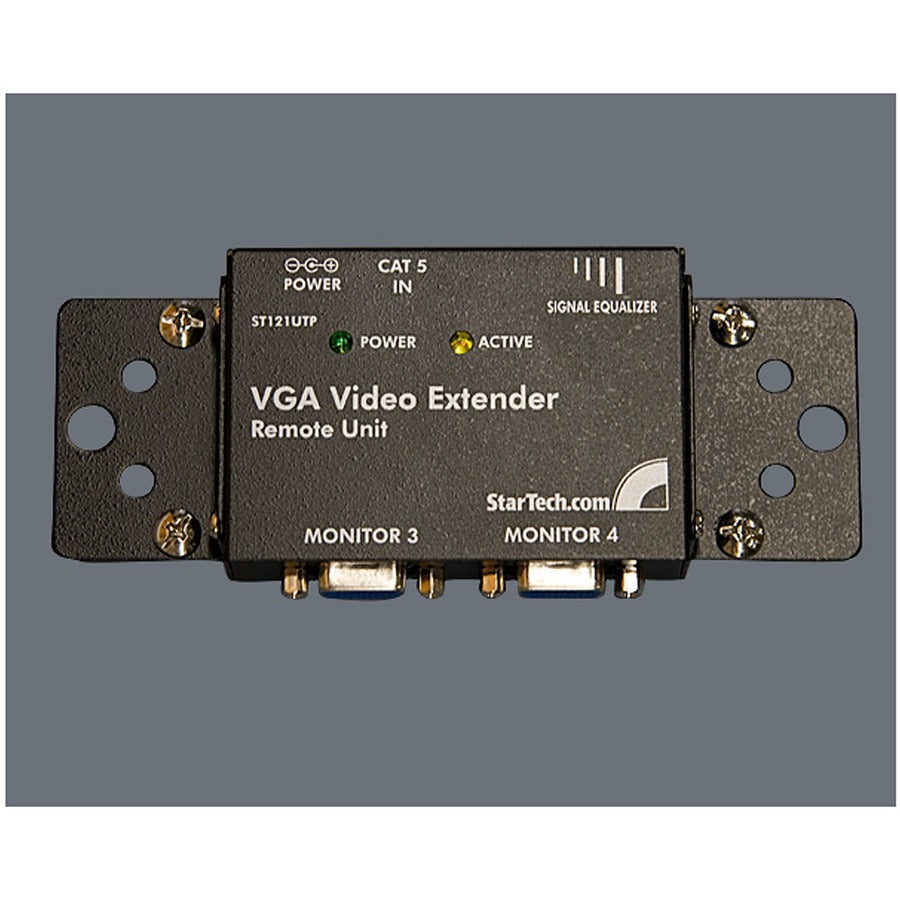

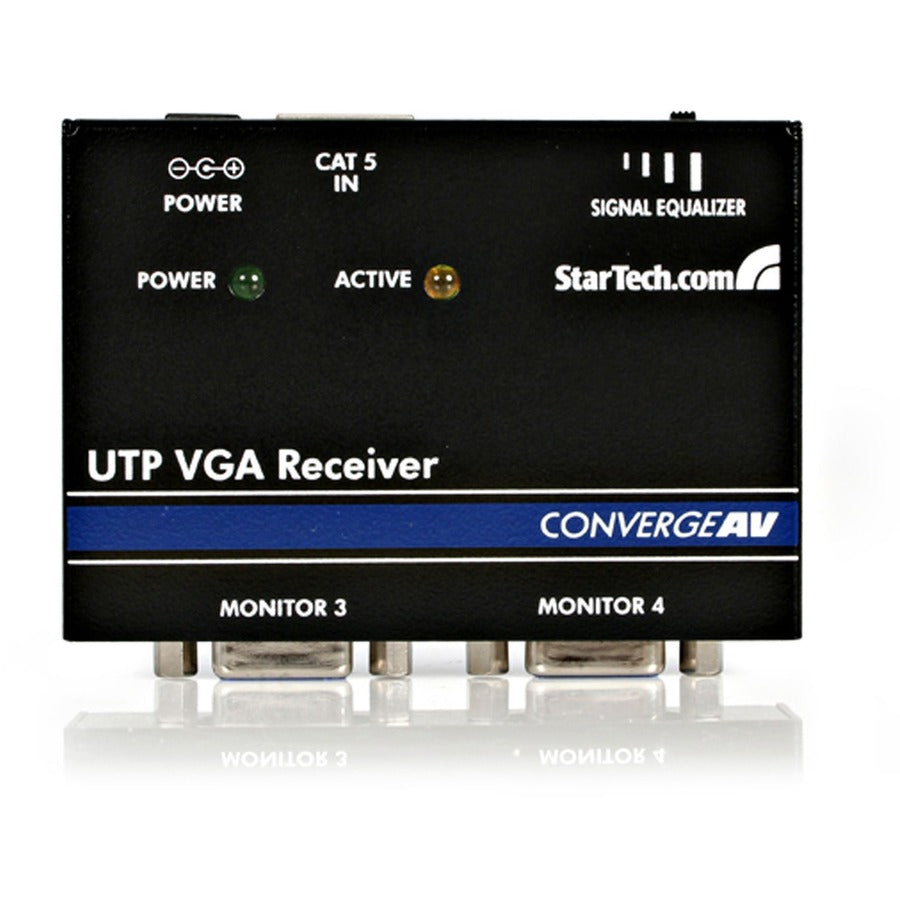

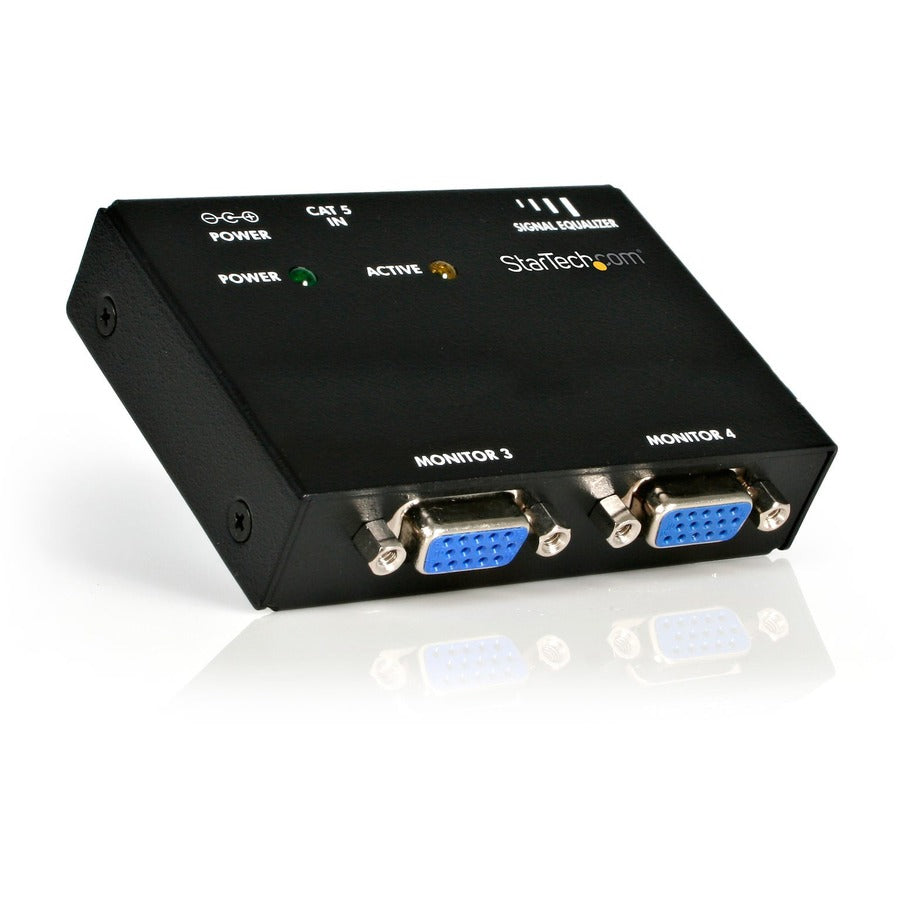

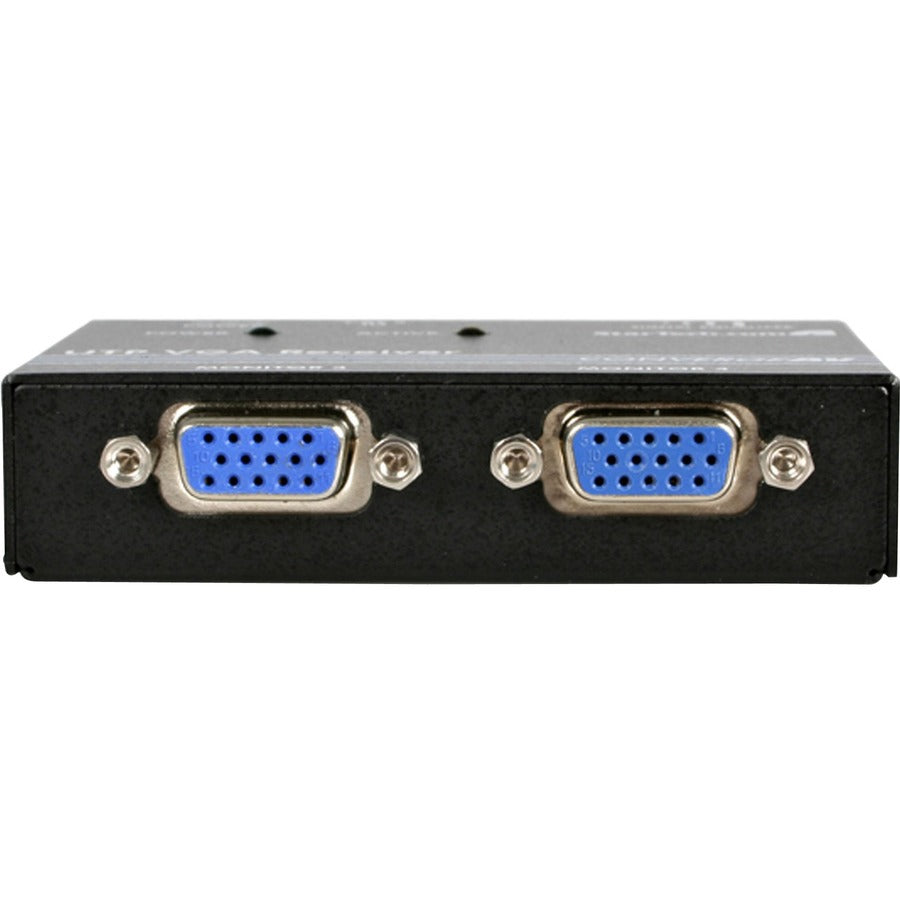

StarTech.com VGA over CAT5 remote receiver for video extender

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: ST121R
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: VGA Video Extender Remote Receiver over Cat 5
Marketing Information:

The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays.

From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet).

A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity: 1
Packaged Quantity Condition: Each
Product Type: Video Extender Receiver

Technical Information

Connectivity Technology: Wired
Number of Output Devices Supported: 2
Maximum Operating Distance: 492.13 ft (150000 mm)

Video

Graphics Modes: VGA
Maximum Video Resolution: 1024 x 768

Interfaces/Ports

Network (RJ-45): Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 1
Number of VGA Outputs: 2

Media & Performance

Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5

Physical Characteristics

Color Family: Black
Product Color: Black
Receiver Height: 0.80" (20.32 mm)
Receiver Width: 3.30" (83.82 mm)
Receiver Depth: 2.60" (66.04 mm)
Receiver Weight (Approximate): 5.93 oz (168 g)

Miscellaneous

Package Contents:

• VGA Over CAT5 UTP Receiver
• 1 x 9V Power Adapter
• 1 x Instruction Manual

Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes

Warranty

Limited Warranty: 2 Year
