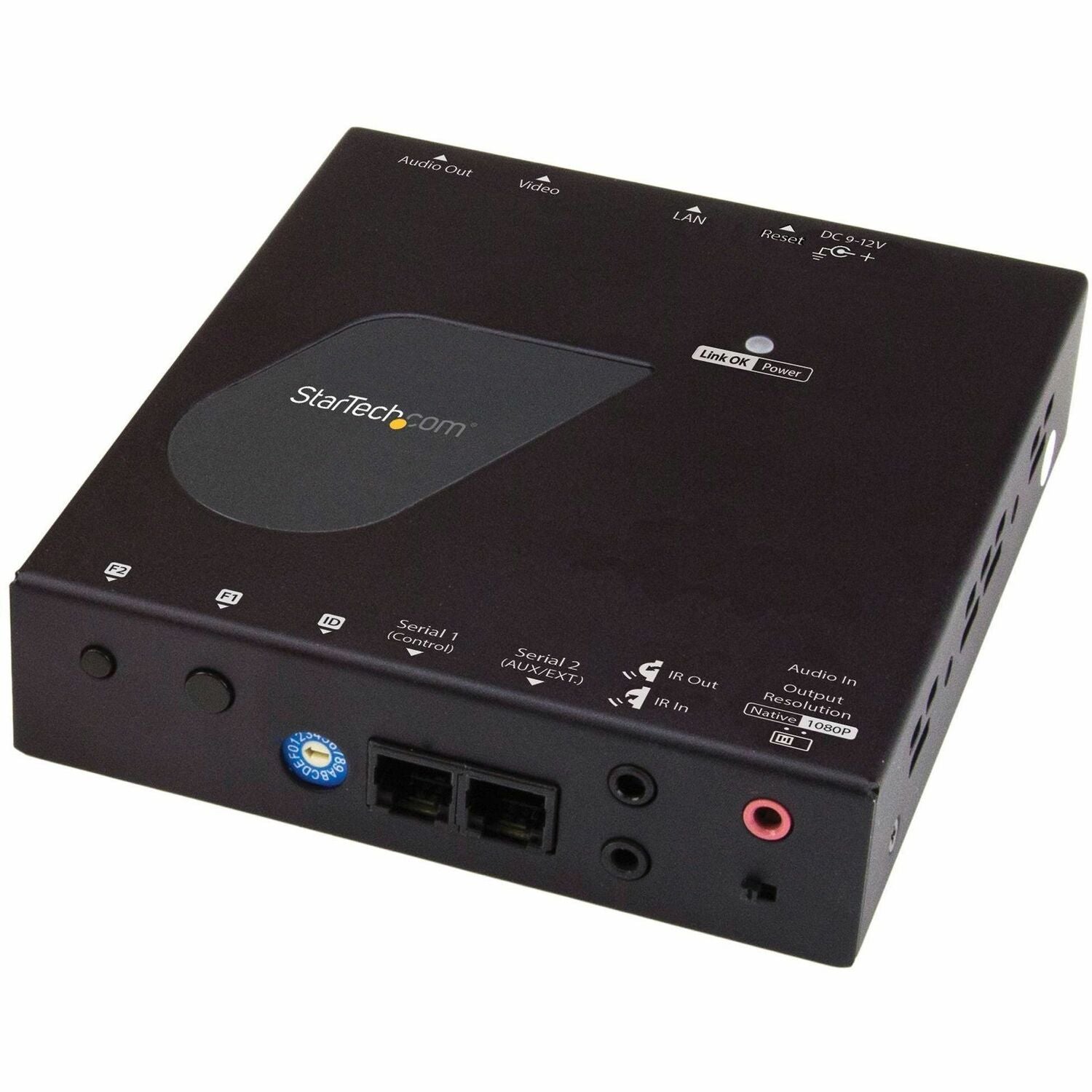

ST12MHDLAN4R StarTech.com 4K HDMI over IP Receiver for ST12MHDLAN4K, IP Extender with Video Control App, Support for AVoIP Video Wall - TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: ST12MHDLAN4R
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: HDMI over IP Receiver
Marketing Information:

This HDMI® over IP Receiver works with the HDMI over IP Extender Kit ST12MHDLAN4K (sold separately). Designed for IT professionals, system integrators, and digital signage specialists, this solution delivers unmatched flexibility for scaling video distribution without the limitations of traditional HDMI splitters or fixed extenders.

Scalable HDMI Over IP

Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers:

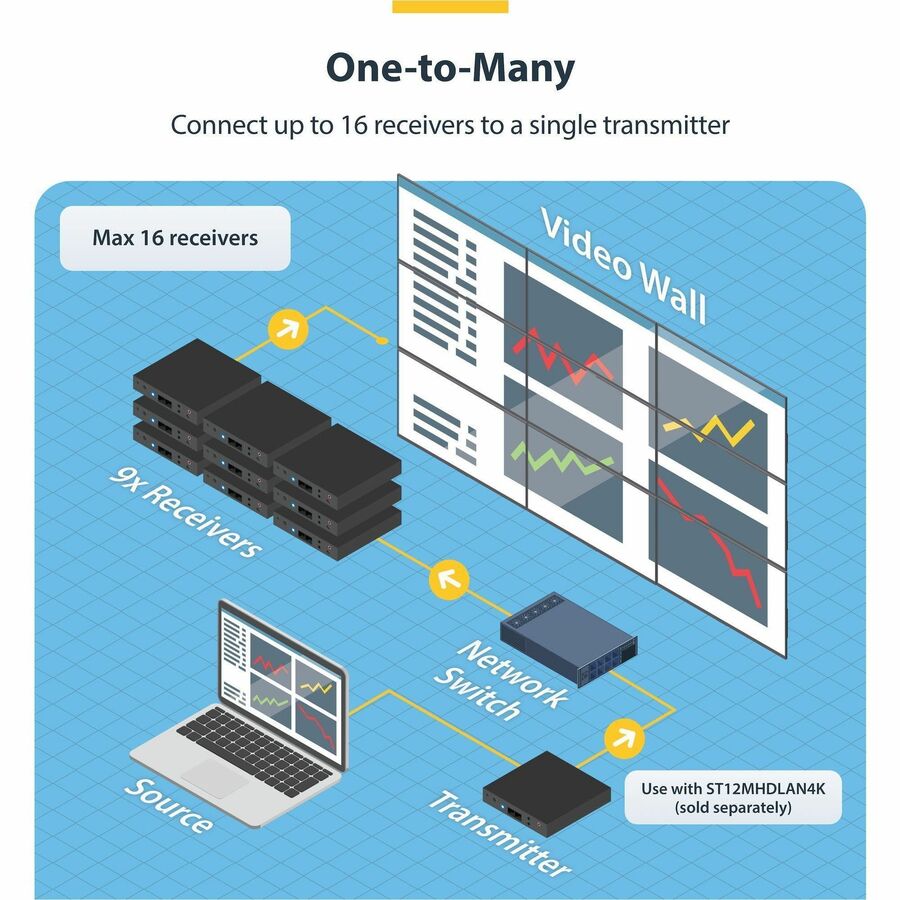

• One-to-Many: Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays

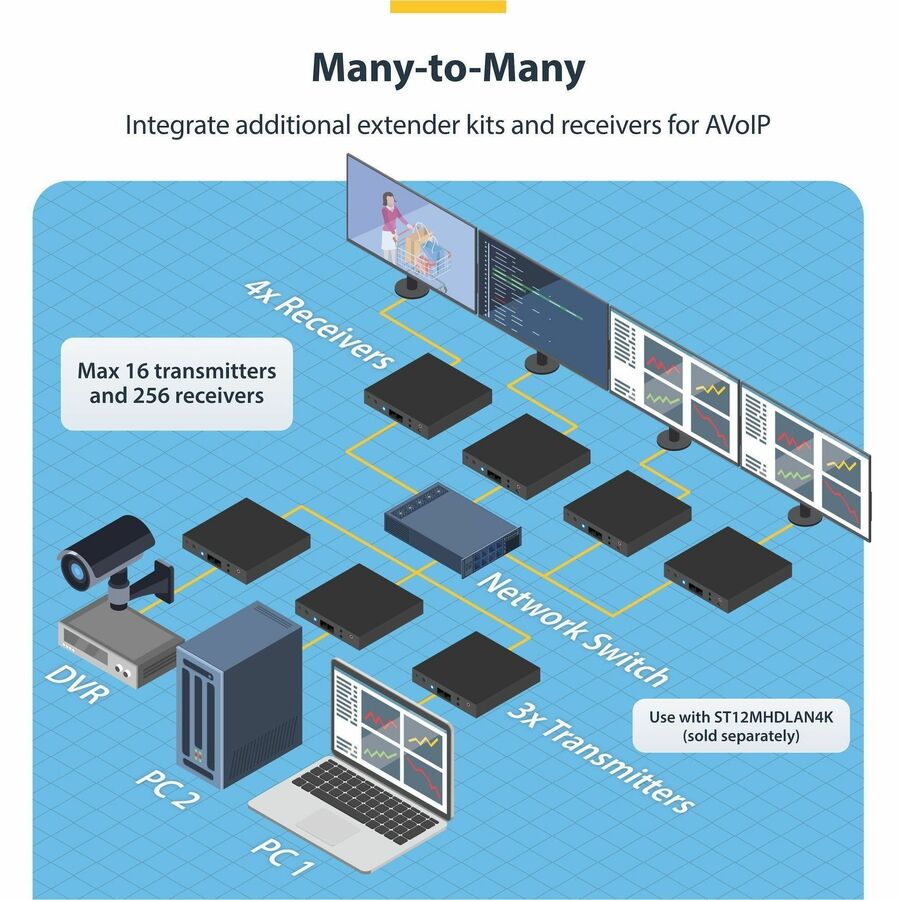

• Many-to-Many: Integrate up to 16 ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers.

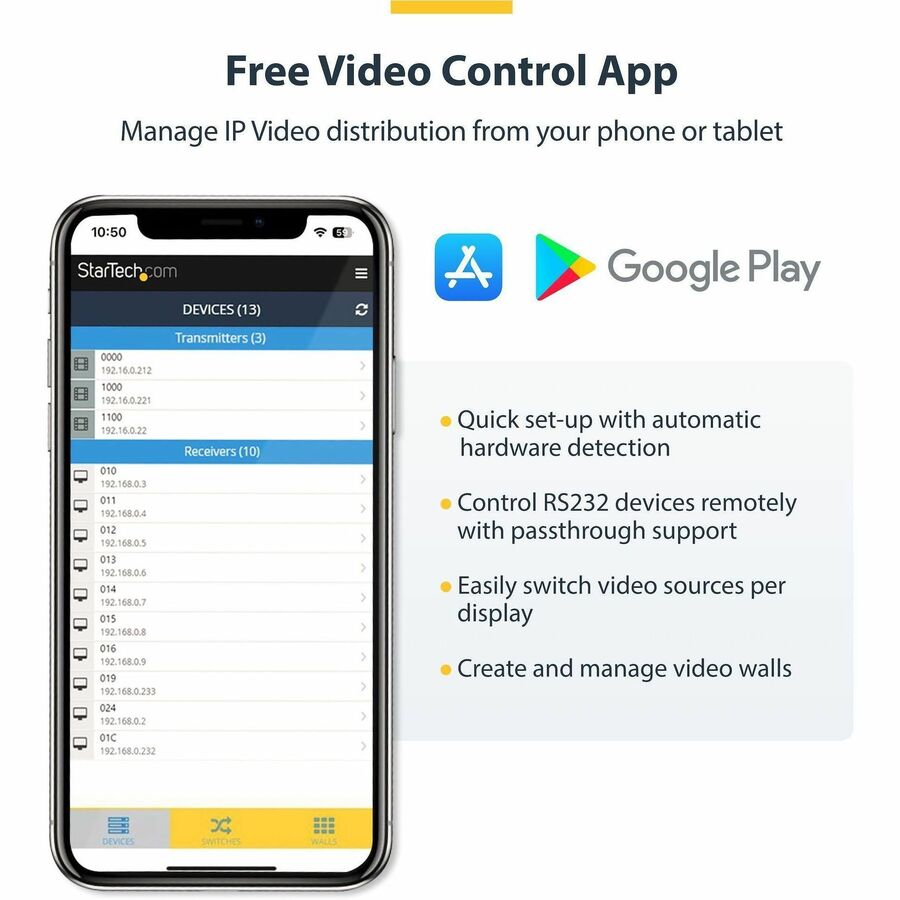

Centralized Video Control App

The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls
Packaged Quantity: 1 Each
Product Type: Video Extender Receiver

Technical Information

Connectivity Technology: Wired
Number of Output Devices Supported: 1
Maximum Operating Distance: 328.08 ft (100000 mm)

Video

Graphics Modes: 4K
Supported Video Modes: 1080p,720p
Maximum Video Resolution: 3840 x 2160

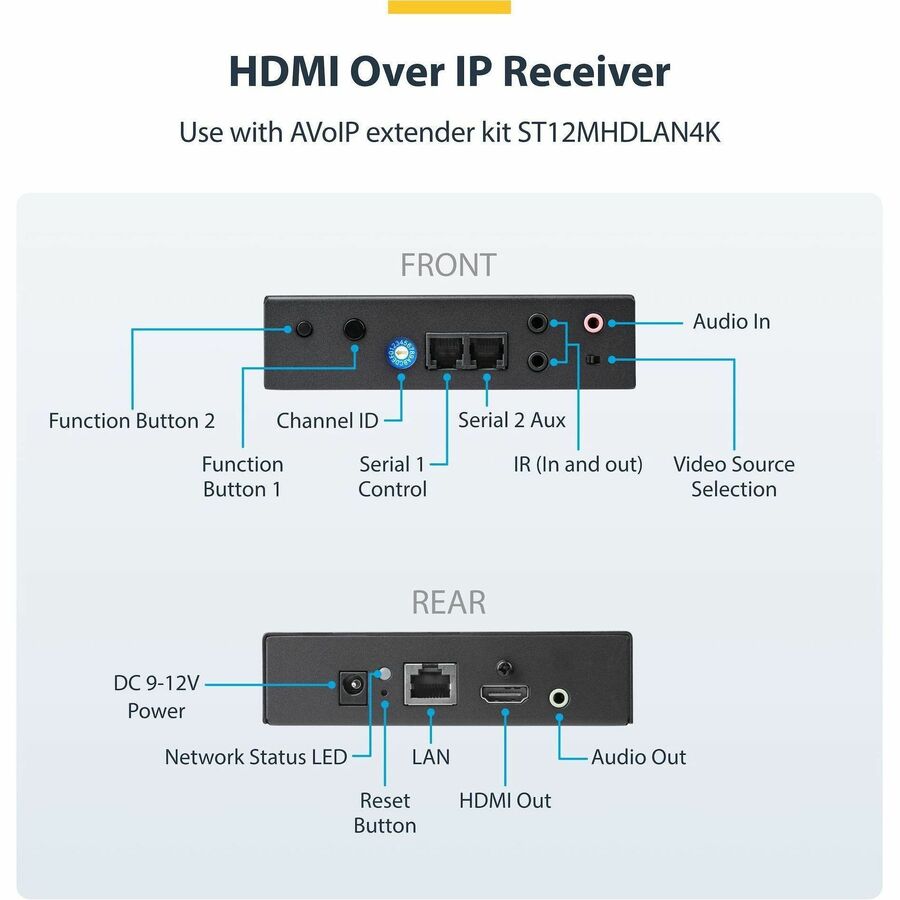

Interfaces/Ports

Network (RJ-45): Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Outputs: 1
Remote (IR) Input: 1
Remote (IR) Output: 1

Media & Performance

Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e

Physical Characteristics

Color Family: Black
Product Color: Black
Receiver Height: 1.20" (30.48 mm)
Receiver Width: 4.60" (116.84 mm)
Receiver Depth: 5.20" (132.08 mm)
Receiver Weight (Approximate): 1.31 lb (594 g)

Miscellaneous

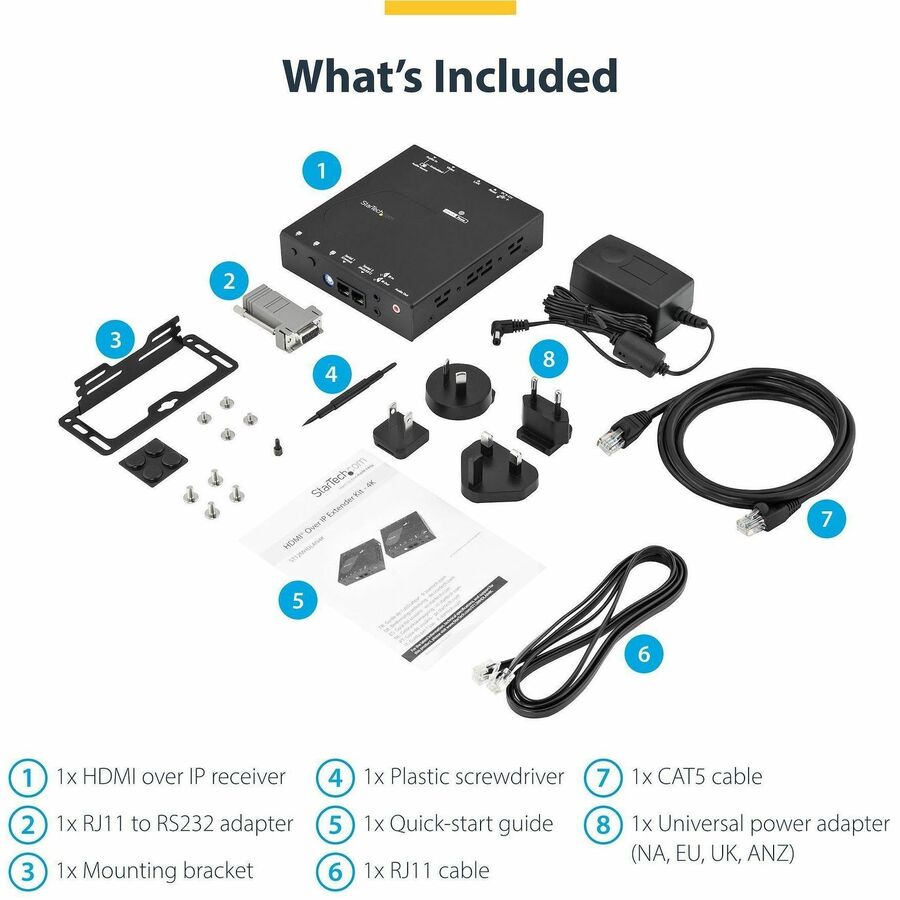

Package Contents:

• HDMI over IP receiver
• 1 x Universal Power Adapter (NA, EU, UK, ANZ)
• 1 x Mounting Bracket
• 1 x CAT5 cable
• 1 x RJ11 to RS232 Adapter
• 1 x RJ11 cable
• 1 x Plastic Screwdriver
• 1 x Quick-Start Guide

Application/Usage: Display,Digital Signage System,A/V Equipment,TV,Retail,Control Center,Digital Video Recorder (DVR)
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
