Description
User-Manual
Manufacturer-Brochure
Manufacturer Part Number: SU1000RTXLCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU1000RTXLCD2U

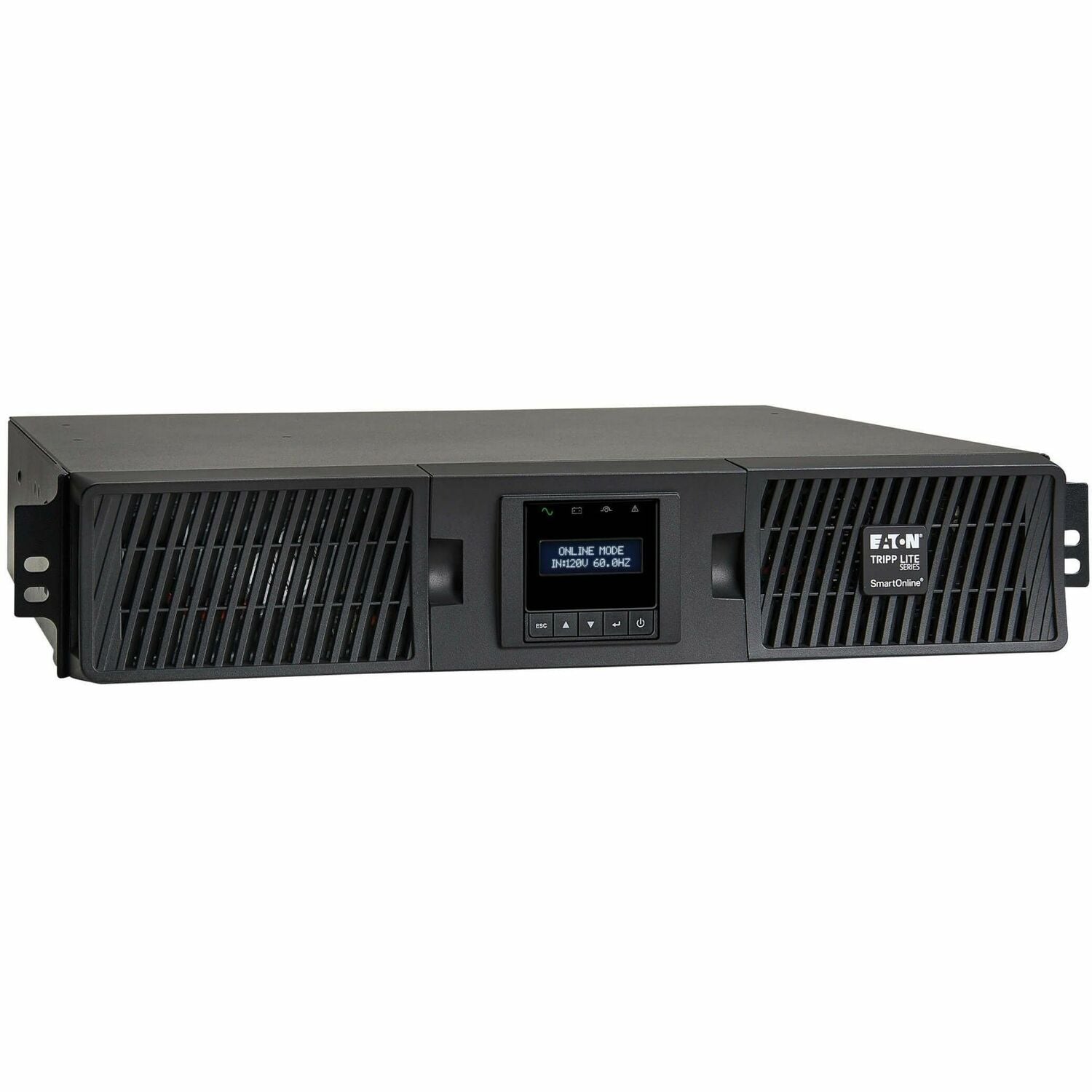

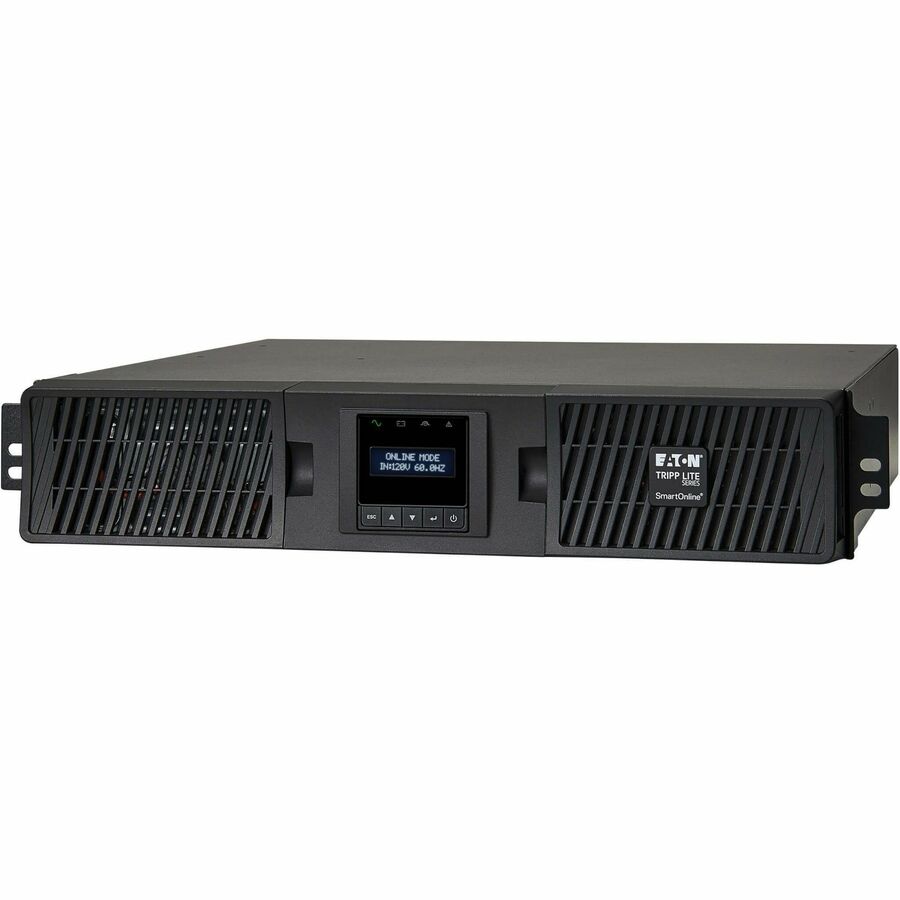

Product Name: SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS
Marketing Information: Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, R
Product Type: Double Conversion Online UPS
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Transfer Time: 0 ns
Load Capacity (Watt): 900 W
Input Voltage: 110 V AC
Output Voltage: 127 V AC,110 V AC,120 V AC,115 V AC
USB: Yes
Backup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Width: 17.50" (444.50 mm)
Depth: 12.50" (317.50 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 29 lb (13154.18 g)
Software Included: PowerAlert UPS Monitoring Software
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SU1000RTXLCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU1000RTXLCD2U
Product Name: SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS
Marketing Information: Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, R
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Transfer Time: 0 ns
Power Description
Load Capacity (VA): 1 kVALoad Capacity (Watt): 900 W
Input Voltage: 110 V AC
Output Voltage: 127 V AC,110 V AC,120 V AC,115 V AC
Management
Network Management: SNMP ManageableInterfaces/Ports
Serial Port: YesUSB: Yes
Battery Information
Backup/Run Time (Full Load): 4.80 MinuteBackup/Run Time (Half Load): 14 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Physical Characteristics
Height: 3.50" (88.90 mm)Width: 17.50" (444.50 mm)
Depth: 12.50" (317.50 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 29 lb (13154.18 g)
Miscellaneous
Package Contents:- SmartOnline SU1000RTXLCD2U 1000VA Tower/Rack Mountable UPS
- PowerAlert UPS Monitoring Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation Kit
- Instruction Manual
Software Included: PowerAlert UPS Monitoring Software
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
