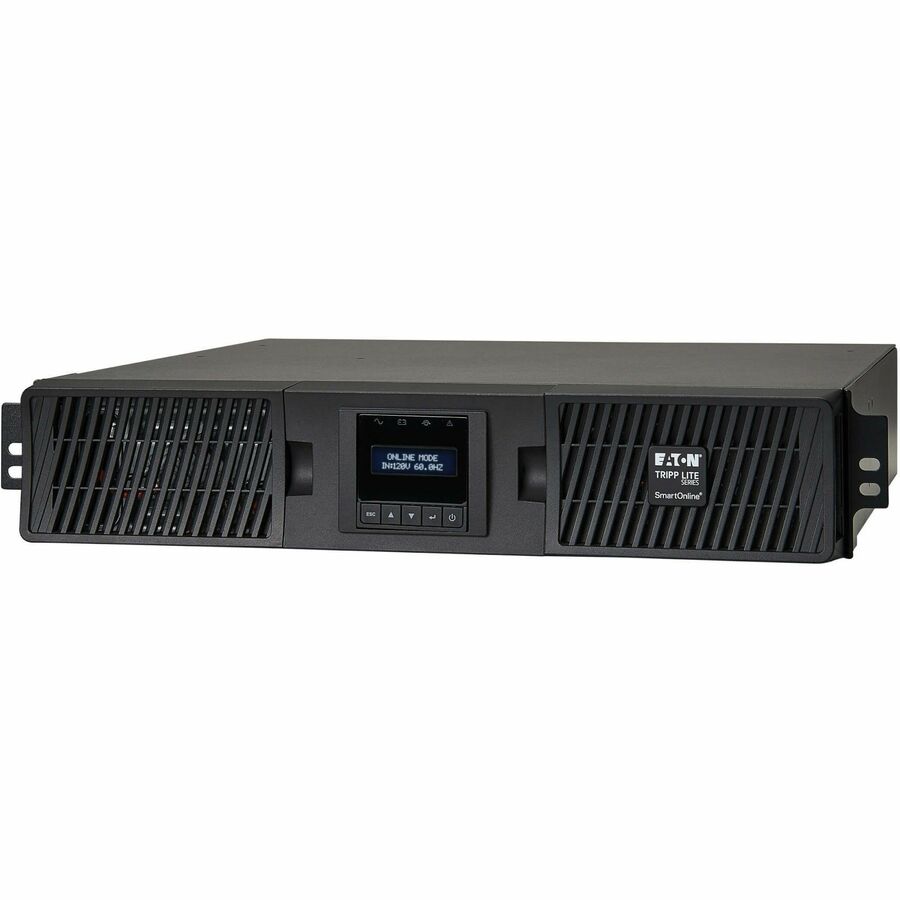

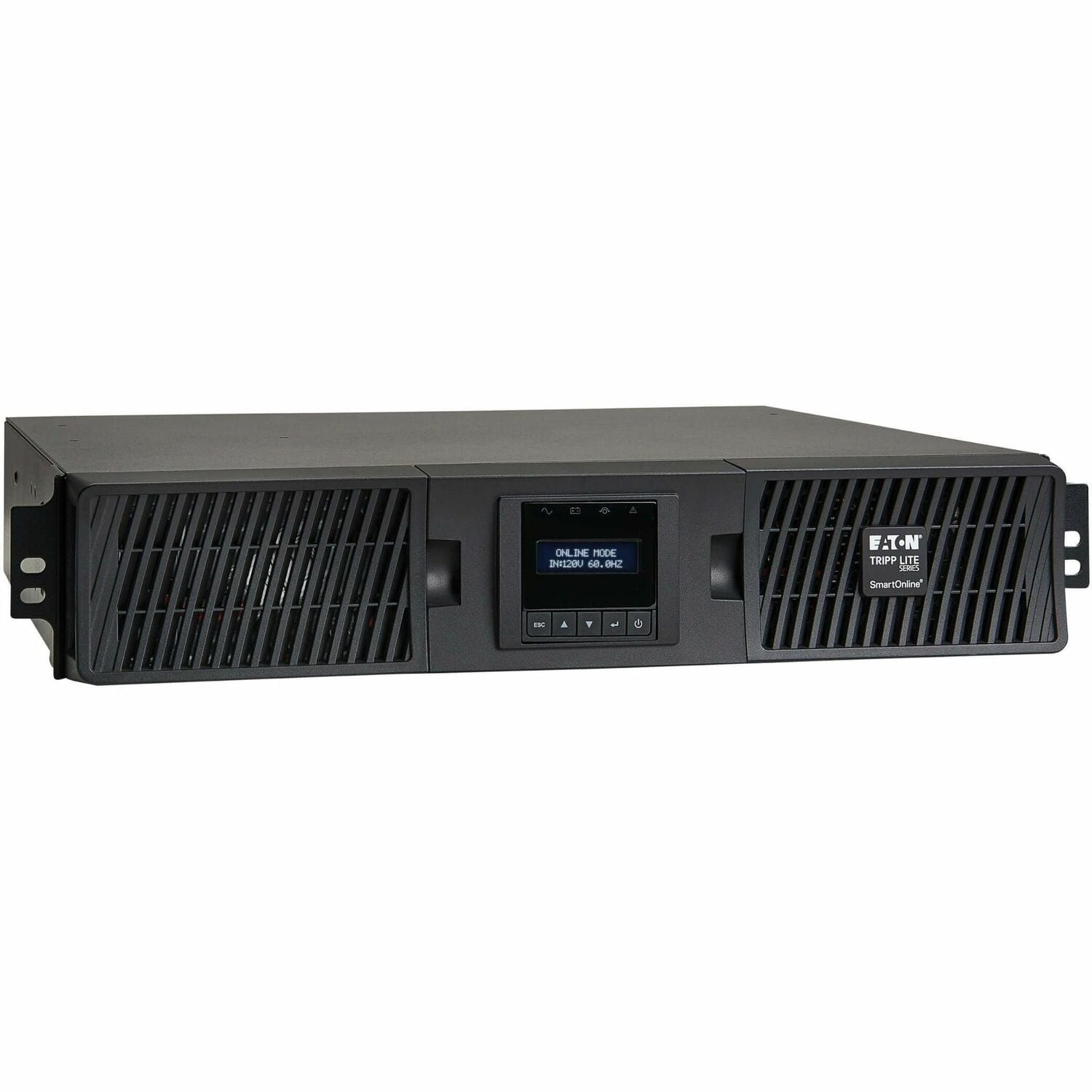

SU1500RTXLCD2UTAA Tripp Lite series SmartOnline SU1500RTXLCD2UTAA 1500VA Rack/tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU1500RTXLCD2UTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU1500RTXLCD2UTAA
Product Name: SmartOnline SU1500RTXLCD2UTAA 1500VA Rack/tower UPS
Marketing Information:

1.5kVA 1.35kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU1500RTXLCD2UTAA provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains contin
Product Type: Double Conversion Online UPS

Technical Information

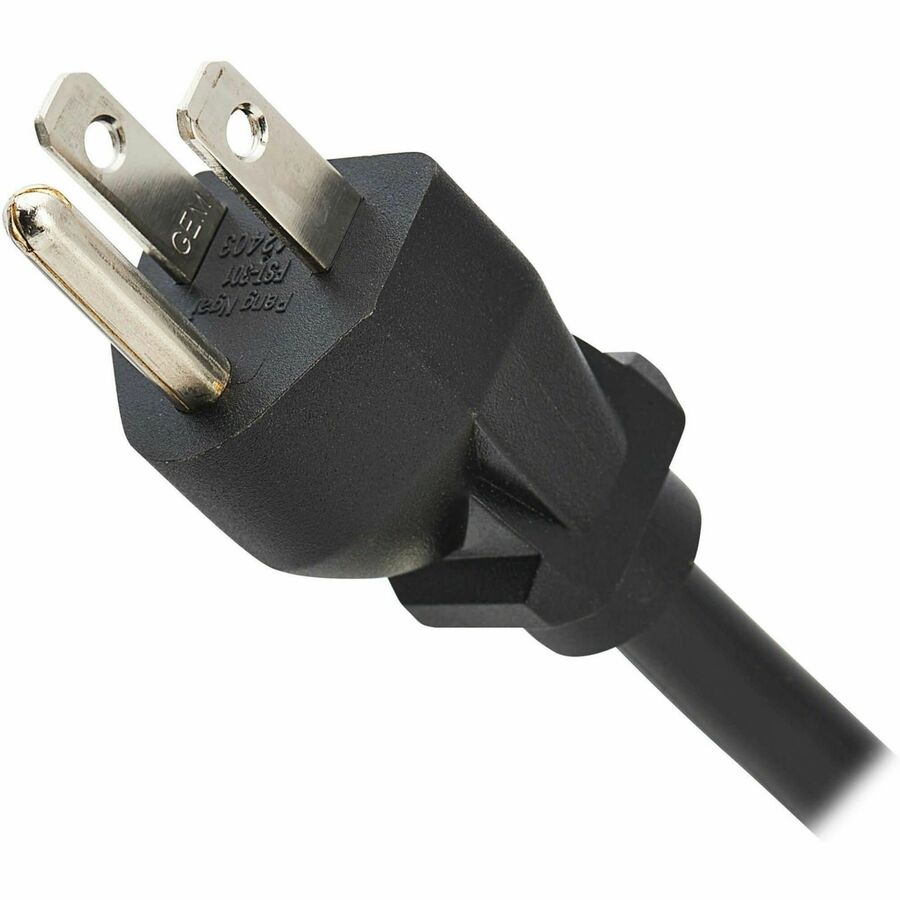

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Cord Length: 8 ft (2.44 m)
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Green Energy-Saving
Efficiency Detail: 90% (AC Mode),95.8% (Eco Mode)
Application/Usage: Mission Critical Equipment,IT,Network,Education,Healthcare,Military,Government,Network Device,IT Equipment,Non-critical Device,Industrial Equipment
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function

Power Description

Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.35 kW
Input Voltage: 100 V AC,110 V AC,120 V AC
Input Current: 12.50 A
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 190 J
Input Power Factor: 0.99
Output Power Factor: 0.9

Display & Graphics

Display: LCD

Management

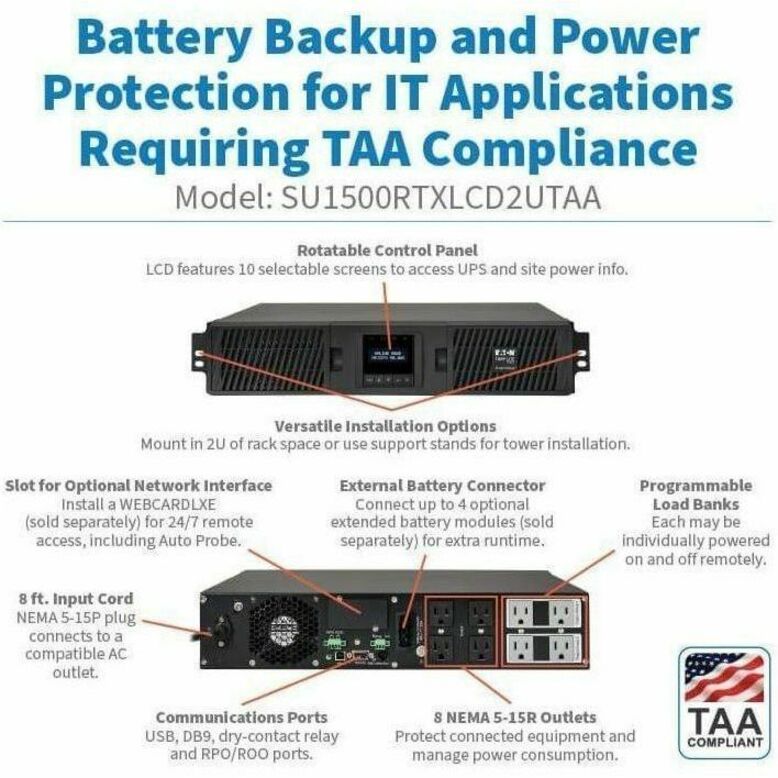

Network Management: Dry Contact,DB-9 RS-232,SNMP/HTTP Remote Monitoring
Alarm: UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

LCD Display:

• Site Power Status and Operating Data
• Plus Configuration of Voltage
• Frequency
• Operating Mode
• Alarm Function

LED Indicators:

• 4 Status-indicating LEDs

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
Number of USB Ports: 1

Battery Information

DC System Voltage: 48 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5.80 Minute
Backup/Run Time (Half Load): 16.50 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 10000 ft (3048000 mm)
Storage Temperature: -13°F (-25°C) - 131°F (55°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 40 dB
Thermal Dissipation: 897 BTU/h

Physical Characteristics

Height: 3.41" (86.61 mm)
Width: 17.33" (440.18 mm)
Depth: 17.72" (450.09 mm)
Rack Height: 2U

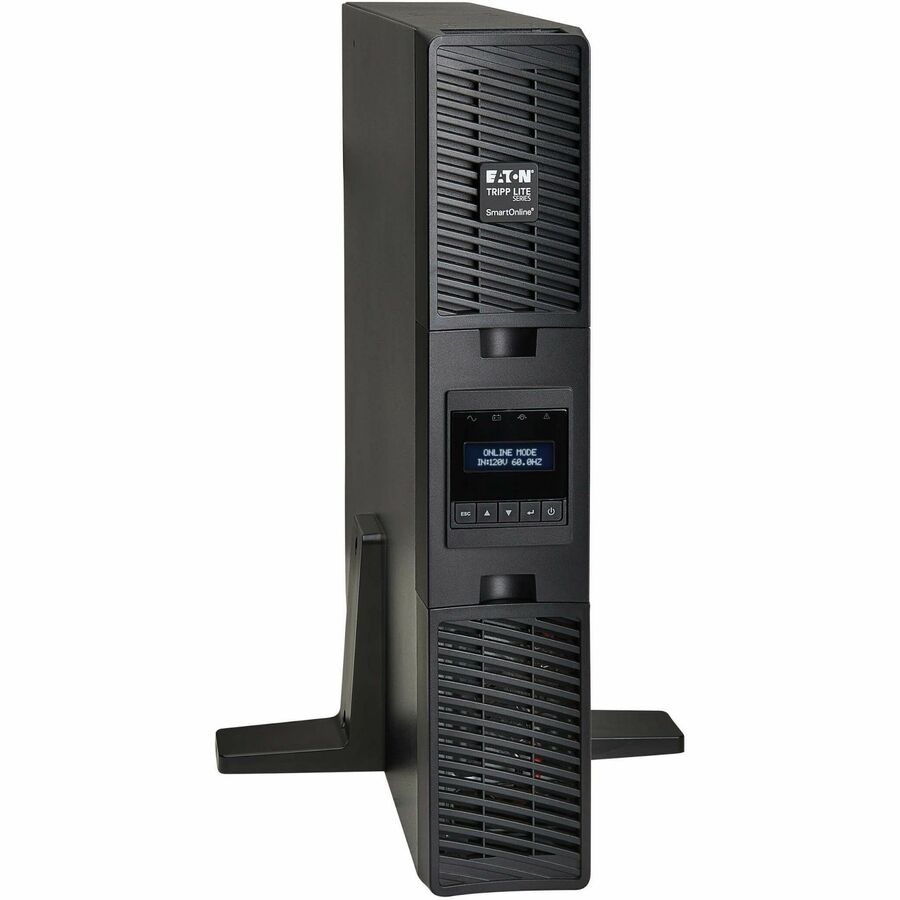

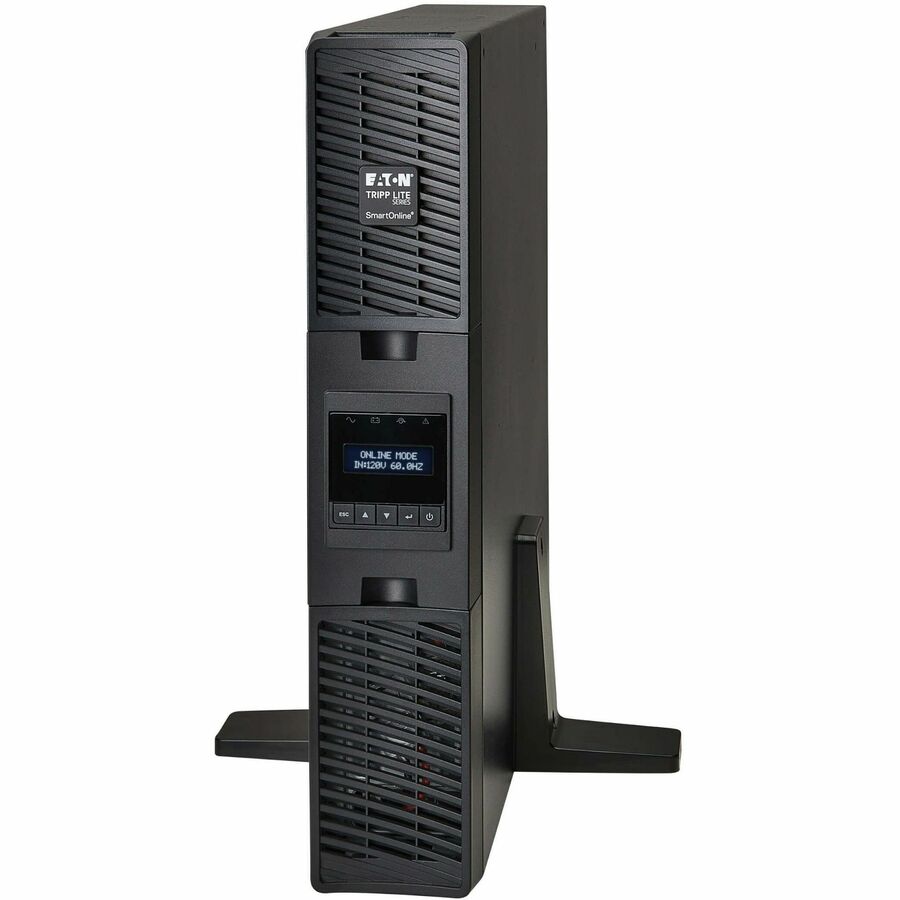

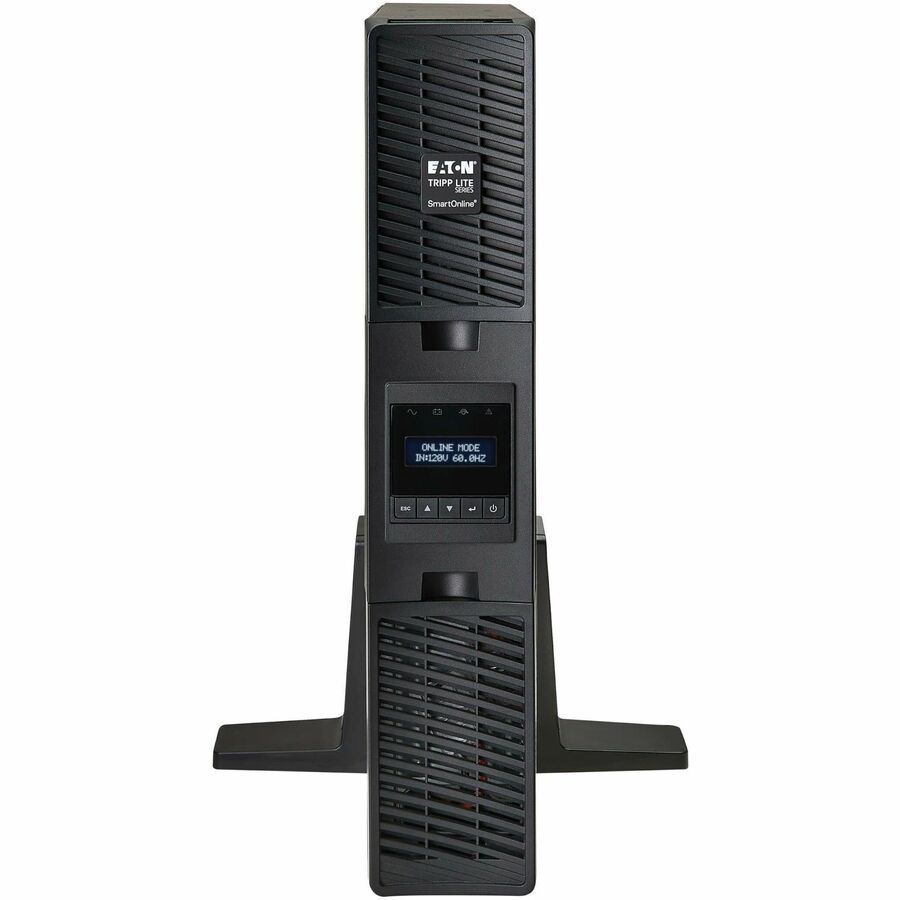

Form Factor: Rack/Tower
Weight (Approximate): 42.55 lb (19300.36 g)

Miscellaneous

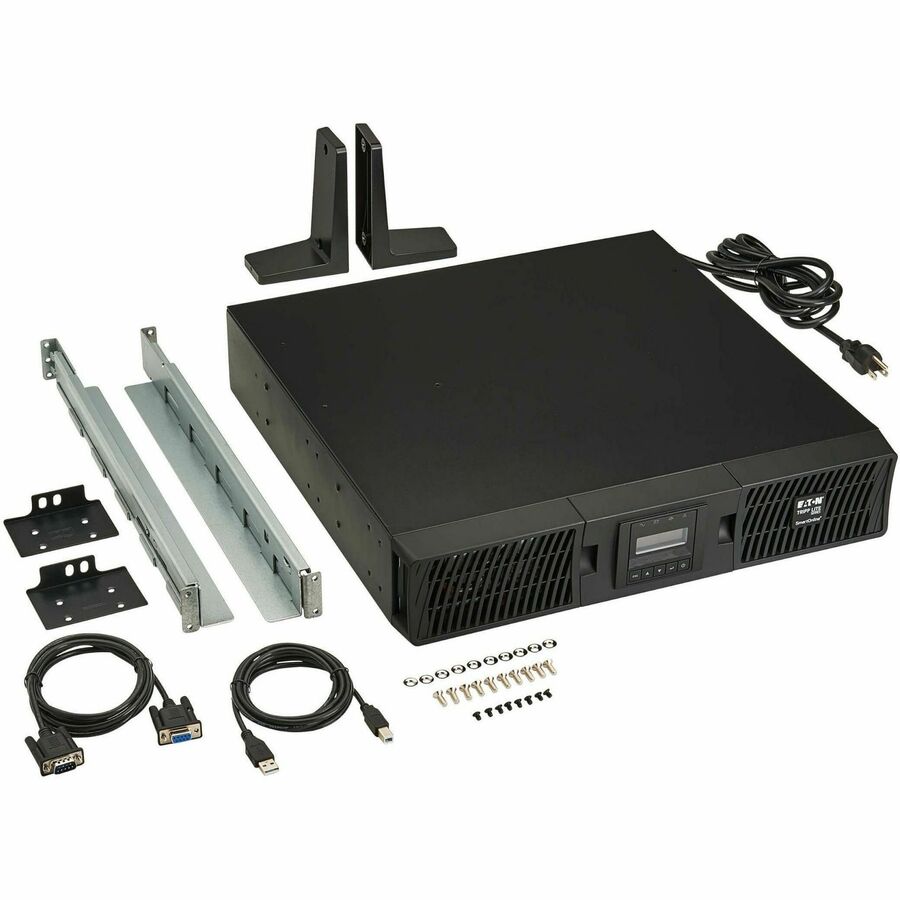

Package Contents:

• SmartOnline SU1500RTXLCD2UTAA 1500VA Rack/tower UPS
• USB Cable
• DB9 Cable
• Rack-mounting Hardware
• Tower Support Stands
• Safety Instructions
• Quick Start Guide

Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty: 2 Year
