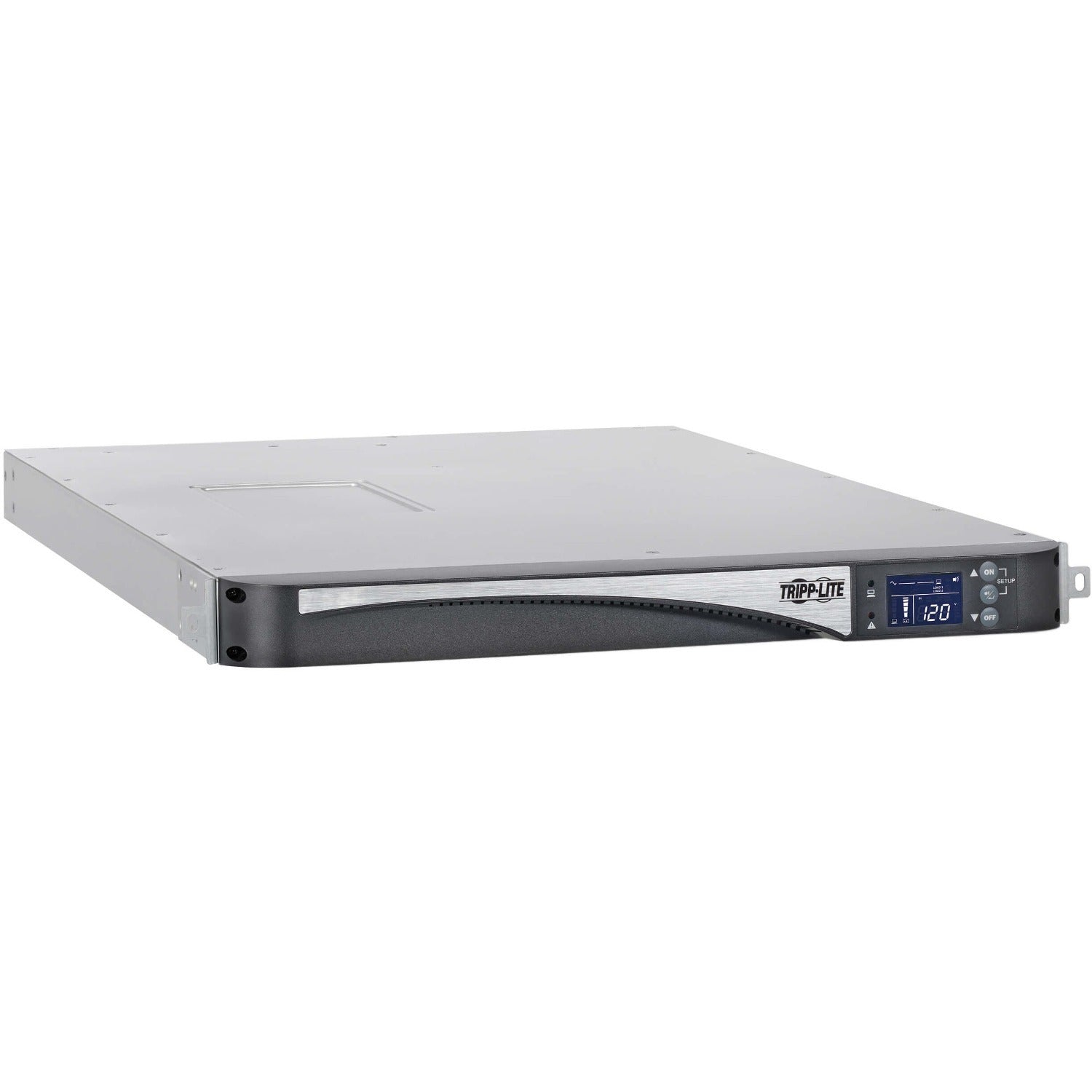

SU2000LCD1U Tripp Lite series SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU2000LCD1U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU2000LCD1U
Product Name: SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS
Marketing Information:

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline® SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches,
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-15/20R
Receptacle Detail: 5 x NEMA 5-15/20R
Dataline Protection: RS-232
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Network Equipment,Server,Network Closet,Computer Room,IT Equipment,Switch,Phone,Kiosk,High-end System

Power Description

Load Capacity (VA): 2 kVA
Load Capacity (Watt): 1.60 kW
Input Voltage: 120 V AC
Output Voltage: 100 V AC,120 V AC,127 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 540 J

Management

Network Management: SNMP/Web
Alarm: Power Failure,Low Battery,Overload,UPS Fault,UPS StartUp

Controls/Indicators

Status Indicators:

LED Indicators:

• AC Output status (green)
• Shutdown / Fault condition (red)

Interfaces/Ports

EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 48 V DC
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 10 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 65 dB(A)
Thermal Dissipation: 888.70 BTU/h

Physical Characteristics

Height: 1.73" (44 mm)
Width: 17.32" (440 mm)
Depth: 27.95" (710 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 48.50 lb (22000 g)

Miscellaneous

Package Contents:

• SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS
• USB Cable
• RS-232 Cable
• Rack-Mounting Hardware
• Owner's Manual

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
