Manufacturer Part Number: SU2200RTXLCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU2200RTXLCD2U

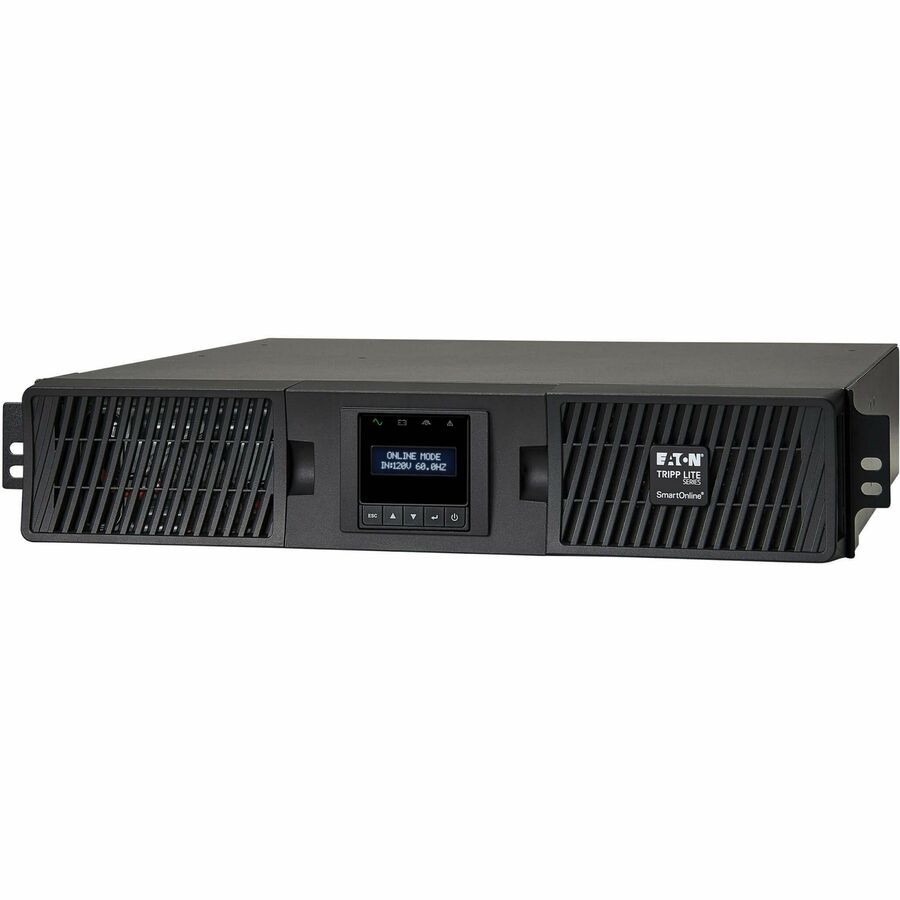

Product Name: SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS
Marketing Information: 2kVA 1.8kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Receptacle Type: NEMA 5-20R,NEMA L5-20R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R
Overload Protection: Yes
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: High efficiency economy mode operation; Individually controllable load banks
Application/Usage: Education,Healthcare,Military,Government,IT Equipment,Mission Critical Equipment
Load Capacity (Watt): 1.80 kW
Input Voltage: 120 V AC
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 190 J
Input Power Factor: 0.99
Output Power Factor: 0.9
Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
USB: Yes
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 7.70 Minute
Backup/Run Time (Half Load): 20.20 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes
Storage Temperature: 32°F (0°C) - 104°F (40°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 47 dB
Width: 17.33" (440.18 mm)
Depth: 23.82" (605.03 mm)
Rack Height: 2U

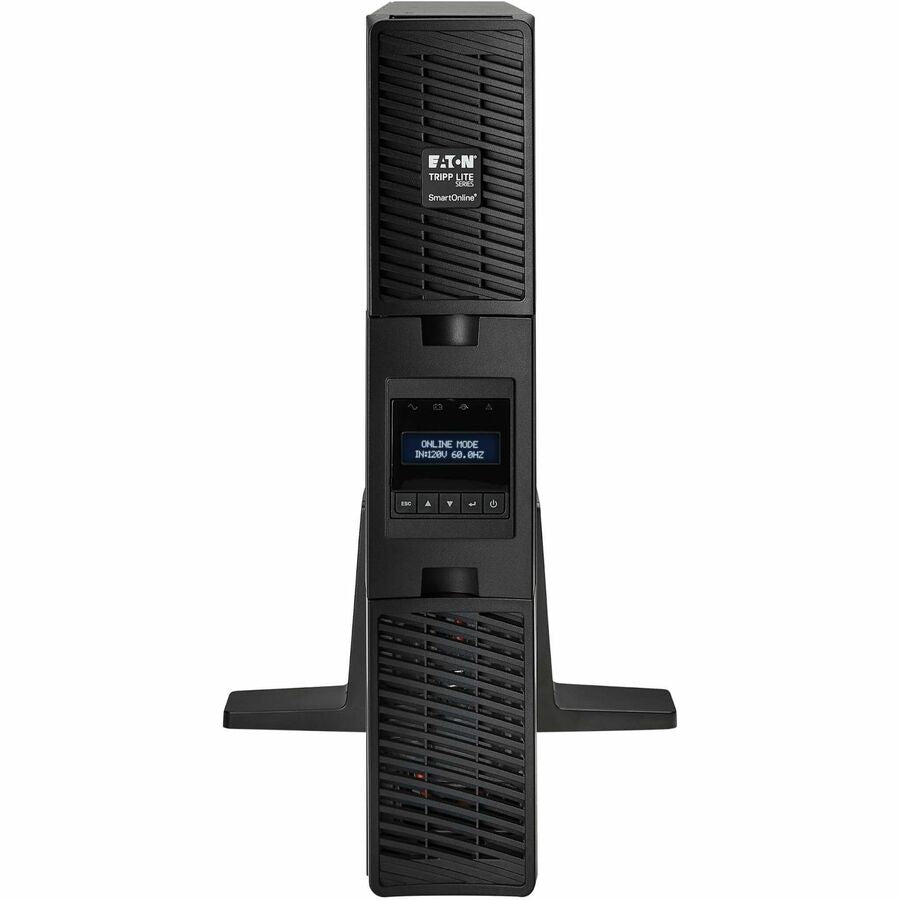

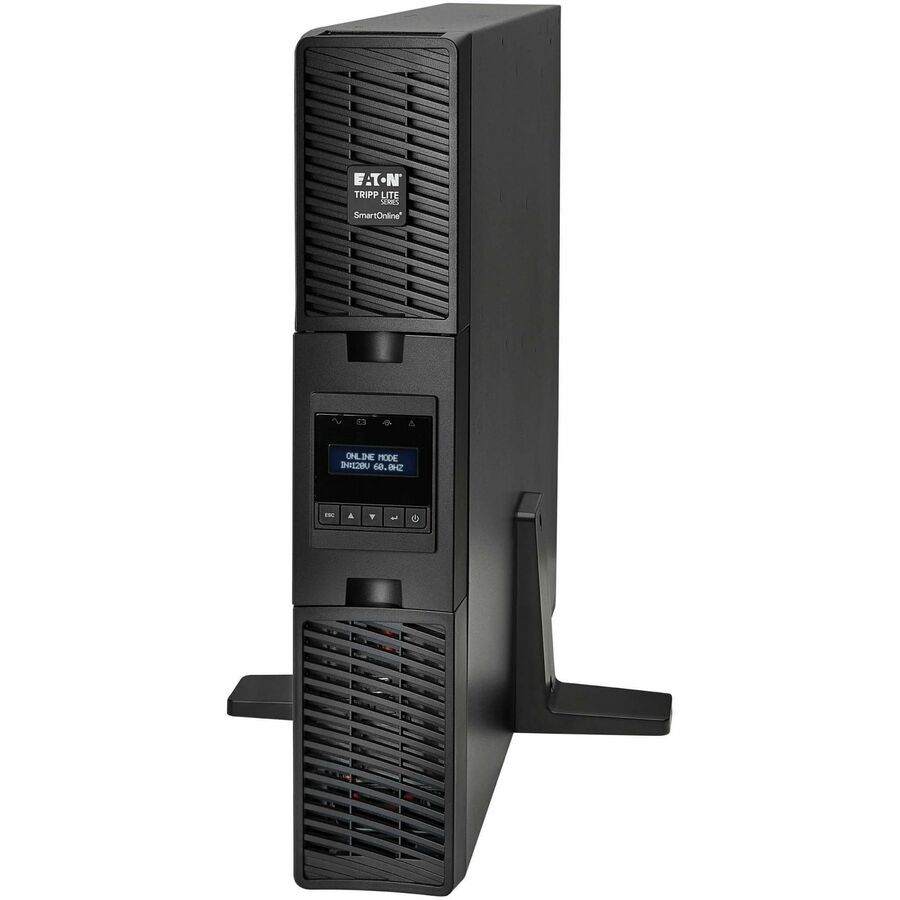

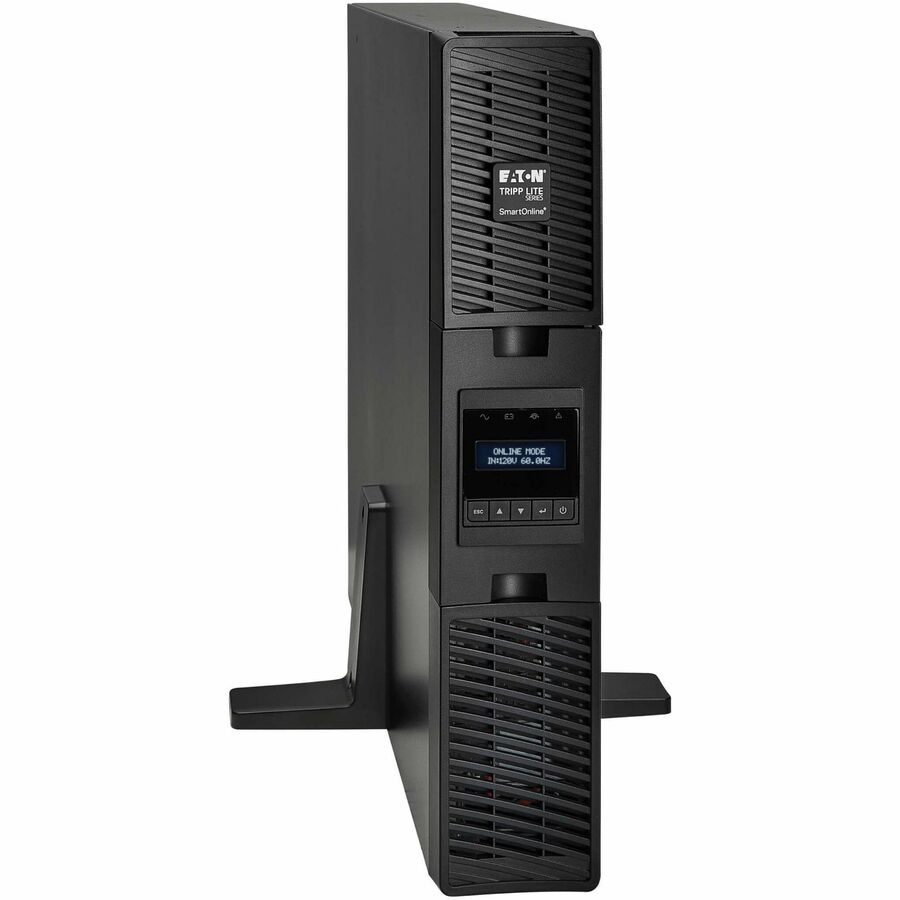

Form Factor: Rack/Tower
Weight (Approximate): 61.51 lb (27900.47 g)

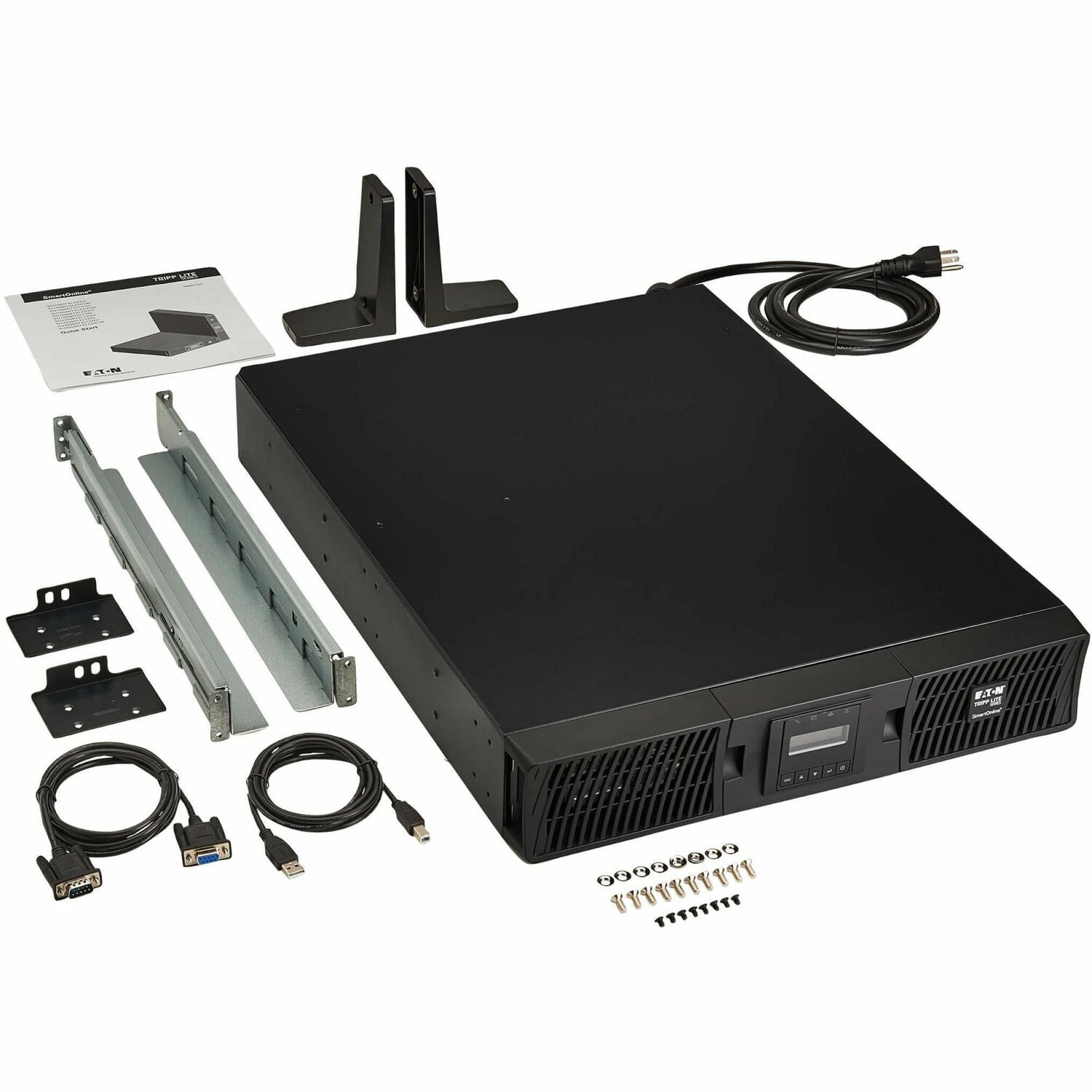

SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS USB Cable DB9 RS232 Cable Rack-mounting Hardware Tower Support Stands Safety Instructions Quick Start Guide
Software Included: PowerAlert UPS Monitoring Software
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SU2200RTXLCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU2200RTXLCD2U
Product Name: SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS
Marketing Information: 2kVA 1.8kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of conn
Product Type: Double Conversion Online UPS
Technical Information

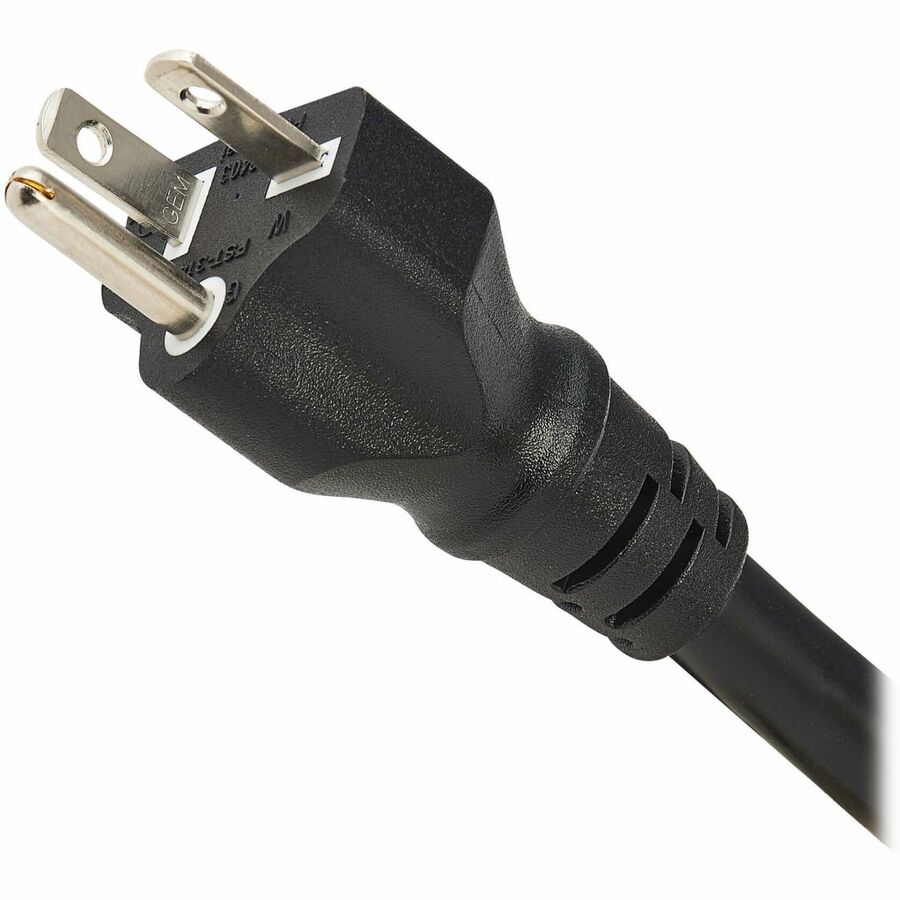

Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-20R,NEMA L5-20R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R
Overload Protection: Yes
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: High efficiency economy mode operation; Individually controllable load banks
Application/Usage: Education,Healthcare,Military,Government,IT Equipment,Mission Critical Equipment
Power Description
Load Capacity (VA): 2 kVALoad Capacity (Watt): 1.80 kW
Input Voltage: 120 V AC
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 190 J
Input Power Factor: 0.99
Output Power Factor: 0.9
Display & Graphics
Display: LCDManagement
Network Management: SNMPAlarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
Controls/Indicators
Status Indicators: 4 x status-indicating LEDsInterfaces/Ports
Serial Port: YesUSB: Yes
Battery Information
DC System Voltage: 72 V DCBattery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 7.70 Minute
Backup/Run Time (Half Load): 20.20 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 9842.52 ft (3000000 mm)Storage Temperature: 32°F (0°C) - 104°F (40°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 47 dB
Physical Characteristics
Height: 3.41" (86.61 mm)Width: 17.33" (440.18 mm)
Depth: 23.82" (605.03 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 61.51 lb (27900.47 g)
Miscellaneous
Package Contents:Software Included: PowerAlert UPS Monitoring Software
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
