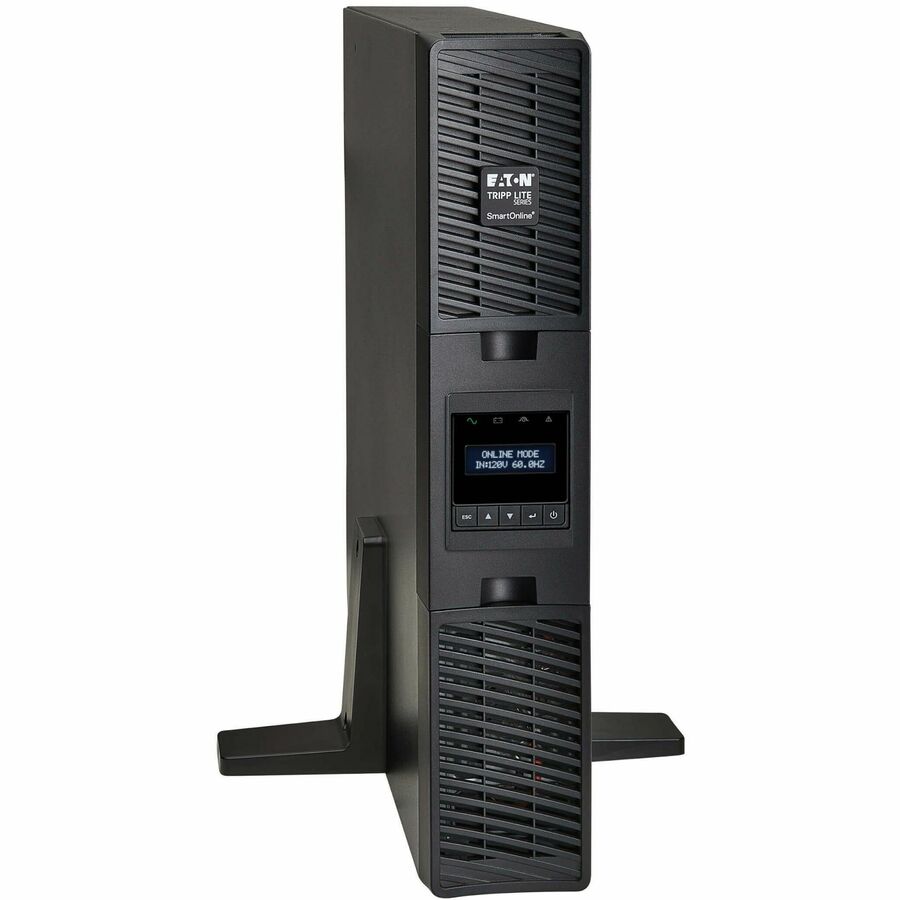

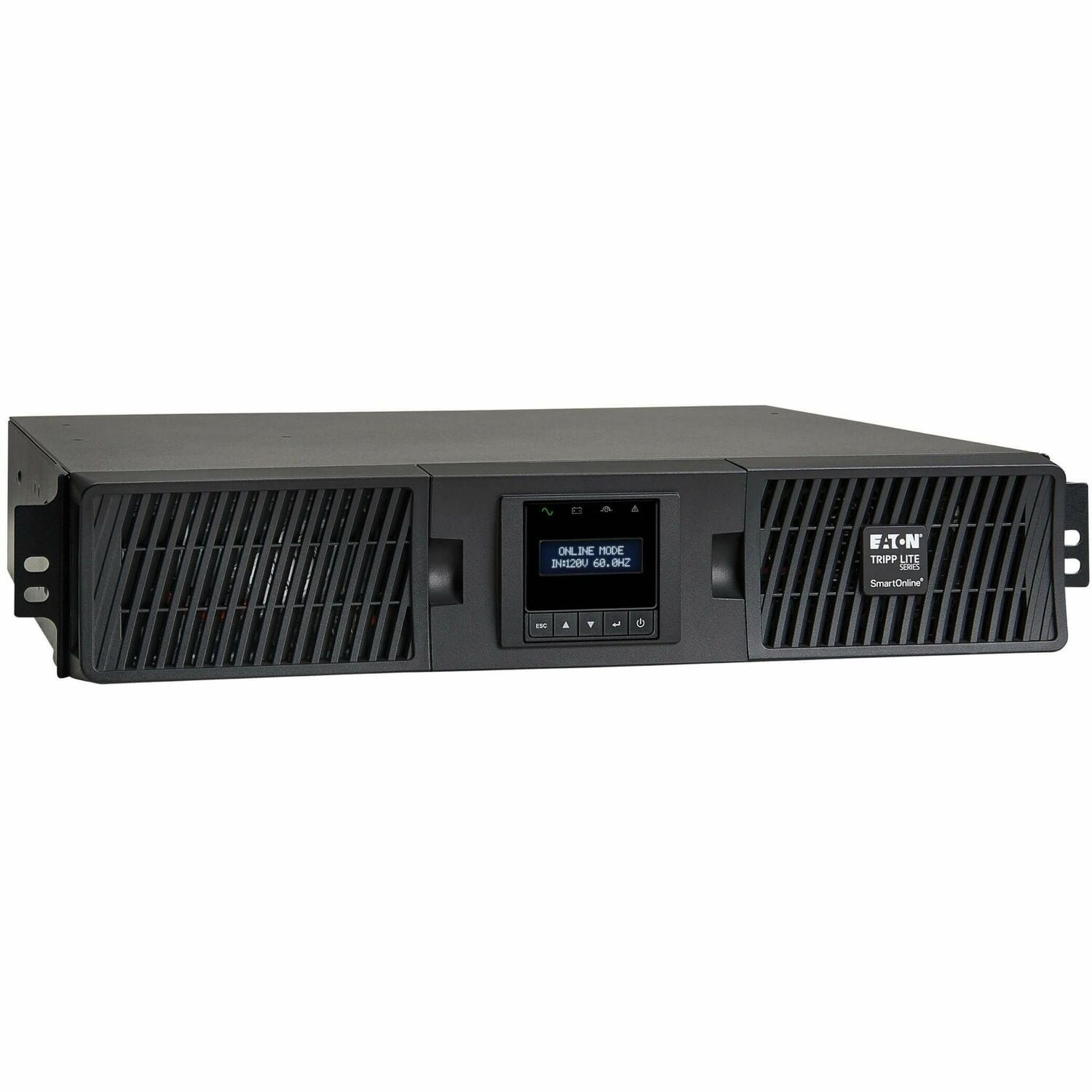

SU3000RTXLCD2U Tripp Lite series SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU3000RTXLCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU3000RTXLCD2U
Product Name: SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS
Marketing Information: Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline® SU3000RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA 5-15R,NEMA 5-15/20R,NEMA L5-30R
Receptacle Detail: 4 x NEMA 5-15R,4 x NEMA 5-15/20R,1 x NEMA L5-30R
Cord Length: 10 ft (3.05 m)

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 127 V AC
Output Voltage: 127 V AC
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J
Circuit Breaker: Yes

Management

Network Management: SNMP Manageable
Alarm: Low Battery,Power Failure,Overload,UPS Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

• 7 Front Panel Leds Indicate Line Power Availability
• AC to DC Conversion
• Battery Mode Operation
• Inverter Mode
• Eco Mode Operation
• Bypass Mode Operation
• AC Output Status

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4.10 Minute
Backup/Run Time (Half Load): 11.30 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 801 BTU/h

Physical Characteristics

Height: 3.40" (86.36 mm)
Width: 17.30" (439.42 mm)
Depth: 25.50" (647.70 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 70.50 lb (31978.26 g)

Miscellaneous

Package Contents:

• SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS
• PowerAlert UPS Monitoring Software CD
• USB Cable
• DB9 Cable

Software Included: PowerAlert UPS Monitoring Software
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
