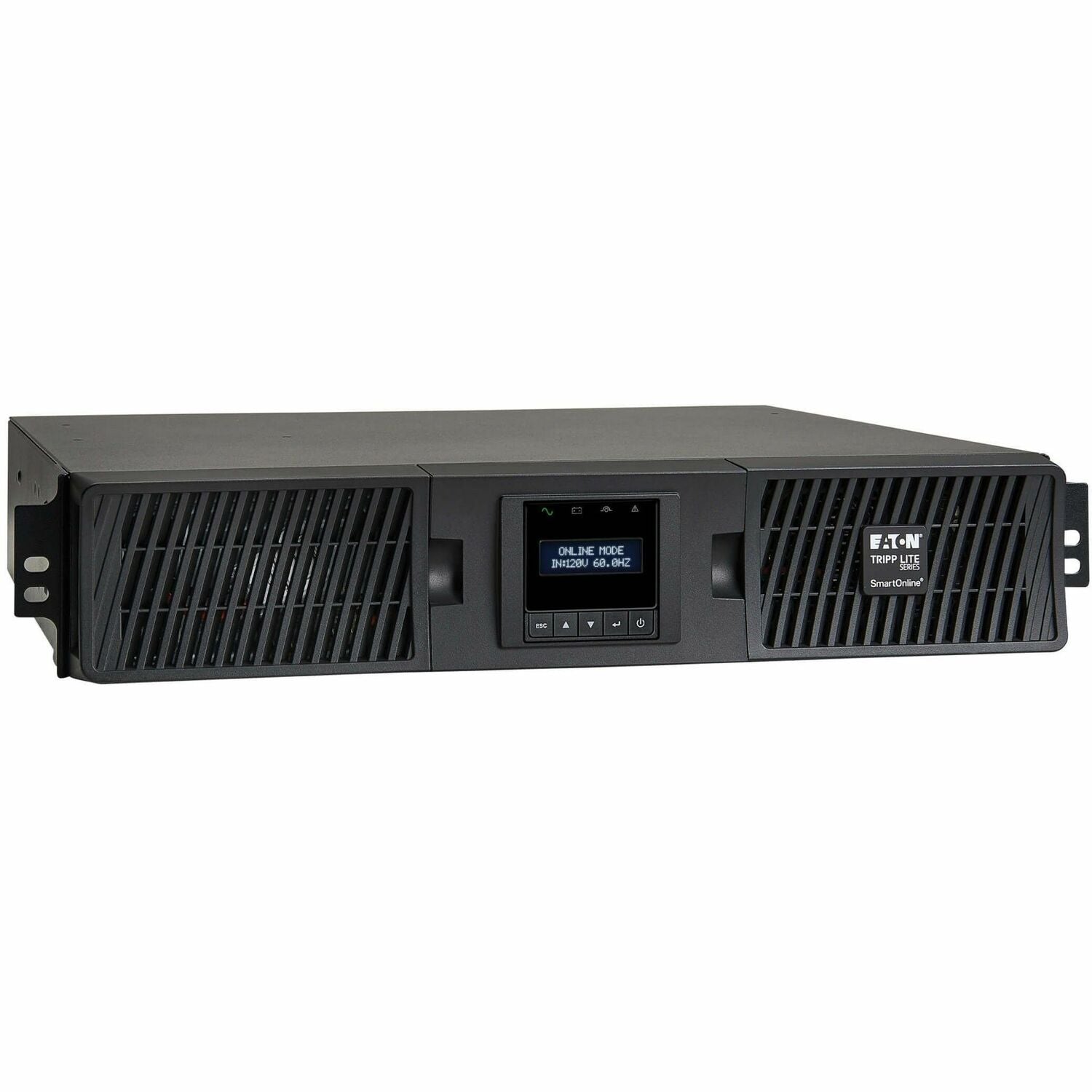

SU3000RTXLCD2UN Tripp Lite series SmartOnline SU3000RTXLCD2UN 3000VA Rack-mountable UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU3000RTXLCD2UN
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU3000RTXLCD2UN
Product Name: SmartOnline SU3000RTXLCD2UN 3000VA Rack-mountable UPS
Marketing Information: Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU3000RTXLCD2UN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA L5-30P
Receptacle Type: NEMA L5-30R,NEMA 5-15/20R,NEMA 5-15R
Receptacle Detail: 1 x NEMA L5-30R,4 x NEMA 5-15/20R,4 x NEMA 5-15R
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Green Energy-Saving
Application/Usage: Mission Critical Equipment,Computer,Data Center,Server,Network Device

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 127 V AC
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J

Management

Network Management: SNMP/HTTP Remote Monitoring
Alarm: Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

Front Panel LCD Display:

• UPS And Site Power Status And Operating Data
• Plus Configuration Of Voltage
• Frequency
• Operating Mode
• Alarm Function And A Variety Of Additional Options

LED Indicators:

• 7 Front Panel LEDs Indicate Line Power Availability
• AC To DC Conversion
• Battery Mode Operation
• Inverter Mode
• ECO Mode Operation
• Bypass Mode Operation
• AC Output Status

Interfaces/Ports

Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 72 V DC
Backup/Run Time (Full Load): 4.10 Minute
Backup/Run Time (Half Load): 11.30 Minute
Hot Swappable: Yes
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 1626 BTU/h

Physical Characteristics

Height: 3.40" (86.36 mm)
Width: 17.30" (439.42 mm)
Depth: 25.50" (647.70 mm)
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 70.50 lb (31978.26 g)

Miscellaneous

Package Contents:

3000VA 2700W 120V Double-Conversion UPS

WEBCARDLXE network management card

USB cable

DB9 cable

Rack-mounting hardware

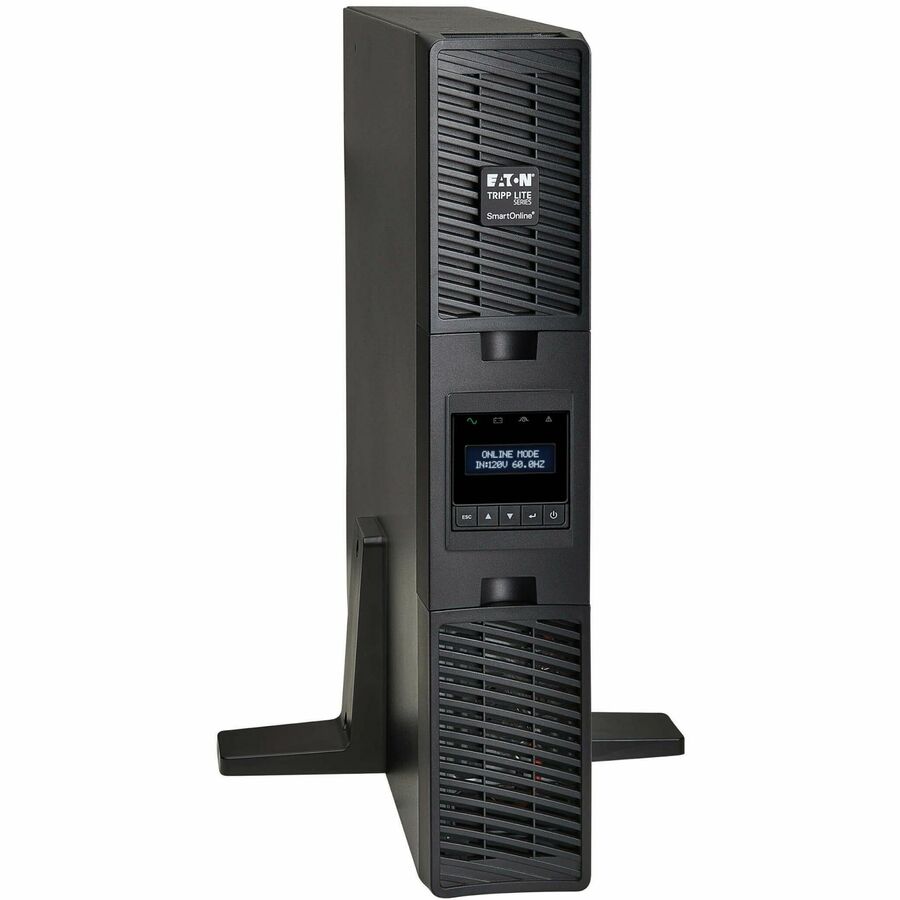

Tower support stands

Safety instructions

Quick start guide

Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
