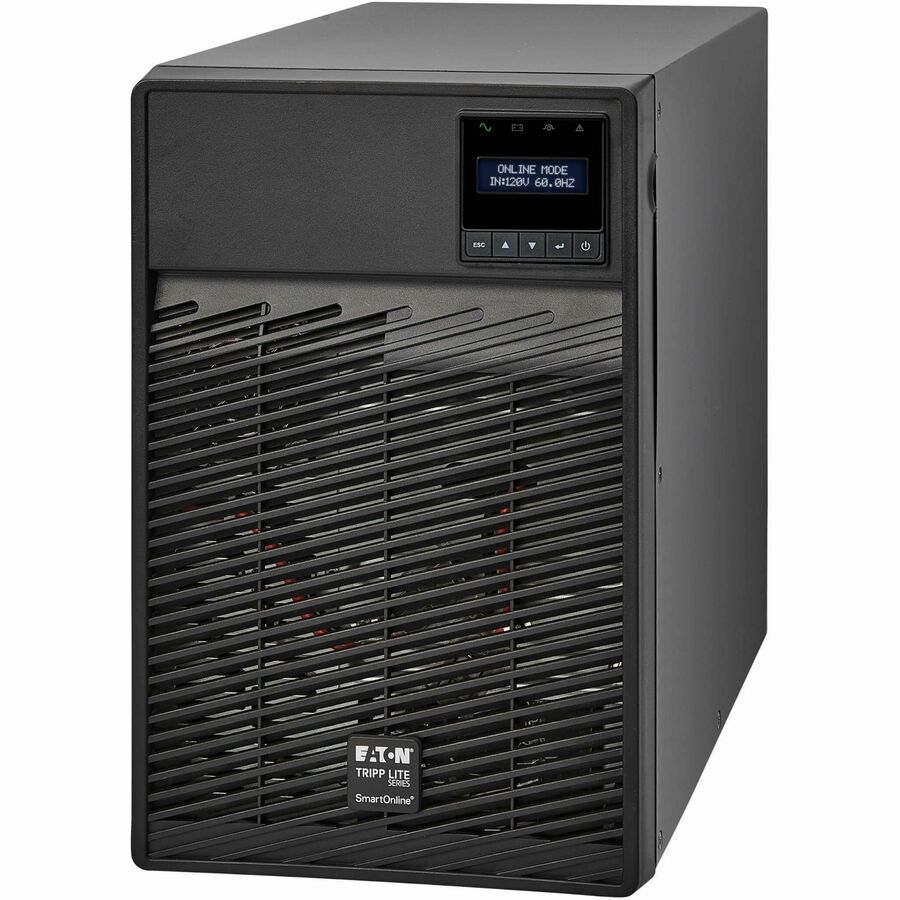

SU3000XLCD Tripp Lite series SmartOnline SU3000XLCD 3000VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU3000XLCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU3000XLCD
Product Name: SmartOnline SU3000XLCD 3000VA Tower UPS
Marketing Information: Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline® SU3000XLCD provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without inter
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-20R,NEMA L5-30R
Receptacle Detail: 4 x NEMA 5-20R,1 x NEMA L5-30R
Overload Protection: Yes
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: IT Equipment,Mission Critical Equipment,Government,Healthcare,Education,Military

Power Description

Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 120 V AC
Output Voltage: 100 V AC,110 V AC,120 V AC
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 190 J
Input Power Factor: 0.99
Output Power Factor: 0.9

Display & Graphics

Display: LCD

Management

Network Management: SNMP
Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery

Controls/Indicators

Status Indicators: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

DC System Voltage: 96 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5.70 Minute
Backup/Run Time (Half Load): 16.70 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 32°F (0°C) - 104°F (40°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 52 dB

Physical Characteristics

Height: 13.63" (346.20 mm)
Width: 8.43" (214.12 mm)
Depth: 16.23" (412.24 mm)
Form Factor: Tower
Weight (Approximate): 73.64 lb (33402.54 g)

Miscellaneous

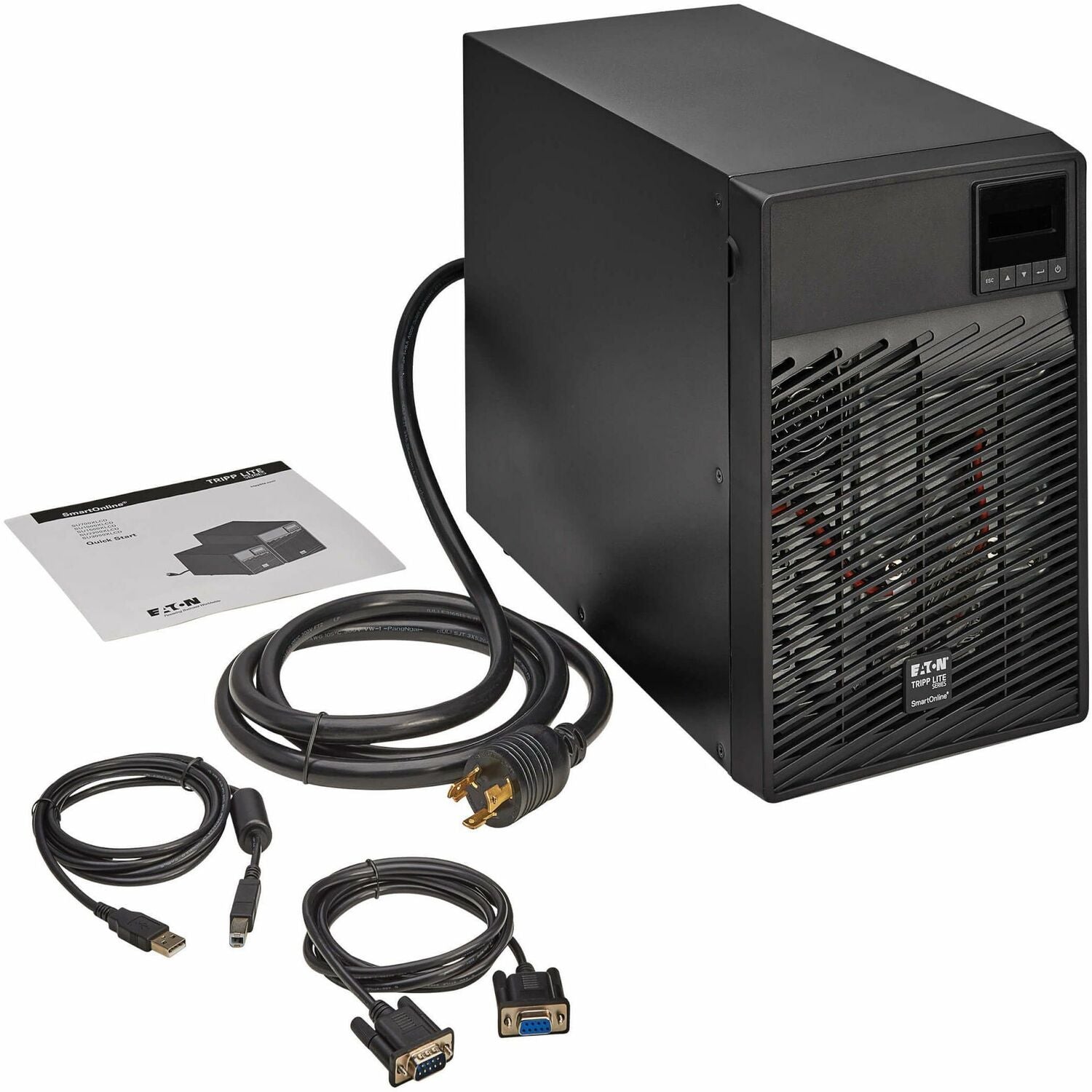

Package Contents:

SmartOnline SU3000XLCD 3000VA Tower UPS

USB cable

DB9 cable

Quick Start Guide

Software Included: PowerAlert Software
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
