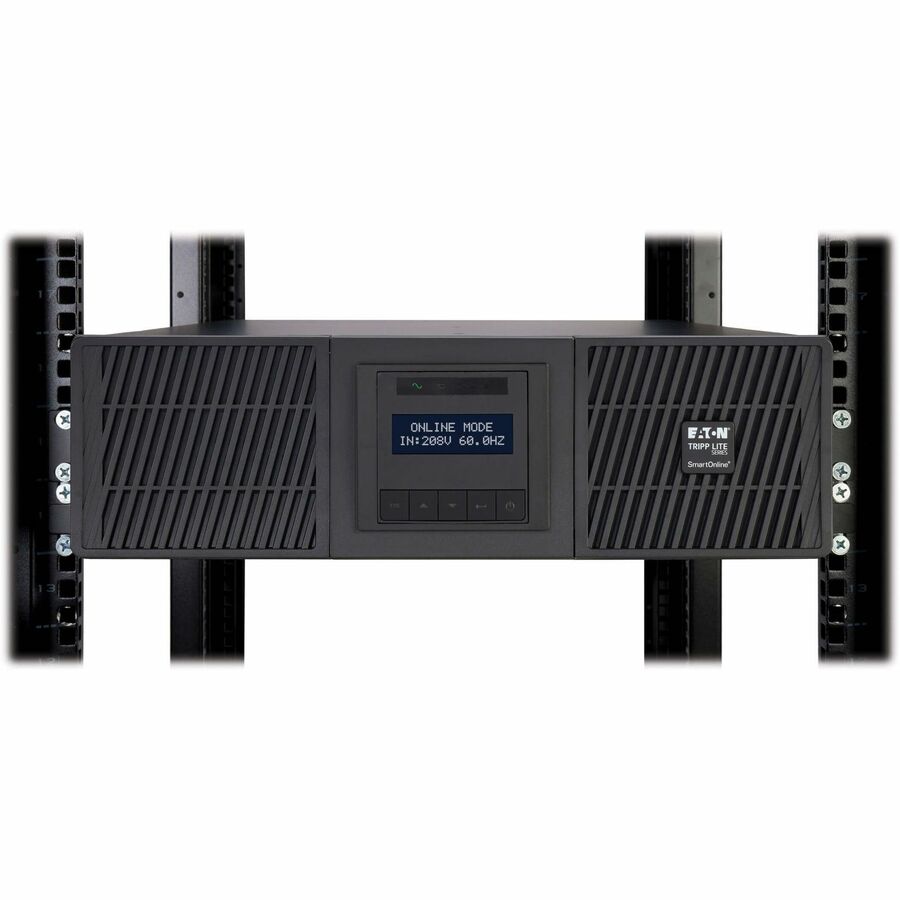

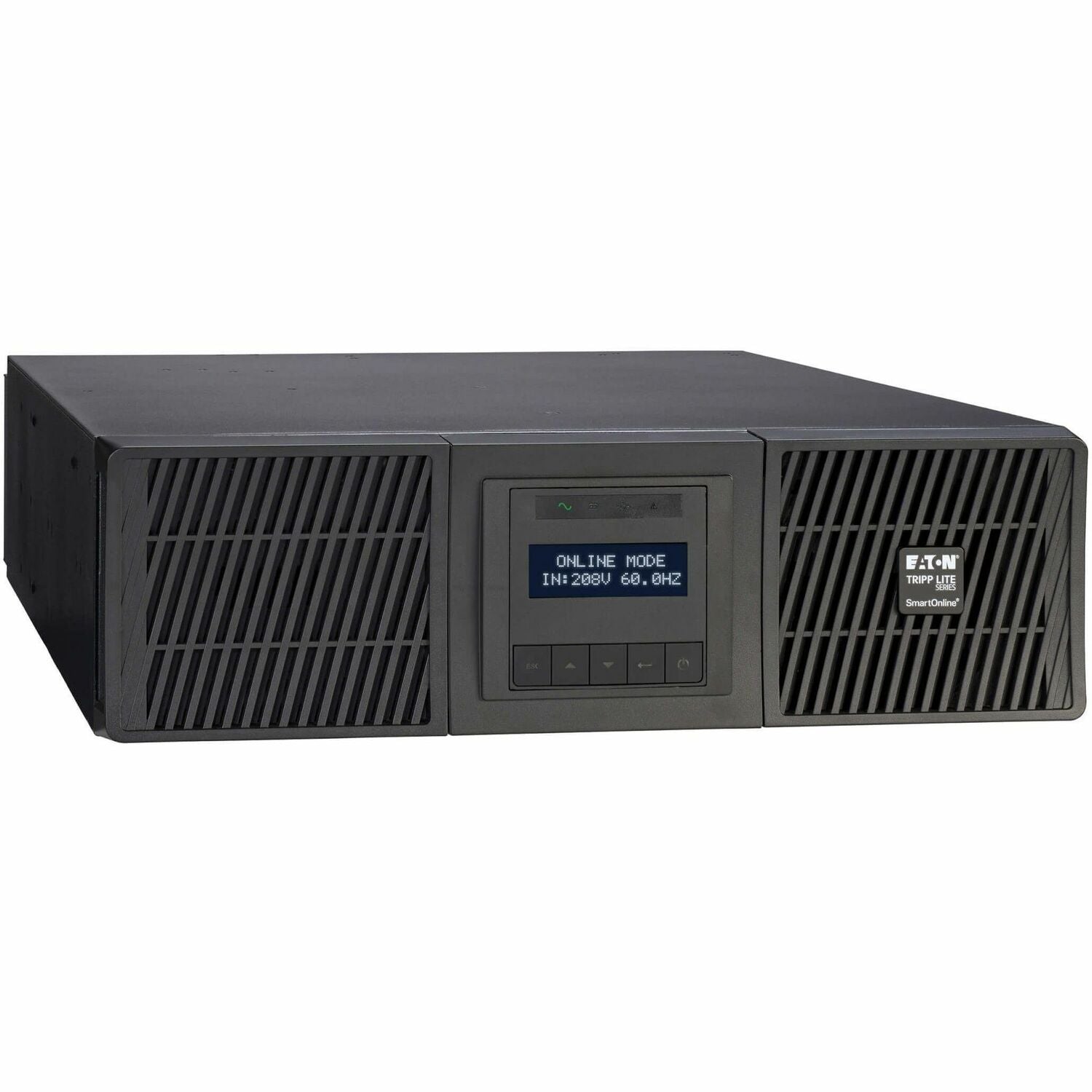

SU6000RT3UTAA Tripp Lite series SmartOnline SU6000RT3UTAA 6000VA Rack/tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU6000RT3UTAA
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU6000RT3UTAA
Product Name: SmartOnline SU6000RT3UTAA 6000VA Rack/tower UPS
Marketing Information:

6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks

This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The SU6000RT3UTAA provides reliable power management for government, education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Reliable, Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. Hours of extra runtime can be achieved by connecting up to four optional extended battery modules (BP180RT3UTAA,
Product Type: Double Conversion Online UPS

Technical Information

AVR: Yes
Plug/Connector Type: Hardwired,NEMA L6-30P

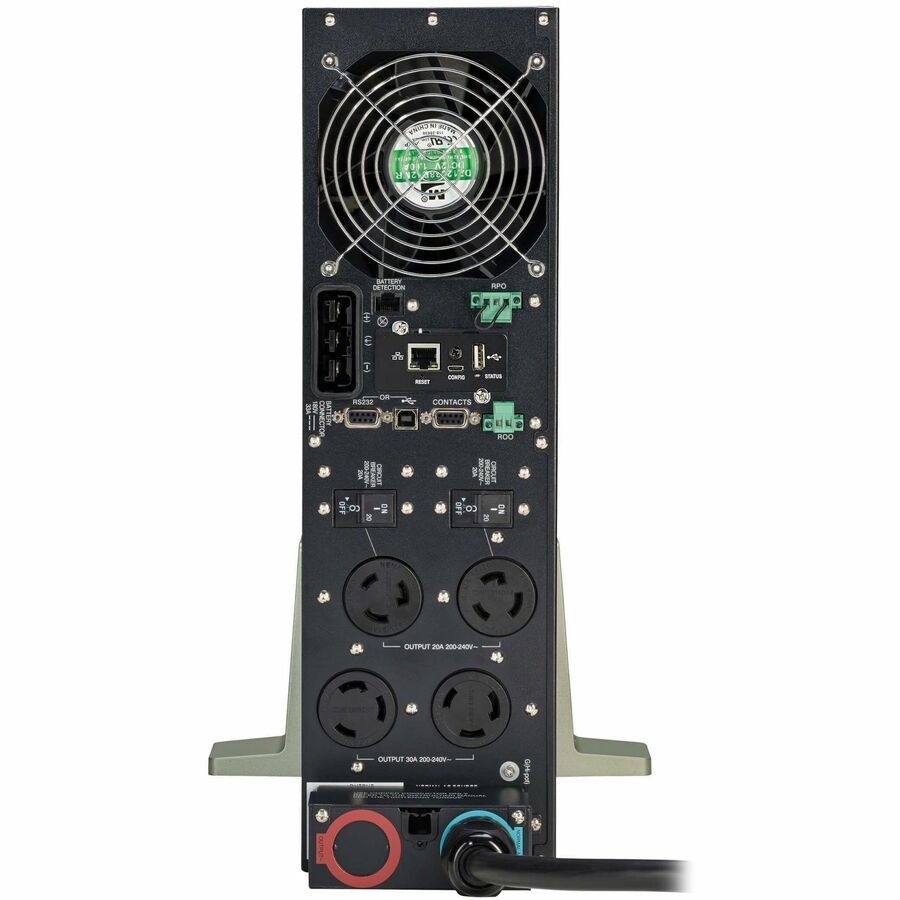

Receptacle Type: NEMA L6-20R,NEMA L6-30R,Hardwired
Receptacle Detail: 2 x NEMA L6-20R,2 x NEMA L6-30R
Cord Length: 10 ft (3.05 m)
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Green Energy-Saving
Efficiency Detail: 93% (AC Mode),98% (ECO Mode)
Application/Usage: Mission Critical Equipment,IT,Network,Education,Healthcare,Military,Government,Network Device,IT Equipment,Non-critical Device,Industrial Equipment
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function

Power Description

Load Capacity (VA): 6 kVA
Load Capacity (Watt): 5.40 kW
Input Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
Input Current: 24.80 A
Output Voltage: 220 V AC,230 V AC,240 V AC,208 V AC,200 V AC
Output Frequency: 60 Hz,50 Hz
Waveform Type: Pure Sine Wave
Circuit Breaker: Yes
Output Power Factor: 0.9

Display & Graphics

Display: LCD

Management

Network Management: Dry Contact,DB-9 RS-232,SNMP/HTTP Remote Monitoring,Network Card
Alarm: Low Battery,Overload,UPS Fault,Remote Shutdown,Utility Power Failure,Battery Fault

Controls/Indicators

Status Indicators:

LED Indicators:

• 4 Status-indicating LEDs

Interfaces/Ports

Serial Port: Yes
USB: Yes
EPO Port: Yes
Number of USB Ports: 1

Battery Information

DC System Voltage: 180 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 8 Minute
Hot Swappable: Yes
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 3280 ft (999744 mm)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 1895 BTU/h

Physical Characteristics

Height: 5.10" (129.54 mm)
Width: 17.30" (439.42 mm)
Depth: 27.03" (686.56 mm)
Rack Height: 3U

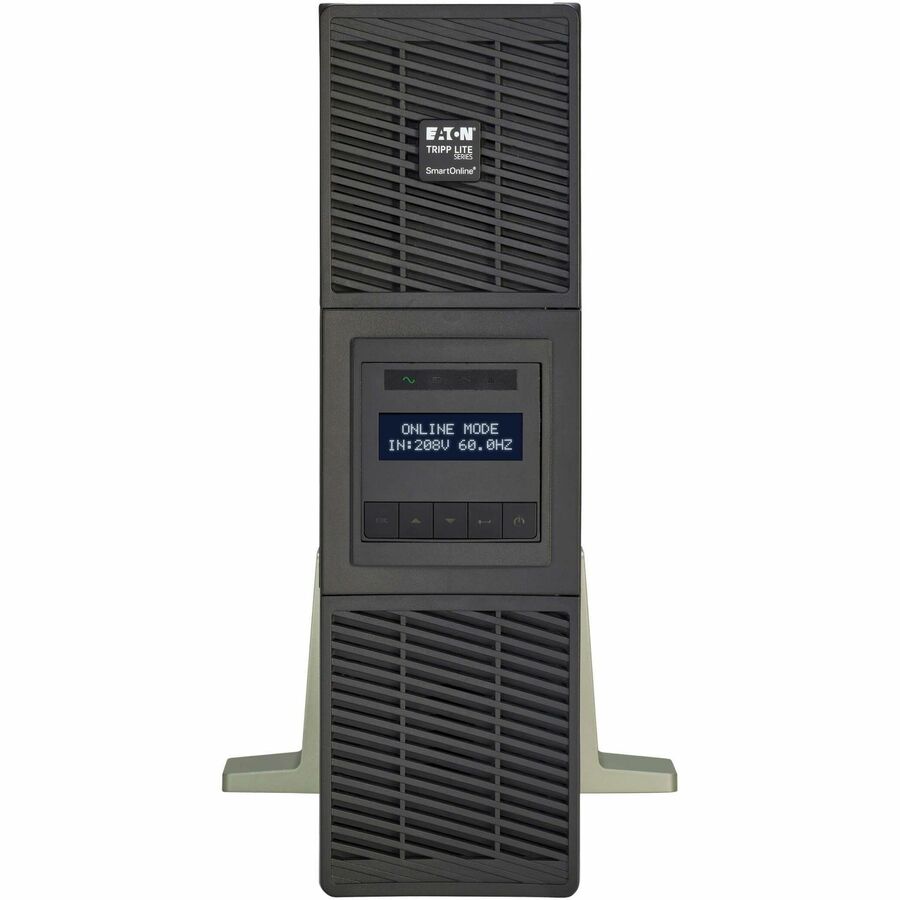

Form Factor: Rack/Tower
Weight (Approximate): 106 lb (48080.79 g)

Miscellaneous

Package Contents:

• SmartOnline SU6000RT3UTAA 6000VA Rack/tower UPS
• WEBCARDLXE Network Card
• USB Cable
• DB9 Cable
• Tower Support Stands
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Quick Start Guide

Energy Star: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty: 2 Year
