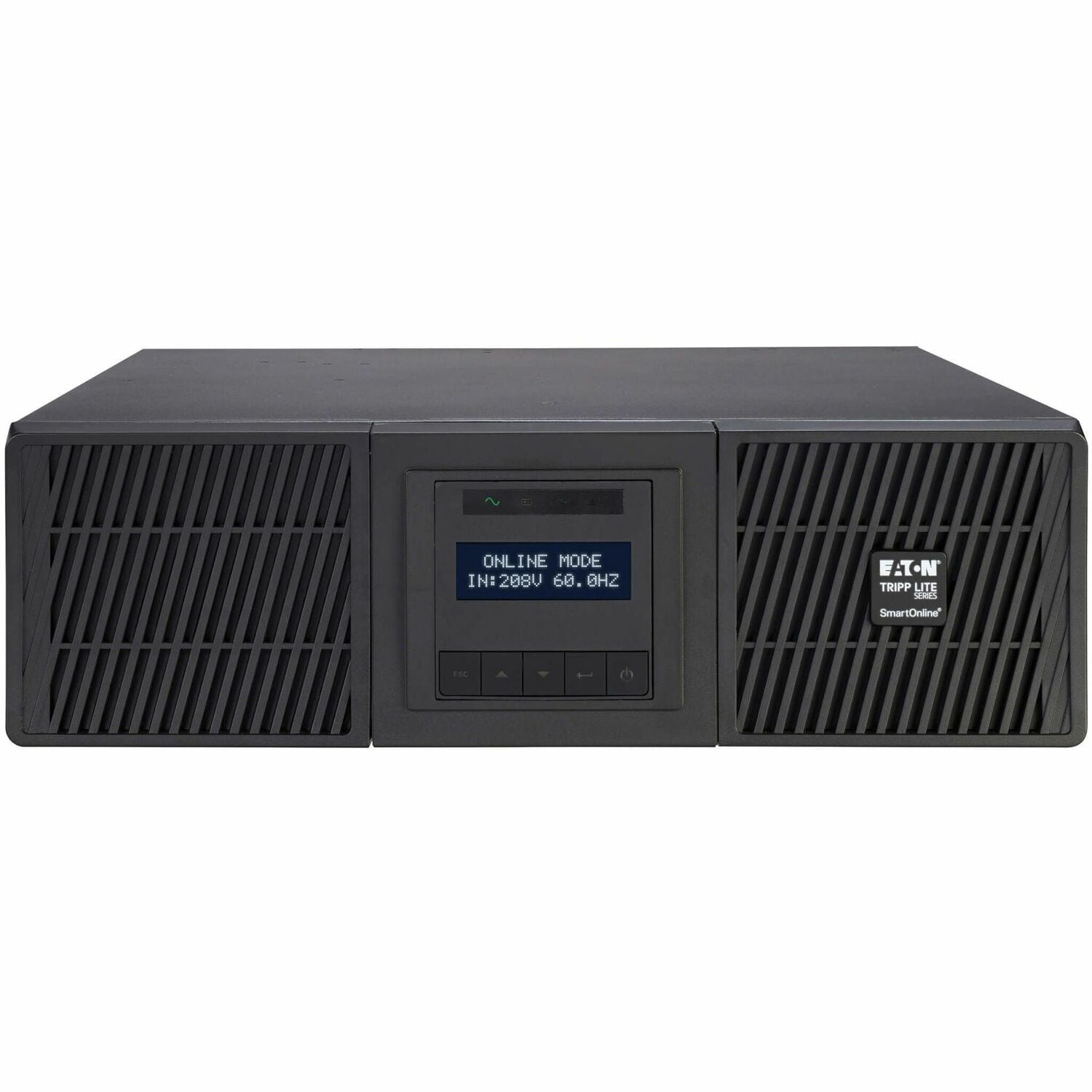

SU6000RTMB Tripp Lite series SmartOnline SU6000RTMB 6000VA Rack/tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU6000RTMB
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU6000RTMB
Product Name: SmartOnline SU6000RTMB 6000VA Rack/tower UPS
Marketing Information:

6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks

This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The SU6000RTMB provides reliable power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. You can also connect up to four extended battery modules (BP180RT, sold separately) for hours of extended runtime.

Included
Product Type: Double Conversion Online UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA L6-30P,Hardwired
Receptacle Type: NEMA L6-20R,NEMA L6-30R,Hardwired
Receptacle Detail: 2 x NEMA L6-20R,2 x NEMA L6-30R
Cord Length: 10 ft (3.05 m)
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Efficiency Detail: 98% (ECO Mode)
Application/Usage: Mission Critical Equipment,IT Equipment,Network Device,Education,Commercial,Financial,Healthcare
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function,Green Energy Saving,Built-in Bypass Switch

Power Description

Load Capacity (VA): 6 kVA
Load Capacity (Watt): 5.40 kW
Input Voltage: 230 V AC
Input Current: 24.80 A
Output Voltage: 230 V AC,240 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pure Sine Wave
Circuit Breaker: Yes
Output Power Factor: 0.9

Display & Graphics

Display: LCD

Management

Network Management: Network Card,DB-9 RS-232,Dry Contact,USB,SNMP
Alarm: Utility Power Failure,Low Battery,Overload,Battery Fault,Remote Shutdown

Controls/Indicators

Status Indicators:

LED Indicators:

4 status-indicating LEDs

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

DC System Voltage: 180 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 8 Minute
Hot Swappable: Yes
Replaceable Battery: Yes

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 1895 BTU/h

Physical Characteristics

Height: 5.10" (129.54 mm)
Width: 17.30" (439.42 mm)
Depth: 34" (863.60 mm)
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 111.50 lb (50575.55 g)

Miscellaneous

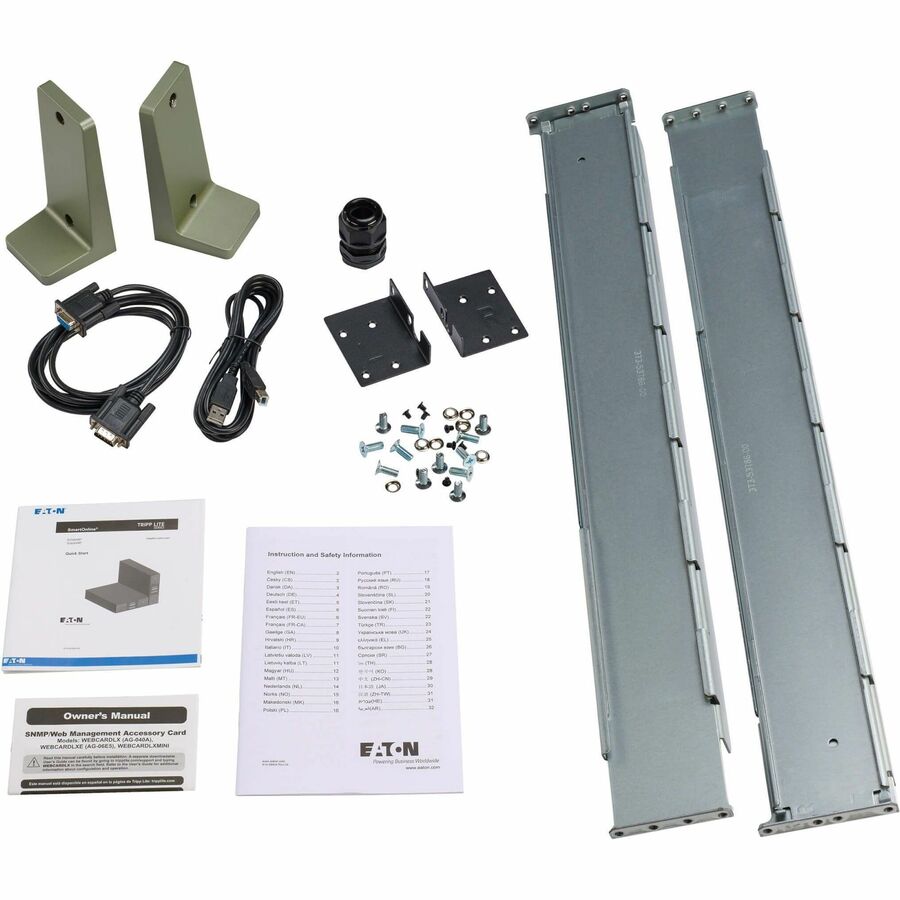

Package Contents:

• SmartOnline SU6000RTMB 6000VA Rack/tower UPS
• SUPDMBP6K Maintenance Bypass
• WEBCARDLXE Network Card
• USB Cable
• RS-232 Cable
• Tower Support Stands
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Maintenance Bypass Mounting Hardware
• DB9 Serial Cables
• Quick Start Guide

Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
Additional Warranty Information:

• 250,000 Ultimate Lifetime Insurance
