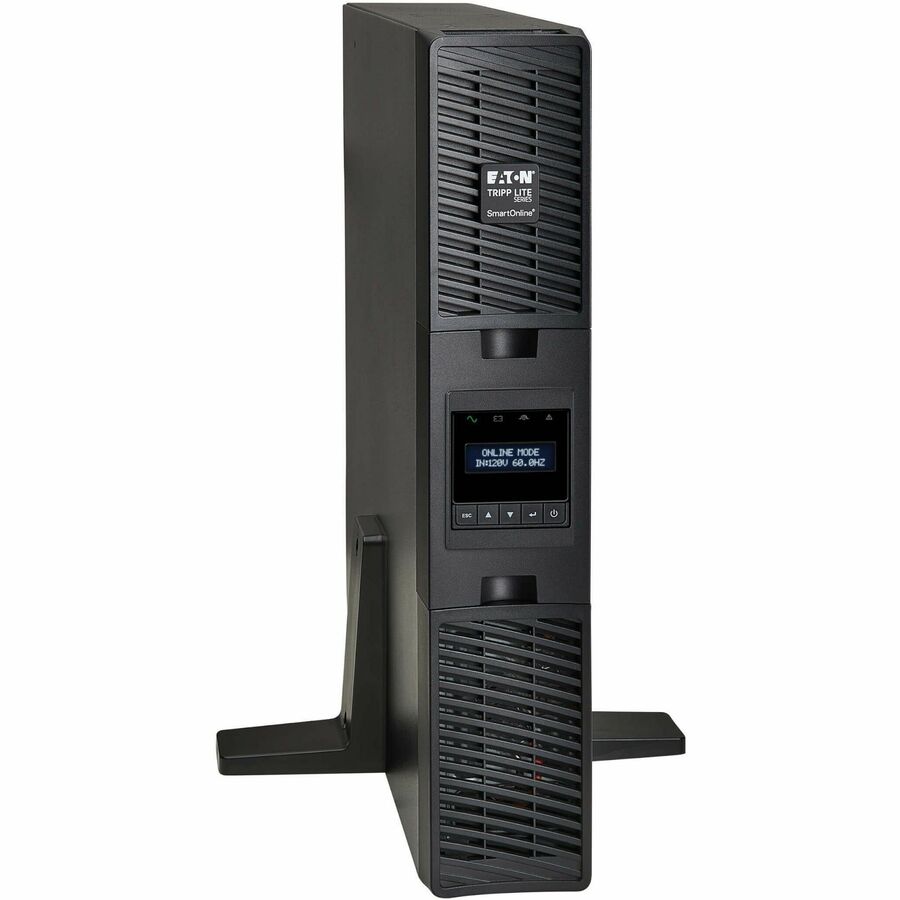

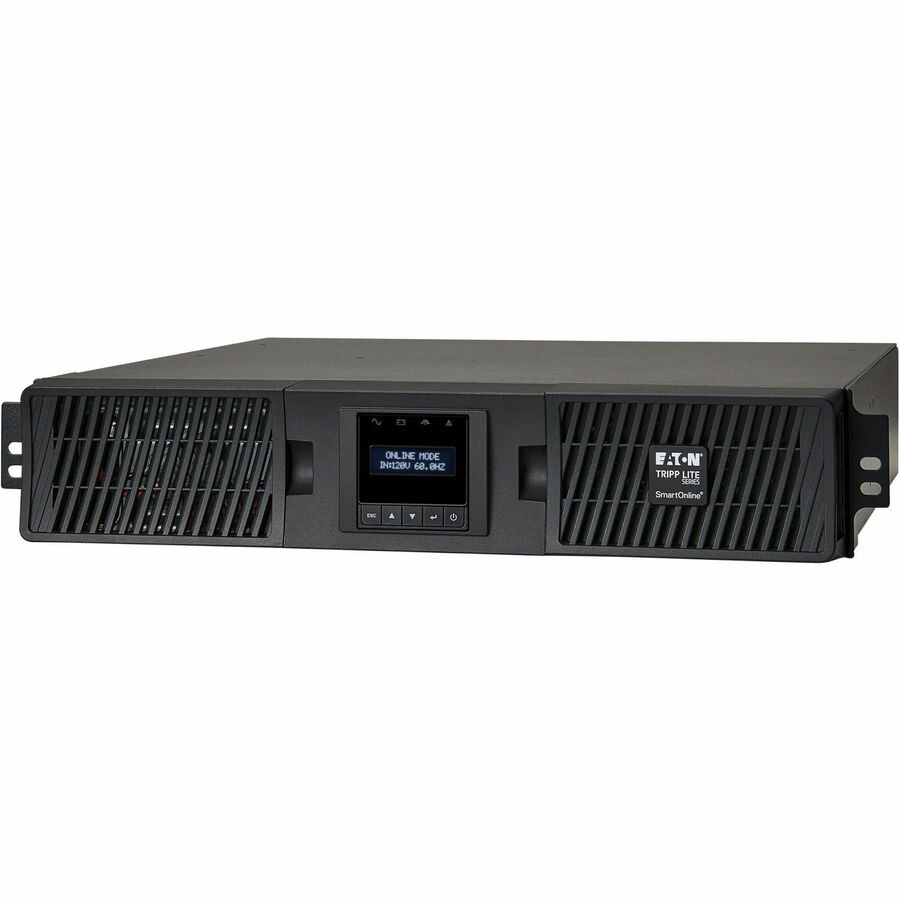

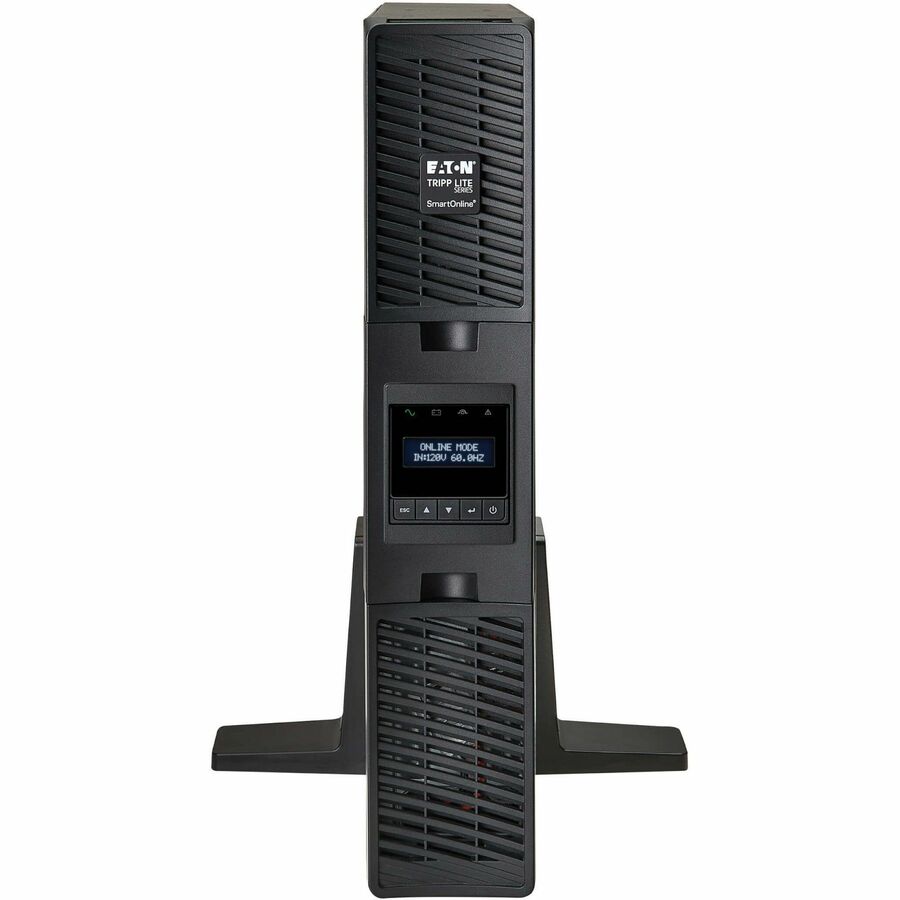

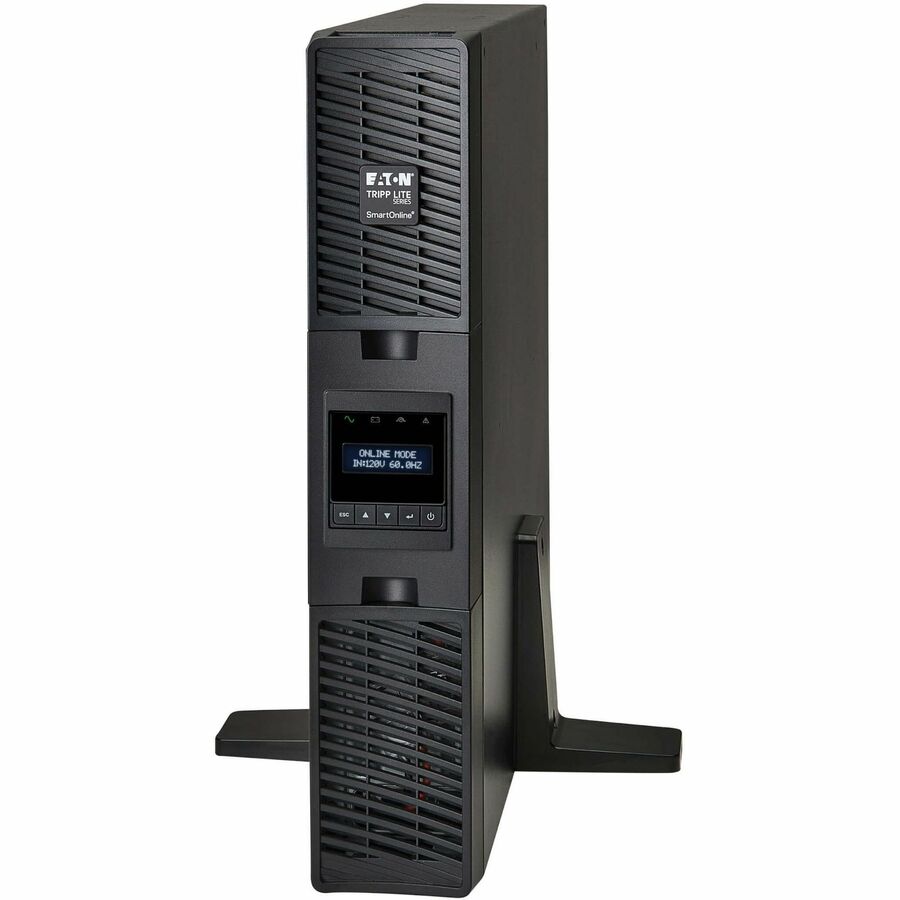

SU750RTXLCD2U Tripp Lite series SmartOnline SU750RTXLCD2U 750VA Rack/Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: SU750RTXLCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SU750RTXLCD2U
Product Name: SmartOnline SU750RTXLCD2U 750VA Rack/Tower UPS
Marketing Information:

750VA 675W 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU750RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of con
Product Type: Double Conversion Online UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Overload Protection: Yes
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: High efficiency economy mode operation; Individually controllable load banks
Application/Usage: IT Equipment,Mission Critical Equipment,Government,Healthcare,Education,Military

Power Description

Load Capacity (VA): 750 VA
Load Capacity (Watt): 675 W
Input Voltage: 120 V AC
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 190 J
Input Power Factor: 0.99
Output Power Factor: 0.9

Display & Graphics

Display: LCD

Management

Network Management: SNMP
Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery

Controls/Indicators

Status Indicators: 4 status-indicating LEDs

Interfaces/Ports

Serial Port: Yes
USB: Yes

Battery Information

DC System Voltage: 36 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 7.90 Minute
Backup/Run Time (Half Load): 20.90 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 32°F (0°C) - 104°F (40°C)
Operating Humidity: 0% - 96%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission: 40 dB

Physical Characteristics

Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 12.50" (317.50 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 36.38 lb (16501.69 g)

Miscellaneous

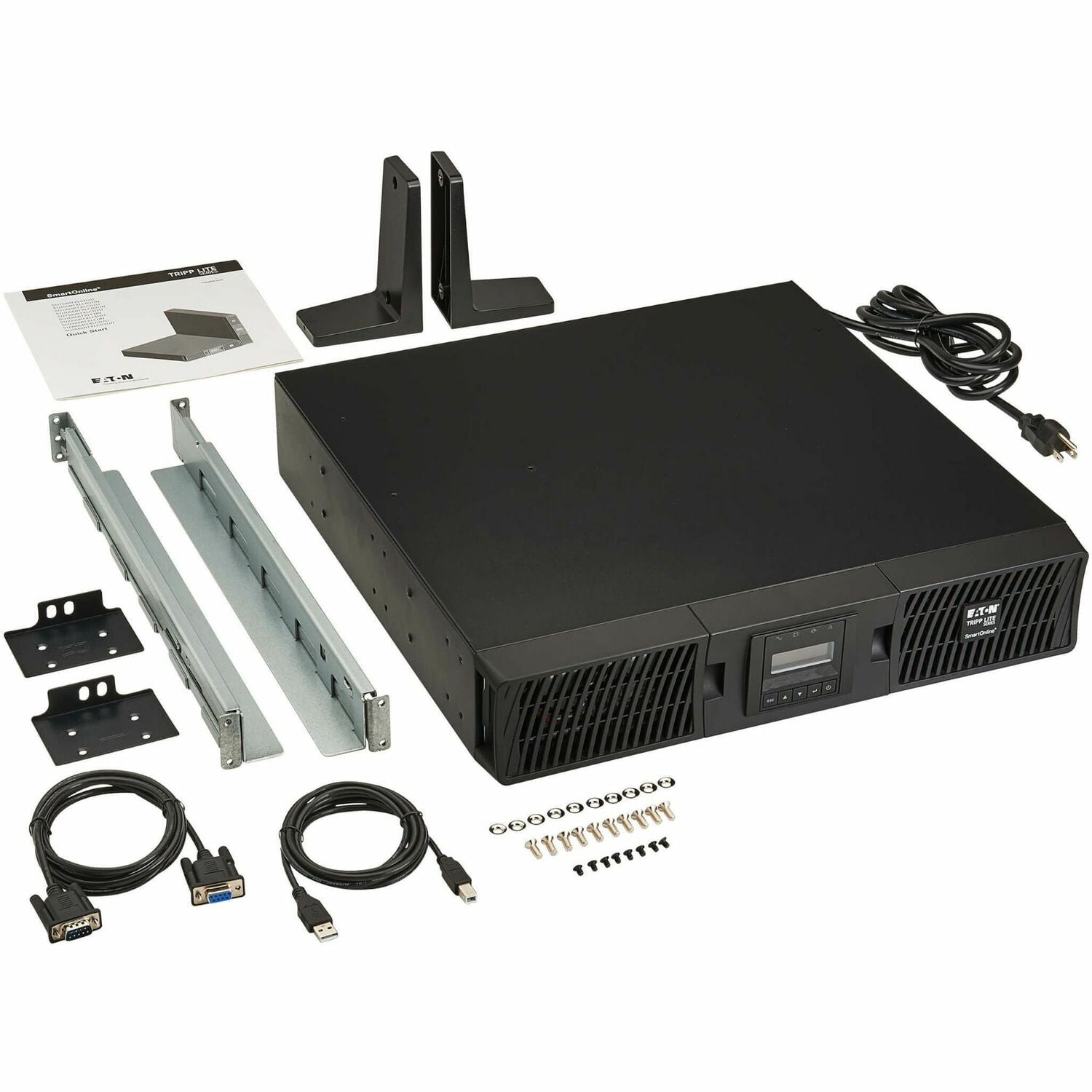

Package Contents:

SmartOnline SU750RTXLCD2U 750VA Rack/Tower UPS

USB cable

DB9 cable

Rack-mounting hardware

Tower support stands

Safety instructions

Quick start guide

Software Included: PowerAlert UPS Monitoring Software
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
Additional Warranty Information:

• Connected Equipment Insurance (U.S., Canada & Puerto Rico):
• 250,000 Ultimate Lifetime Insurance
