Description
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: SUINT1000LCD2U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: SmartOnline
Product Model: SUINT1000LCD2U

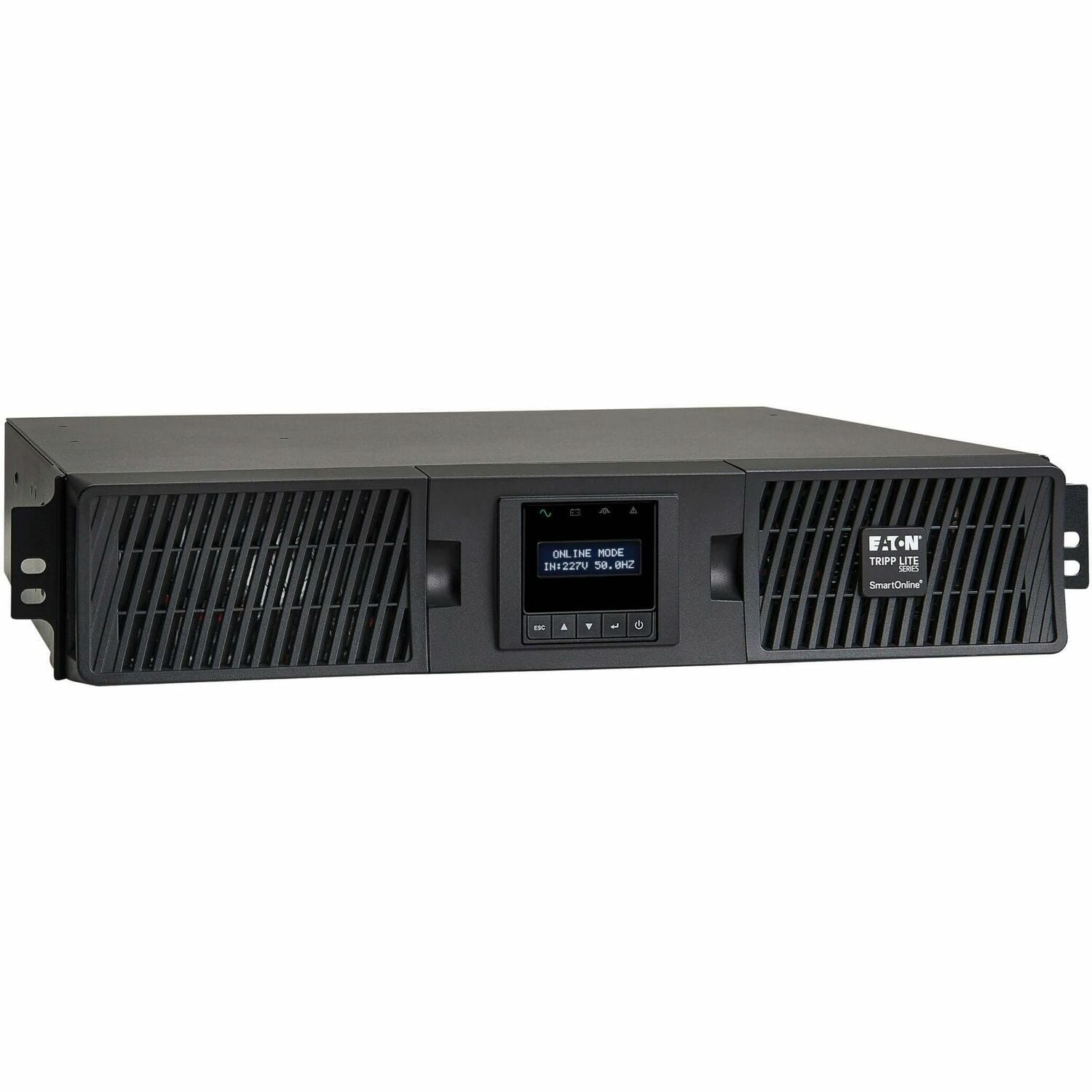

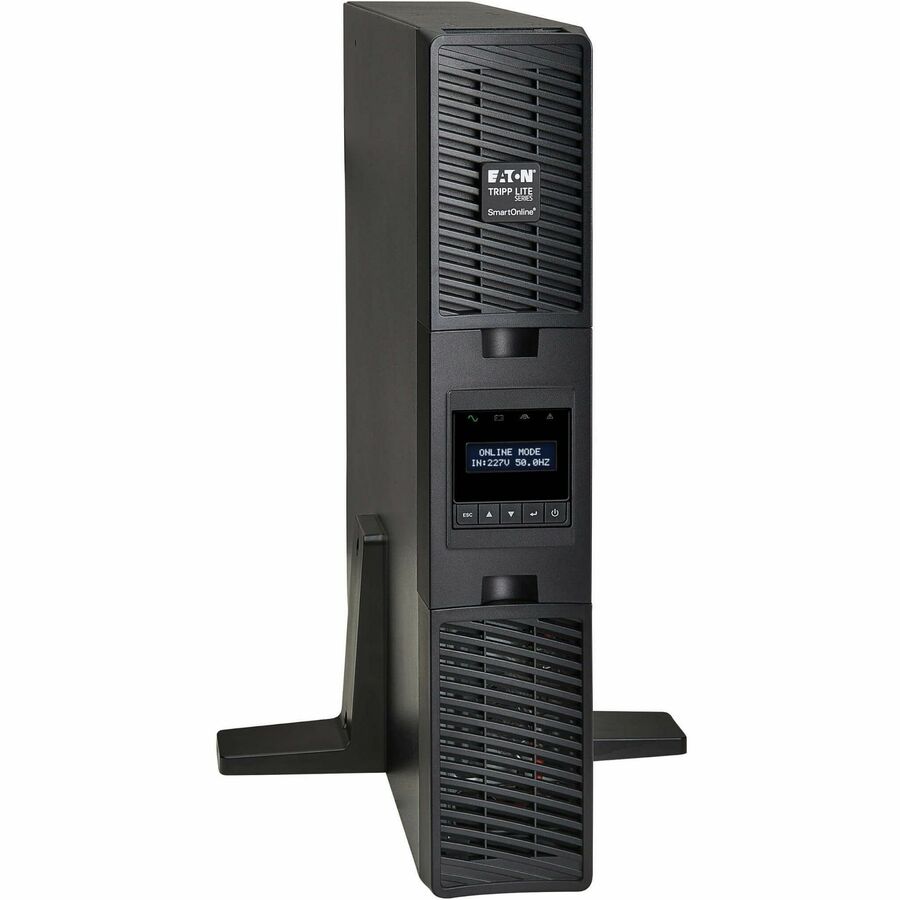

Product Name: SUINT1000LCD2U SmartOnline 1kVA 900W On-Line Double-Conversion UPS
Marketing Information:
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SUINT1000LCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connec
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 60320 C14Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Number of Load Management Outlets: 2
Cord Length: 6 ft (1.83 m)
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: High efficiency economy mode operation; Individually controllable load banks
Application/Usage: Mission Critical Equipment,Education,Healthcare,Military,Government
Power Description
Load Capacity (VA): 1 kVALoad Capacity (Watt): 900 W
Input Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
Input Current: 6 A
Output Voltage: 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC
Input Frequency: 40 Hz,70 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 296 J
Input Power Factor: 0.99
Output Power Factor: 0.9
Display & Graphics
Display: LCDManagement
Network Management: Contact Closure,RS-232,SNMP/WebAlarm: UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
Controls/Indicators
Status Indicators: 4 x Status-indicating LEDsInterfaces/Ports
USB: YesBattery Information
Battery Characteristics: Valve-regulatedBattery Chemistry: Lead Acid
Battery Size: 48V
Backup/Run Time (Full Load): 7.30 Minute
Backup/Run Time (Half Load): 17.90 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Storage Elevation: 10000 ft (3048000 mm)Storage Temperature: -13°F (-25°C) - 131°F (55°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 40 dB(A)
Thermal Dissipation: 438 BTU/h
Physical Characteristics
Height: 3.41" (86.61 mm)Width: 17.33" (440.18 mm)
Depth: 17.72" (450.09 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 36.38 lb (16501.69 g)
Miscellaneous
Package Contents:Energy Star: Yes
Country of Origin: Philippines
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 YearAdditional Warranty Information:
