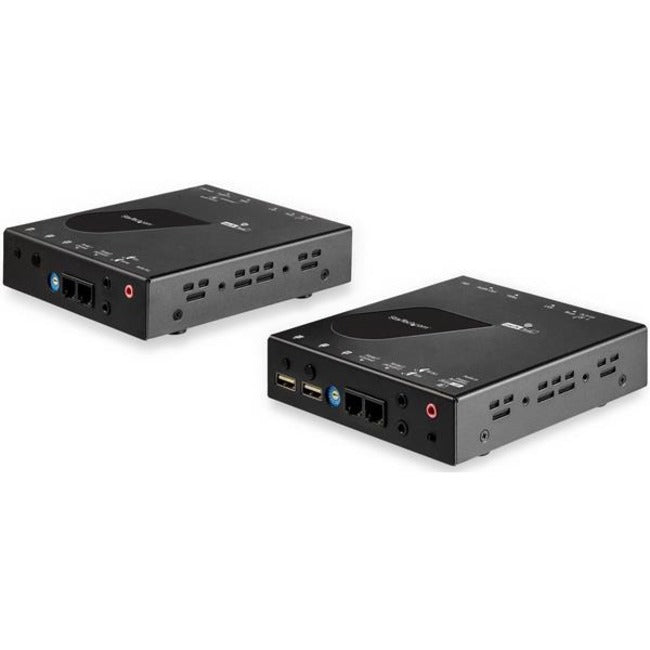

SV565HDIP StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: SV565HDIP
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: HDMI KVM Extender over LAN - 4K 30Hz
Marketing Information:

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.

Supports UHD 4K 30Hz

The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.

Hassle-Free Installation

With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.

The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for
Packaged Quantity: 1 Kit
Product Type: KVM Console/Extender

Technical Information

Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 330 ft (100584 mm)

Video

Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160

Interfaces/Ports

Network (RJ-45): Yes
USB: Yes
HDMI: Yes
Number of HDMI Ports: 2
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 5

Power Description

Input Voltage: 120 V AC,240 V AC
Input Voltage Range: 100V AC to 240V AC
Power Consumption: 18 W

Physical Characteristics

Color Family: Black
Product Color: Black
Form Factor: Desktop
Transmitter Height: 1.10" (27.94 mm)
Transmitter Width: 4.60" (116.84 mm)
Transmitter Depth: 5.10" (129.54 mm)
Receiver Height: 1.10" (27.94 mm)
Receiver Width: 4.60" (116.84 mm)
Receiver Depth: 5.10" (129.54 mm)
Transmitter Weight (Approximate): 1.34 lb (610 g)
Receiver Weight (Approximate): 1.34 lb (610 g)

Miscellaneous

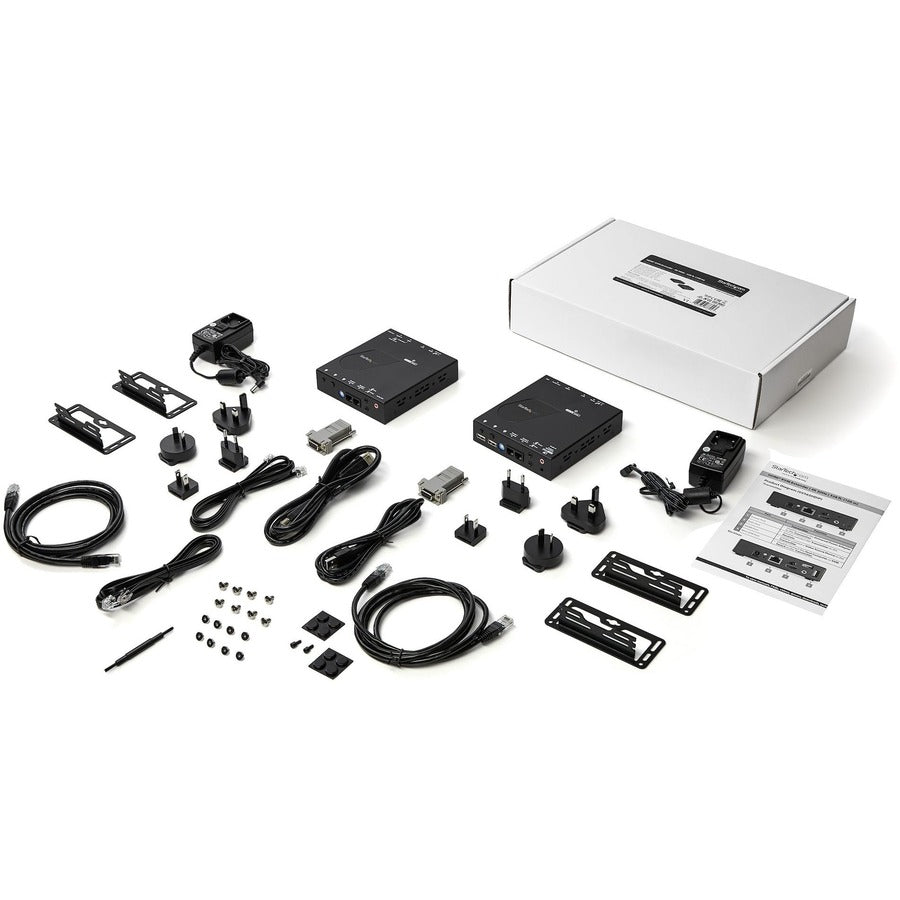

Package Contents:

• 1 x Transmitter Unit
• 1 x Receiver Unit
• 2 x Universal Power Adapters (NA, JP, EU, UK, AU/NZ)
• 2 x Mounting Kits
• 2 x Ethernet Cables
• 2 x DB9 Serial Adapters
• 2 x RJ11 Serial Cables
• 1 x HDMI Cable (1.2 m)
• 1 x USB Cable (1.5 m)
• 8 x Rubber Feet
• 1 x Plastic Screwdriver
• 1 x Quick-Start Guide

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
