StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: SV565UTPU
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: SV565UTPU
Product Name: USB VGA KVM Console Extender over CAT5 UTP - 500 ft
Marketing Information:

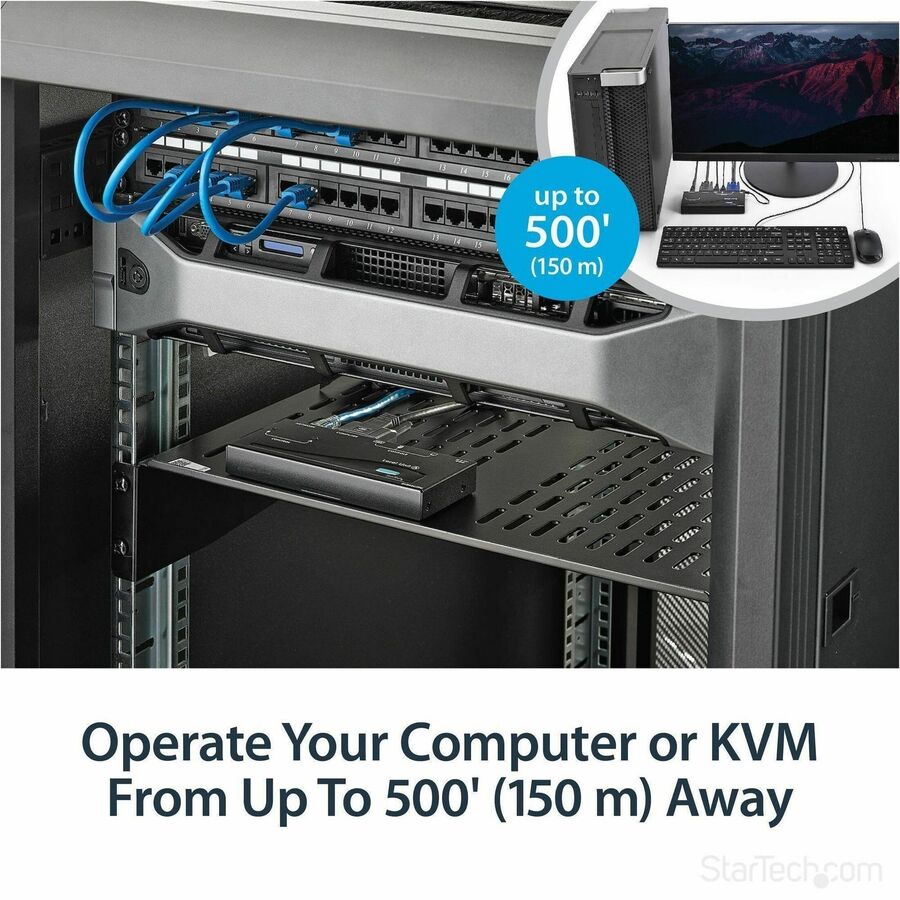

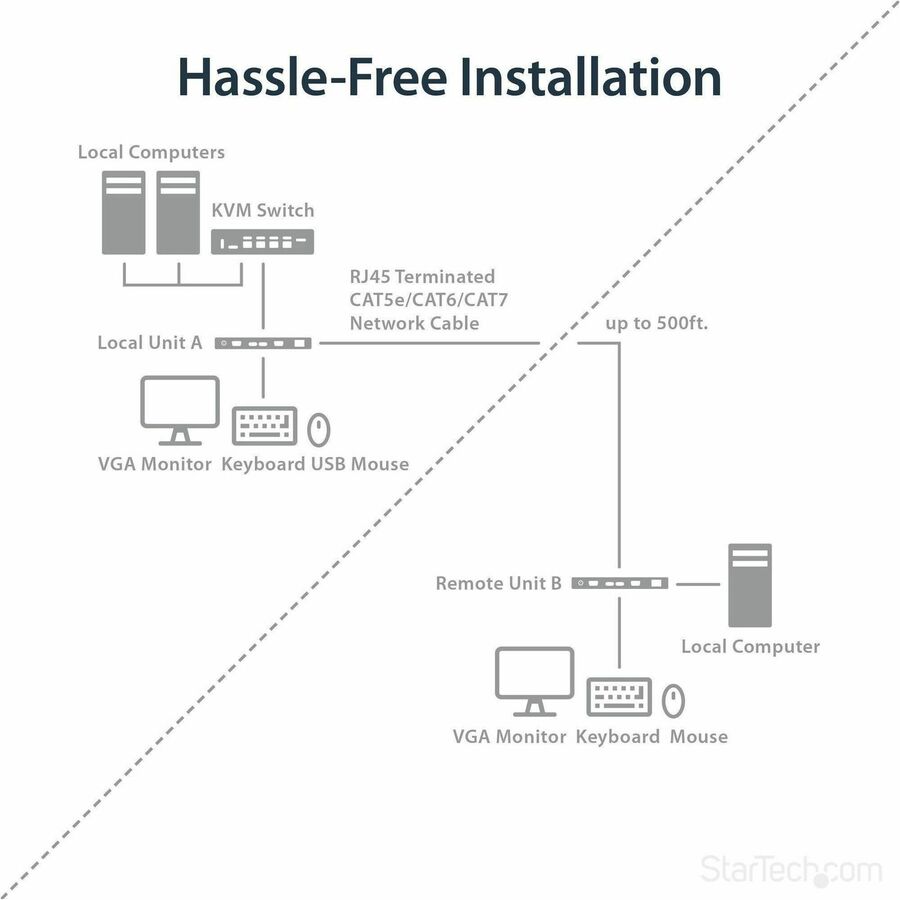

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity: 1 Kit
Product Type: KVM Console/Extender

Technical Information

Connectivity Technology: Wired
KVM Technology: Analog
Number of Computers Supported: 2
Number of Local Users Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 500 ft (152400 mm)

Video

Graphic Mode: XGA
Maximum Video Resolution: 1024 x 768

Interfaces/Ports

Network (RJ-45): Yes
USB: Yes
VGA: Yes
Number of VGA Ports: 4
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 4

Power Description

Input Voltage: 120 V AC,240 V AC
Input Voltage Range: 110 VCA a 240 VCA
Power Consumption: 5.40 W

Physical Characteristics

Color Family: Black
Product Color: Black
Form Factor: Desktop
Transmitter Height: 0.80" (20.32 mm)
Transmitter Width: 6.10" (154.94 mm)
Receiver Height: 0.80" (20.32 mm)
Receiver Width: 6.10" (154.94 mm)
Transmitter Weight (Approximate): 1.32 lb (600 g)
Receiver Weight (Approximate): 1.32 lb (600 g)

Miscellaneous

Package Contents:

USB VGA KVM Console/Extender

2 x 6 ft 2-in-1 USB VGA KVM Cables

8 x Rubber Feet

1 x Power Adapter

1 x Instuction Manual

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
Additional Warranty Information: This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
