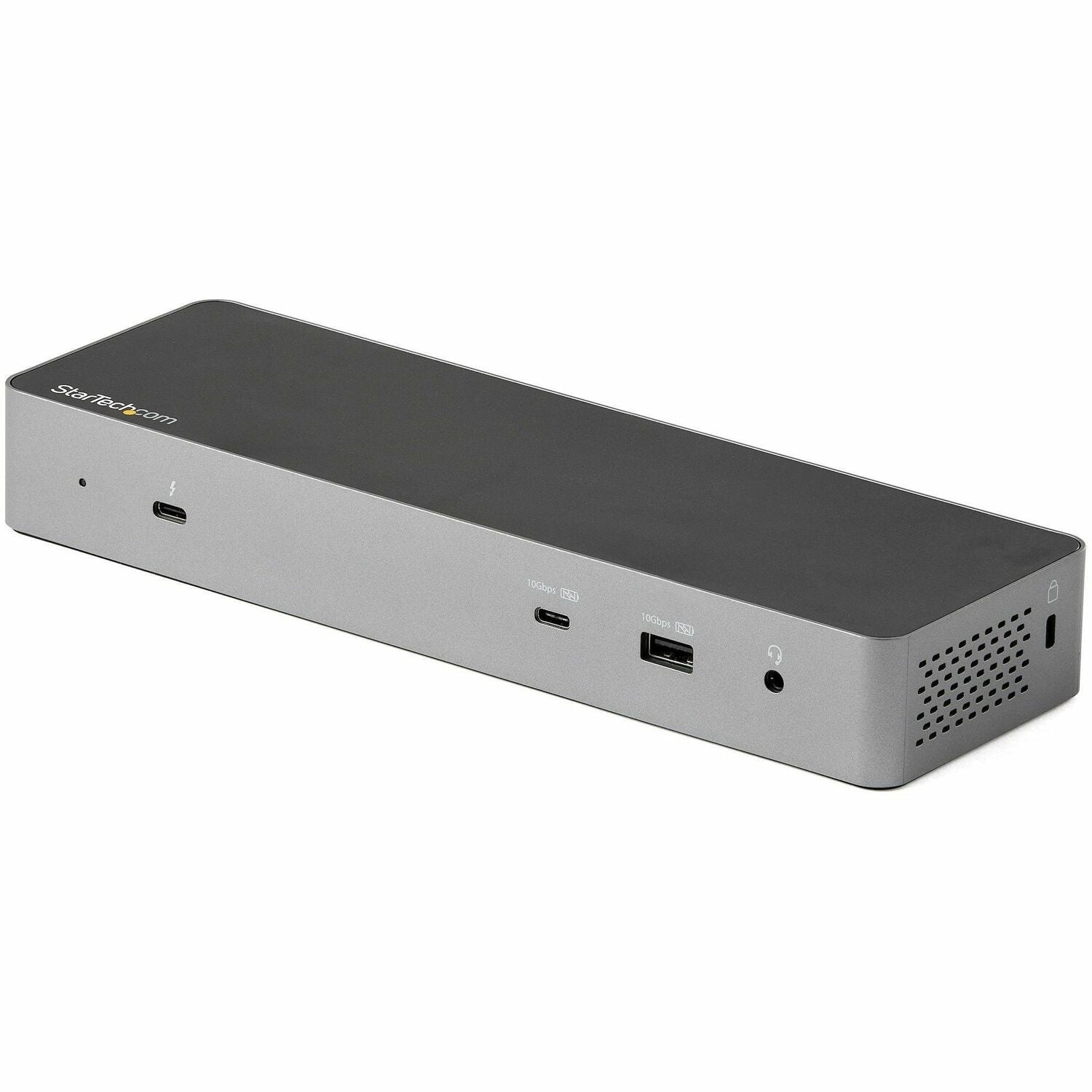

TB3CDK2DH StarTech.com USB C Docking Station for MacBook Pro/Air-M1/M2/M3/M4 (Thunderbolt Compatible) - Dual HDMI/DisplayPort, 96W Power Delivery

General Information

A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, Gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.

Flexible Dual Display Outputs

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:

• DisplayPort + DisplayPort
• HDMI + HDMI
• DisplayPort + HDMI

Resolutions and video outputs are host-dependent.

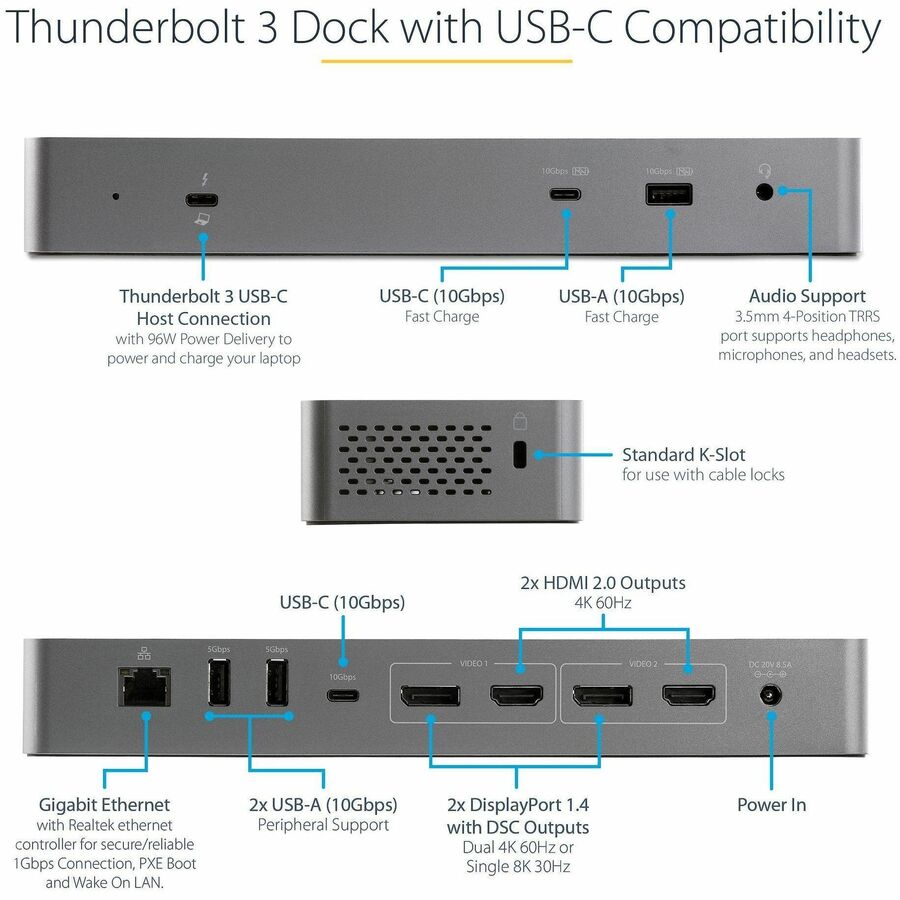

More Downstream USB Ports

Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

Front Facing:

• 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
• 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

Packaged Quantity: 1 Each
Product Type: Docking Station


Technical Information

Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 2

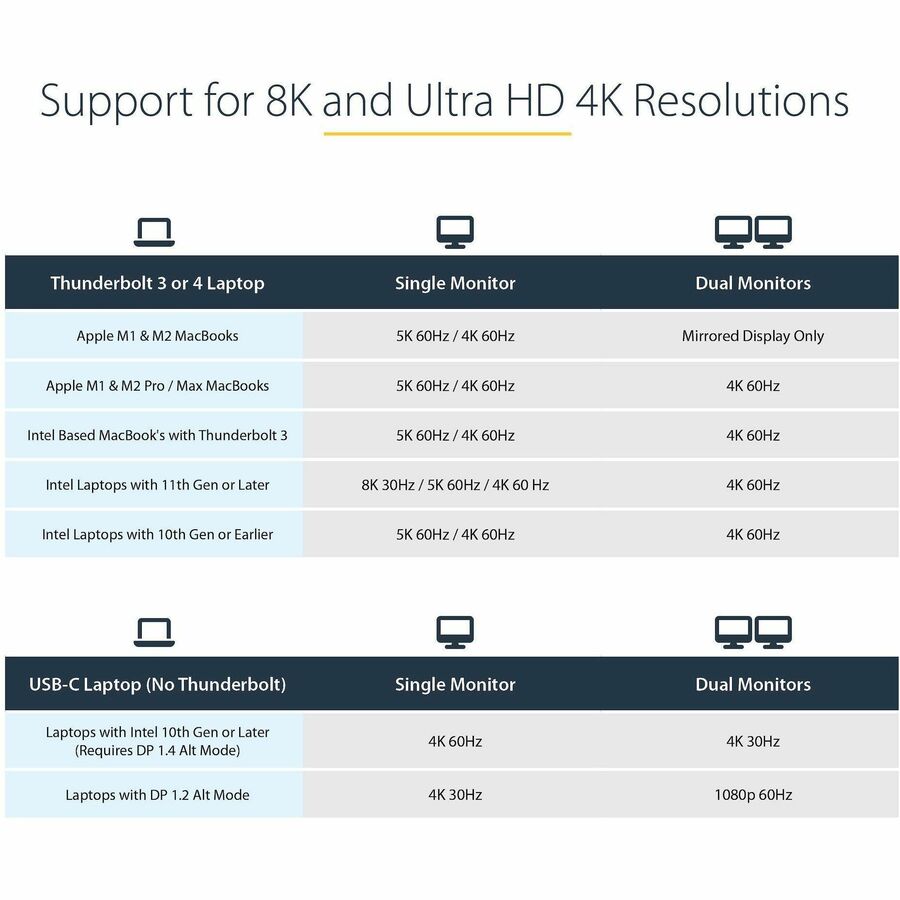

Supported Resolutions: 7680 x 4320,3840 x 2160
Screen Mode Supported: 4K @ 60Hz,8K @ 30Hz
Management Features: MAC Address Pass-through
Device Supported: Monitor,Notebook,Workstation


Network & Communication

Ethernet Technology: Gigabit Ethernet


Interfaces/Ports

Host Interface: Thunderbolt
Audio Line Out: Yes
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
Number of USB Type-C Ports: 2
USB Type-C: No
USB Type-C Detail: 2 x USB-C (USB 3.1 Gen 2)
Number of USB Type-A Ports: 3
USB Type-A: Yes
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Number of HDMI Ports: 2
HDMI: Yes
Thunderbolt: No
USB Power Delivery: 96W


Software

Operating System Supported: macOS 14,Windows 8,Windows 10,Windows 11,Mac OS X 13.0 Ventura,Mac OS X 12.0 Monterey,Mac OS X 11.0 Big Sur,Mac OS X 10.15 Catalina,Mac OS X 10.14 Mojave,Ubuntu 18.04,Ubuntu 20.04


Power Description

Maximum Power Supply Wattage: 96 W


Physical Characteristics

Product Color: Black,Space Gray
Height: 1.20" (30.48 mm)
Width: 8.70" (220.98 mm)
Weight (Approximate): 8.80 oz (249.48 g)


Miscellaneous

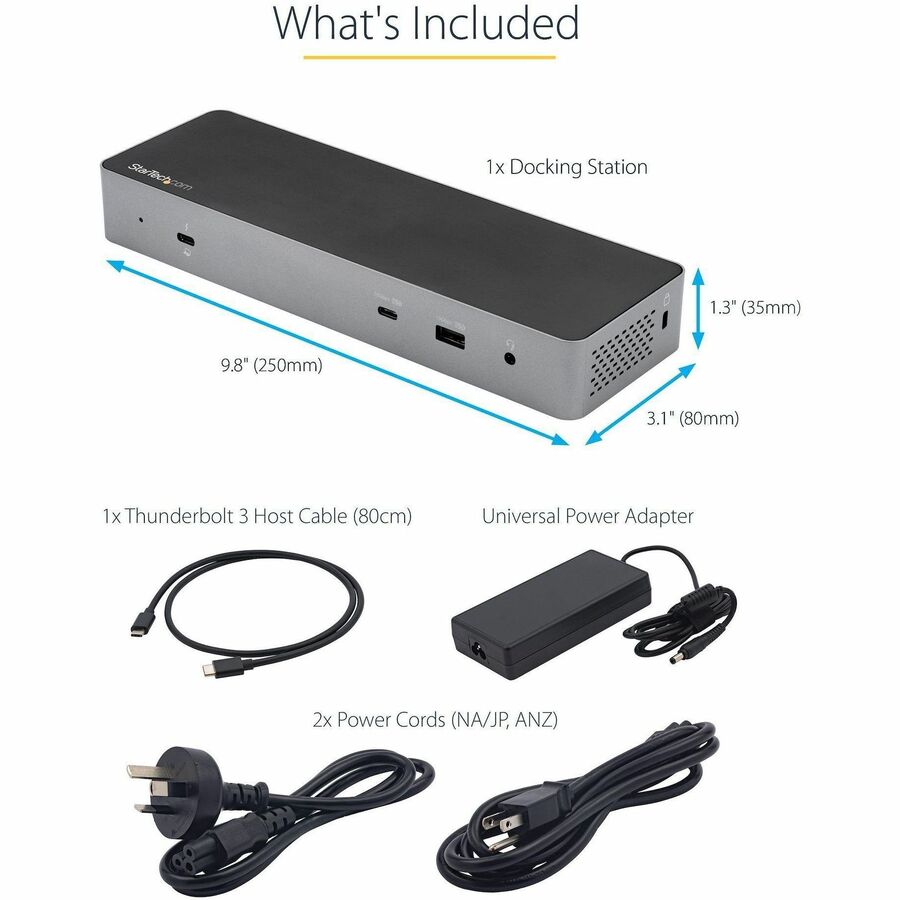

Package Contents:
• Docking Station
• Universal Power Adapter
• Power Cords (NA/JP, ANZ)
• Thunderbolt 3 Host Cable (80 cm)
• User Manual

Kensington Security Slot: Yes
Compatibility:
• Supports Thunderbolt or USB4 laptops
• Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks
• Single display on base M-series MacBooks and iPad Pro M1 & later

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Malaysia


Warranty

Limited Warranty: 3 Year
