TB3DK2DHV StarTech.com Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery, TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: TB3DK2DHV
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Thunderbolt 3 Dock - Mac & Windows - Dual 4K60Hz - 85W Power Delivery
Marketing Information:

Create a powerful and flexible workstation with this Thunderbolt™ 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows® laptop to two 4K monitors, through a single Thunderbolt 3 cable.

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

Speed & Flexibility with 3 Monitor Options

Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.

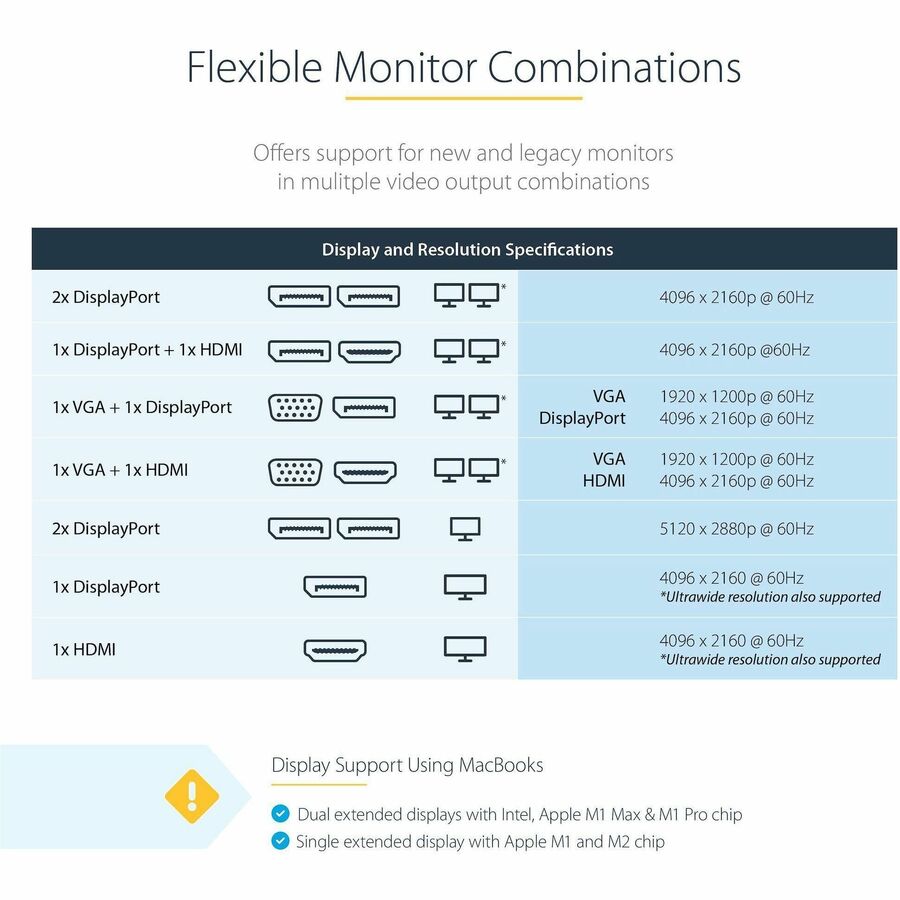

The dock offers many dedicated dual-video options:

2x DisplayPort (4096 x 2160p @ 60Hz)

1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 216
Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 4096 x 2160,1920 x 1200
Screen Mode Supported: 4K
Device Supported: Desktop PC,Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

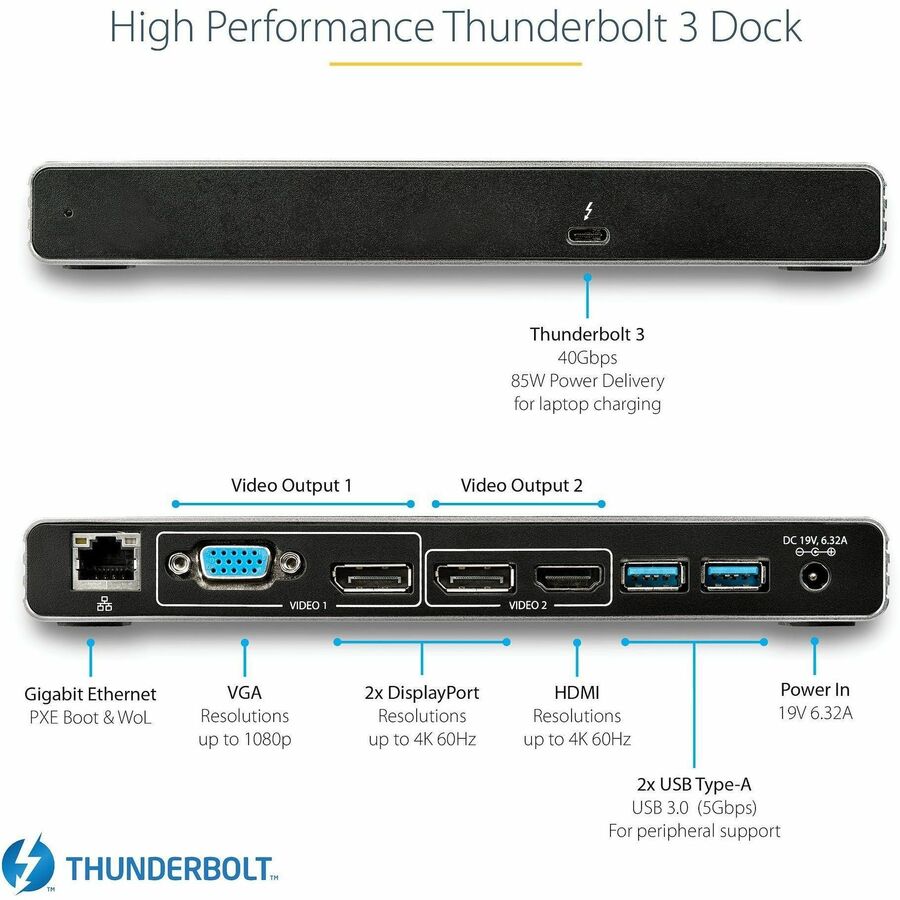

Interfaces/Ports

Host Interface: Thunderbolt 3
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
USB Type-C: Yes
USB Type-C Detail: 1 x Thunderboltâ"� 3 USB-C (24-pin) (40Gbps) Female
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
VGA: Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Thunderbolt: Yes

Software

Operating System Supported: Windows 8,Windows 7,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.12 Sierra

Power Description

Maximum Power Supply Wattage: 85 W

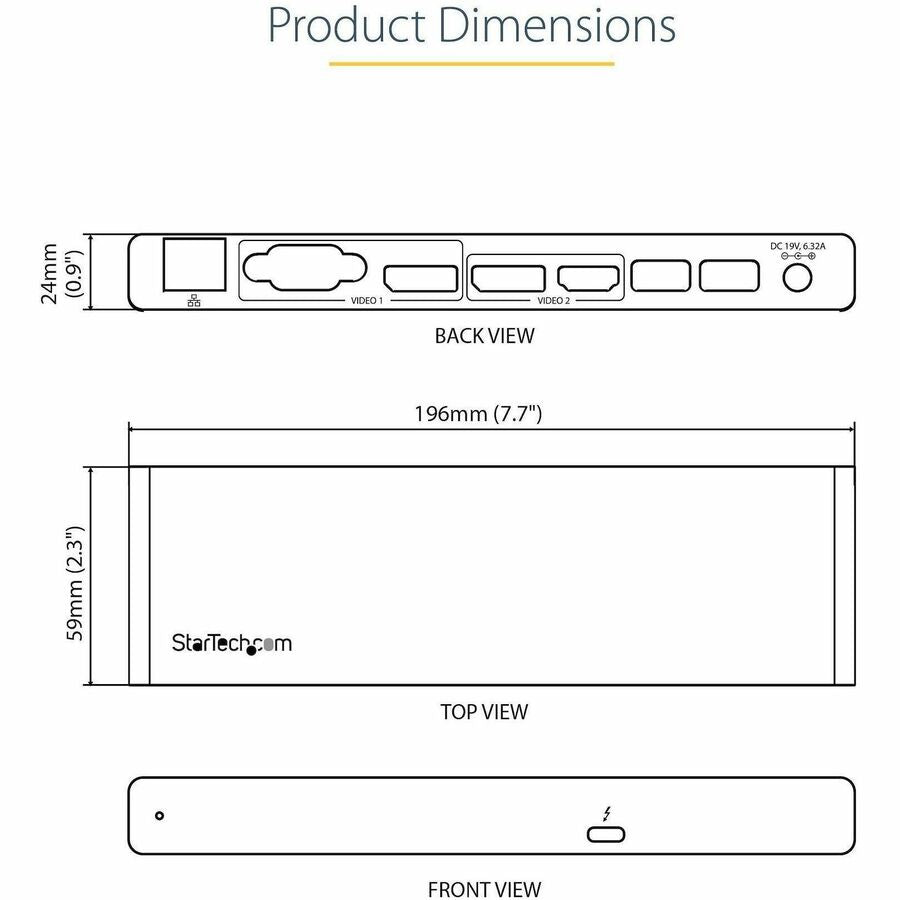

Physical Characteristics

Product Color: Gray
Height: 0.90" (22.86 mm)
Width: 2.30" (58.42 mm)
Weight (Approximate): 11.99 oz (340 g)

Miscellaneous

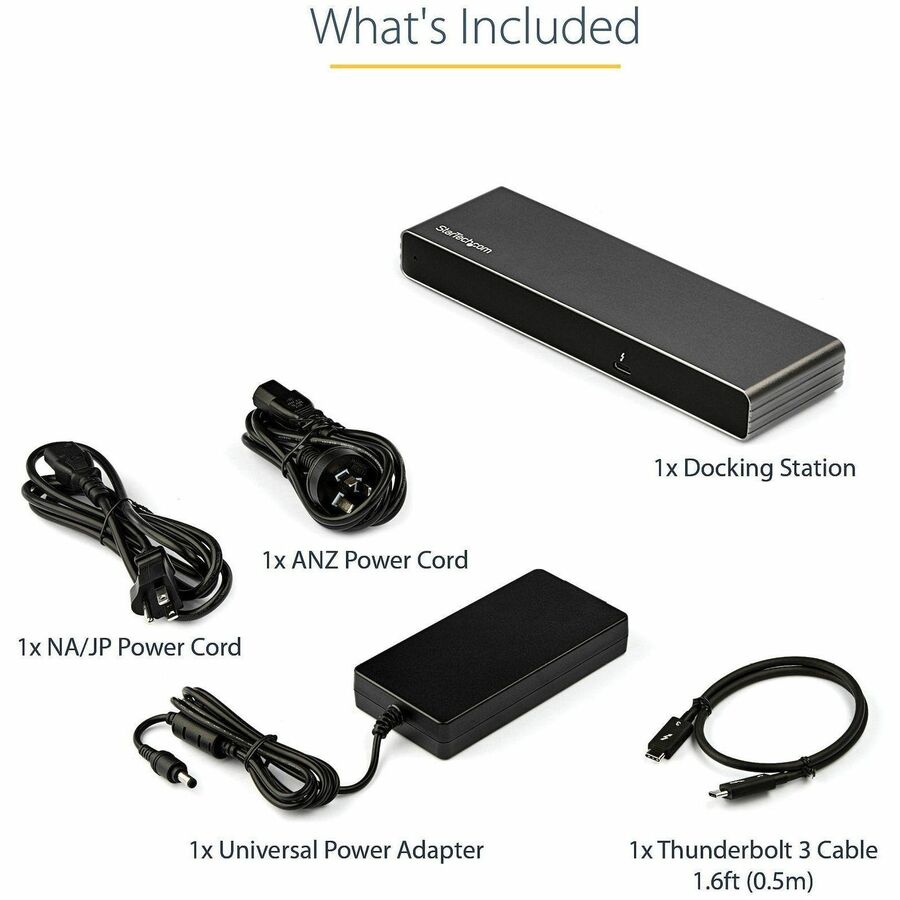

Package Contents:

• Thunderbolt 3 Dock - Mac & Windows - Dual 4K60Hz - 85W Power Delivery
• Thunderbolt 3 Cable 1.6 ft [0.5 m]
• Universal Power Adapter
• Power Cords (NA/JP, ANZ)
• Instruction Manual

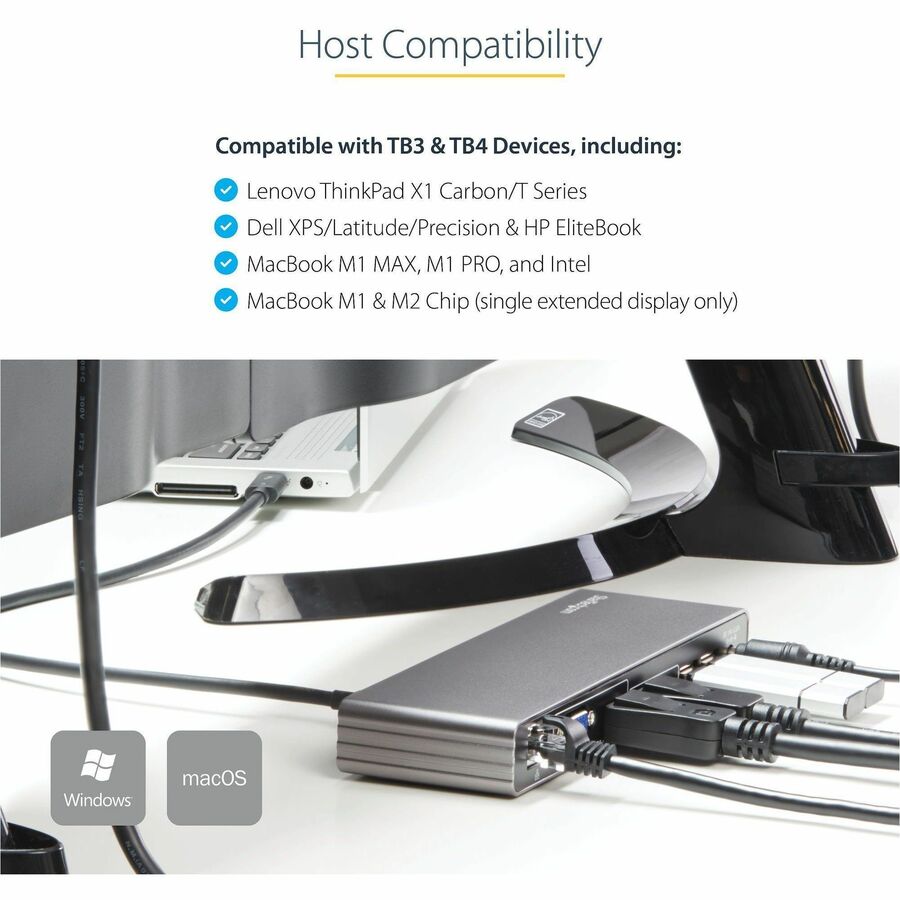

Compatibility:

• Apple MacBook Pro
• Apple MacBook 13
• Apple MacBook 16
• Apple MacBook Air
• Lenovo ThinkPad X1 Carbon
• Lenovo T Series
• Dell XPS
• Dell Latitude
• Dell Precision
• HP EliteBook

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China

Warranty

Limited Warranty: 3 Year
