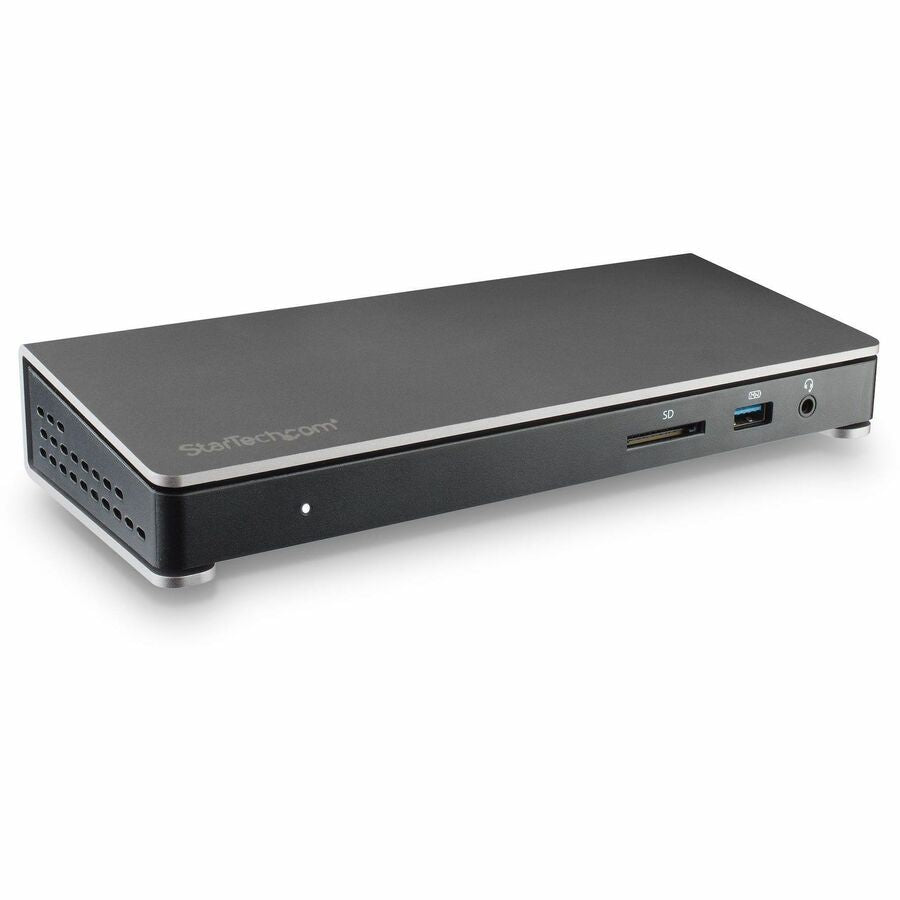

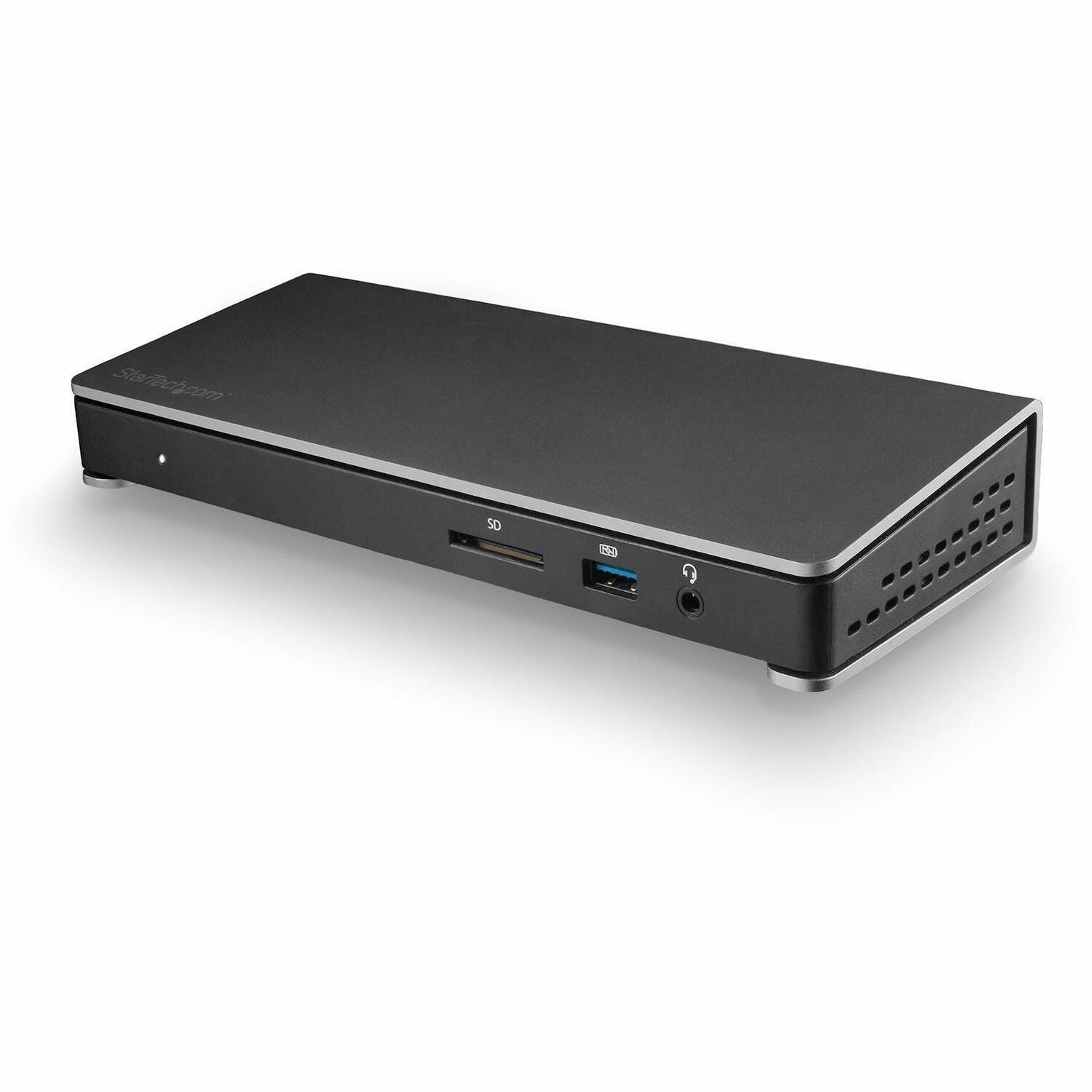

TB3DOCK2DPPD StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Docking Station with DisplayPort - 85W Power Delivery, 6-Port USB 3.0, SD, GbE

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: TB3DOCK2DPPD
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Dual 4K 60Hz Monitor Thunderbolt 3 Dock with 6x USB 3.0 Ports
Marketing Information:

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

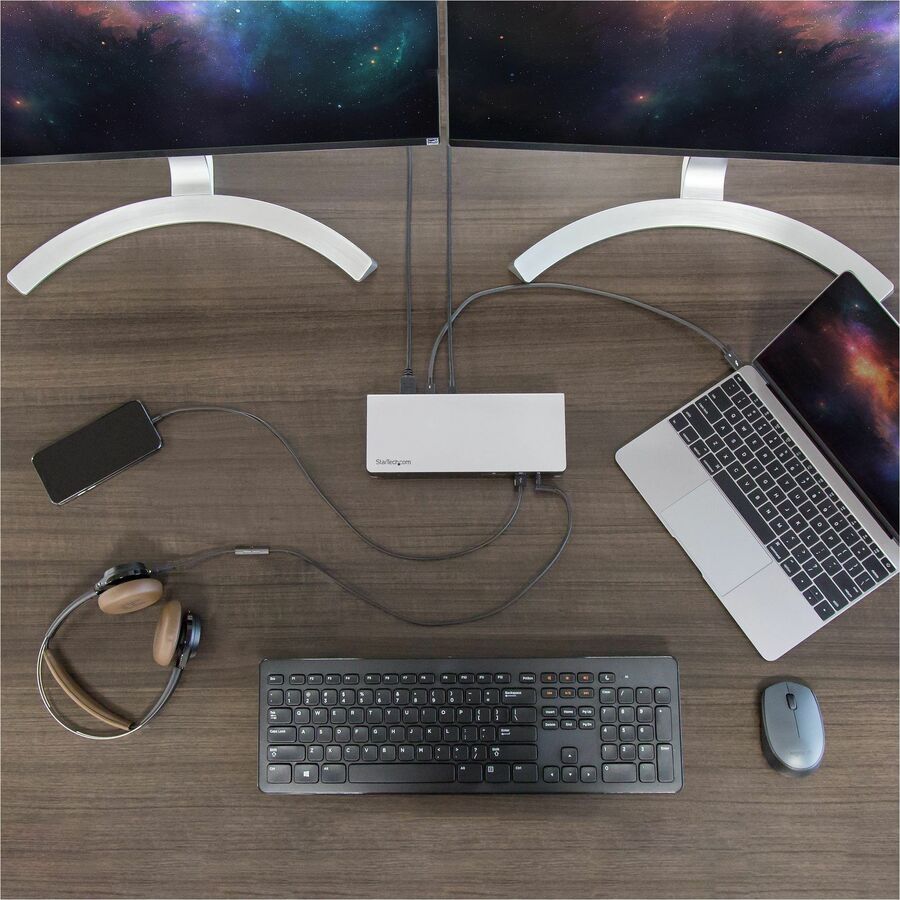

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

• 1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver ins
Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 4096 x 2160,3840 x 2160
Screen Mode Supported: 4K

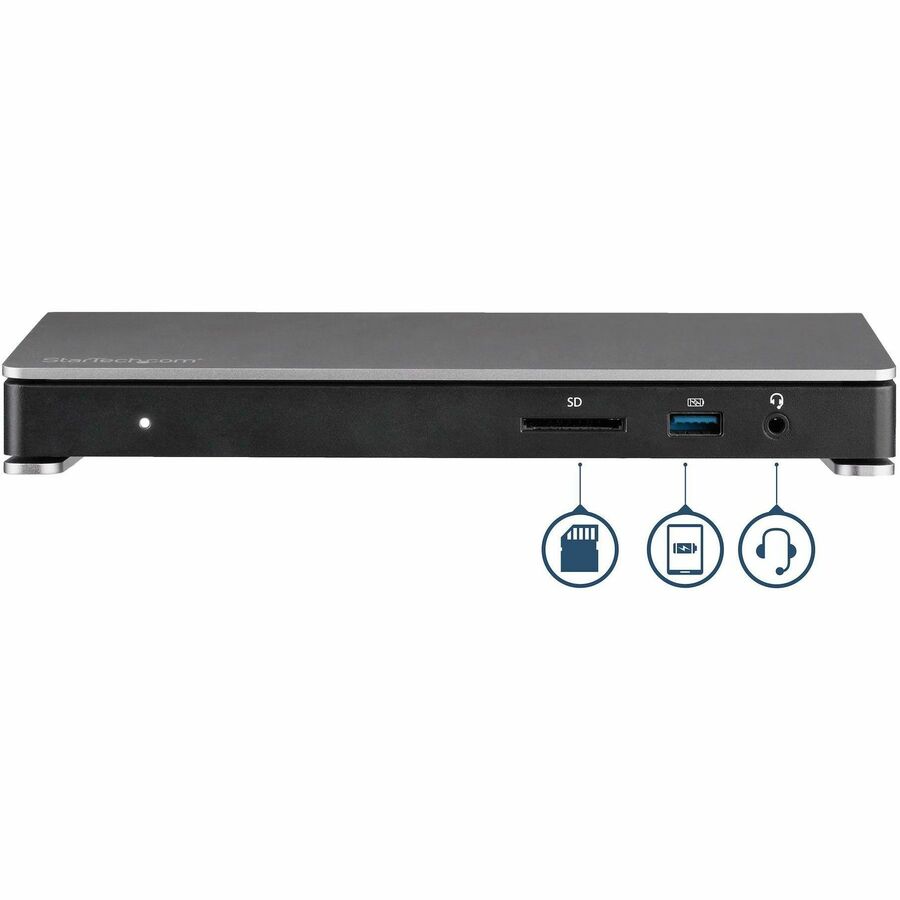

Memory Card Reader: Yes
Memory Card Supported: SD,MultiMediaCard (MMC),SDHC,SDXC,microSD,microSDXC,microSDHC
Device Supported: Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

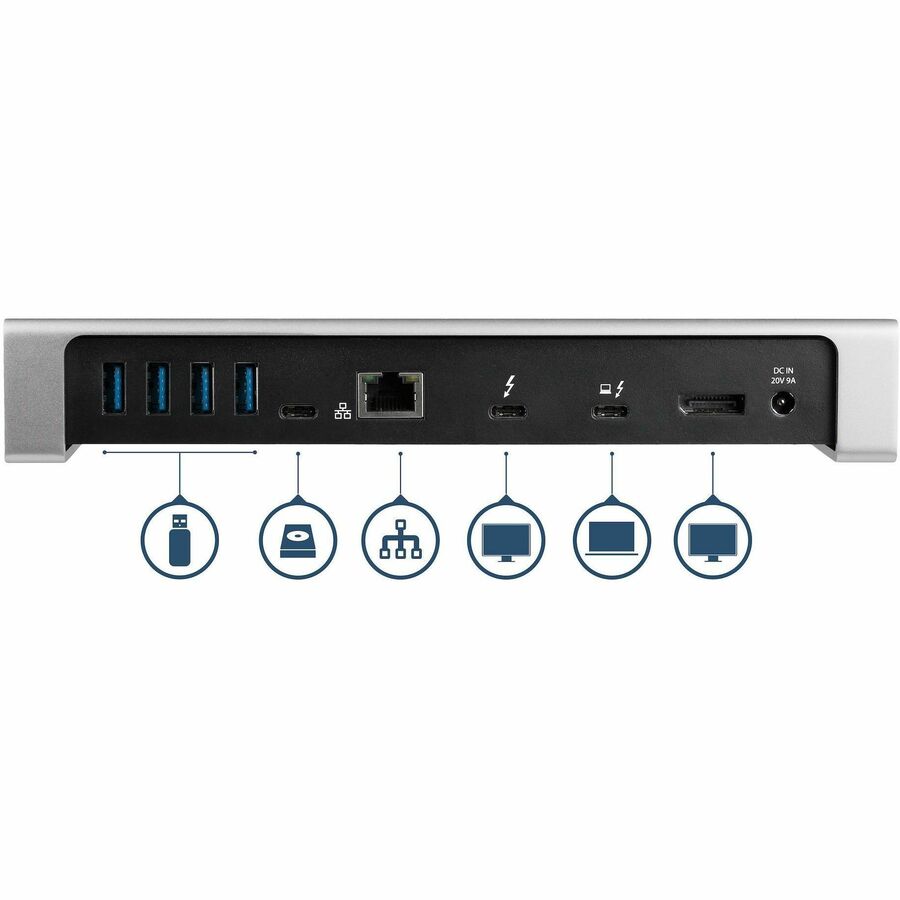

Interfaces/Ports

Host Interface: Thunderbolt 3
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 2
Number of USB 3.1 Gen 1 Type-A Ports: 4
USB Type-C: Yes
USB Type-C Detail: 1 x USB Type-C (24 pin) USB 3.0 (5Gbps), 2 x Thunderboltâ"� 3 USB-C (24-pin) (40Gbps)
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPort Outputs: 1
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
Thunderbolt: Yes

Software

Operating System Supported: Windows 8.1,Windows 8,Windows 10,Windows 11,Mac OS X 10.12 Sierra

Power Description

Maximum Power Supply Wattage: 85 W

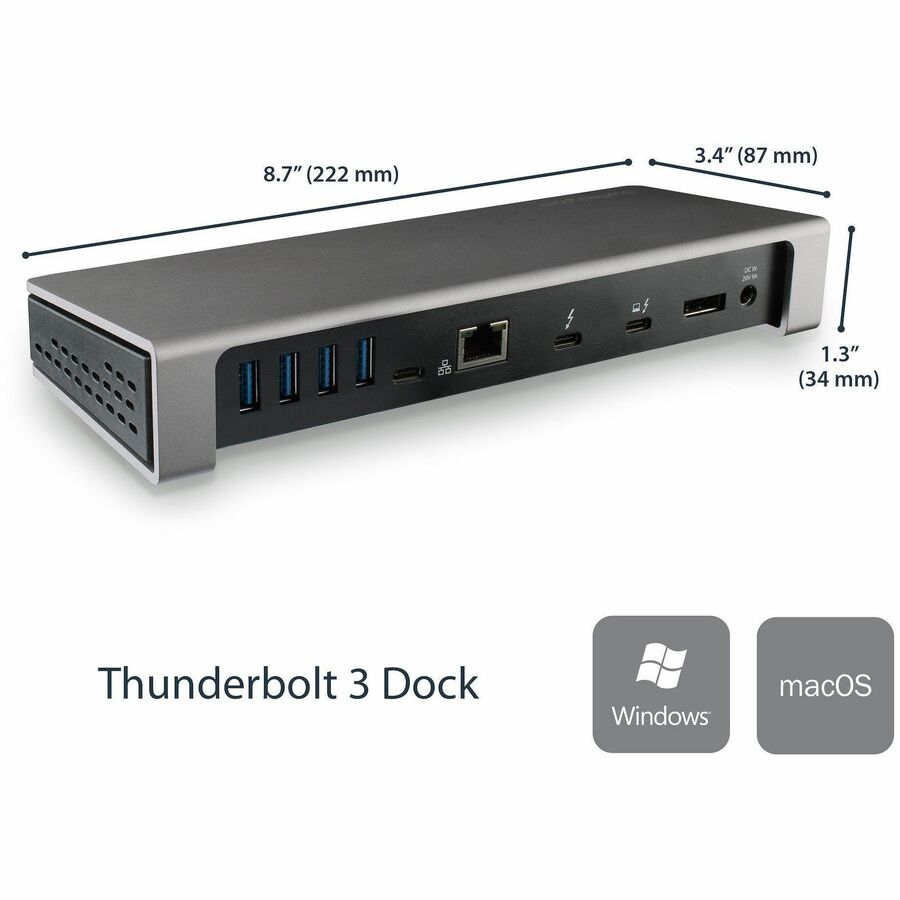

Physical Characteristics

Product Color: Space Gray
Height: 1.34" (34 mm)
Width: 3.43" (87 mm)
Weight (Approximate): 1.08 lb (492 g)

Miscellaneous

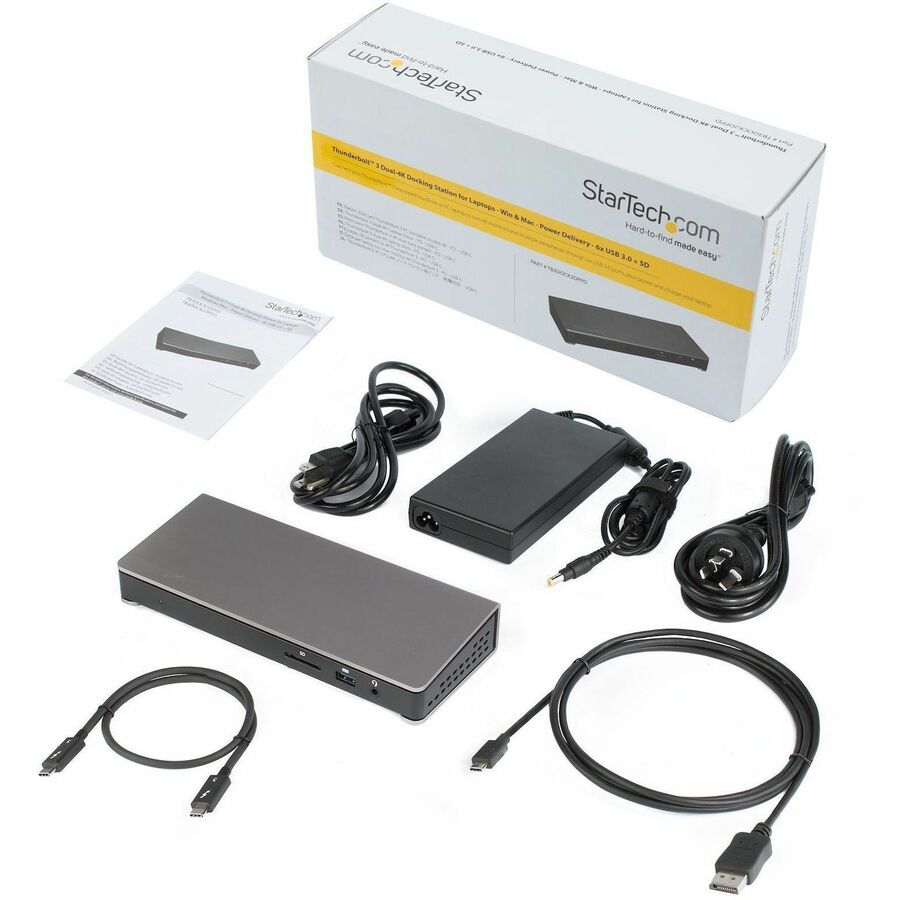

Package Contents:

• Thunderbolt 3 Dock with SD Card Reader - Dual-4K - 85W USB Power Delivery
• Thunderbolt 3 Cable
• USB-C to DisplayPort Cable
• Universal Power Adapter
• Power Cords (NA/JP, ANZ)
• Instruction Manual

Compatibility:

• Apple MacBook Pro (15 & 16)
• Apple MacBook Air
• HP Notebooks
• Lenovo ThinkPad Notebooks
• Dell XPS Notebooks

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China

Warranty

Limited Warranty: 3 Year
