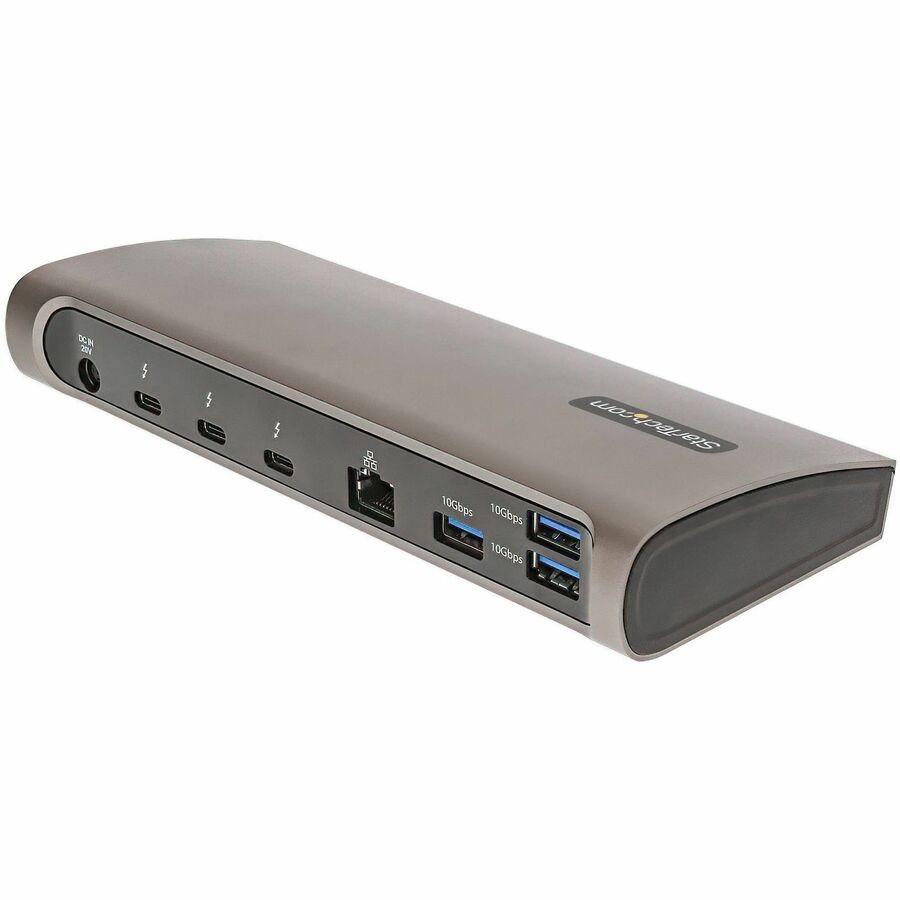

TB4CDOCK StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K / Dual Monitor 4K 60Hz, 3x TB4/USB4 ports, 4x USB-A, SD, GbE, 0.8m cable

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: TB4CDOCK
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Docking Station
Marketing Information:

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

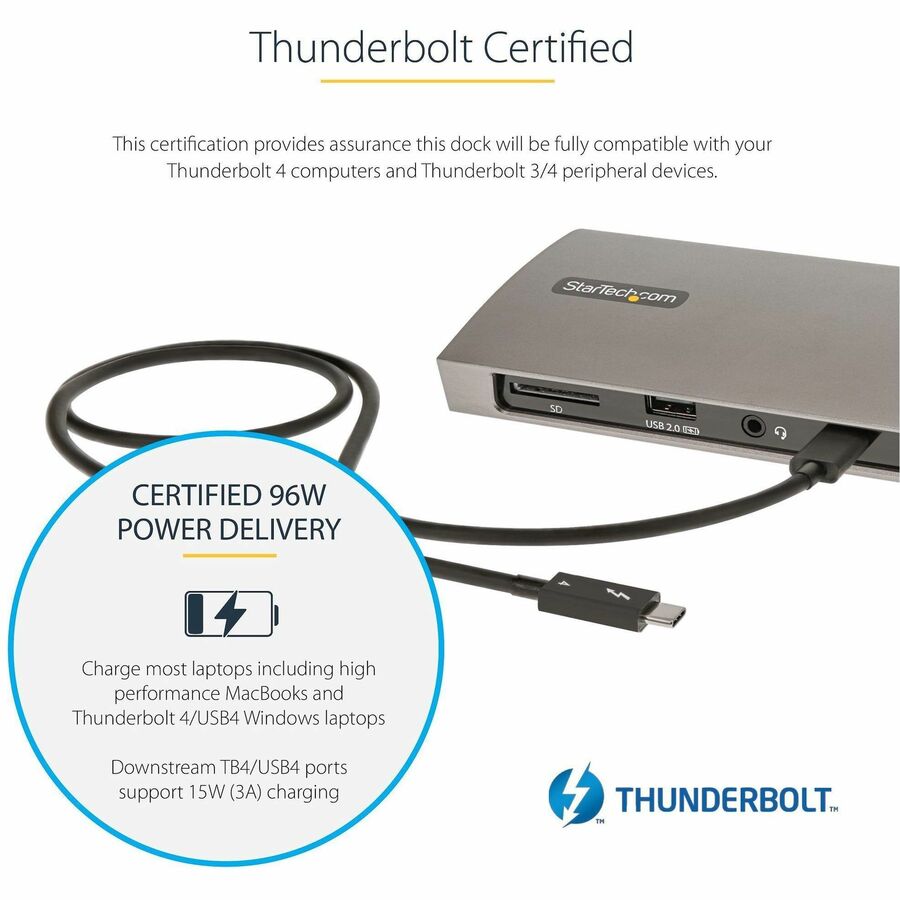

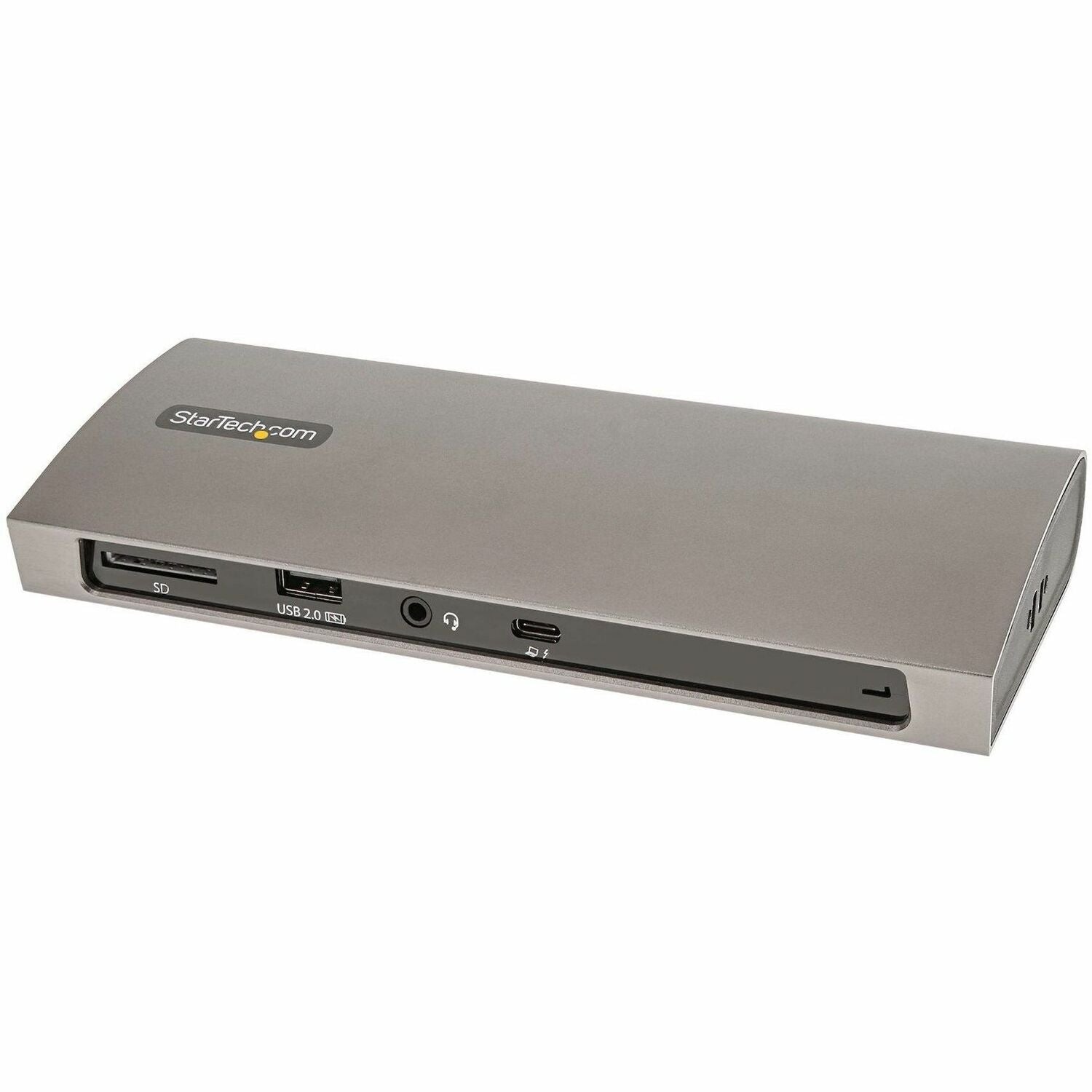

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.

High-Performance Port Connectivity

The docking station utilizes the high throughput available to your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports.

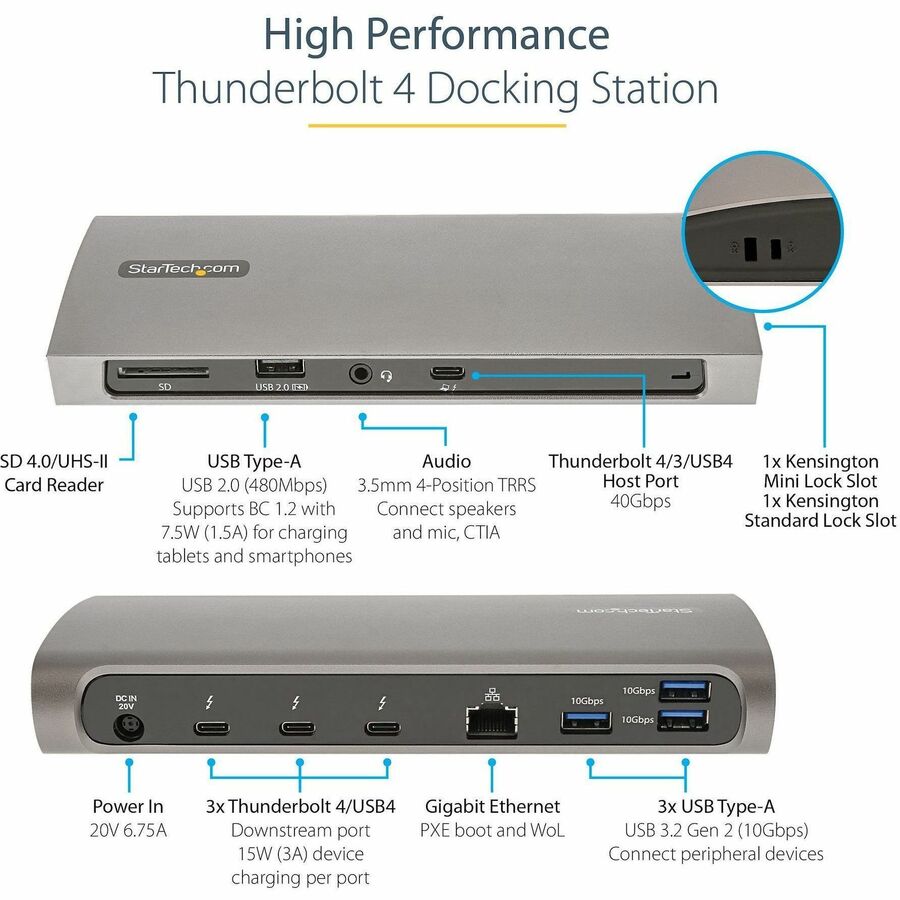

The dock features:

• 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port.

Product Type: Docking Station

Technical Information

Connectivity Technology: Wired

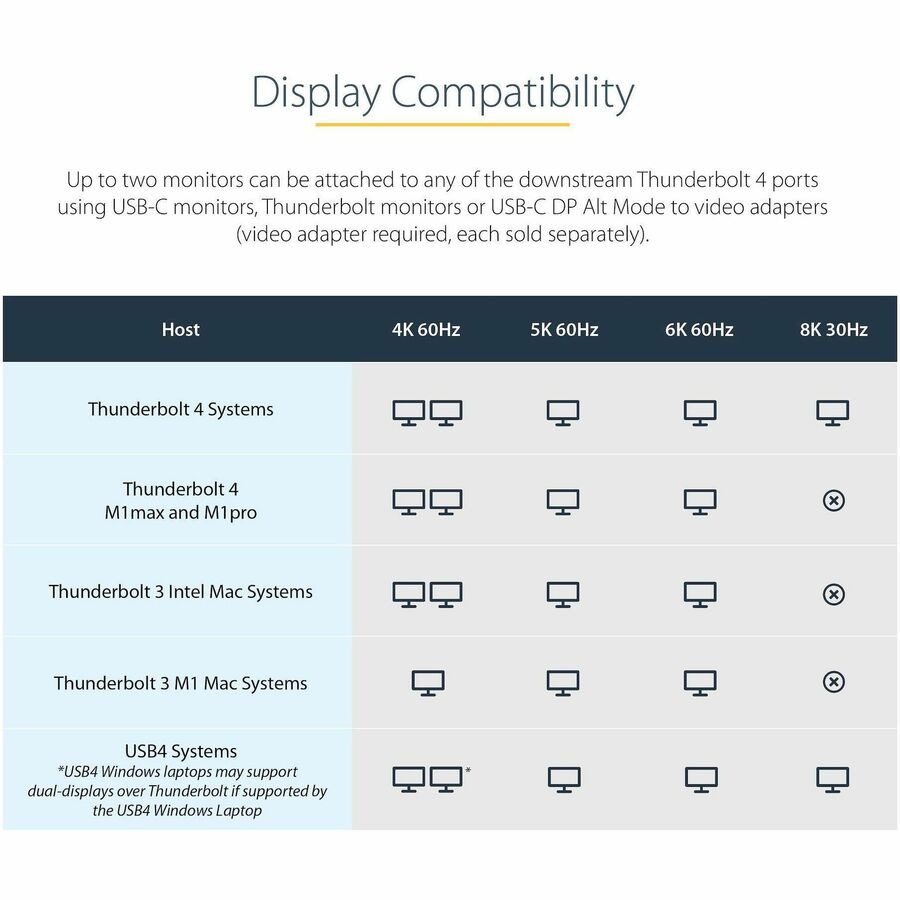

Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160,5120 x 2880,7680 x 4320
Screen Mode Supported: 8K
Memory Card Reader: Yes
Memory Card Supported: SD,MultiMediaCard (MMC),SDHC,SDXC,microSD,microSDHC,microSDXC
Device Supported: Tablet PC,Monitor,Notebook,Desktop PC,Smartphone

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Host Interface: Thunderbolt
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 3
USB Type-C: No
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
DisplayPort: No
Headphone/Microphone Combo Port: Yes
HDMI: No
Thunderbolt: Yes

Software

Operating System Supported: macOS 14,Windows 10,Windows 11,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura

Power Description

Maximum Power Supply Wattage: 100 W

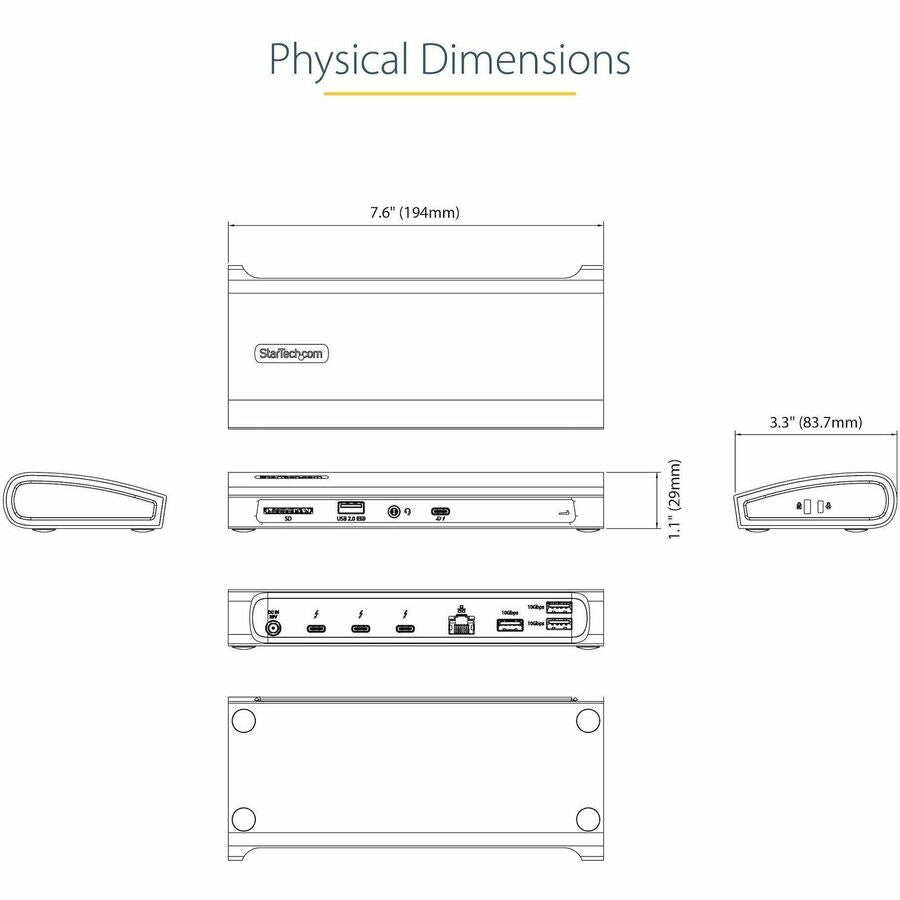

Physical Characteristics

Product Color: Black,Gray
Height: 1.10" (27.94 mm)
Width: 7.60" (193.04 mm)
Weight (Approximate): 2.21 lb (1000.74 g)

Miscellaneous

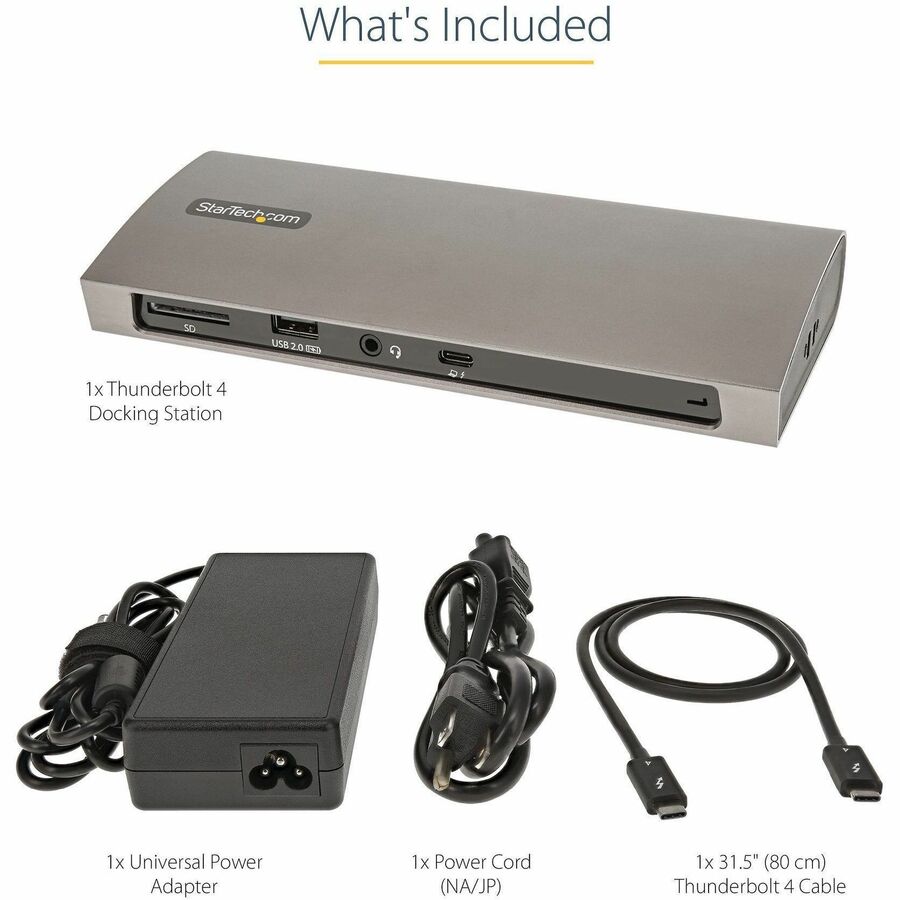

Package Contents:

• Docking Station
• Thunderbolt 4 Cable
• Universal Power Adapter (NA/JP)
• Quick-Start Guide

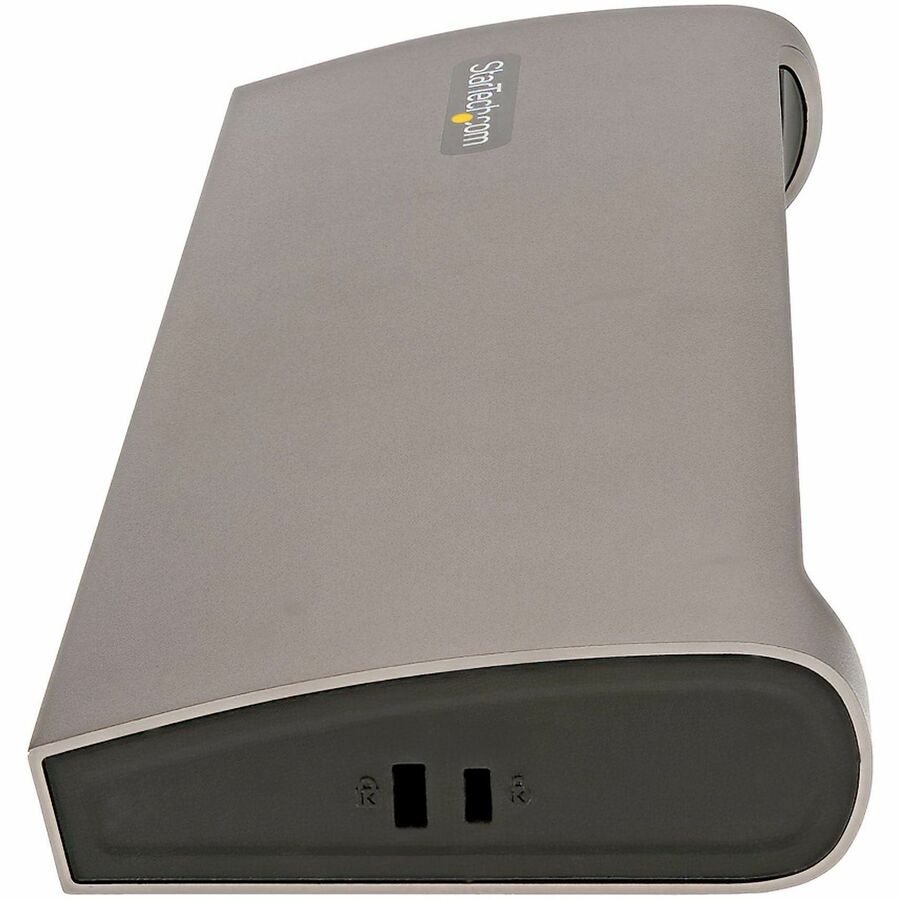

Kensington Security Slot: Yes

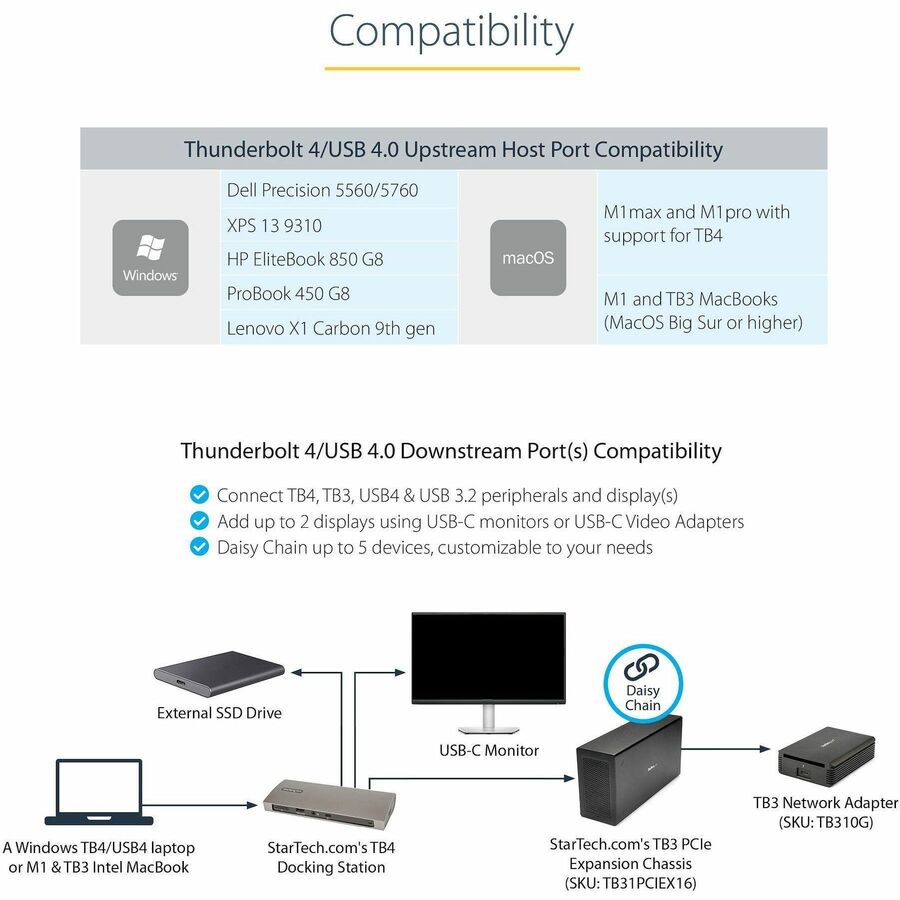

Compatibility:

• Intel Evo Tiger Lake (11th gen)
• Lenovo X1 Carbon 9th Gen
• Apple M1 & TB3 MacBooks (11.0 & up)

Dell Notebooks:

• Precision 5560
• Precision 5760
• XPS 13 9310

HP Notebooks:

• EliteBook 850 G8
• ProBook 450 G8

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Thailand

Warranty

Limited Warranty: 3 Year
