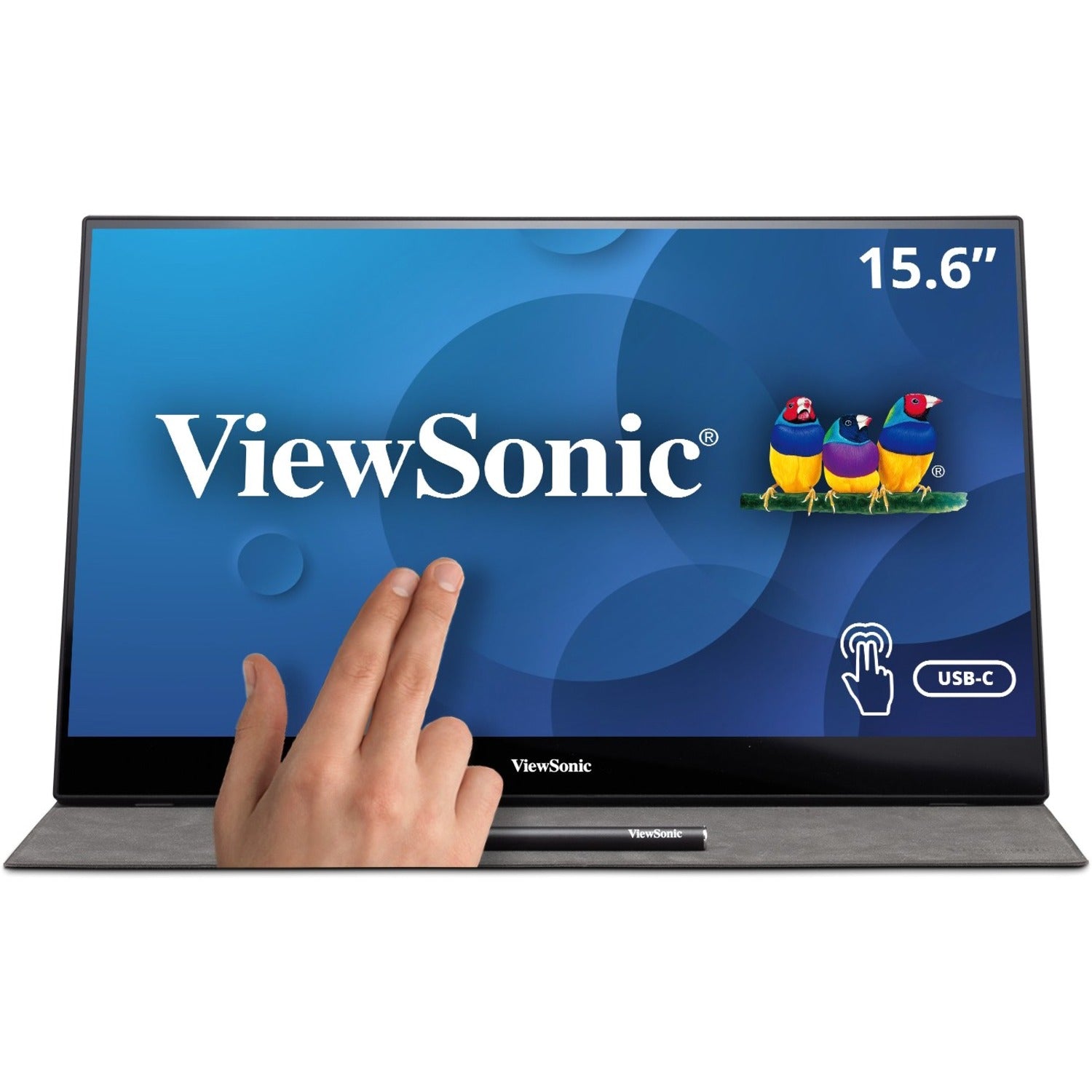

TD1655 Viewsonic 15.6" Display, IPS Panel, 1920 x 1080 Resolution

General Information

Manufacturer: ViewSonic Corporation
Manufacturer Part Number: TD1655
Manufacturer Website Address: http://www.viewsonic.com
Brand Name: ViewSonic
Product Model: TD1655
Product Name: TD1655 Touchscreen LCD Monitor

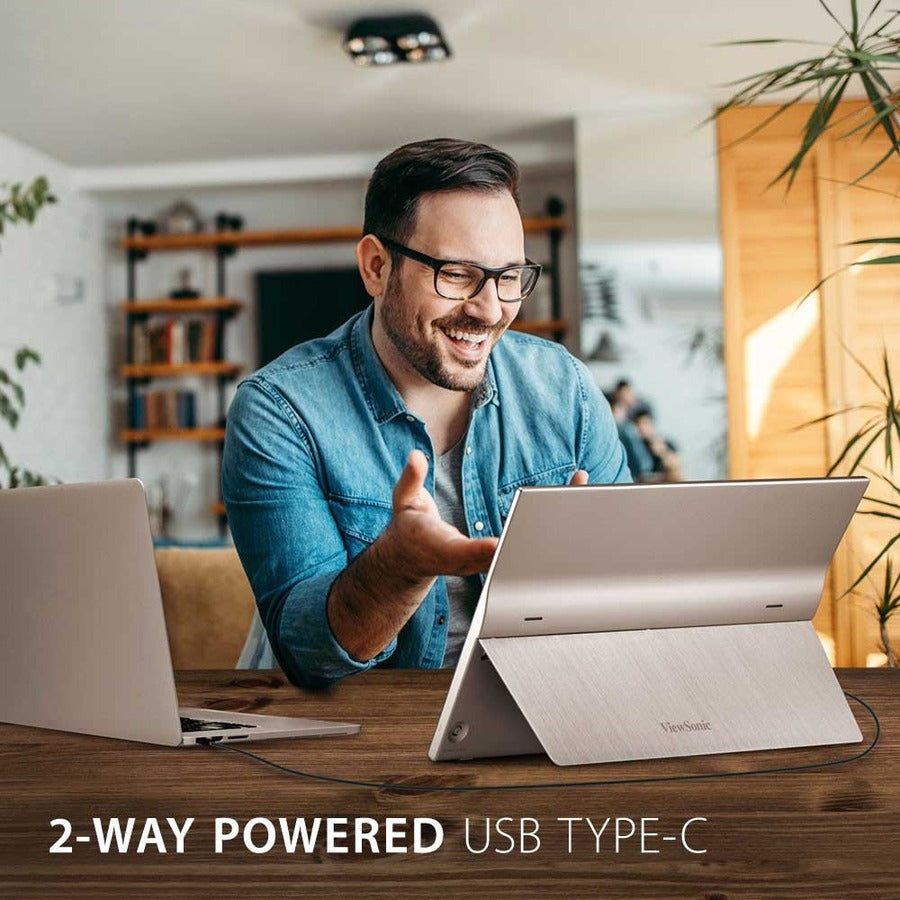

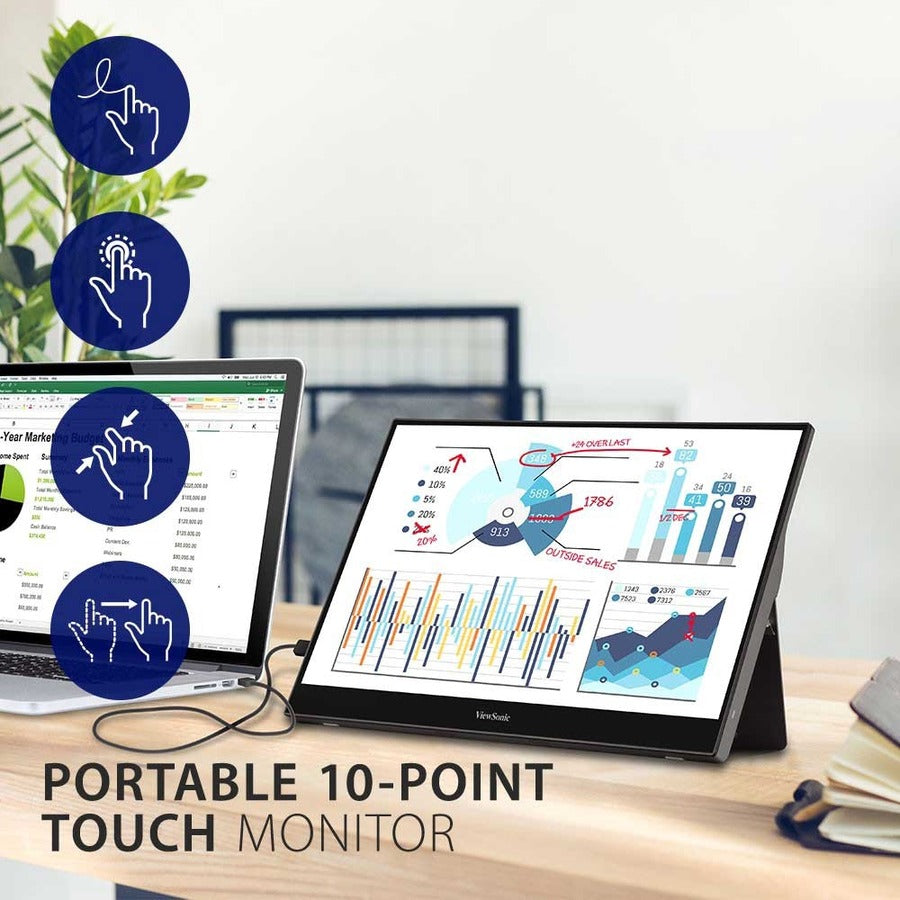

Marketing Information: The ViewSonic^® TD1655 is a portable 15.6" touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, and audio. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1
Product Type: LCD Touchscreen Monitor

Technical Information

Screen Size Class: 16"
Viewable Screen Size: 15.6"
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 6.50 ms
Aspect Ratio: 16:9
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Wall Mountable,Panel Mount
Backlight Technology: LED
Features: Eco Mode,Anti-glare,Ultra Slim,Wide Viewing Angle,Landscape/Portrait Viewable
Horizontal Frequency: 15 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz
Stand Adjustments: Tilt
Adjustable Stand: No

Video

Maximum Resolution: 1920 x 1080
Color Supported: 262k
Native Contrast Ratio: 800:1
Dynamic Contrast Ratio: 50,000,000:1
Brightness: 250 cd/m²

Audio

Speakers: Yes

Touchscreen Information

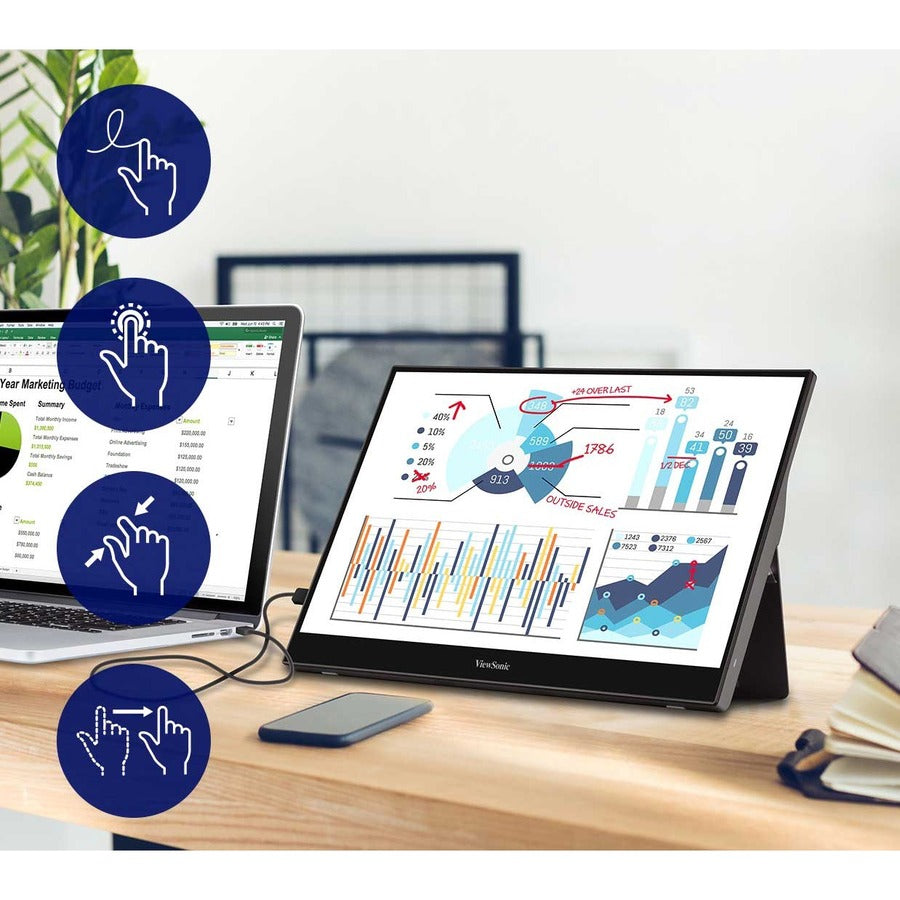

Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes

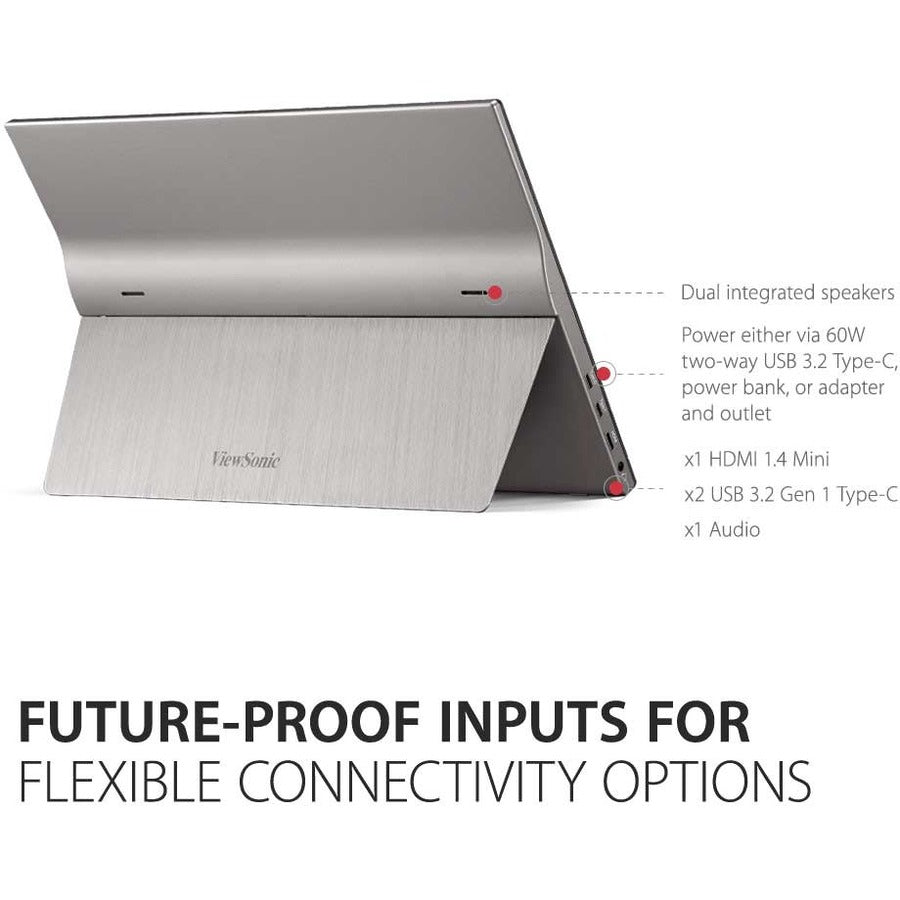

Interfaces/Ports

HDMI: Yes
USB: Yes
VGA: Yes

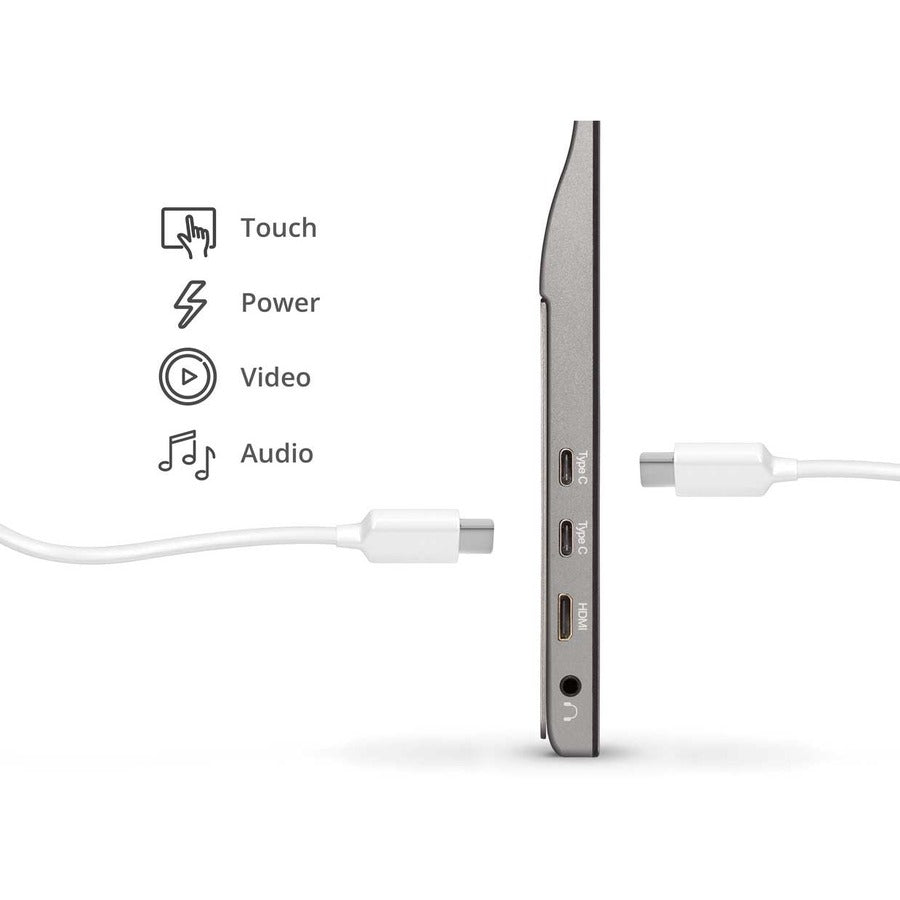

USB Type-C: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 2
Number of USB Type-C 3.2 Gen 1 Ports: 2

Power Description

Operating Power Consumption: 10.50 W

Physical Characteristics

Color Family: Black
Product Color: Black

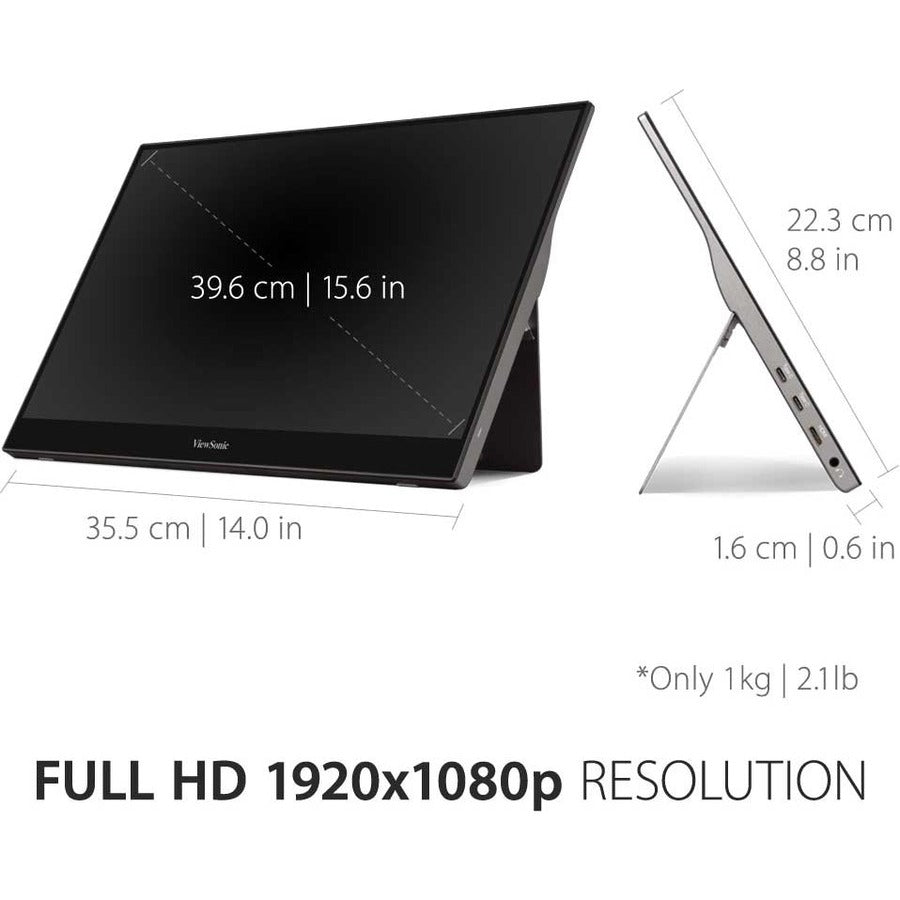

Height: 8.80" (223.52 mm)
Width: 14" (355.60 mm)
Depth: 0.60" (15.24 mm)
Weight (Approximate): 2.20 lb (1000 g)

Miscellaneous

Package Contents:

• TD1655 Touchscreen LCD Monitor
• USB type-C to type-C Cable
• USB type-C to type-A Cable
• Mini HDMI Cable
• Power Adapter
• Passive Touch Pen
• Quick Start Guide

Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: China Environmental United Certification Center (CEC),Electronic Product Environmental Assessment Tool (EPEAT)
Energy Efficiency Certification: ENERGY STAR 8.0

Warranty

Limited Warranty: 3 Year
