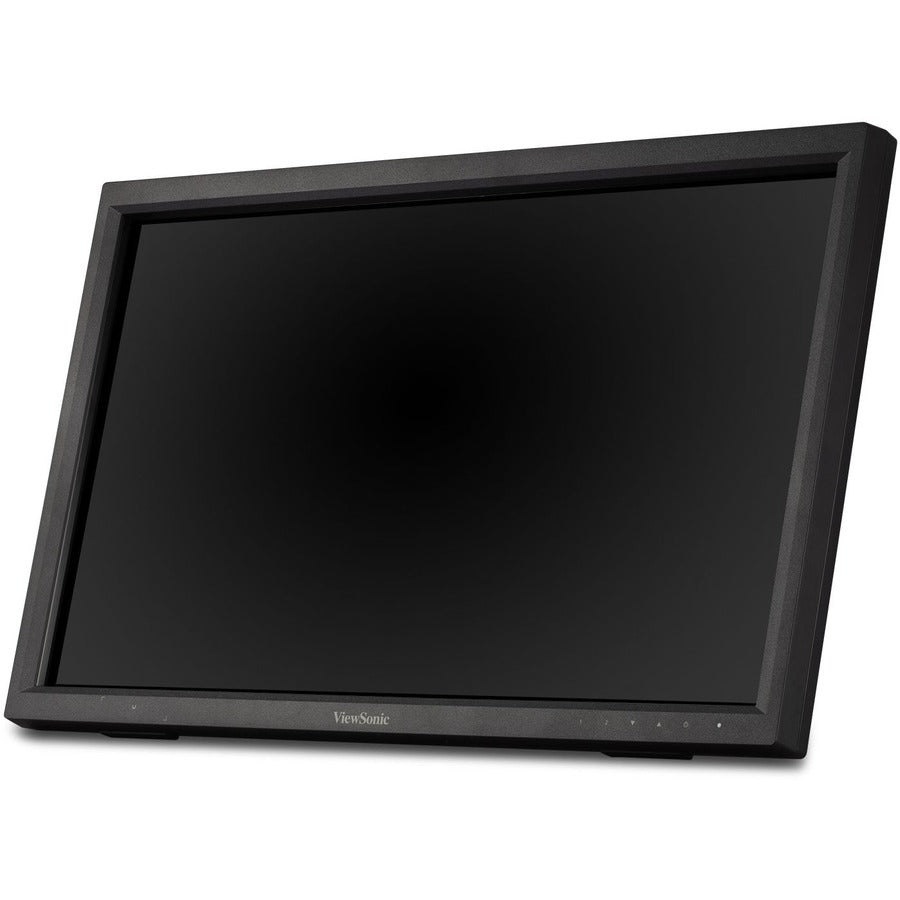

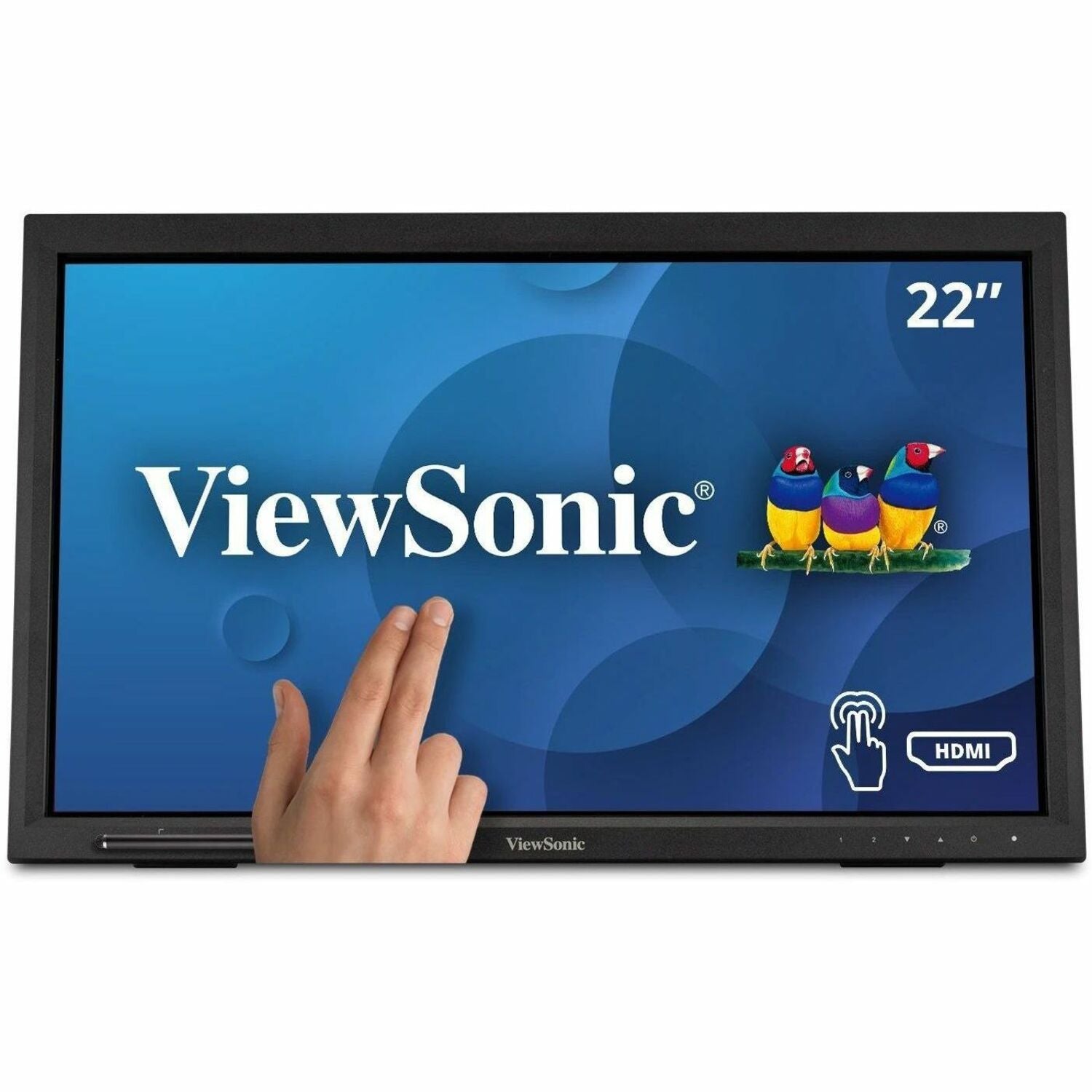

ViewSonic TD2223 22" Class LCD Touchscreen Monitor - 16:9 - 5 ms

General Information

Manufacturer: ViewSonic Corporation
Manufacturer Part Number: TD2223
Manufacturer Website Address: http://www.viewsonic.com
Brand Name: ViewSonic
Product Model: TD2223
Product Name: TD2223 - 22" Display, TN Panel, 1920 x 1080 Resolution
Marketing Information: Great for public kiosks, POS displays, and other retail and commercial applications, the ViewSonic® TD2223 is a 22" touch display with 10-point IR touch technology that lets users pinch, zoom and swipe for fast and intuitive navigation. With Full HD 1920x1080 resolution, 1000:1 static contrast ratio and 7H screen hardness, the TD2223 delivers sharp and bright images combined with durability for high-traffic applications. Flexible connectivity options include HDMI, VGA, DVI, and a USB hub to connect your peripherals and accessories. VESA-mount compatibility offers additional convenience and flexibility for 3rd party stands and mounts. What's more, ViewSonic's exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. Whether in retail or deployed in a high-traffic commercial setting, its scratch-resistant surface stands up to heavy use and safeguards its high quality touch experience. Combine this display with ViewSonic's Android and Windows media players for a perfect kiosk solution.

More from the Manufacturer

Product Type: LCD Touchscreen Monitor

Technical Information

Screen Size Class: 22"
Viewable Screen Size: 22"
Screen Mode: Full HD
Panel Technology: Twisted nematic (TN)
Response Time: 5 ms
Response Time Details: 5ms GTG
Aspect Ratio: 16:9
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Backlight Technology: LED
Features: Anti-glare,7H Surface Hardness,Security Lock,On-screen Display (OSD),Scratch Resistant
Horizontal Frequency: 24 kHz to 82 kHz
Vertical Frequency: 50 Hz to 75 Hz

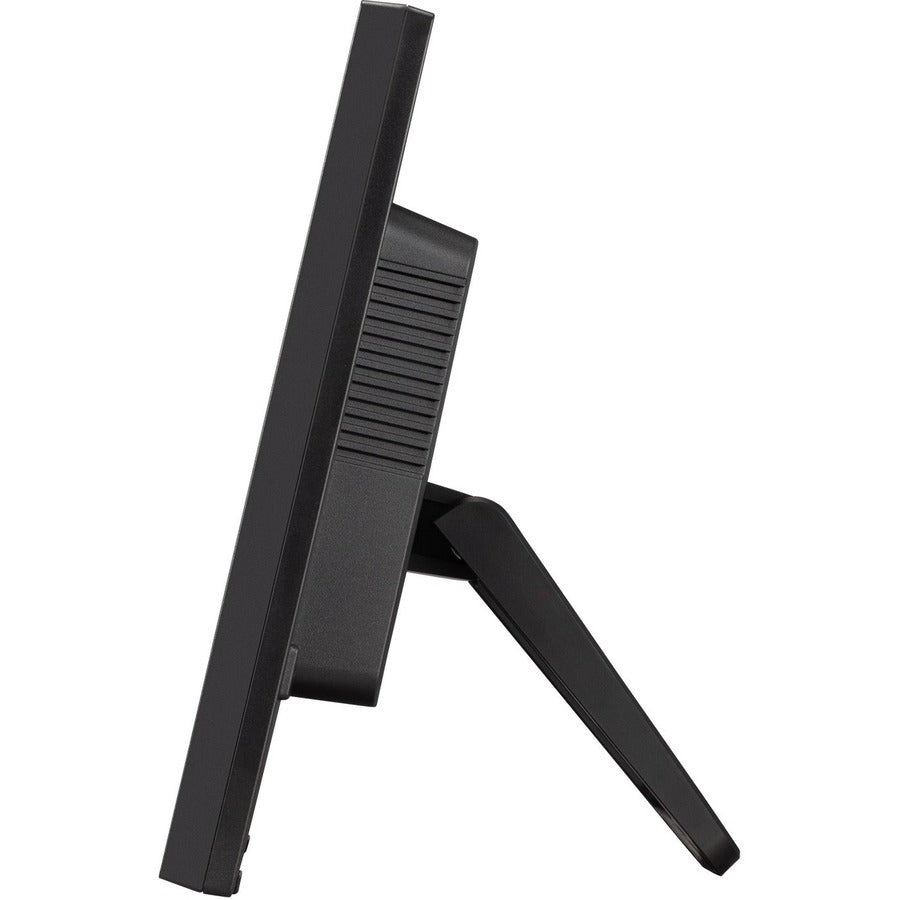

Stand Adjustments: Tilt
Curved Screen: No

Video

Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²

Audio

Speakers: Yes

Touchscreen Information

Touchscreen Type: Infrared
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 10

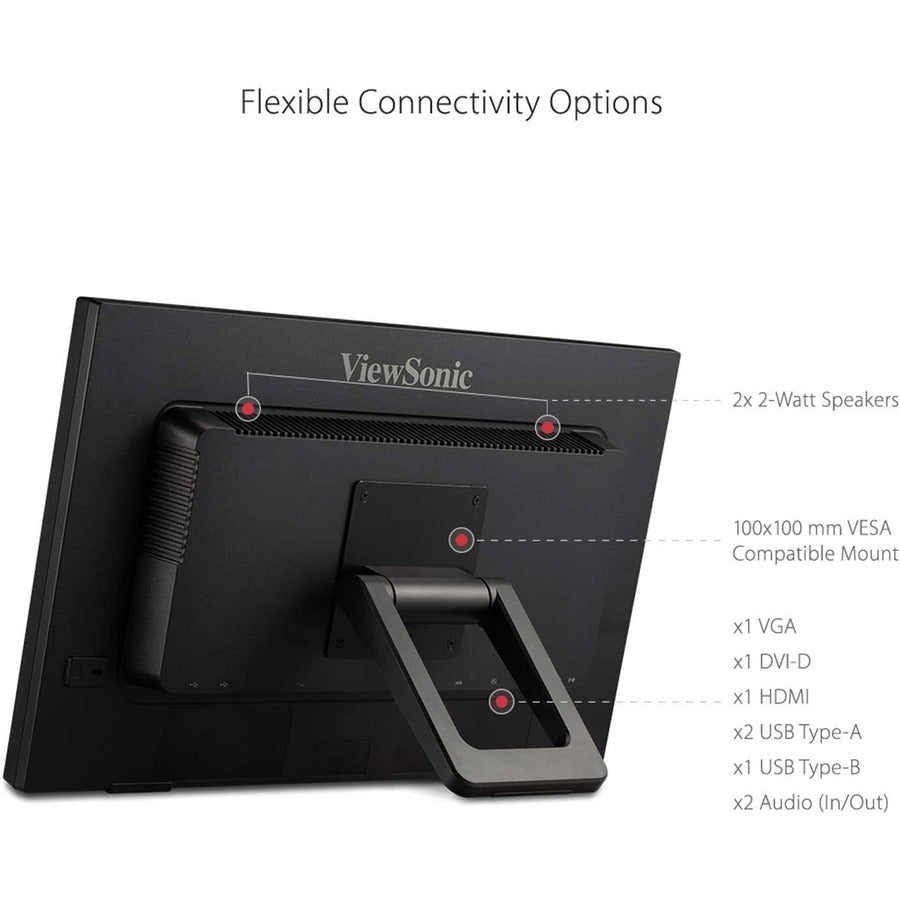

Interfaces/Ports

DVI: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 3

Built-in Devices

Built-in Devices: USB Hub

Power Description

Operating Power Consumption: 19 W

Physical Characteristics

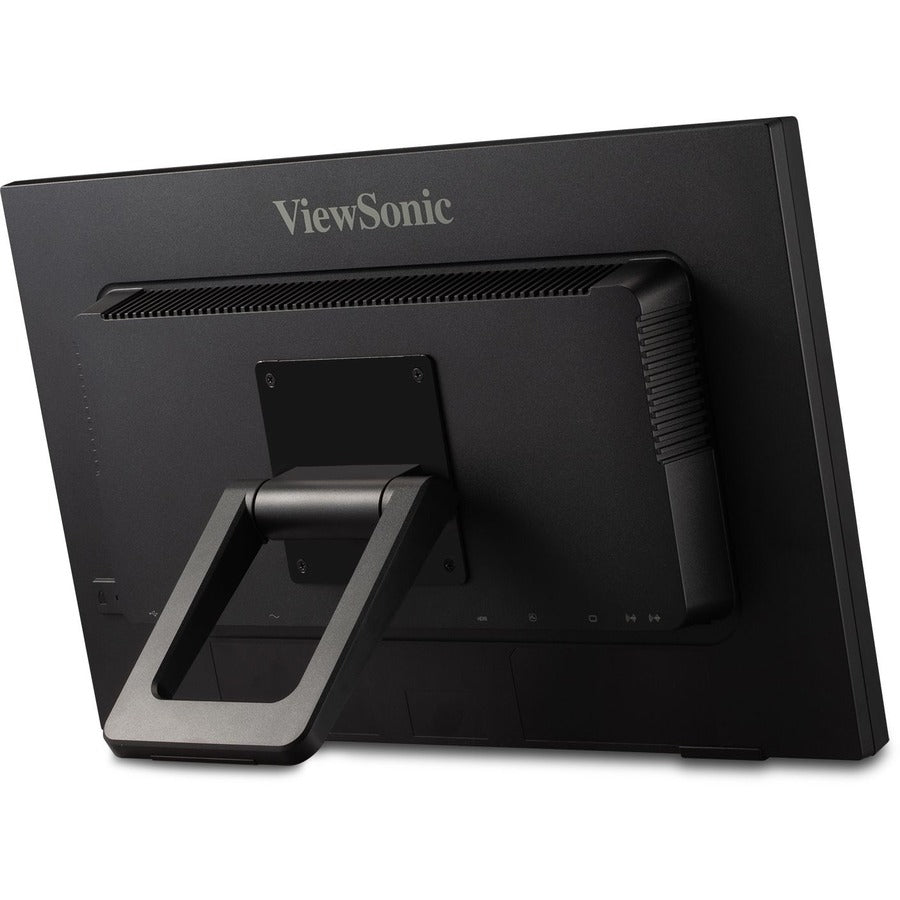

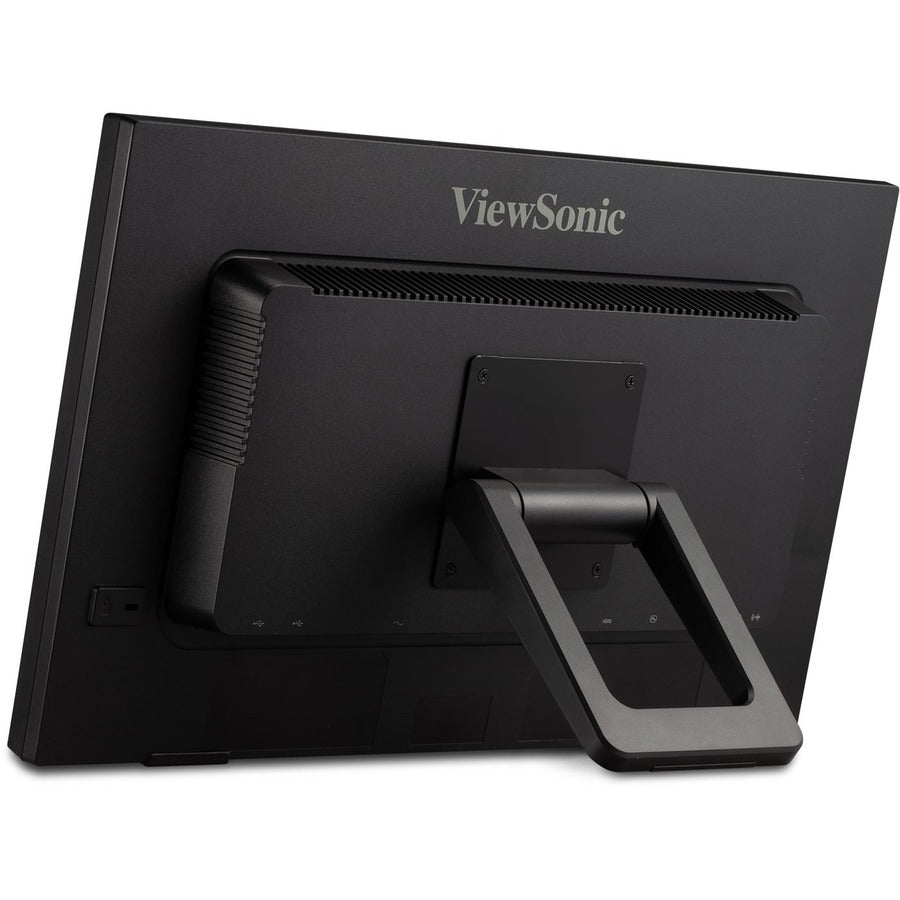

VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Color Family: Black
Product Color: Black

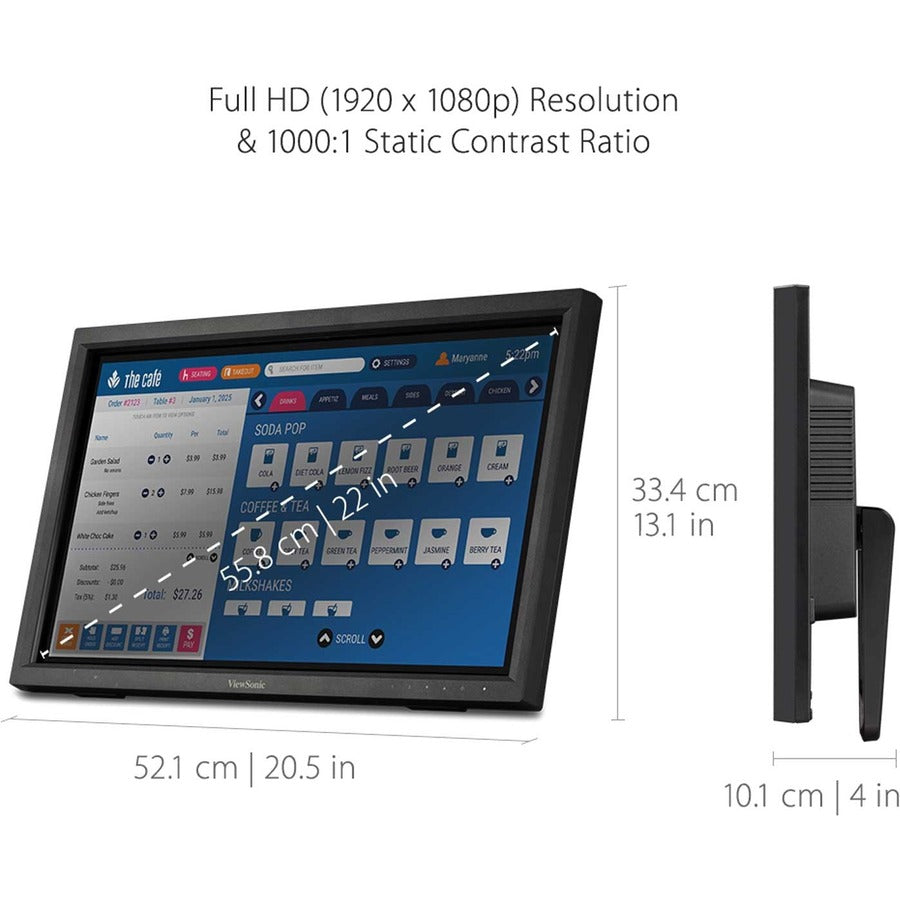

Height: 12.50" (317.50 mm)
Width: 20.50" (520.70 mm)
Depth: 2.40" (60.96 mm)
Height with Stand: 13.10" (332.74 mm)
Width with Stand: 20.50" (520.70 mm)
Depth with Stand: 4" (101.60 mm)
Weight (Approximate): 3.90 kg
Weight with Stand (Approximate): 4.49 kg

Miscellaneous

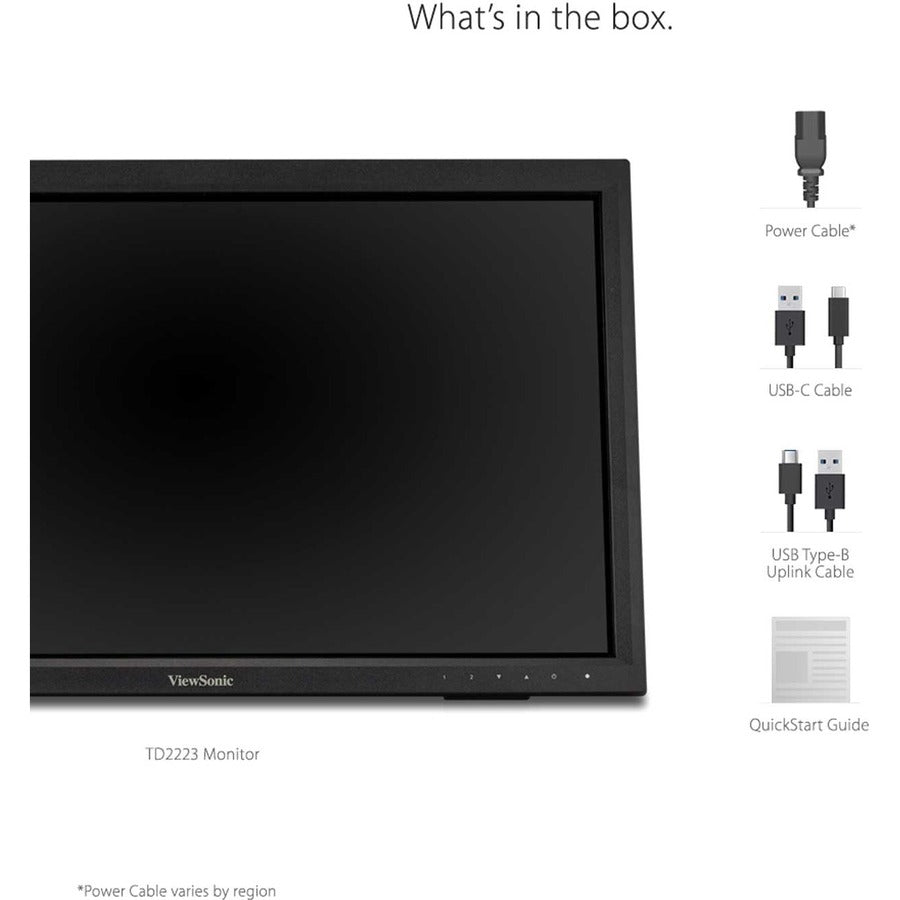

Package Contents:

TD2223 Display

Power Cable

USB Type B Uplink Cable

Quick Start Guide

Certifications & Standards:

cTUVus

Platform Supported: PC,Mac
Energy Star: Yes
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)

Warranty

Limited Warranty: 3 Year
