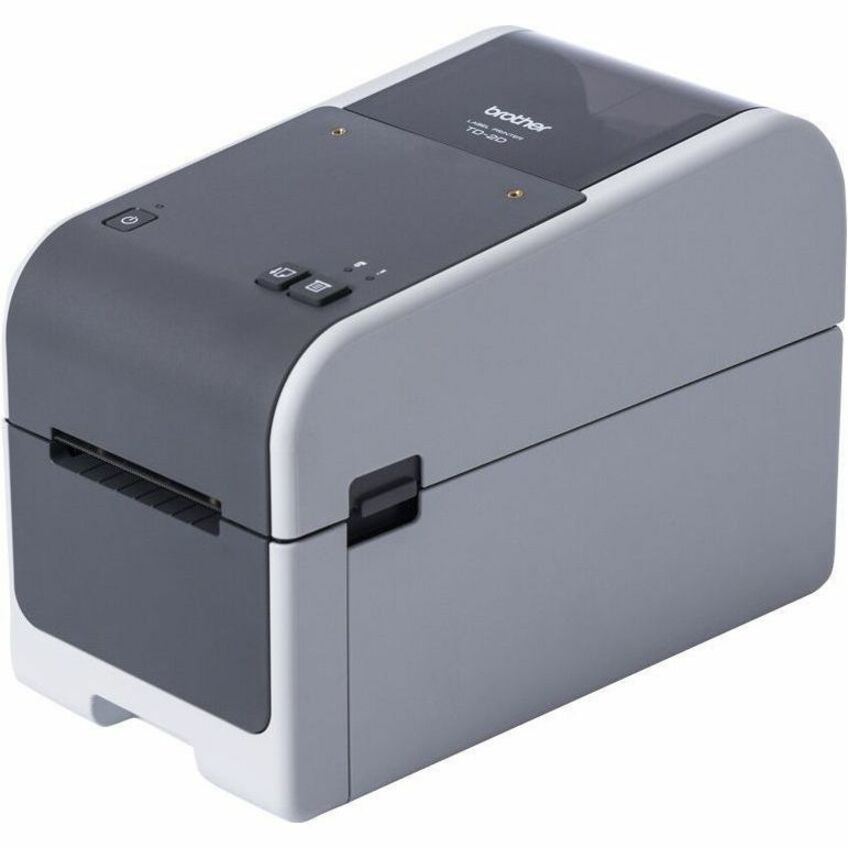

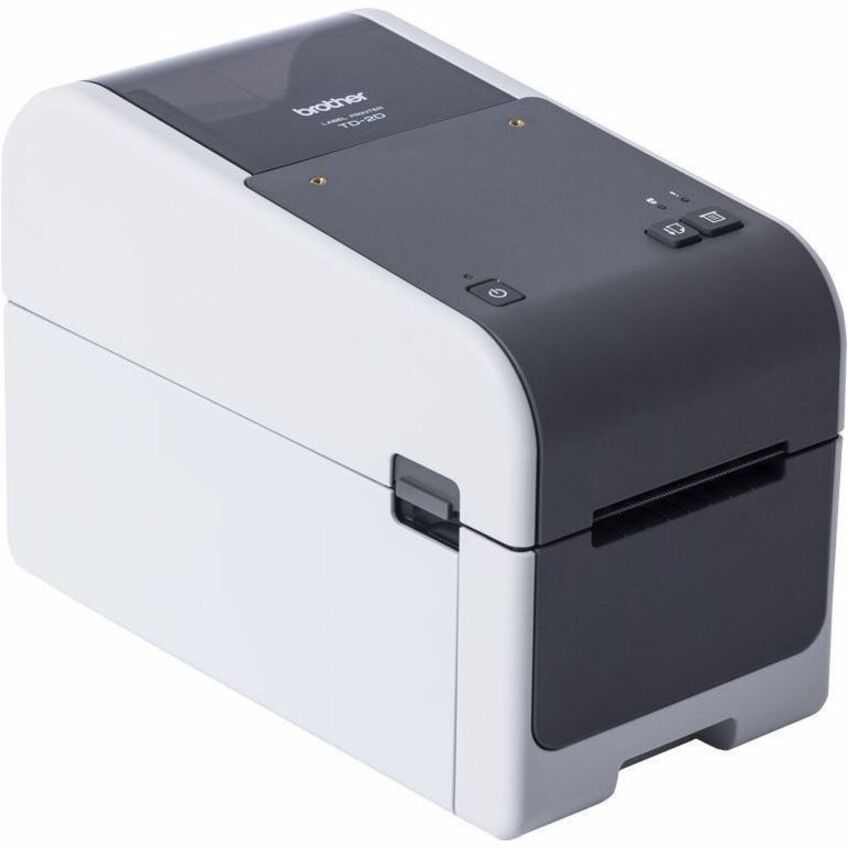

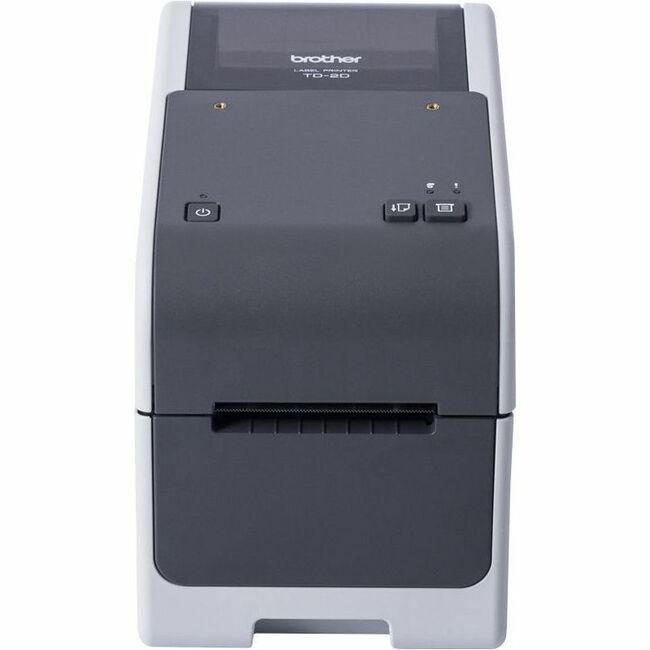

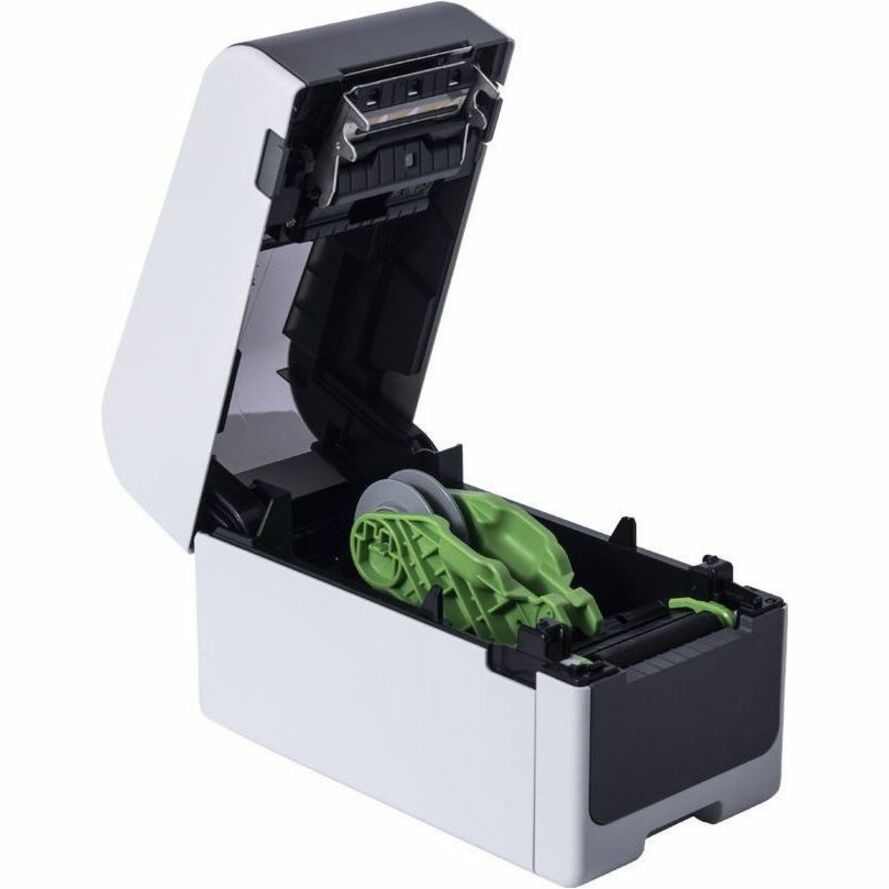

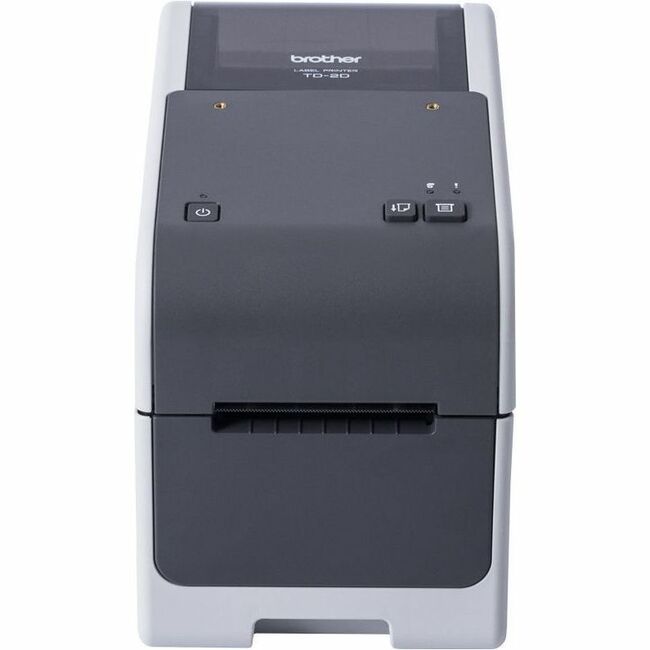

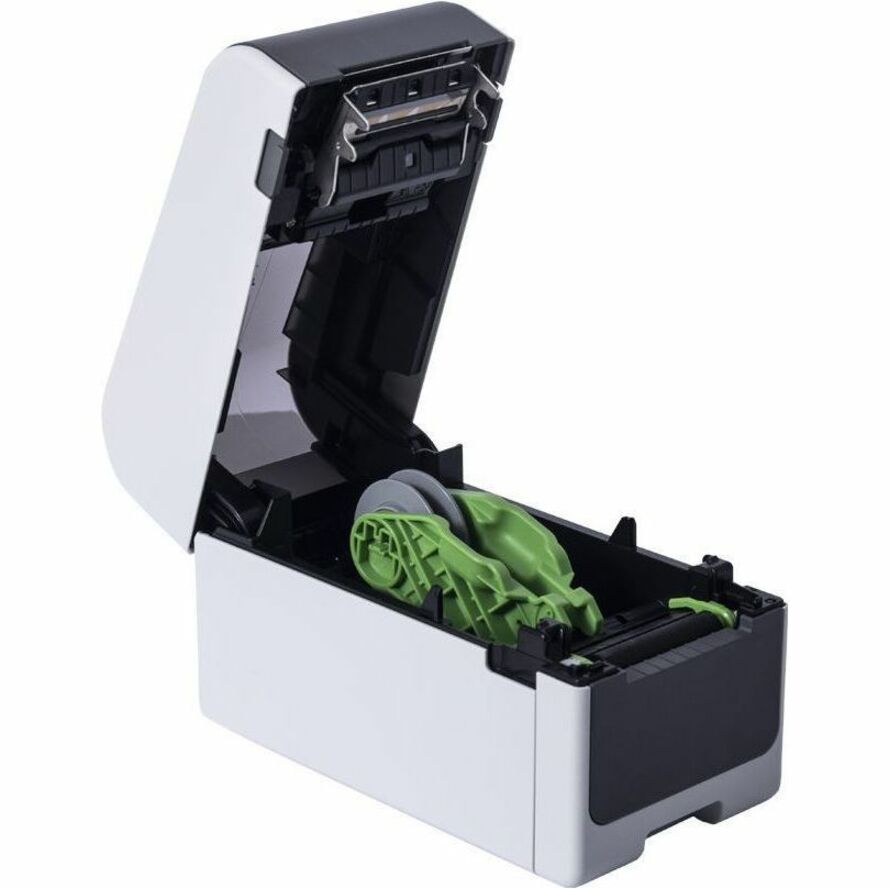

TD2310D203 Brother TD-2310D203 Desktop Direct Thermal Printer - Monochrome - Label Print - USB - Serial

General Information

Manufacturer: Brother Industries, Ltd
Manufacturer Part Number: TD2310D203
Manufacturer Website Address: http://www.brother.ca
Brand Name: Brother
Product Model: TD-2310D203
Product Name: TD-2310D203 Direct Thermal Printer
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 5.98 in/s (152 mm/s)
Maximum Print Resolution (dpi): 203
Connectivity Technology: Wired
Application/Usage: Desktop

Interfaces/Ports

Serial Port: Yes
USB: Yes
USB Standard: USB 2.0

Display & Graphics

Display Screen: Yes
Screen Size: 2" (50.80 mm)
Display Screen Type: LCD

Media Types & Handling

Maximum Roll Diameter: 0.5" (12.70 mm)
Maximum Label Width: 2.48" (63 mm)

Fonts & Emulation

Language Emulation: P-touch Template,Raster,ESC/P,ZPL II,CPCL

Software

Operating System Supported:

Microsoft:

• Windows 11
• Windows 10
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022

Environmental Conditions

Operating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 80%
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity: 10% - 90%

Physical Characteristics

Height: 6.22" (158 mm)
Width: 4.69" (119 mm)
Depth: 8.82" (224 mm)

Miscellaneous

Platform Supported: PC
