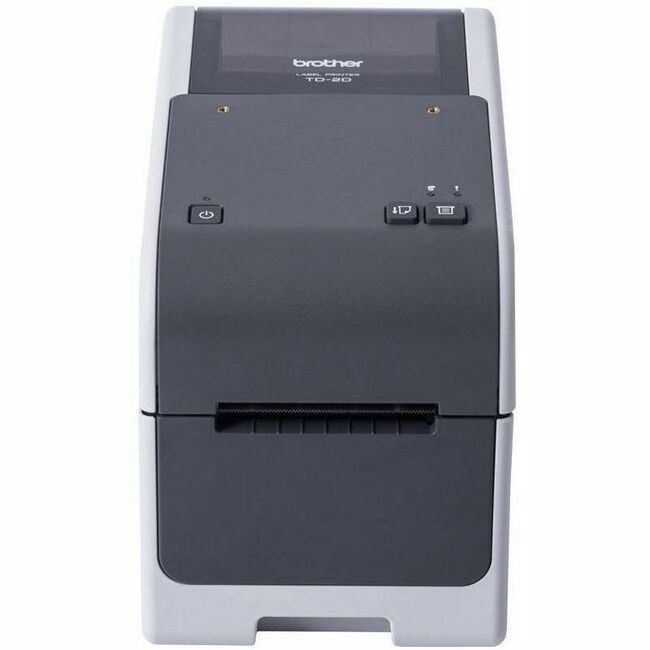

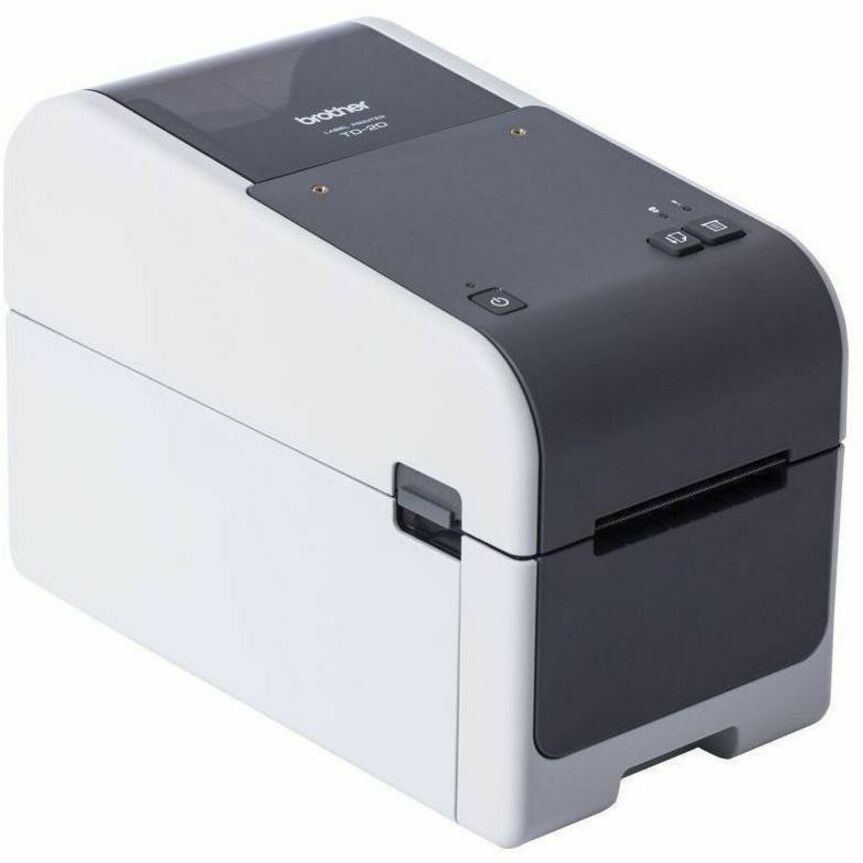

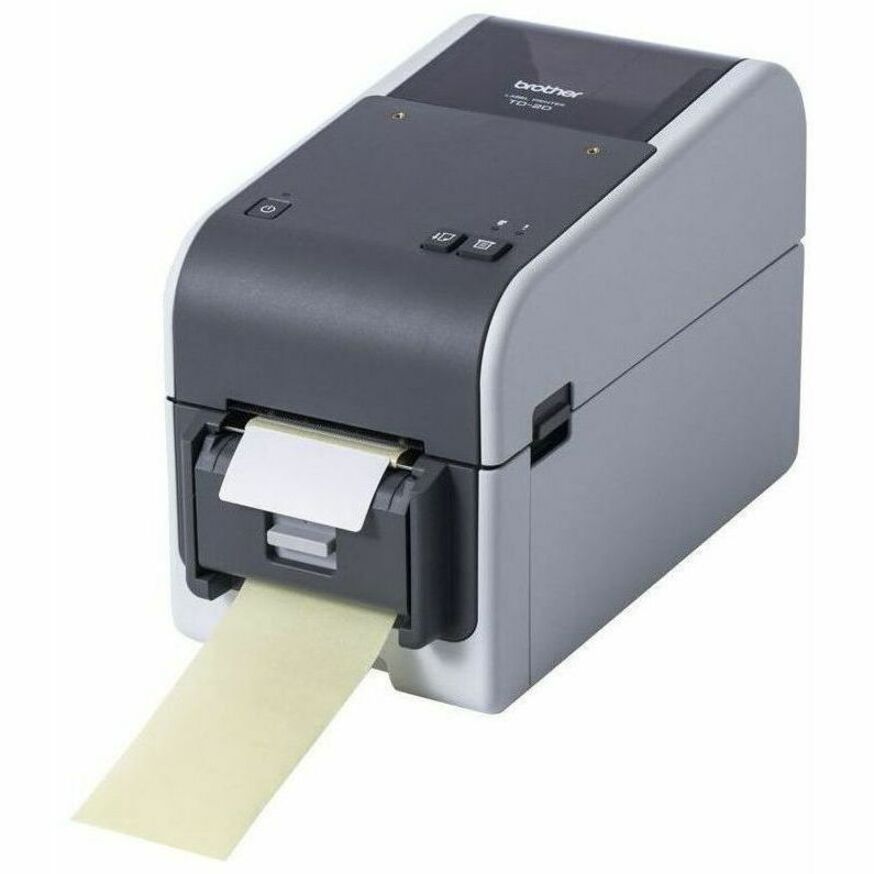

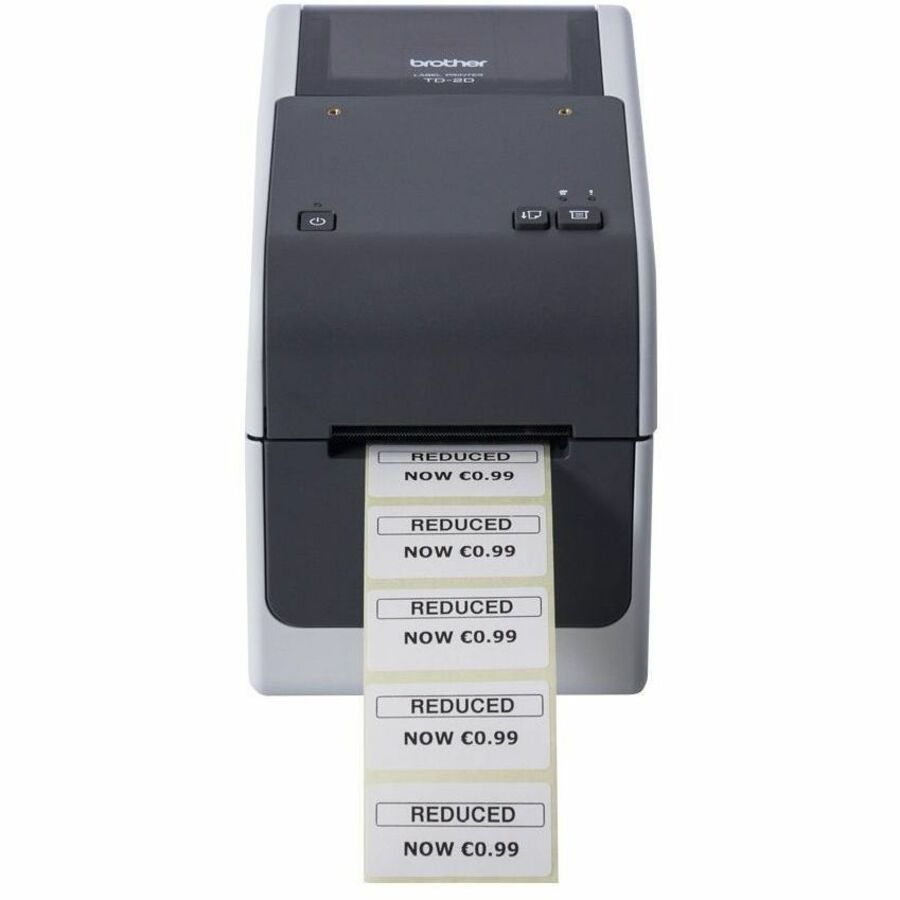

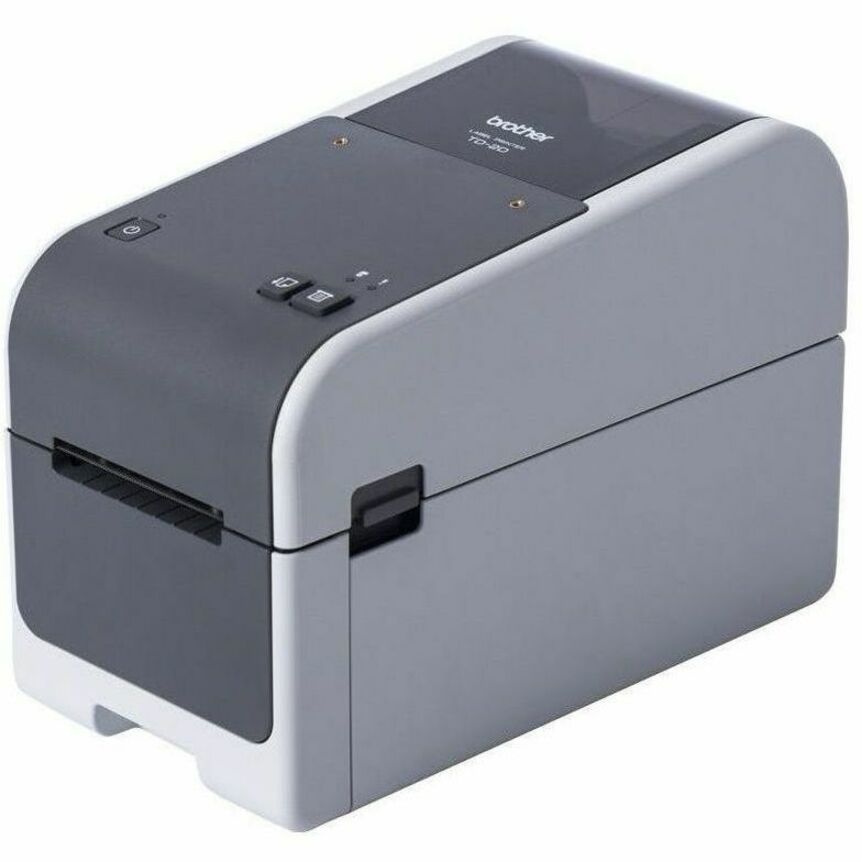

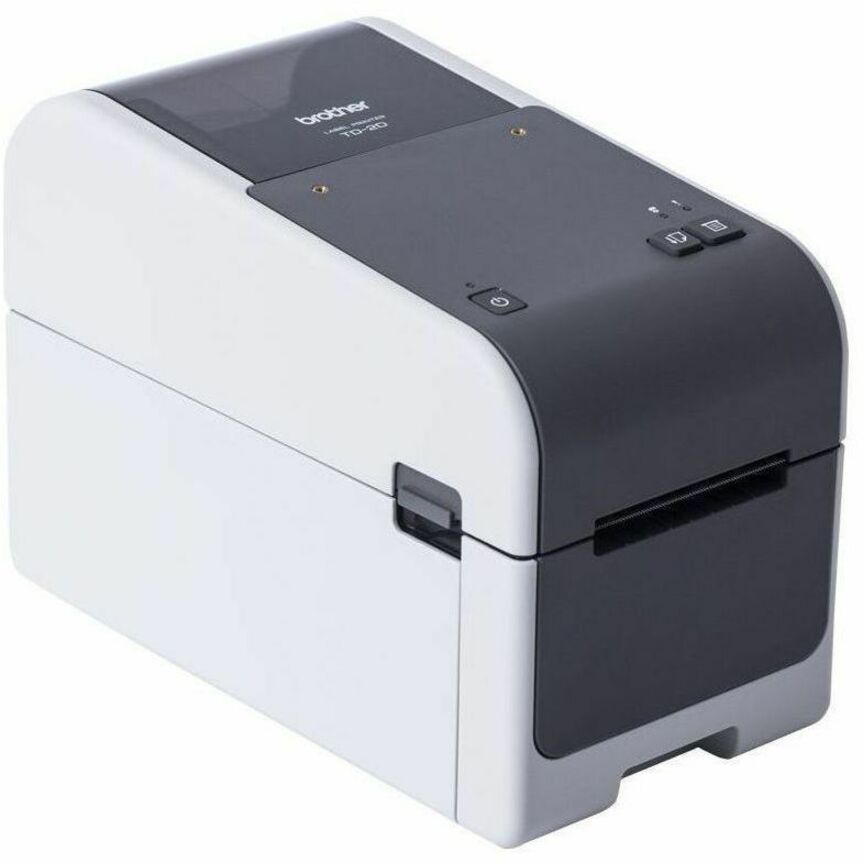

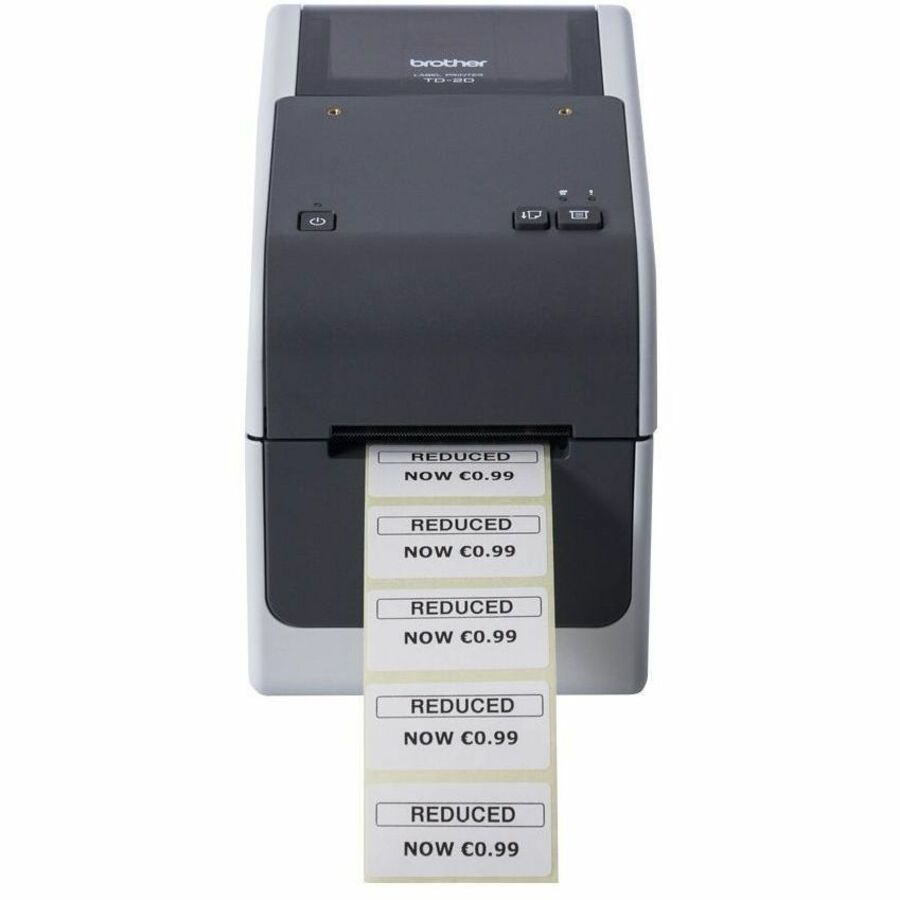

TD2320D203 Brother TD-2320D203 Direct Thermal Printer - Monochrome - Desktop - Label Print - Ethernet - USB - USB Host - Serial

General Information

Manufacturer: Brother Industries, Ltd
Manufacturer Part Number: TD2320D203
Manufacturer Website Address: http://www.brother.ca
Brand Name: Brother
Product Series: TD
Product Model: TD-2320D203
Product Name: TD-2320D203 Direct Thermal Printer
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 5.98 in/s (152 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 118.11" (3000 mm)
Barcode Symbology Supported: Code 39,ITF I-2/5,EAN-13 (JAN13),EAN-8 (JAN8),UPC-A,UPC-E,Codabar (NW-7),Code 128,GS1-128 (UCC/EAN-128),GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Limited,GS1 DataBar Expanded,QR Code,Maxi Code,Micro PDF-417,Data Matrix,AZTEC
Fonts Included: Letter Gothic Bold,Gothic,Brussels,Helsinki,Letter Gothic Regular

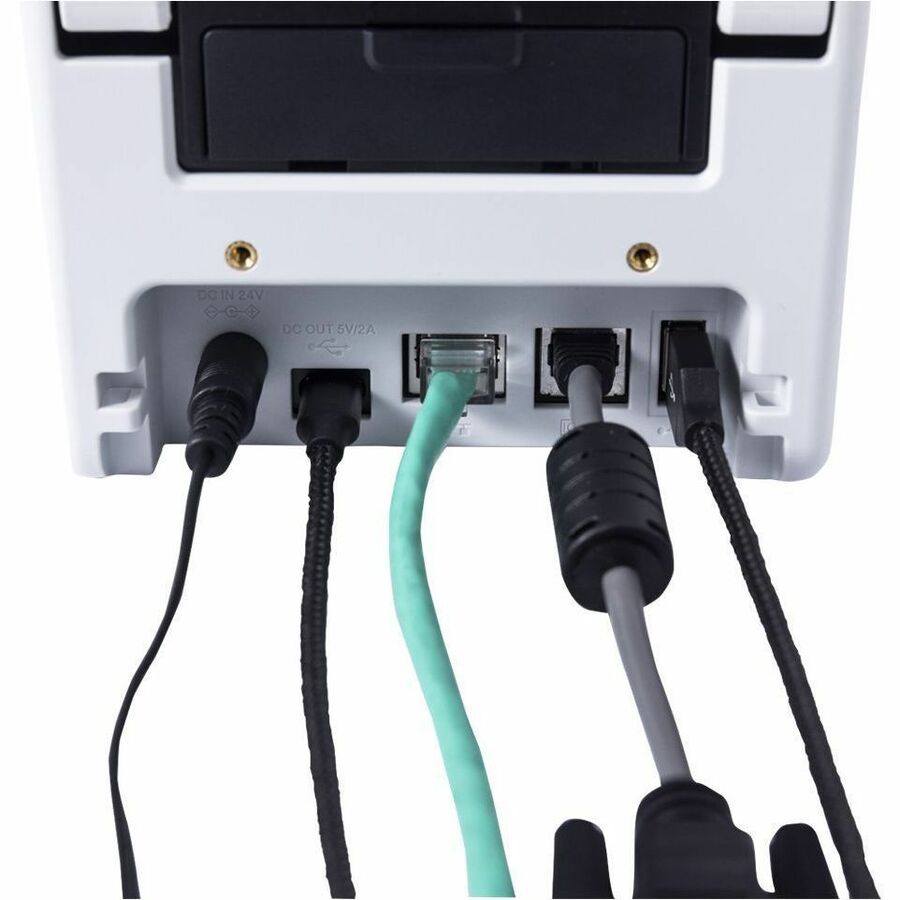

Interfaces/Ports

USB Host: Yes
Serial Port: Yes
USB: Yes
USB Standard: USB 2.0

Network & Communication

Ethernet: Yes
Ethernet Technology: Ethernet

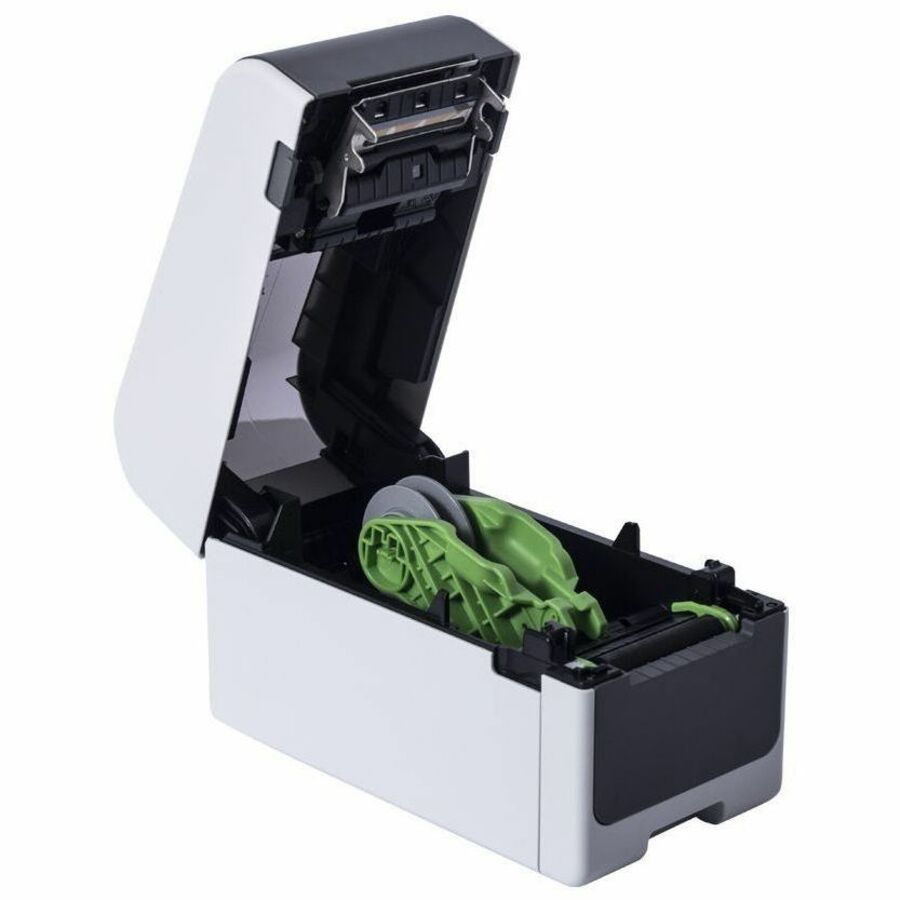

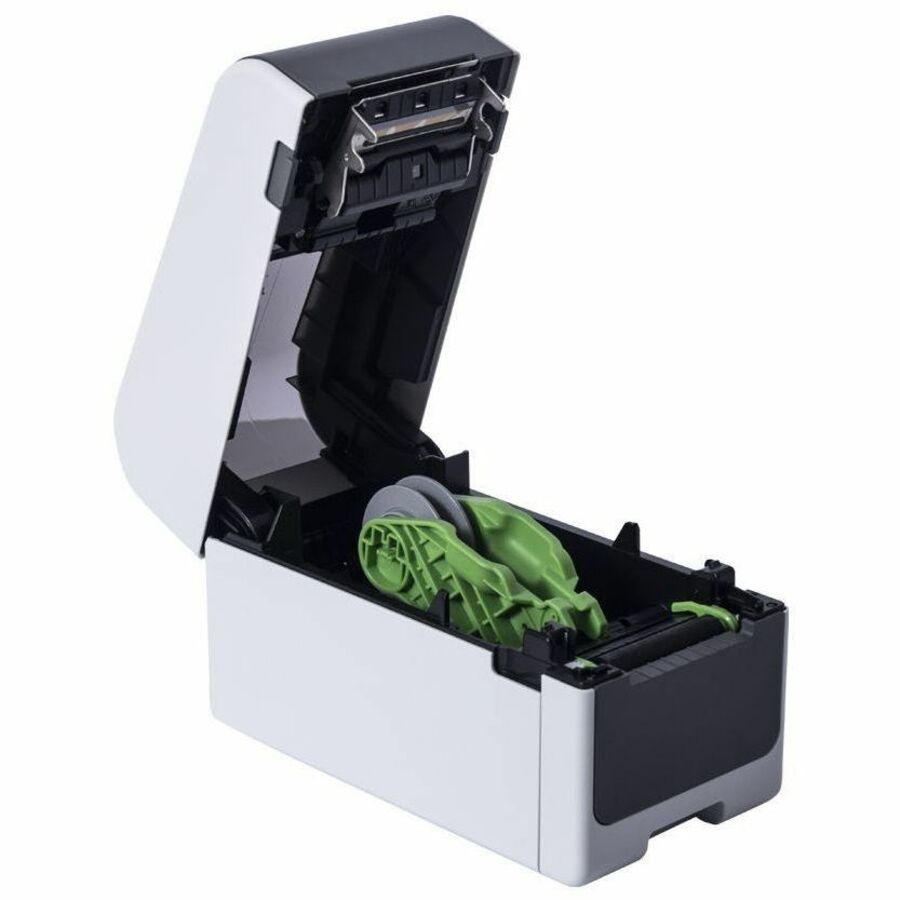

Media Types & Handling

Media Type: Label,Ticket
Maximum Label Width: 2.48" (63 mm)

Fonts & Emulation

Language Emulation: Raster,P-touch Template,ESC/P,ZPL2,CPCL

Software

Operating System Supported:

Windows (10, 11, Server 2016, Server 2019, Server 2022)

Environmental Conditions

Operating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 80%
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
Storage Relative Humidity: 10% - 90%

Physical Characteristics

Form Factor: Desktop
Height: 6.22" (158 mm)
Width: 4.69" (119 mm)
Depth: 8.82" (224 mm)
